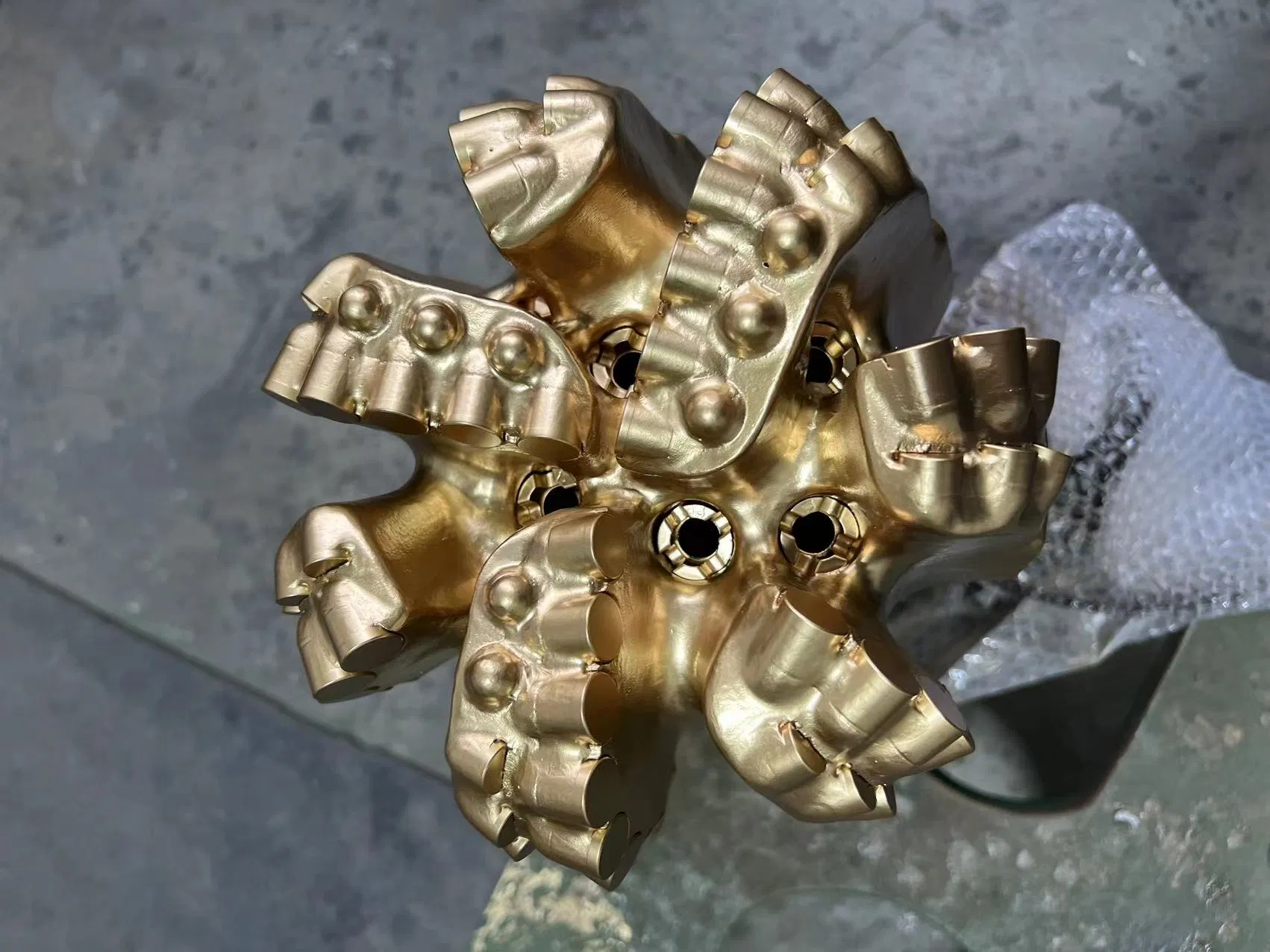

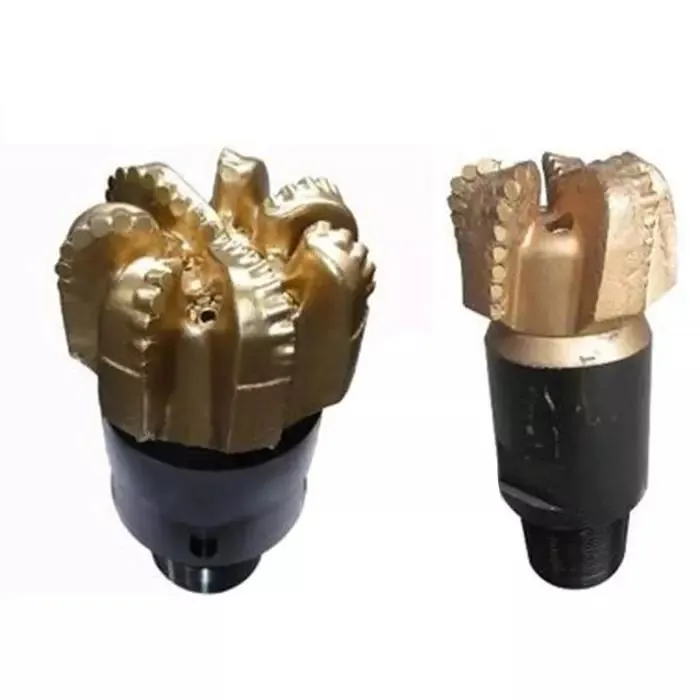

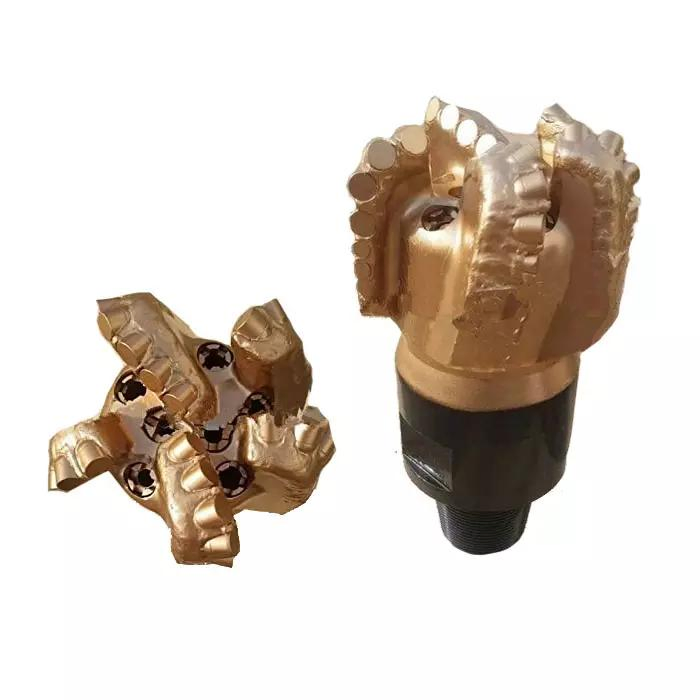

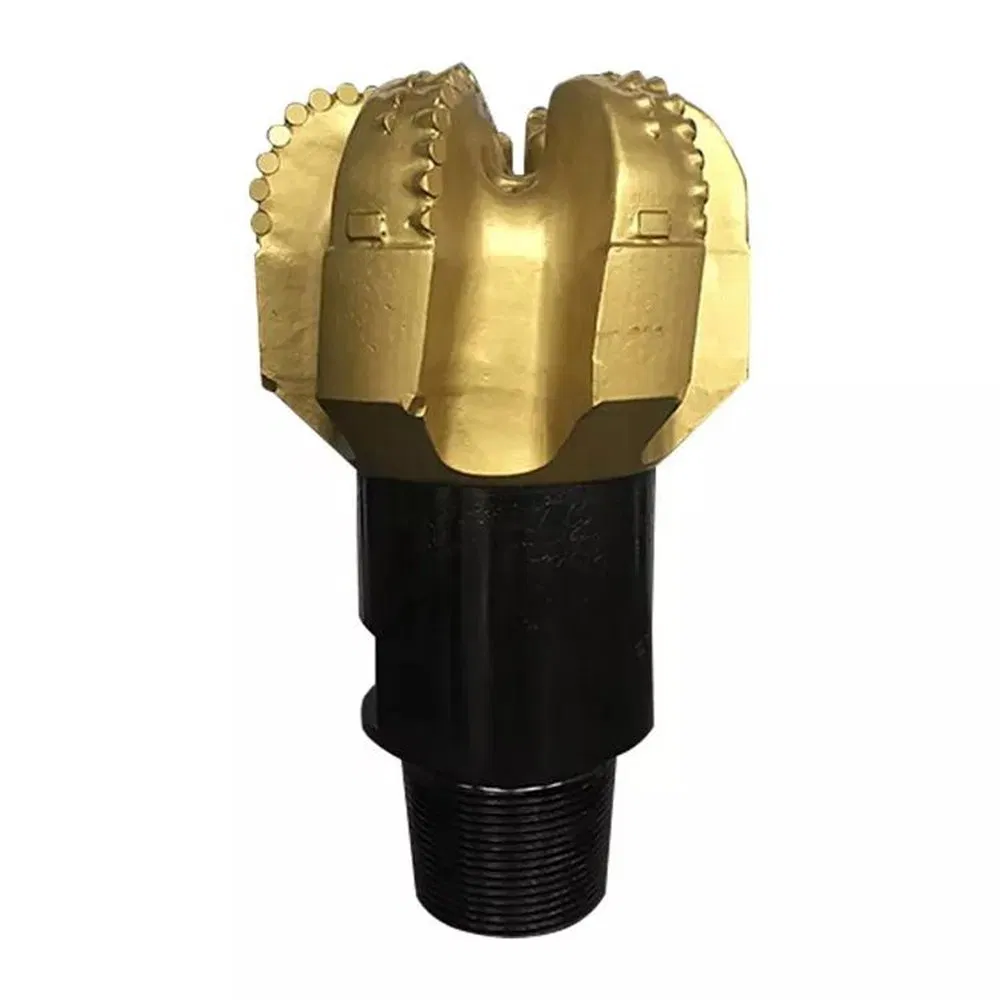

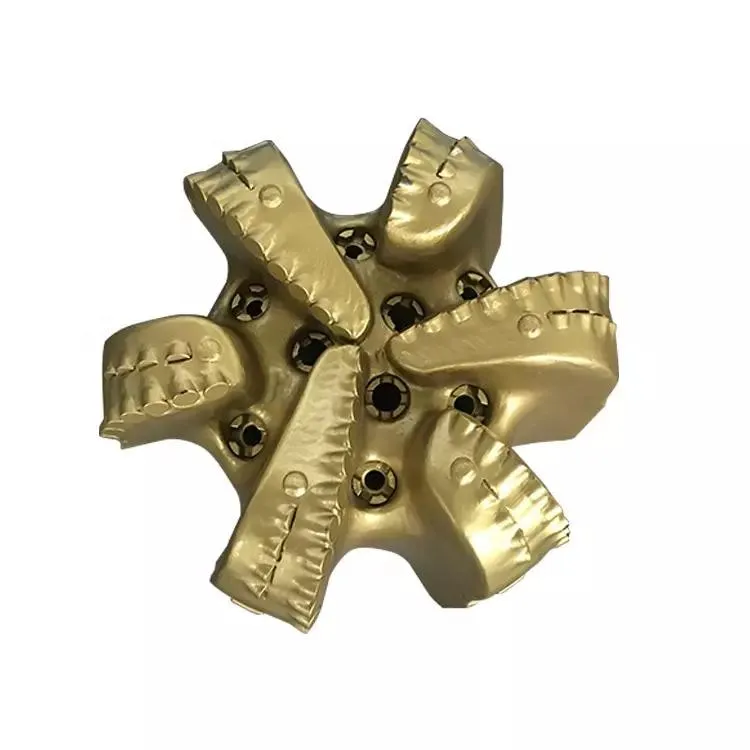

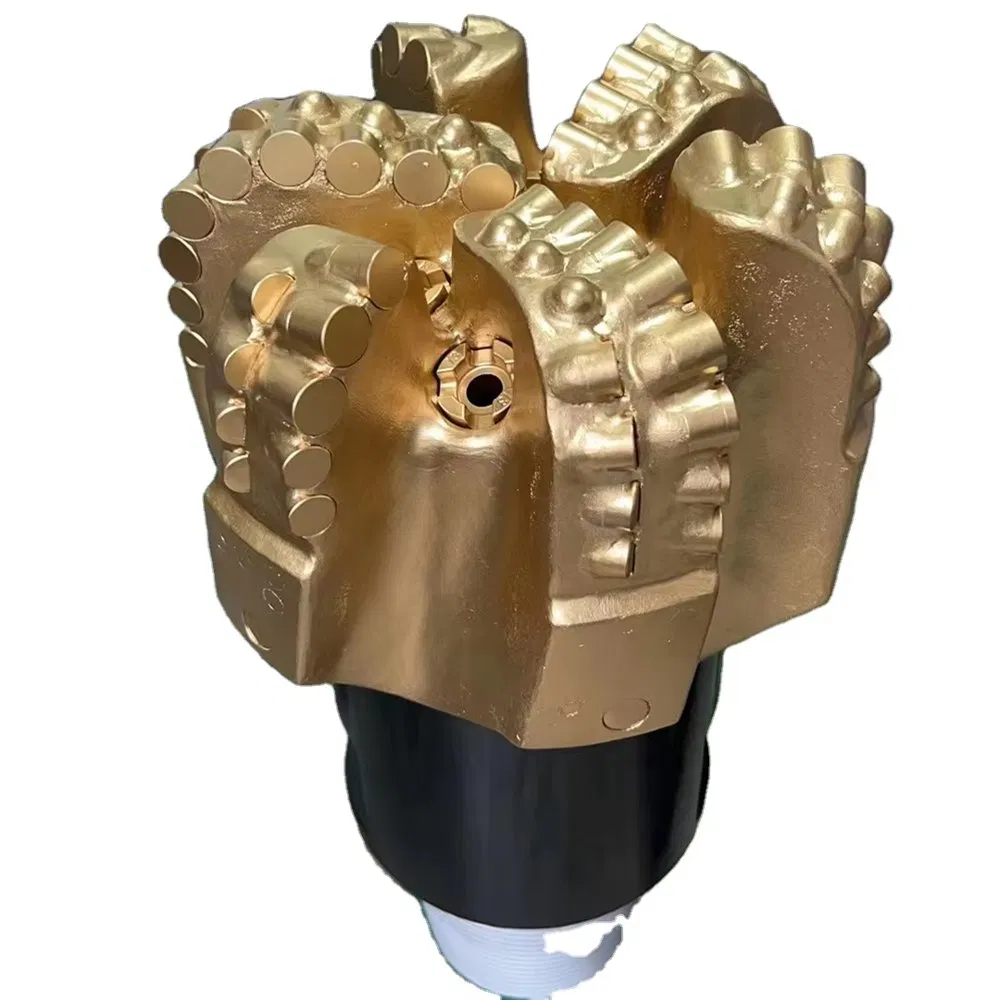

6 Blade Diamond Cutter Drilling PDC Drill Bit

1 / 5

6 Blade Diamond Cutter Drilling PDC Drill Bit

Customization:	Available
After-sales Service:	Yes
Warranty:	6 Months

Send Inquiry

Product Description

📋 Basic Information

Model NO.

PDC drill bit

Operation Pressure

Atmospheric Pressure

Applicable Medium

Hydraulic Oil

Material

Alloy

Raw Materials

Alloy Steel

Bit Material

PDC

Details

IADC

Origin

China

HS Code

8431431000

Production Capacity

10000

📦 Packaging & Delivery

Package Size

110.00cm * 150.00cm * 90.00cm

Package Gross Weight

150.000kg

Transport Package

Plywood Case

📍 Product Description

drilling PDC drill bit/6 blade diamond cutter

Introduction of PDC drill bit / PDC bit

♦ Steel body with hardening tungsten carbide surface(WC), make the drill bit both high strength and very strong abrasion resistance.

♦ Dedicated PDC cutter can improve the life and shield the risk of complex formation drill not passed.

♦ Raw materials: Alloy steel with a special treatment, achieve better mechanical properties (Rp0, 2: 1200MPa; Rm: 1100 MPa).

♦ Low torque spiral design and software designed tooth reduce the cutting edge wear & increase life (no repair life up to 8300 M/pc).

♦ The unique parabolic crown-shaped design and tooth balance design keeps smooth drilling under high speed (Speeds up to 30~40m/h).

♦ Scientific drilling dynamic equilibrium design and hydraulic balance design make the drilling process more smooth.

♦ Authoritative standard and ISO certification ensure quality and service.

📐 Technical Specifications

Size(mm)	Size(inch)	Wings
76	3''	3
89	3 1/2''	3
92	3 5/8''	3/4
95	3 3/4''	3/4
98	3 7/8''	3/4
102	4'	3/4
108	4 1/4''	3/4
114	4 1/2''	3/4
127	5''	3/4
133	5 1/4''	3/4
140	5 1/2''	3/4
146	5 3/4''	3/4
152	6''	3/4
165	6 1/2''	3/4
171	6 3/4''	3/4/5
191	7 1/2''	3/4/5
200	7 7/8''	3/4/5
220	8 5/8''	3/4/5
260	10 1/2''	3/4/5
280	10 3/4''	3/4/5
356	14''	3/4/5
380	15''	3/4/5

📜 Certifications

🏭 Profile

Established in 2003, we are located in a major oilfield region of China. Our business scope includes the supply of high-quality oilfield equipment, such as drilling equipment and spares, wellhead equipment, and oil recovery equipment. Over the past 19 years, we have established solid partnerships and a vast network with quality OEM factories. Based on our responsive and responsible engineering and commercial team, we provide a one-stop shop service to our customers, offering package plans for procurement that add value in terms of delivery time, fair prices, and inventory availability. We look forward to building partnerships and providing our attentive service to your company.

❓ Frequently Asked Questions

Q1: What materials are used in the construction of the PDC drill bits?

The bits feature a steel body with a hardening tungsten carbide surface (WC) and high-grade alloy steel raw materials to ensure high strength and abrasion resistance.

Q2: How does the parabolic crown-shaped design benefit the drilling process?

The unique parabolic crown and tooth balance design ensure smooth drilling even under high-speed operations, reaching speeds up to 30~40m/h.

Q3: Are these drill bits suitable for complex geological formations?

Yes, the dedicated PDC cutters are specifically designed to improve tool life and mitigate risks when drilling through complex formations.

Q4: What is the estimated production capacity for these bits?

Our current production capacity is approximately 10,000 units, allowing us to handle both standard and bulk orders efficiently.

Q5: Do the drill bits meet international industry standards?

Yes, the products are manufactured according to authoritative standards and carry ISO certification to ensure consistent quality and performance.

Q6: How does the bit design contribute to a longer service life?

The low torque spiral design and software-engineered tooth placement reduce cutting edge wear, allowing for a "no repair" life of up to 8300 meters per piece.
