API PDC Cutter for PDC Bit Tungsten Carbide Insert

1 / 5

API PDC Cutter for PDC Bit Tungsten Carbide Insert

Customization:	Available
After-sales Service:	12 Months
Warranty:	12 Months

Send Inquiry

Product Description

Product Overview

Model NO.

PDC Cutter

Process

Forging & Polishing

Material

Cast Steel / Tungsten Carbide

Certificate

API Standard

Application

Well Drilling (Water/Oil/Gas)

IADC Spec

114 ~ 837

Product Description

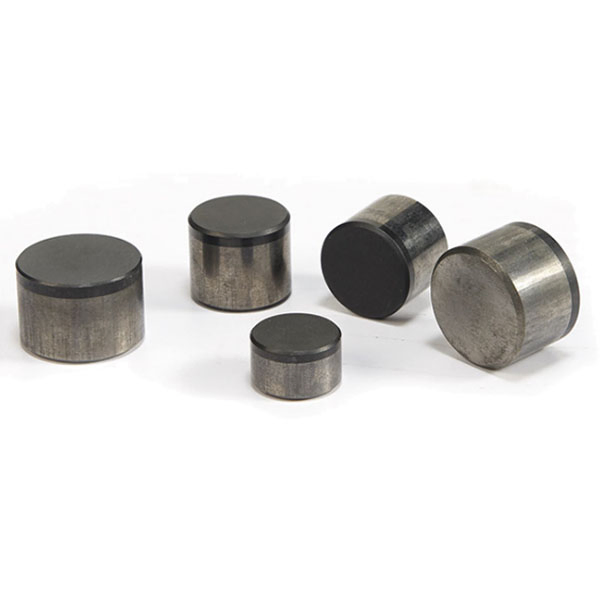

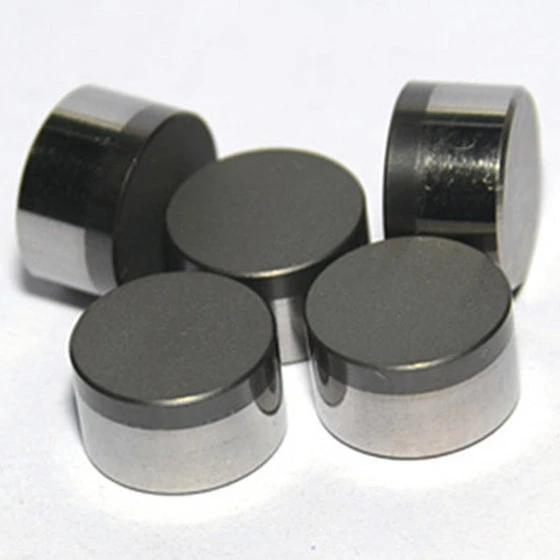

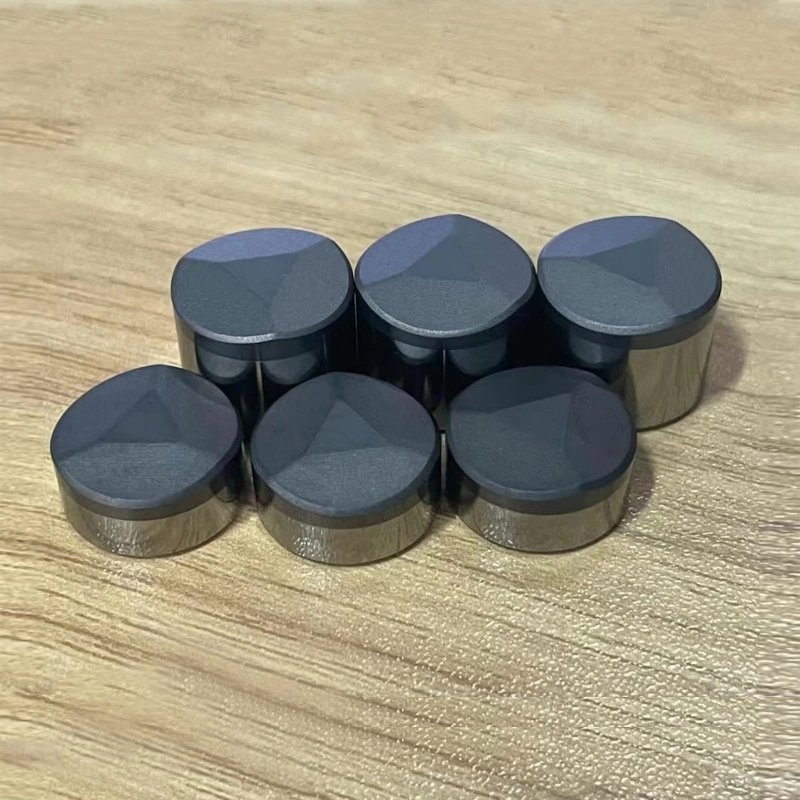

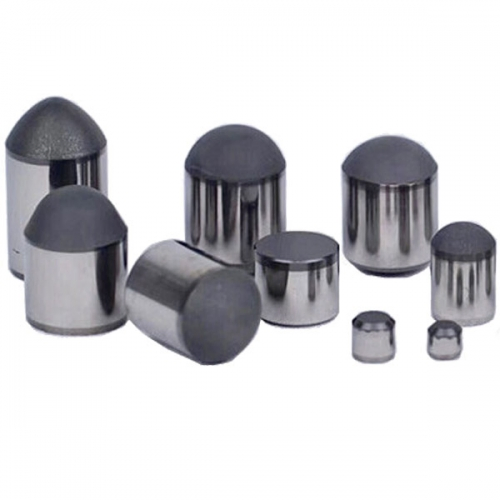

API PDC Cutter for PDC Bit Tungsten Carbide Insert

PDC Cutter inserts are high-performance drilling components designed for extreme durability and efficiency in various geological formations.

Product Number	Diameter (D) mm	Height (T) mm	Diamond Thickness (t) mm	Diamond Chamfer
1308	13.44±0.03	8.00±0.10	2.30±0.20	0.30±0.10
1313	13.44±0.03	13.20±0.10	2.30±0.20	0.30±0.10
1608	15.88/16.00±0.03	8.00±0.10	2.30±0.20	0.30±0.10
1613	15.88/16.00±0.03	13.20±0.10	2.30±0.20	0.30±0.10
1908	19.05±0.05	8.00±0.10	2.30±0.20	0.30±0.10
1913	19.05±0.05	13.20±0.10	2.30±0.20	0.30±0.10
1916	19.05±0.05	16.31±0.10	2.30±0.20	0.30±0.10

Technical Parameters

Bit Type	6"	8-1/2"	12-1/4"	17-1/2"
IADC Code	M423	M432 / M332	M432 / M332	M323
Blades	5	6	6	6
Cutter Size	Φ13mm	Φ16mm	Φ16mm	Φ16/Φ13mm
Rotary Speed (RPM)	60-260	60-260	60-260	60-260
Weight on Bit (KN)	8-50	20-100	30-140	30-200
Connection	3-1/2" API REG	4-1/2" API REG	6-5/8" API REG	7-5/8" API REG

Certifications

Packaging & Shipping

📦 Packing: Inner white/color box, Outer cartons or pallets.
💳 Payment: T/T, L/C accepted.
🚢 Shipment: Approx 30 days via Tianjin, Qingdao, or Shanghai ports.
🛡️ Guarantee: One year from delivery.
🔍 Inspection: 100% testing before delivery.

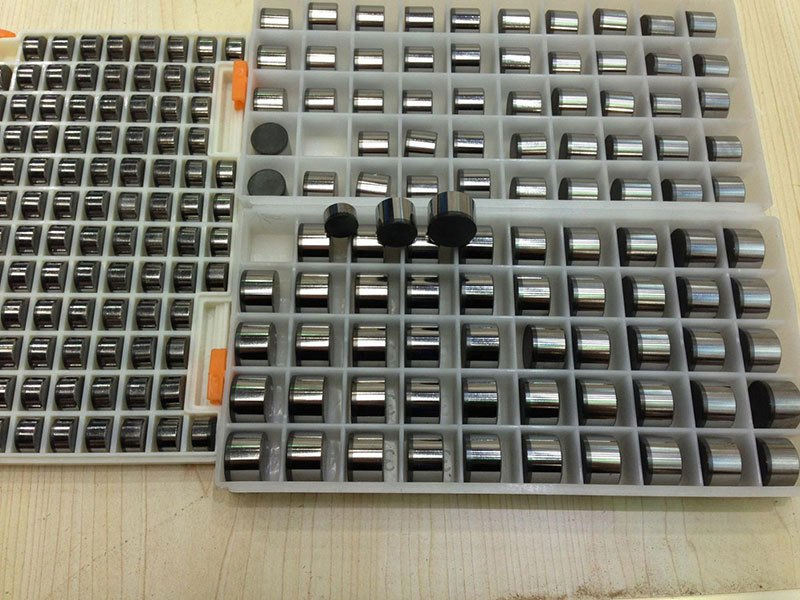

Production Gallery

Frequently Asked Questions

Who are we?

We are a professional supplier based in China with extensive experience in the research, development, and manufacturing of oil drilling equipment and strings since 2016.

How can we guarantee quality?

Quality is ensured through a pre-production sample before mass production and a final 100% inspection before every shipment.

What products can you buy from us?

Our range includes API PDC cutters, gate valves, mud pump spare parts, handling tools, drilling strings, and well control equipment.

Why should you choose our tools over other suppliers?

We hold 19 years of expertise in research and manufacturing, adhering strictly to ISO 9001 and API standards, serving major global oil service companies.

What services and delivery terms do you provide?

We offer various delivery terms including FOB, CFR, CIF, and EXW, and accept payments via T/T, L/C, and Credit Card. Our team speaks English, Chinese, and Russian.

What is the typical lead time?

The typical shipment time is approximately 30 days after receiving advance payment, or as per the specific agreement between both parties.
