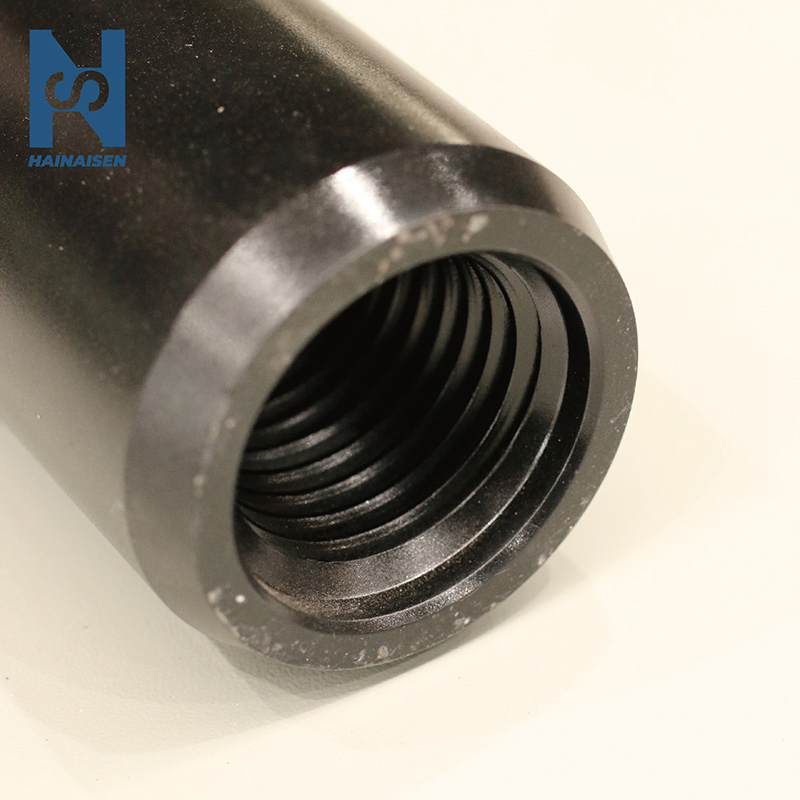

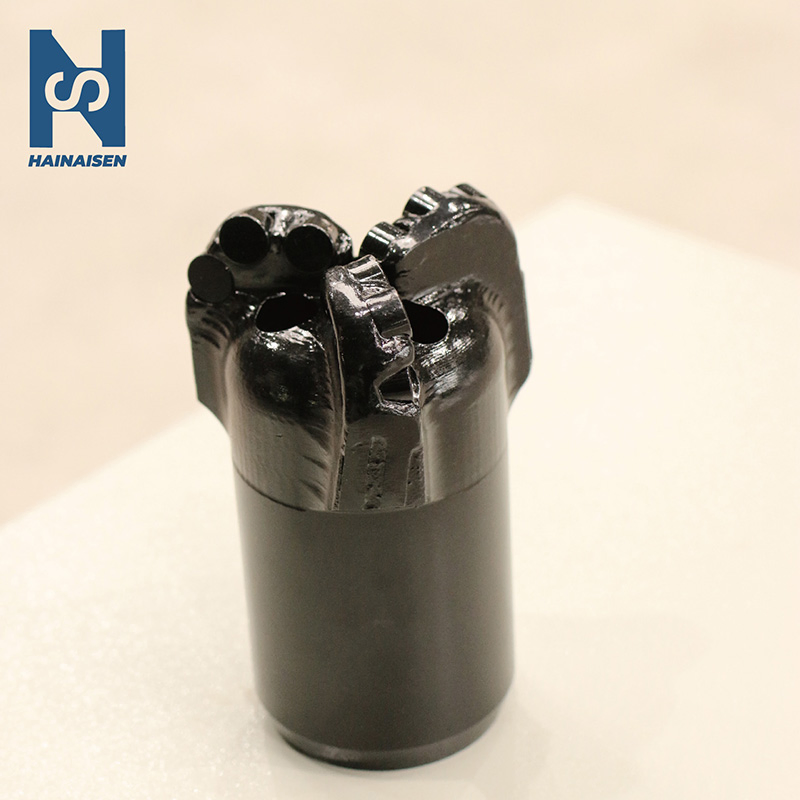

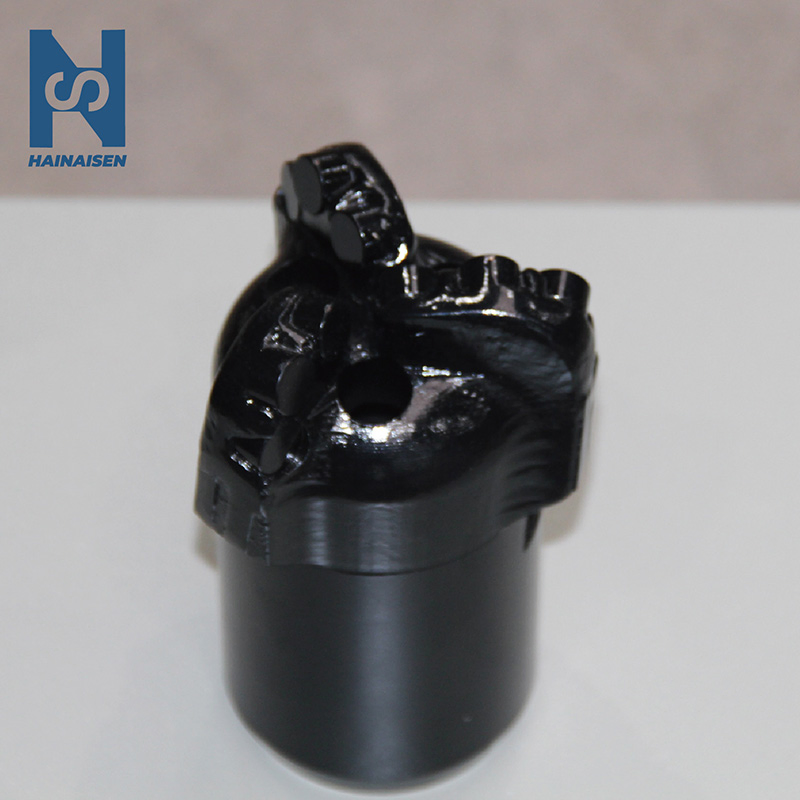

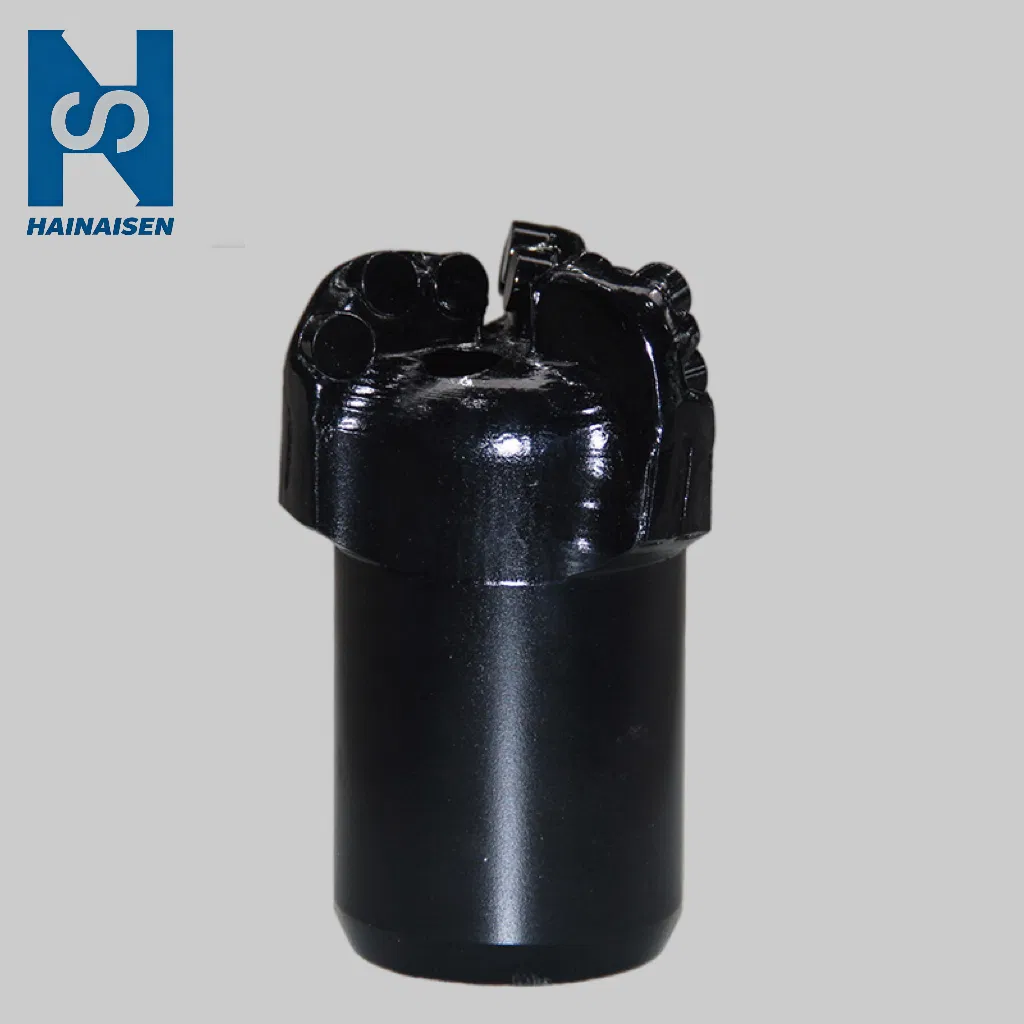

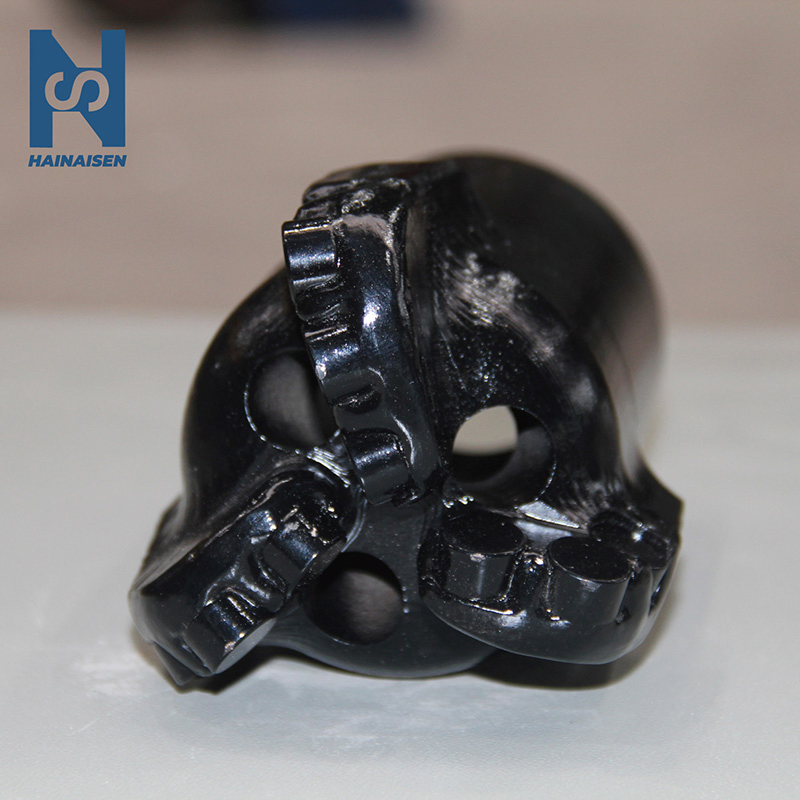

133mm 3 Blades Parabolic Crown PDC Bit for Medium Hard Formations

Basic Info.

Model NO.

HNSM133HQ

Type

Parabolic Profile PDC Drill Bit for Mining

Material

High Speed Steel

Usage

Well Drilling, Metal Drilling, Masonry Drilling, Mining, Coal, Well Water

Drill Diameter

5-1/4" (133mm)

Blades

3

Cutter Material

Self-Made PDC Cutters

Applicable Formation

Soft to Medium-Hard Formation

Product Description

Our PDC Mining Drill Bit is professionally engineered for high-efficiency, heavy-duty mining operations, integrating advanced PDC (Polycrystalline Diamond Compact) technology with rugged structural design. It is dedicated to solving the pain points of low drilling efficiency, short service life and high operational cost in mining scenarios.

⭐

Long Service Life

Cutter head made of imported diamond composite material, combined with precision heat treatment, enhancing impact resistance and wear resistance.

⚙️

Wide Adaptability

Customizable specifications to meet drilling needs in open-pit mining, underground mining, coal mining, and metal ore mining.

Experienced

Dedicated to mining and steel industries since 2013, delivering superior performance and reliability.

Efficient

Optimized performance helping to boost productivity and reduce downtime in construction operations.

Excellent

Strict quality control ensures long service life and stable operation for mining projects.

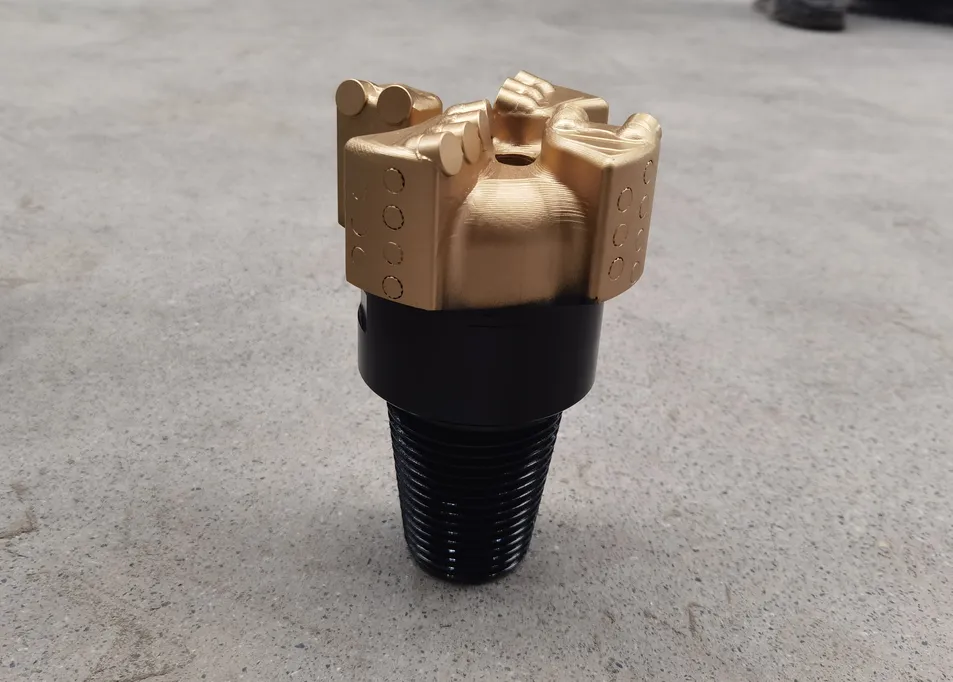

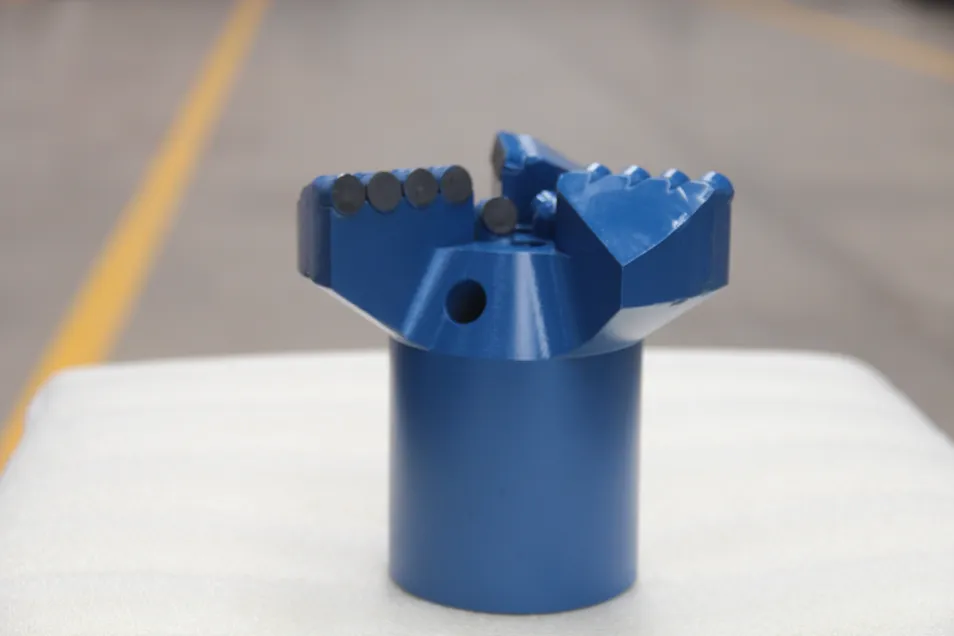

Specification Details

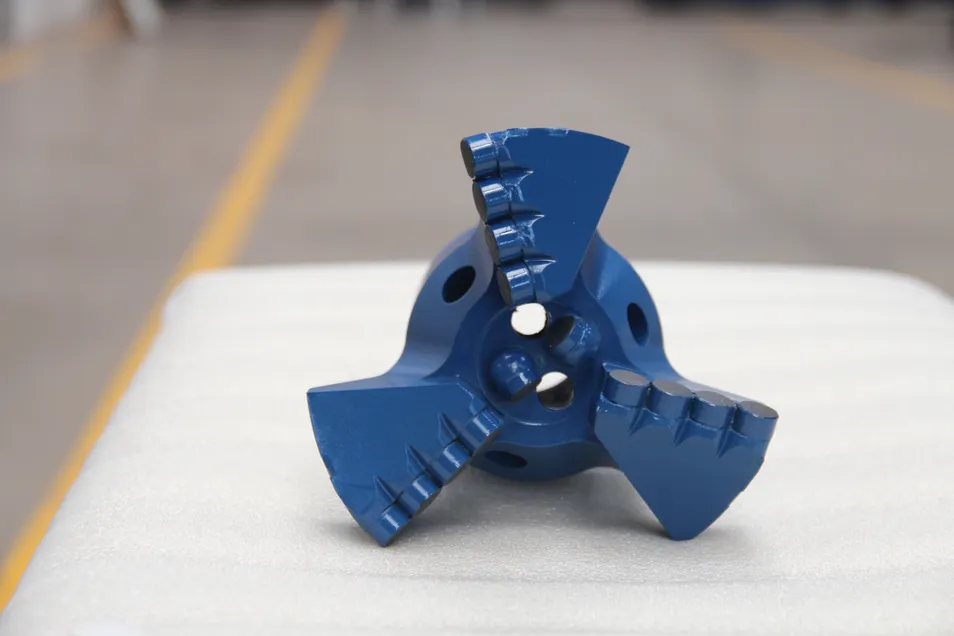

Characteristic: The bit crown adopts a concave design, enhancing cutting freedom. The top surface features a conical structure, enlarging chip removal space. Suitable for soft to medium-hard formations (F ≤ 10).

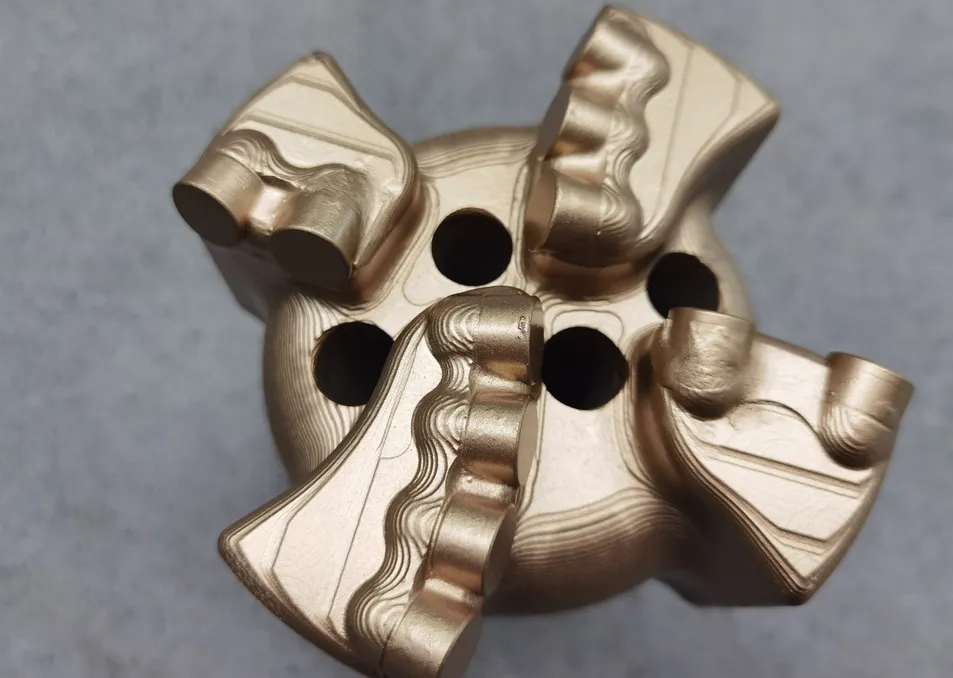

Arc-shaped Crown: Based on force balance, this design features low face oscillation and excellent steerability. Equipped with a large central nozzle for efficient flushing. Suitable for rock formations F ≤ 12.

Parameter	Detail
Cutter Size	13mm~25mm (Customizable)
Body Material	High-strength alloy steel
Deviation Control	≤0.5°/10m
Bit Body Hardness	HRC 38-42
Application	Open-pit, underground, coal, and metal mining

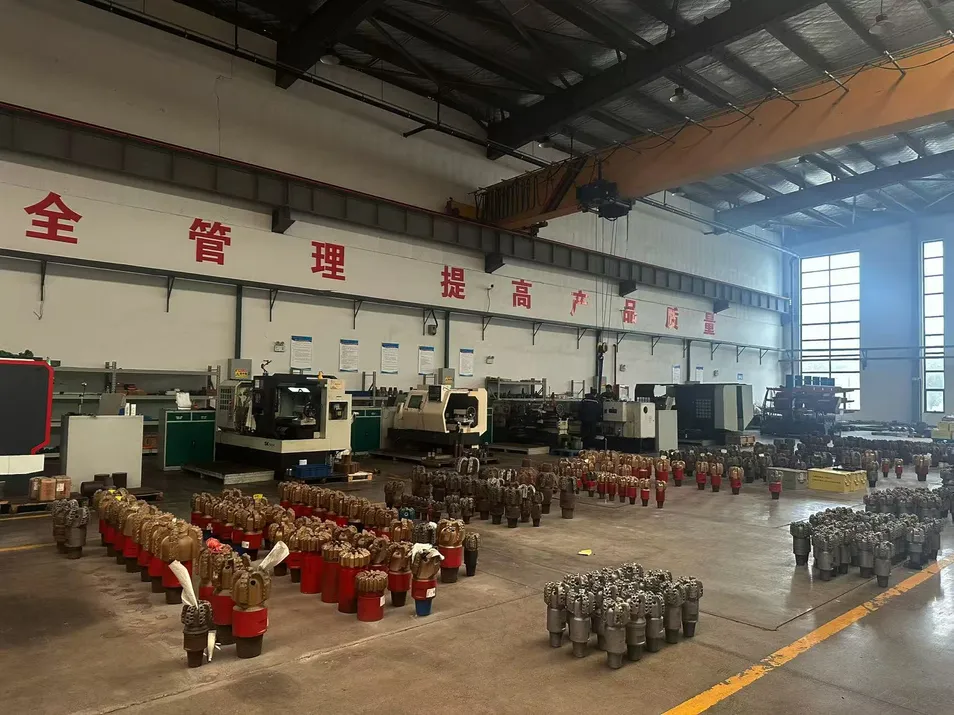

Manufacturing Excellence

Precision, durability and reliability are the cornerstones of our PDC drill bits. We utilize advanced equipment, including 5-axis CNC Machining Centers, and cutting-edge design software to optimize drill bit structures for diverse needs like deep wells and hard formations.

Packing & Certifications

Frequently Asked Questions

What are the primary advantages of your PDC Mining Drill Bits?

Our bits feature imported diamond composite cutters and precision heat treatment, providing exceptional wear resistance, high drilling efficiency, and a significantly longer service life compared to standard bits.

What type of rock formations are these bits suitable for?

They are designed for soft to medium-hard formations, typically with a rock hardness factor (F) of ≤ 10 or ≤ 12, depending on the specific model and crown design.

Can the bit specifications be customized for specific projects?

Yes, we offer customization for drill diameter, blade numbers, cutter types, and cutter sizes (from 13mm to 25mm) to perfectly match your strata conditions.

How is the drilling accuracy maintained?

We achieve a high level of deviation control (≤0.5°/10m) through optimized force-balanced designs and high-precision CNC manufacturing processes.

What materials are used for the drill bit body?

The bodies are manufactured from high-strength alloy steel with a surface hardness of HRC 38-42, ensuring maximum durability in abrasive mining environments.
