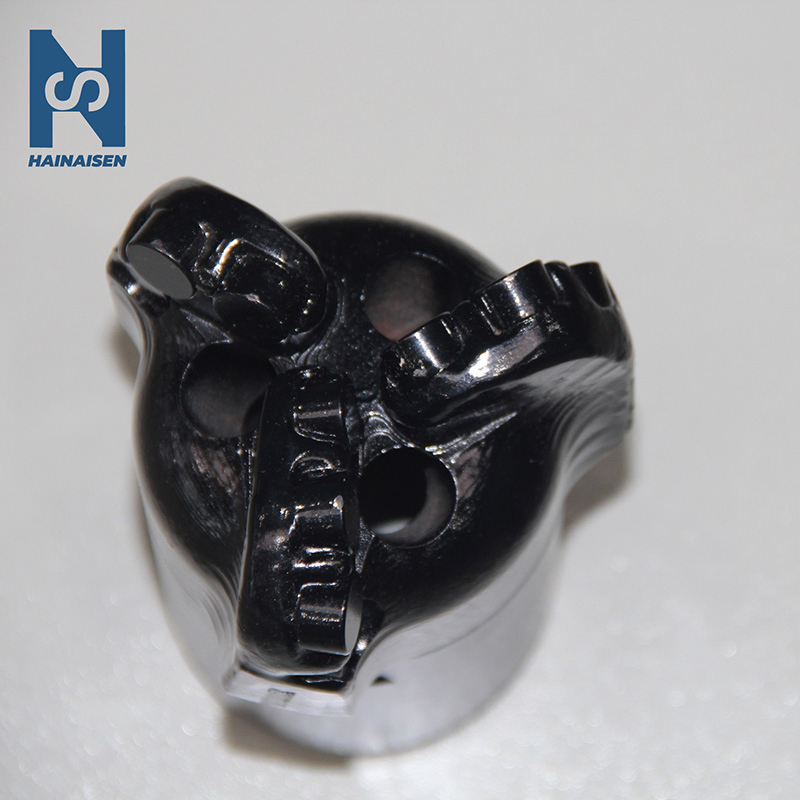

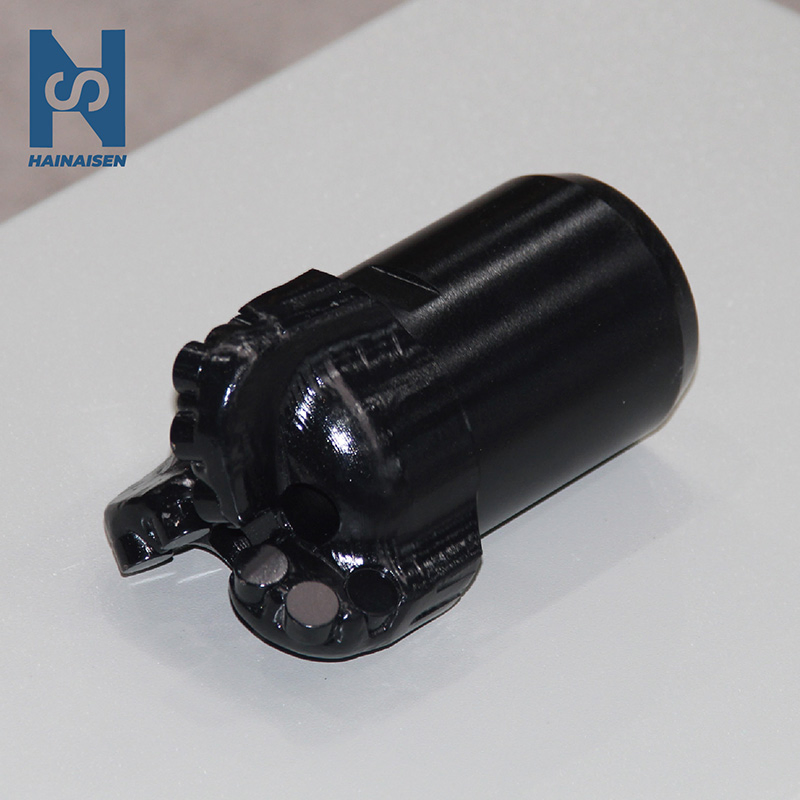

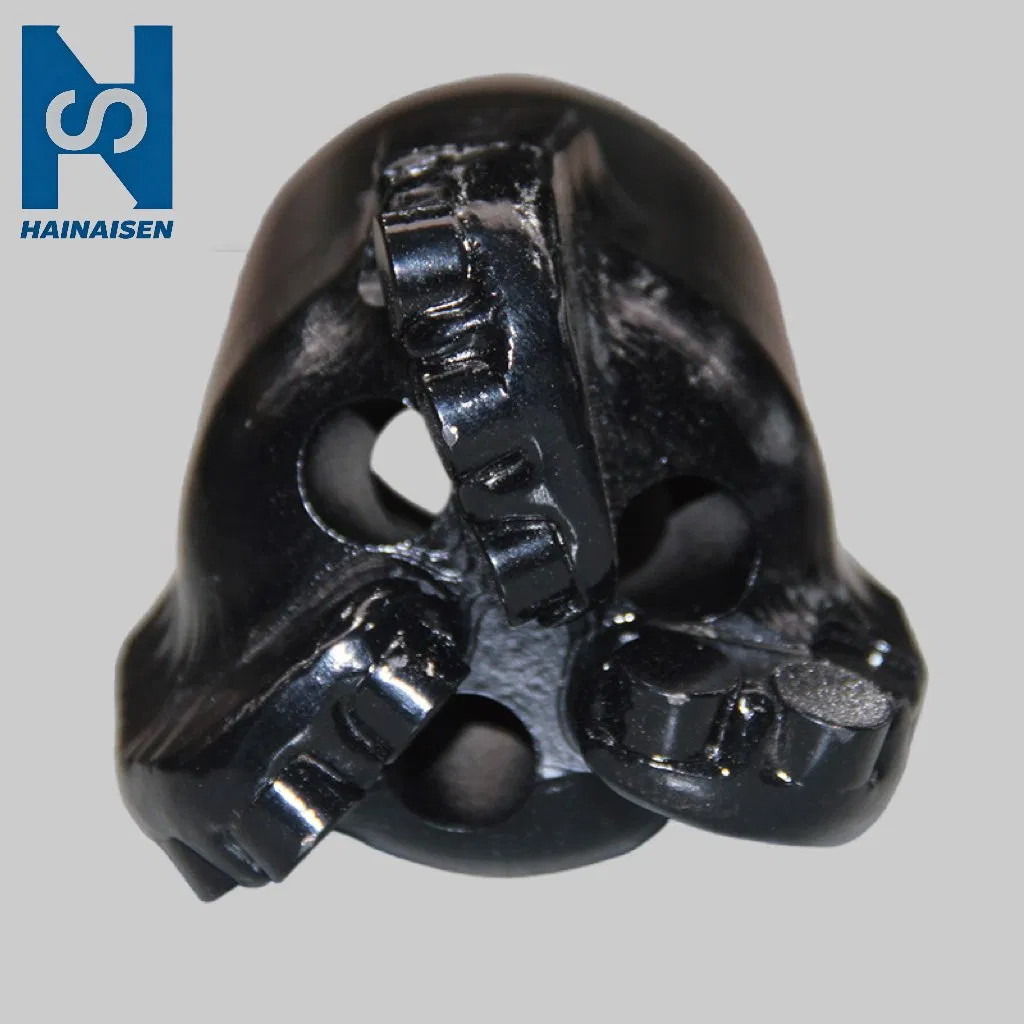

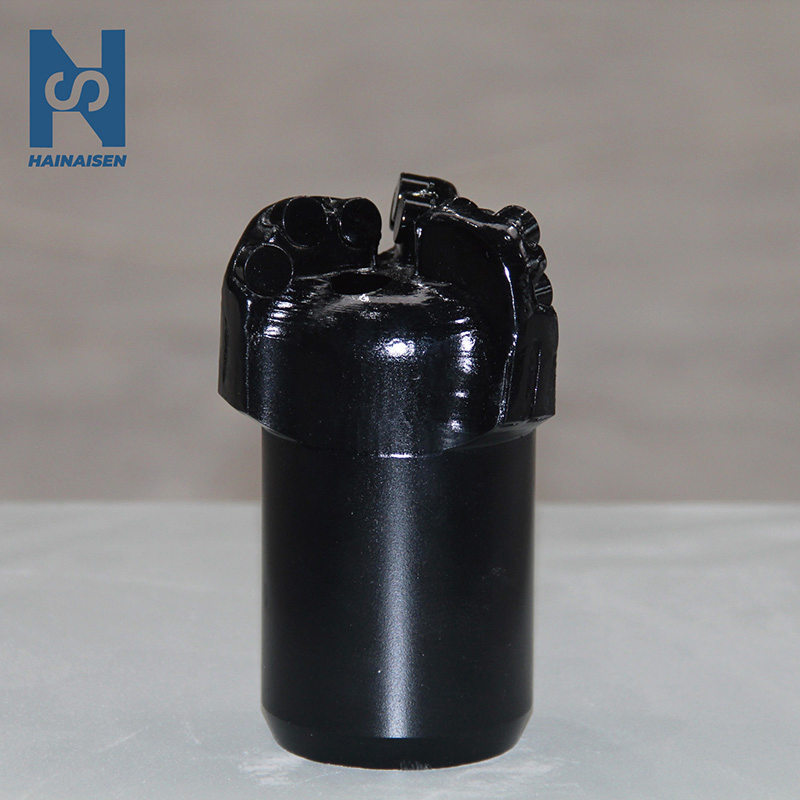

94mm 3 Blades Parabolic Profile PDC Drill Bit for Mining

Basic Information

Model NO.	HNSM94HQ
Length	Taper-length
Type	Parabolic Profile PDC Drill Bit for Mining
Material	High Speed Steel / Steel Body
Usage	Well Drilling, Metal Drilling, Masonry Drilling, Mining, Coal, Well Water
Drill Diameter	3-7/10" (94mm)
Blades / Nozzles	3 / 3
Crown Profile	Parabolic Profile
Cutter Material	Self-Made PDC Cutters
Production Process	Precision Sintering
Hydraulic Structure	Spiral Flow Channel
Applicable Formation	Soft to Medium-Hard Formation
Production Capacity	10,000 pieces/Year
HS Code	8207191000

Product Description

PDC Mining Drill Bit Introduction

Our PDC Mining Drill Bit is professionally engineered for high-efficiency, heavy-duty mining operations. It integrates advanced Polycrystalline Diamond Compact (PDC) technology with a rugged structural design. It is dedicated to solving the pain points of low drilling efficiency and short service life in mining scenarios.

Core Advantages

Long Service Life: Imported diamond composite material combined with precision heat treatment enhances impact and wear resistance.
Wide Adaptability: Customizable diameter, blade number, and cutter type to meet diverse mining needs including coal and metal ore.
Experienced Engineering: Industry insights integrated into every tool for superior performance since 2013.
Optimized Efficiency: Designed to boost productivity and reduce downtime in construction and mining operations.
Quality Control: Strict standards ensure stable operation and outstanding results for global projects.

Technical Specifications

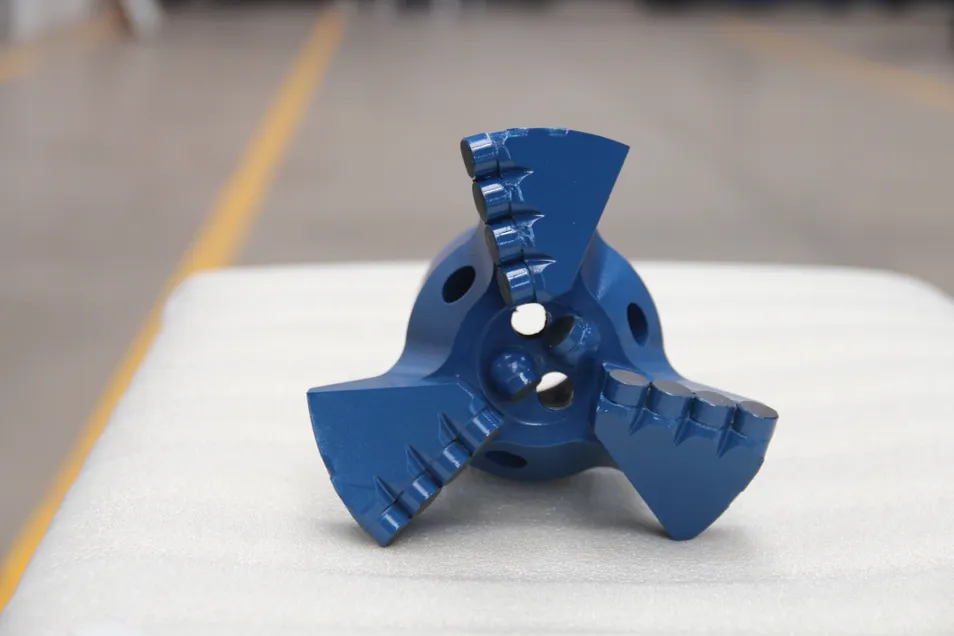

Concave Design: Enhances cutting freedom. The conical top structure enlarges chip removal space for better cleaning.

Suitable Formation: F ≤ 10 | Specifications: 48–153 mm

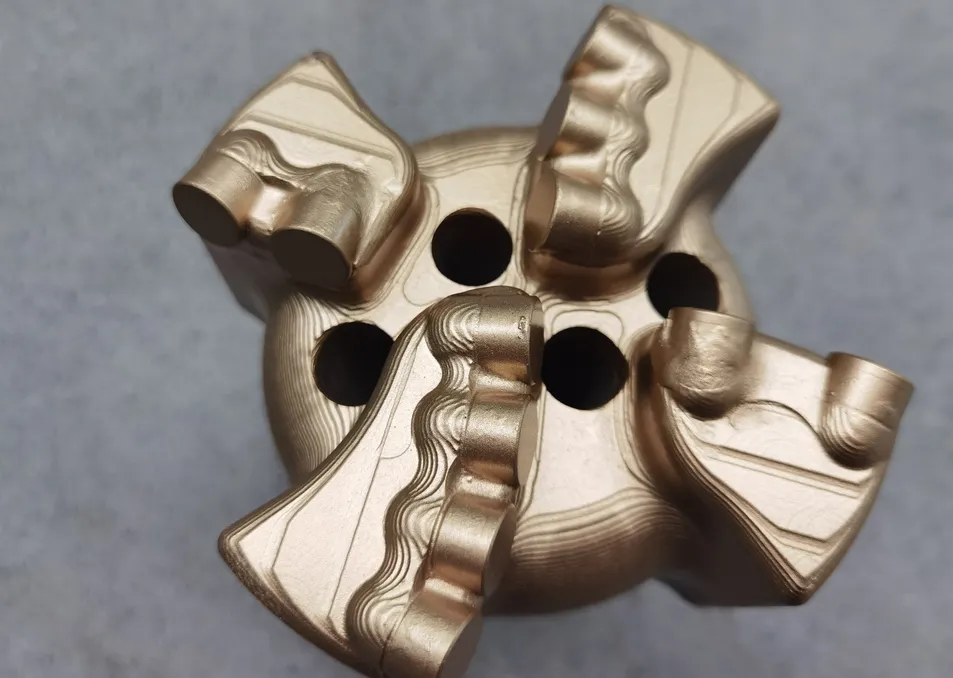

Arc-shaped Crown: Features low face oscillation and excellent steerability for stable drilling. Large central nozzle provides high impact resistance.

Suitable Formation: F ≤ 12 | Specifications: 50–350 mm

Cutter Size	13mm~25mm (Customizable)
Body Material	High-strength alloy steel (HRC 38-42)
Deviation Control	≤0.5°/10m
Application	Open-pit, Underground, Coal, and Metal Mining

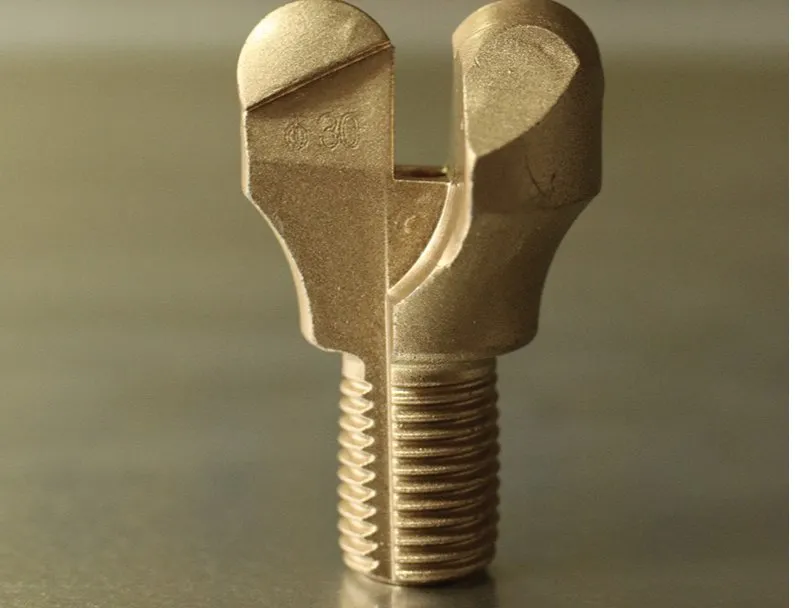

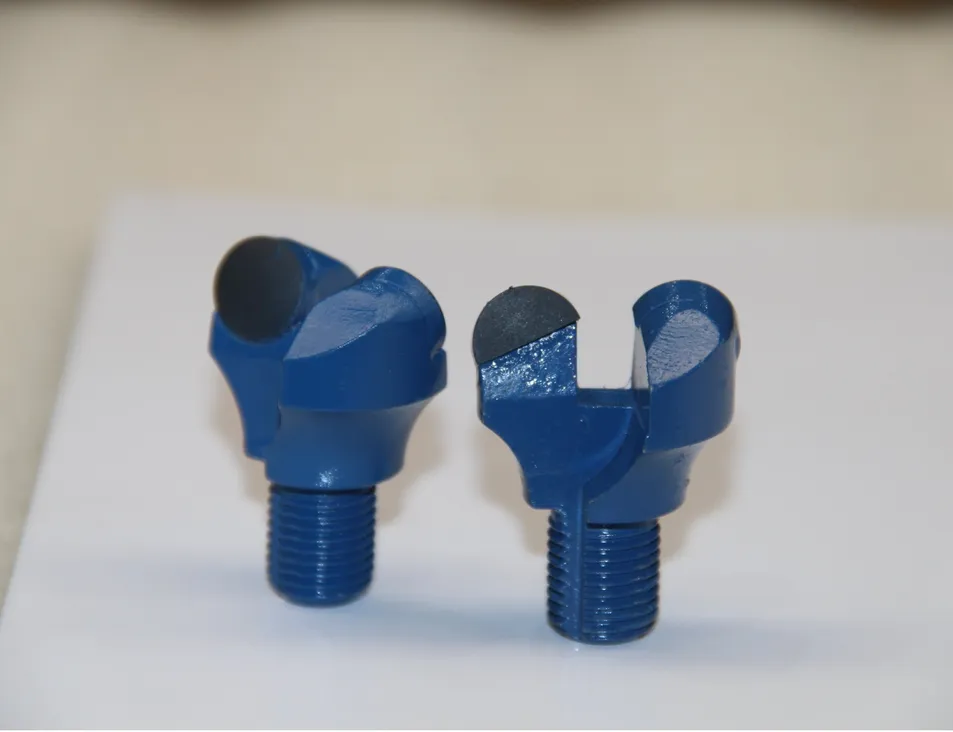

Anchor Drilling Solutions

Equipped with specialized cutters, these bits break rock under axial thrust. Features high impact resistance, no regrinding needed, and minimal hole shrinkage.

Suitable Formation: F ≤ 12 | Specifications: 28-32 mm

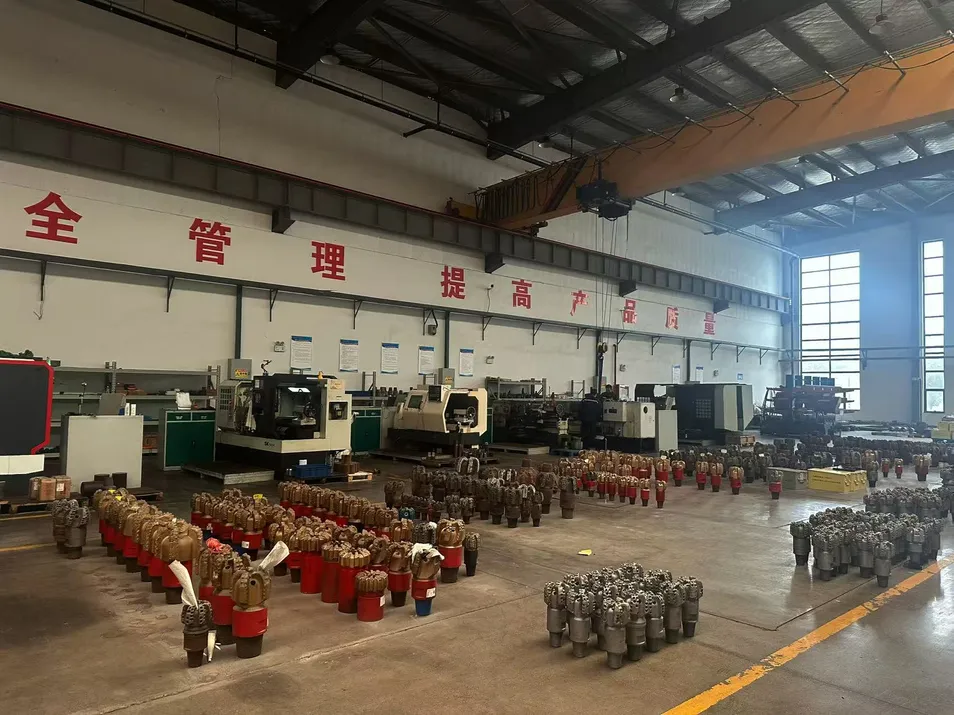

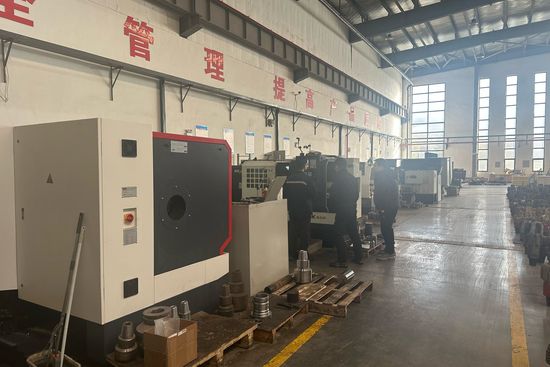

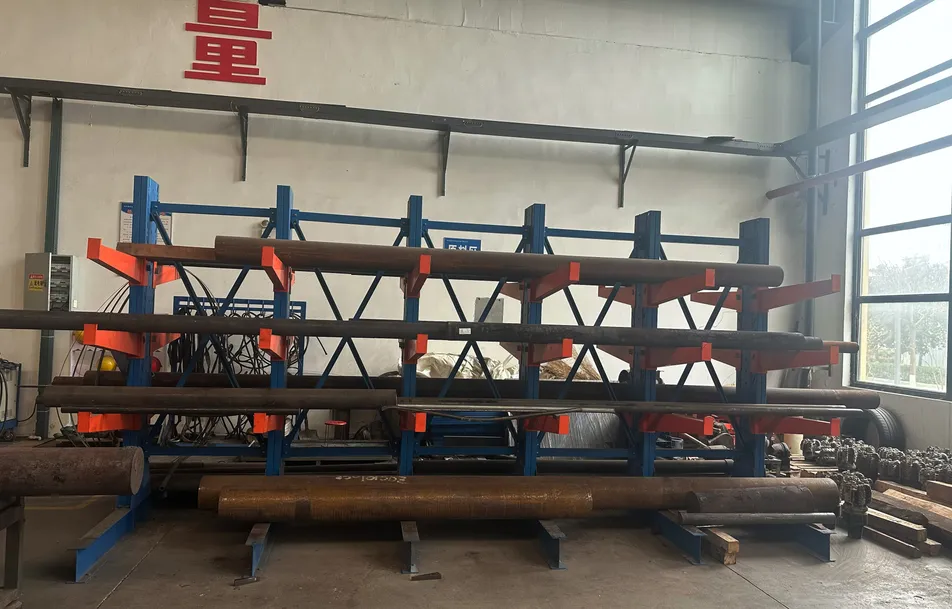

Manufacturing Technology

We invest heavily in advanced equipment including 5-axis CNC Machining Centers. Our engineering team optimizes drill bit structures for deep wells, hard formations, and horizontal drilling.

Precision, durability, and reliability are the cornerstones of our production process, integrating advanced PDC technology with skilled craftsmanship.

Packing & Delivery

Certifications

Frequently Asked Questions

What types of formations are these PDC bits suitable for?

These bits are designed for soft to medium-hard rock formations (F ≤ 10 to F ≤ 12), including coal, limestone, and various metal ores.

Can the drill bit specifications be customized?

Yes, we offer customizable specifications including diameter (ranging from 28mm to 350mm), blade numbers, and cutter types to meet specific mining needs.

What makes your PDC cutters different?

We use imported diamond composite materials combined with proprietary precision sintering and heat treatment to maximize wear and impact resistance.

How do you ensure drilling stability?

Our bits feature arc-shaped crowns and parabolic profiles based on force balance principles, which reduces oscillation and provides excellent steerability.

What is the hardness of the bit body?

The bit bodies are made of high-strength alloy steel with a hardness rating of HRC 38-42, ensuring long-term durability in abrasive environments.

Do you provide solutions for anchor drilling?

Yes, we have specialized PDC anchor bits (typically 28-32mm) that offer high hole quality and impact resistance without the need for regrinding.
