Well Drilling, Metal Drilling, Masonry Drilling, Mining, Coal
Drill Diameter
3-7/10" (94mm)
Blades/Nozzles
3 / 3
Crown Profile
Parabolic Profile
Body Material
Steel Body
Process
Precision Sintering
Formation
Soft to Medium-Hard Formation

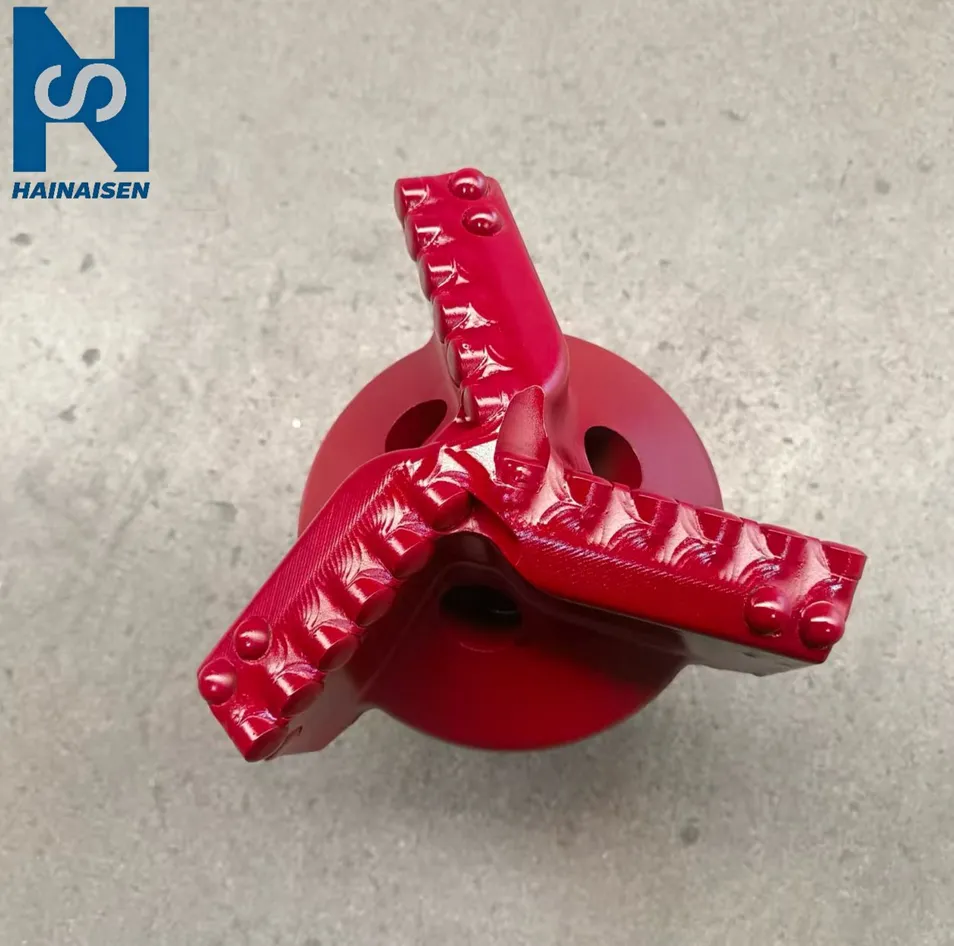

Product Description
Core Advantages
Long Service Life: The cutter head is made of imported diamond composite material, combined with precision heat treatment and surface strengthening technology, which effectively enhances impact resistance and wear resistance, reducing replacement frequency.
Wide Adaptability: Customizable specifications (diameter, blade number, cutter type) to meet the drilling needs of different mining scenarios, including open-pit mining, underground mining, and coal mining.

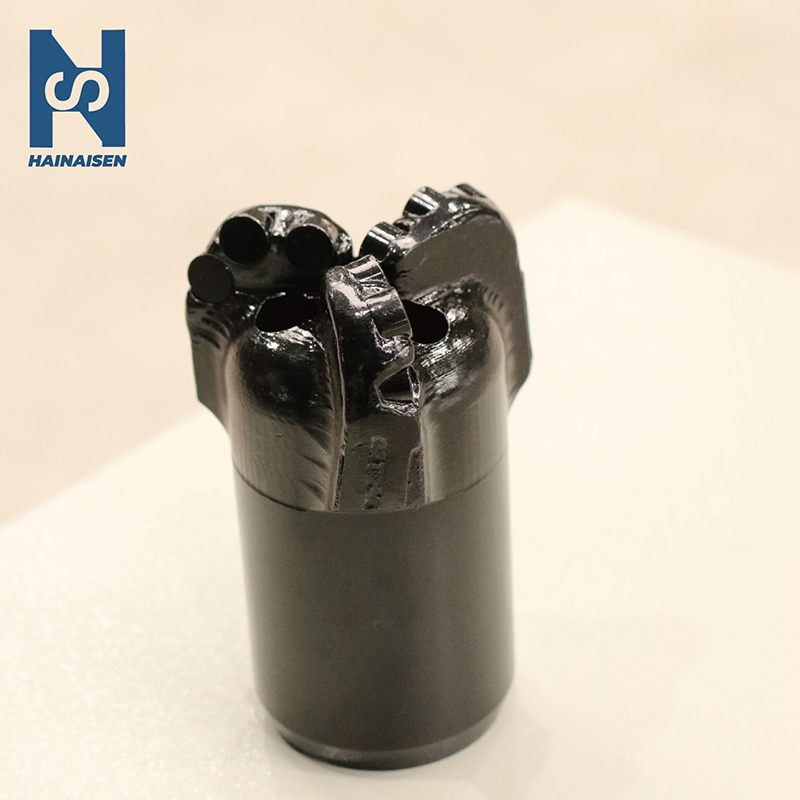

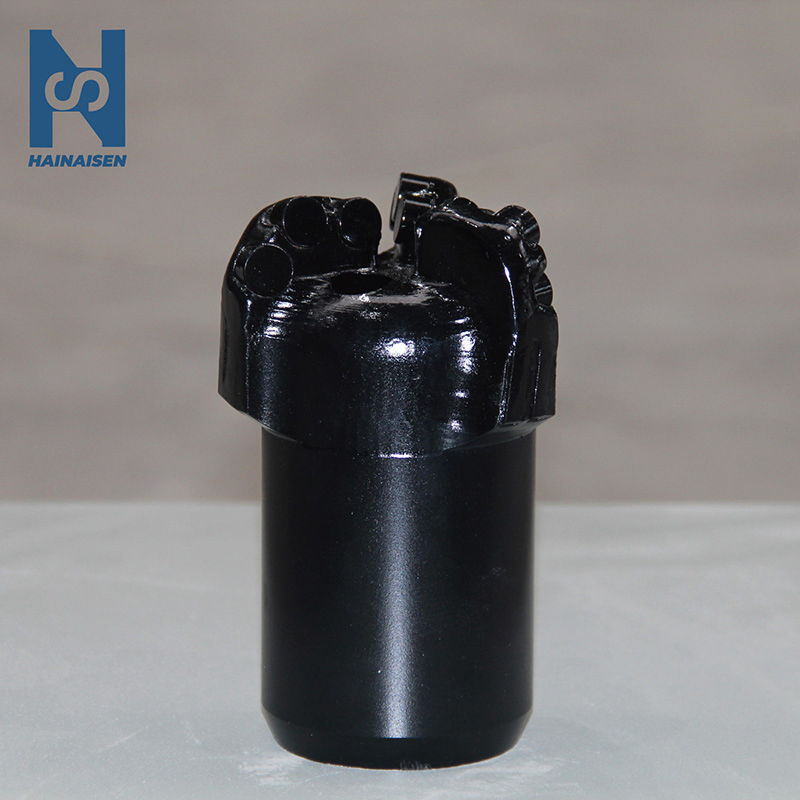

Our PDC Mining Drill Bit is professionally engineered for high-efficiency, heavy-duty mining operations. By integrating advanced Polycrystalline Diamond Compact technology with a rugged structural design, it solves common pain points like low drilling efficiency and high operational costs.
✓
Experienced
Dedicated to mining and steel industries since 2013, delivering superior performance.
✓
Efficient
Optimized performance to boost productivity and reduce downtime.
✓
Excellent
Strict quality control ensures long service life and stable operation.

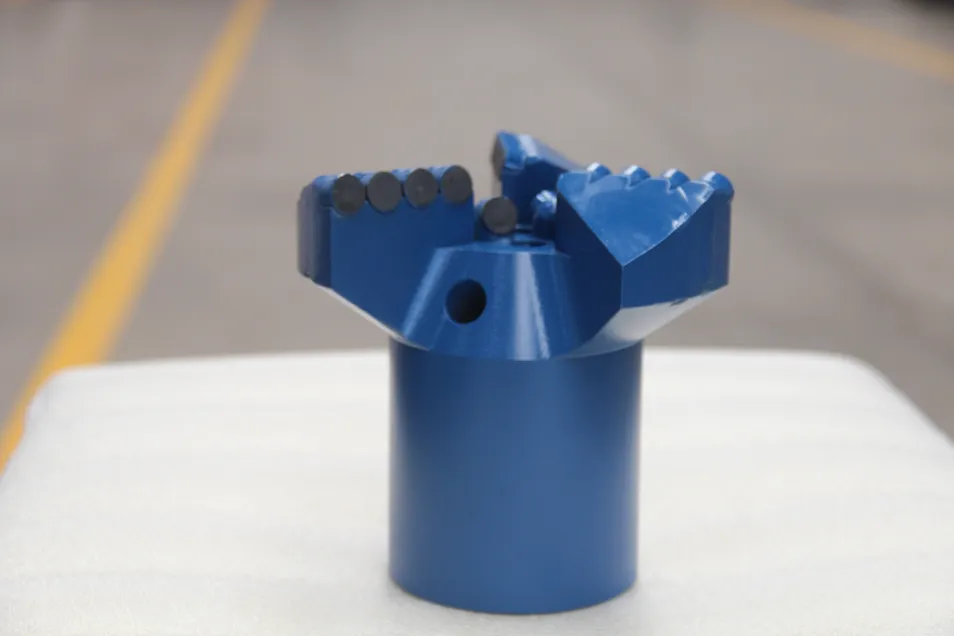

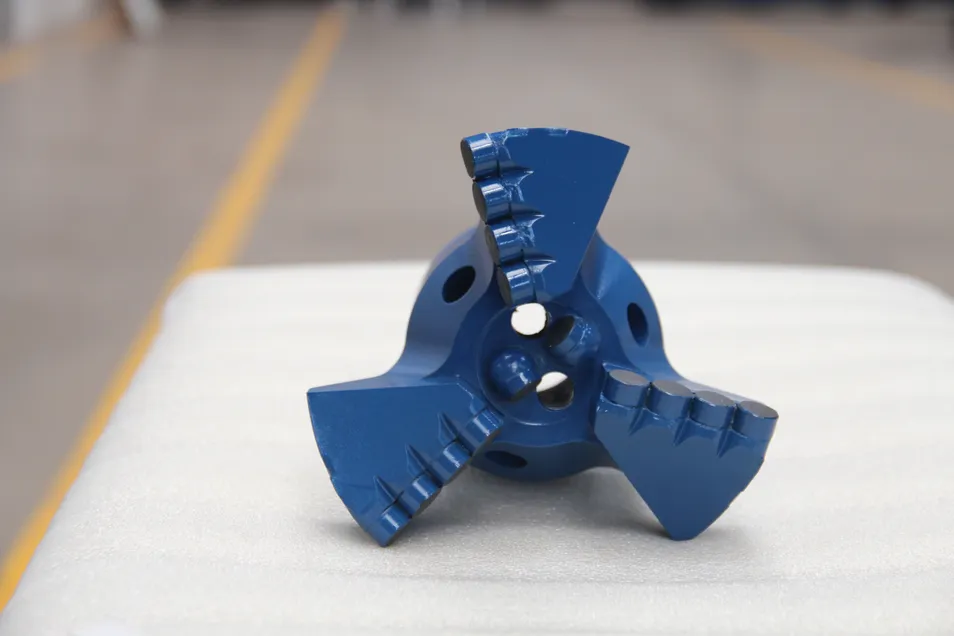

Specifications & Characteristics

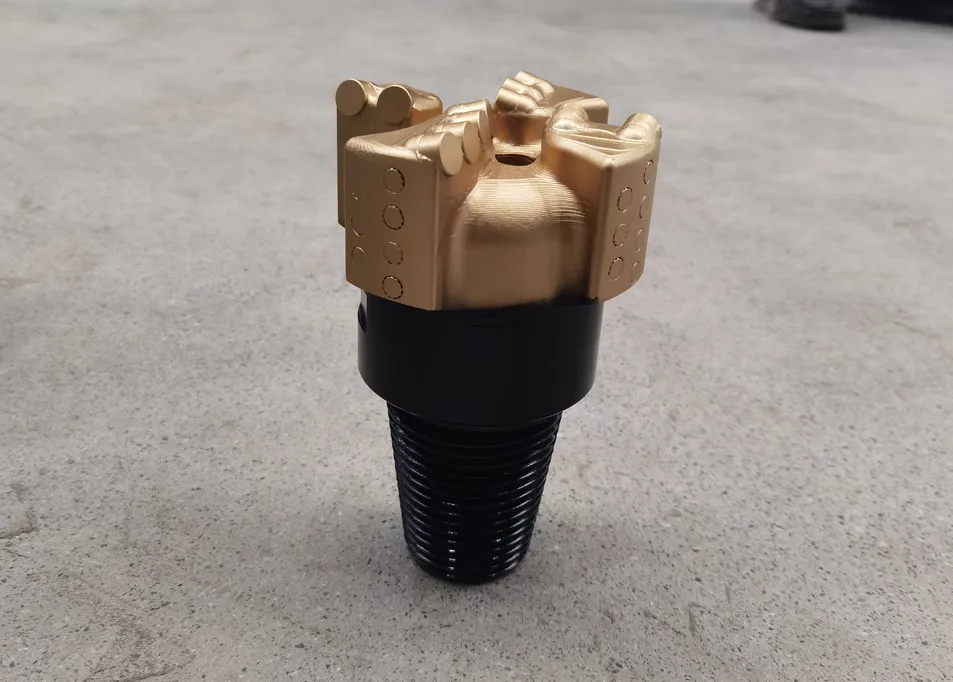

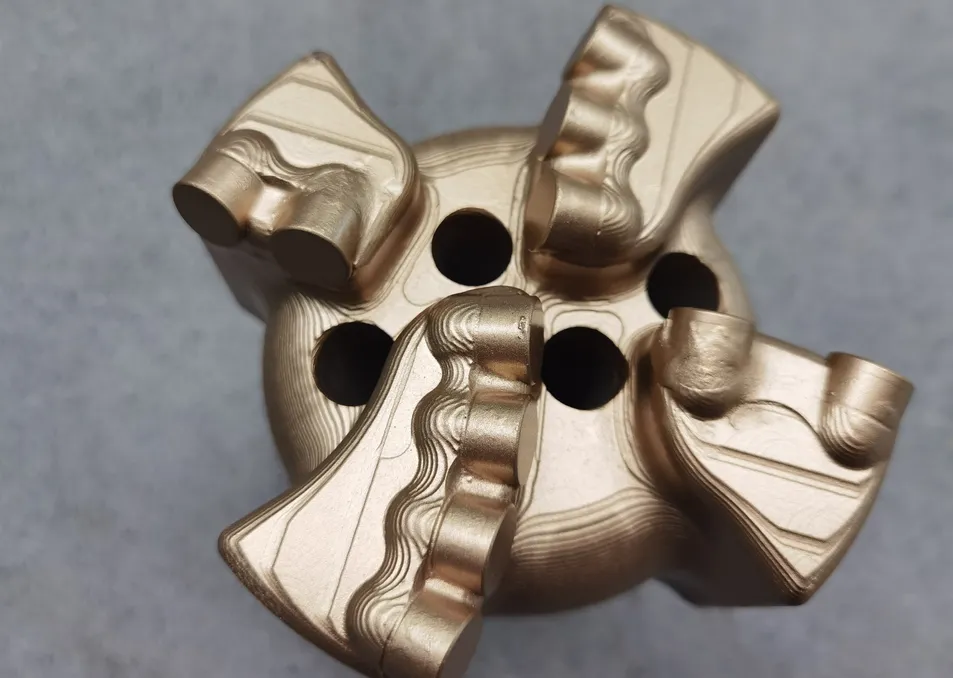

Concave Design: The bit crown enhances cutting freedom. The conical structure effectively enlarges chip removal space for better cleaning, ideal for soft to medium-hard formations (F ≤ 10).
Arc-Shaped Crown: Designed based on force balance principles, featuring low face oscillation and excellent steerability for stable drilling. Suitable for rock formations with F ≤ 12.
Parameter
Details
Cutter Size
13mm~25mm (Customizable)
Blade Number
Customizable
Body Material
High-strength alloy steel
Application Scenario
Open-pit, underground, coal, metal ore mining
Deviation Control
≤0.5°/10m
Bit Body Hardness
HRC 38-42

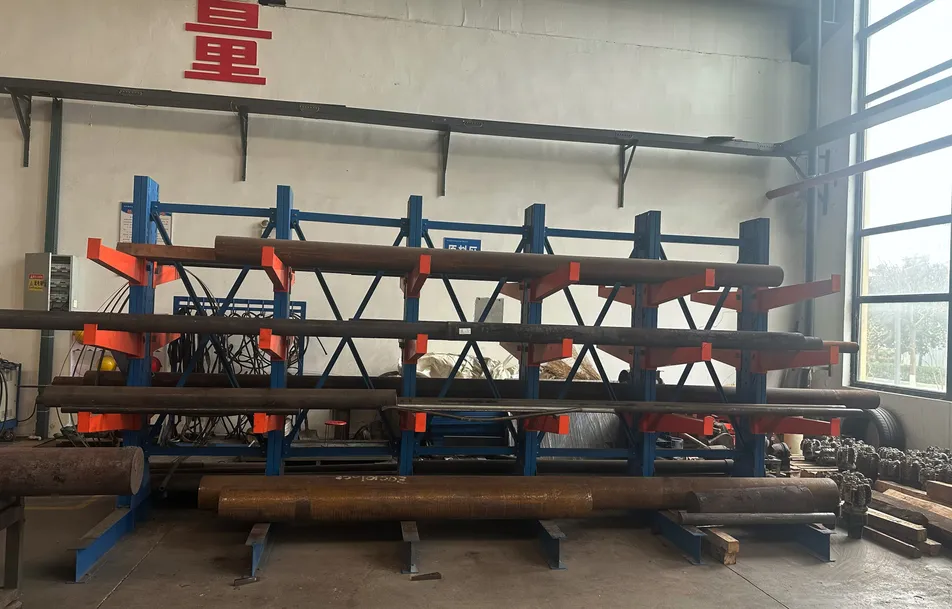

Manufacturing & Capabilities

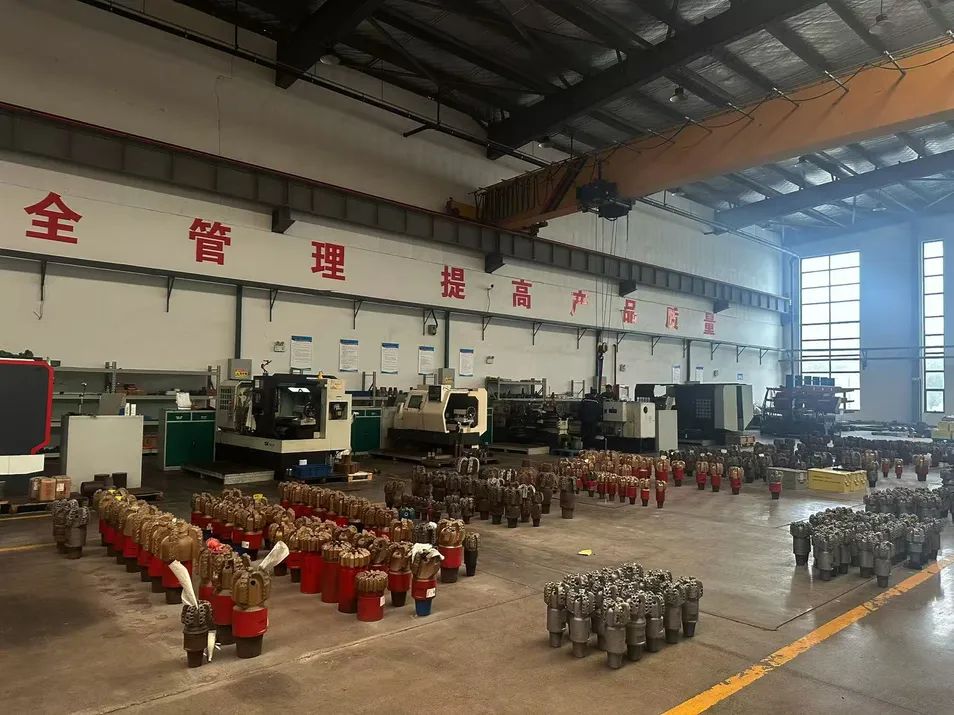

We utilize advanced equipment, including 5-axis CNC Machining Centers, to ensure precision and reliability. Our engineering team optimizes bit structures for diverse needs like deep wells and hard formations.
Certifications & Packing
Frequently Asked Questions
Q1: What rock formations is this PDC bit best suited for?
This bit is specifically designed for soft to medium-hard formations with a hardness rating of F ≤ 10 to F ≤ 12, depending on the specific crown profile selected.
Q2: Can the number of blades and cutters be customized?
Yes, we offer fully customizable specifications including the diameter (48mm to 350mm), number of blades, and cutter types to match your specific mining environment.
Q3: How does the parabolic profile improve drilling performance?
The parabolic profile helps balance the load across the cutters, reducing vibration and improving steerability, which leads to more stable drilling and a longer tool life.
Q4: What material is used for the bit body?
We use high-strength alloy steel (HRC 38-42) for the bit body to ensure maximum wear resistance and structural integrity during heavy-duty operations.
Q5: How do you ensure the quality of the PDC cutters?
Our cutters are made from imported diamond composite materials and undergo precision heat treatment and surface strengthening to enhance impact and wear resistance.
Q6: What is the typical lead time and production capacity?
Our facility has a production capacity of 10,000 pieces per year. For specific lead times based on order volume, please contact our support team.
