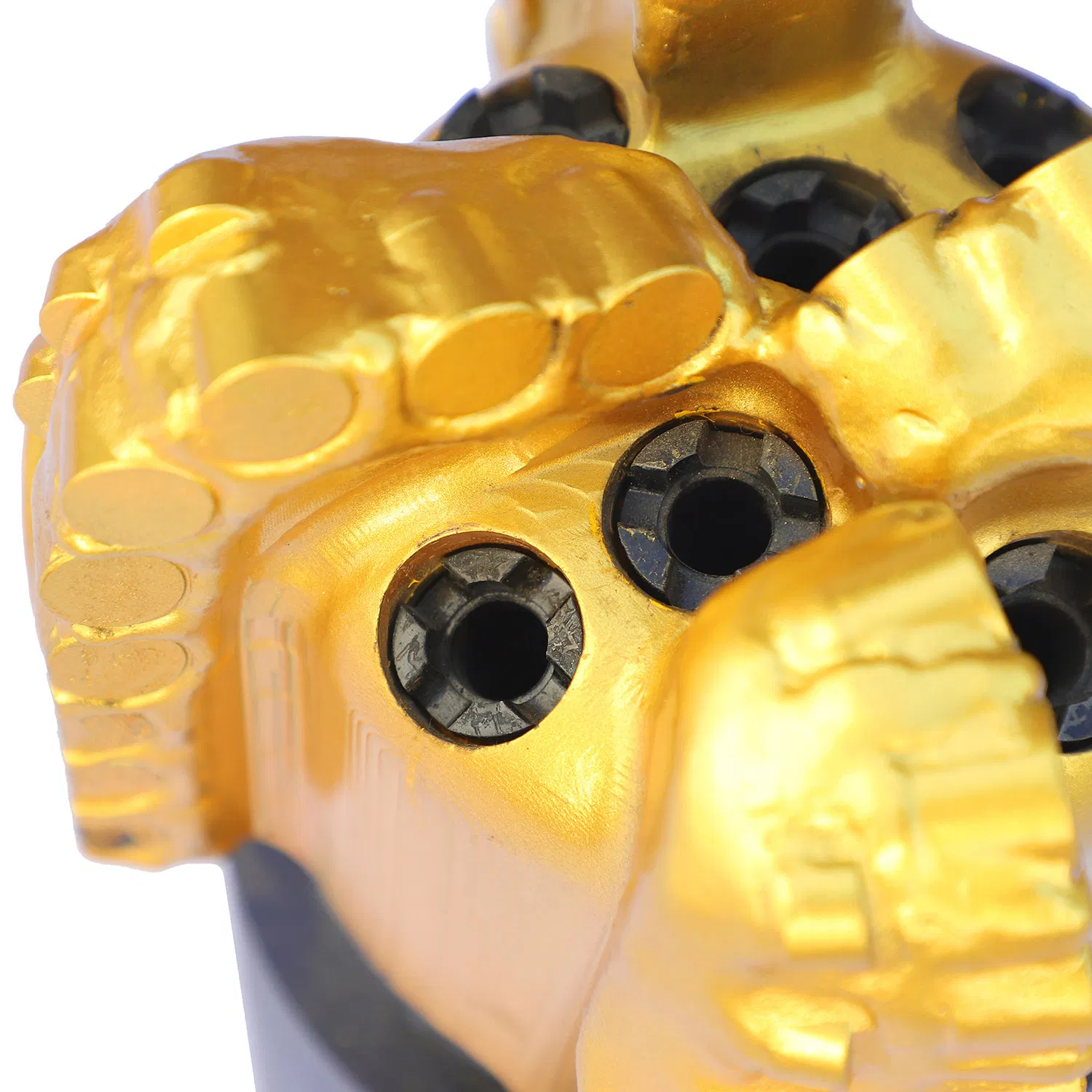

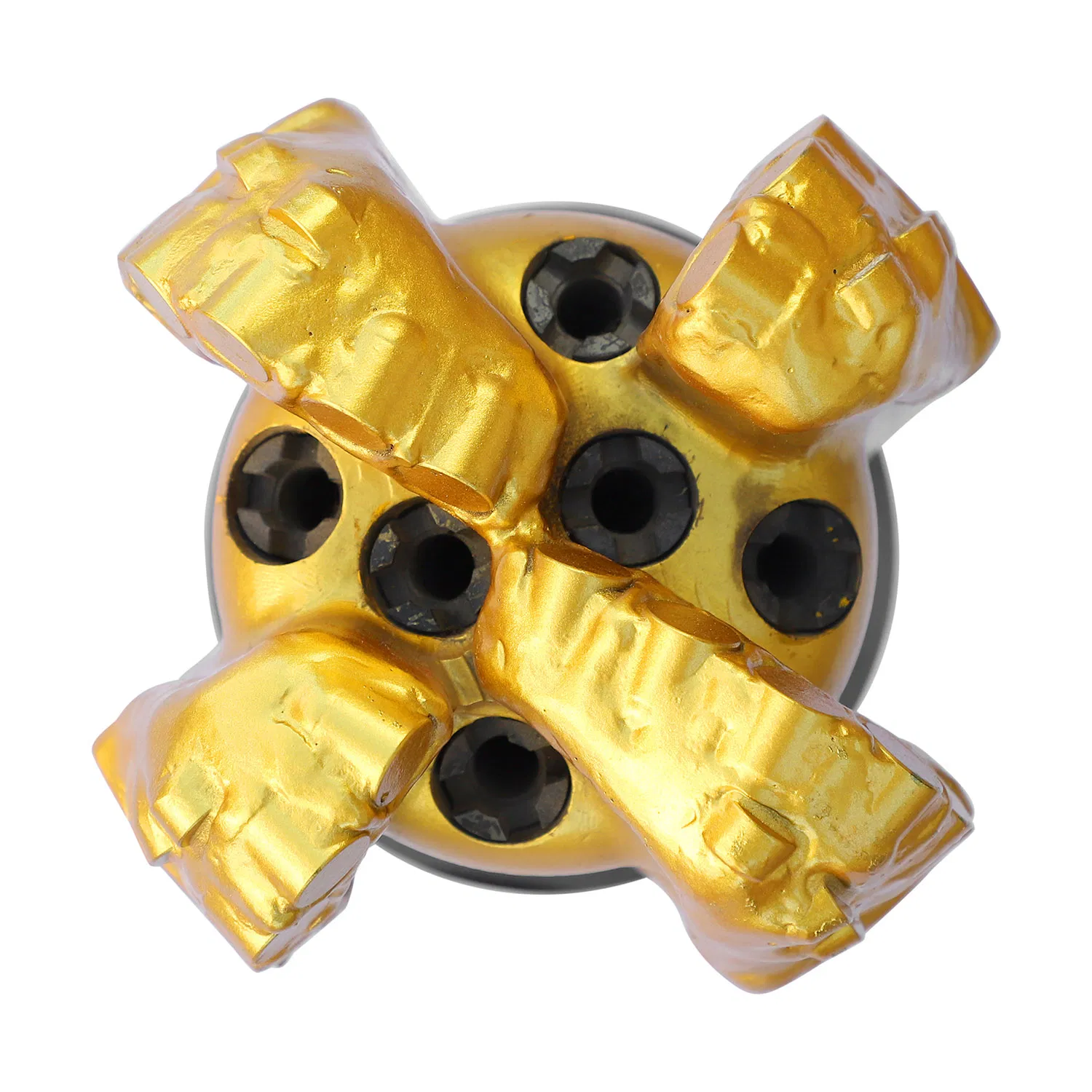

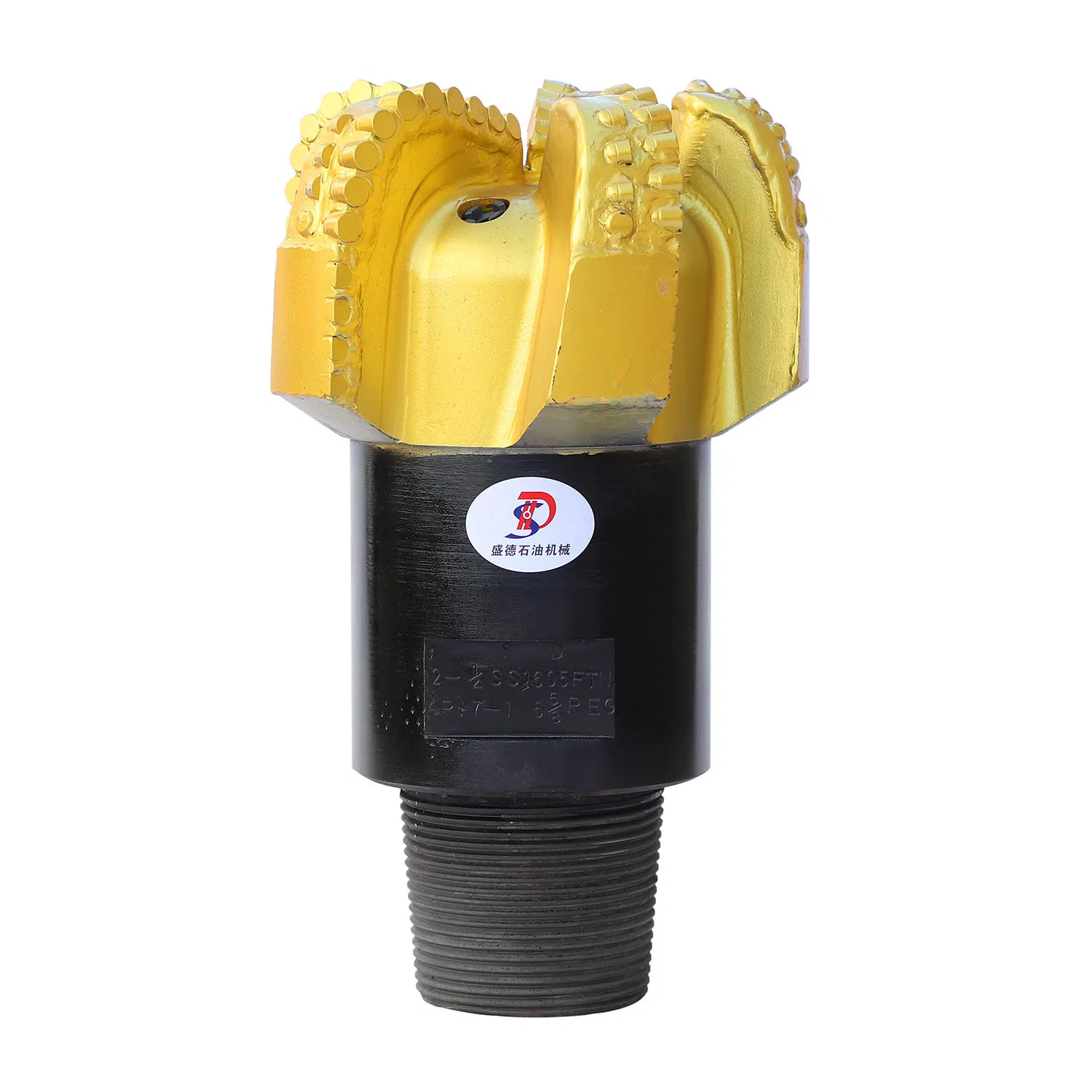

8-1/2"PDC Drilling Bit Oil Well Drilling Diamond Bits with Low Prices for Petroleum-Equipment-Machinery Drilling Tool

Customization:	Available
After-sales Service:	Available
Warranty:	1year

i

Basic Information

Model NO.

8-1/2"

Manufacturing Process

CNC Milling

Surface Treatment

Spray-Paint

Operation Pressure

Atmospheric Pressure

Material

Alloy

Material of Drill Body

42CrMo

Wear-Resistant Alloy

Polycrystalline Diamond Compact

Certification

ISO 9001:2000

HS Code

8207191000

Production Capacity

2500 pieces/Year

✓

Product Description

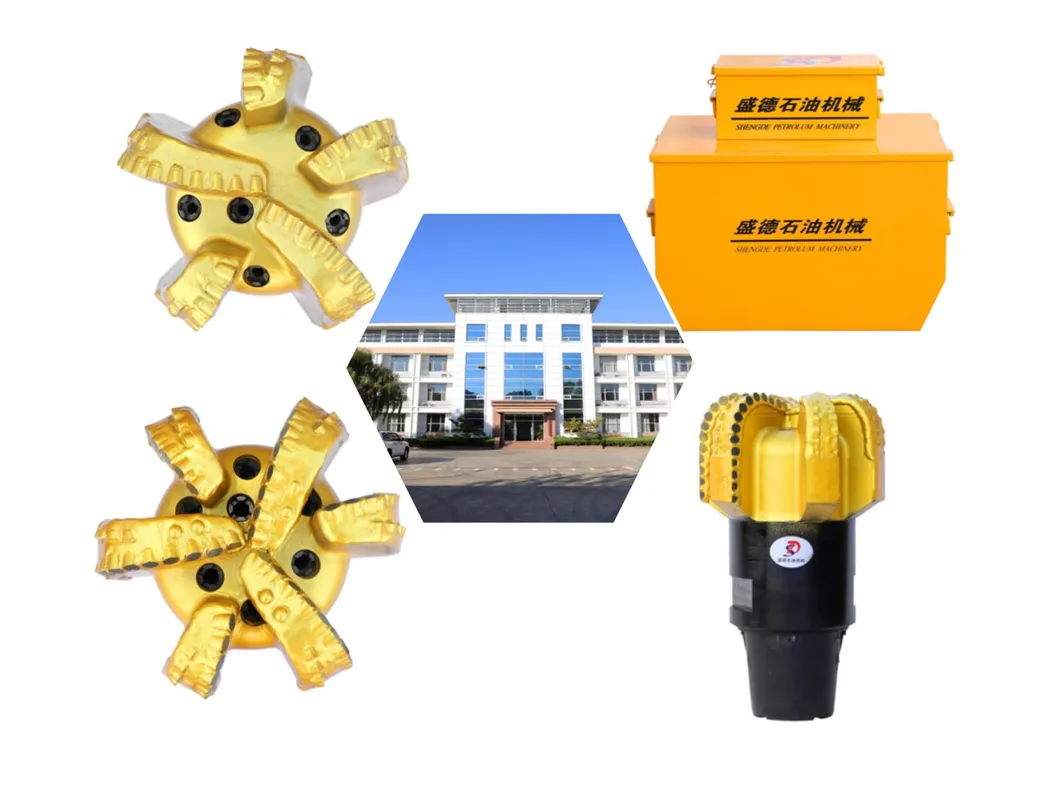

8-1/2" PDC Drilling Bit Oil Well Drilling Diamond Bits

The PDC bit's compact cutting structure utilizes the mechanical properties of rock, using an efficient shearing method to break the rock and achieve fast drilling. When a PDC bit operates in soft to intermediate formations, the compact cutting teeth overcome formation stress, entering and sliding forward under the effect of Weight on Bit (WOB) and torque. Cuttings are efficiently transported out of the well by mud jetting from the nozzles.

📷

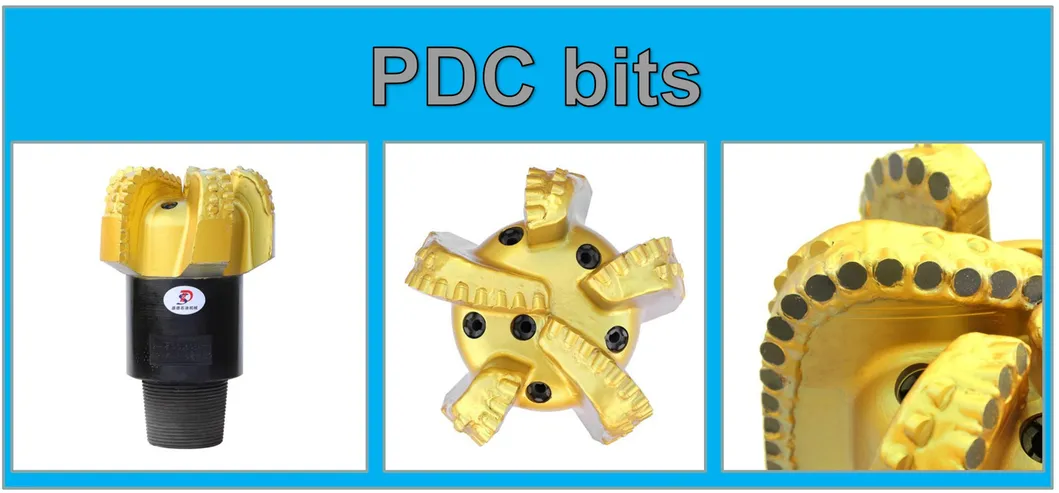

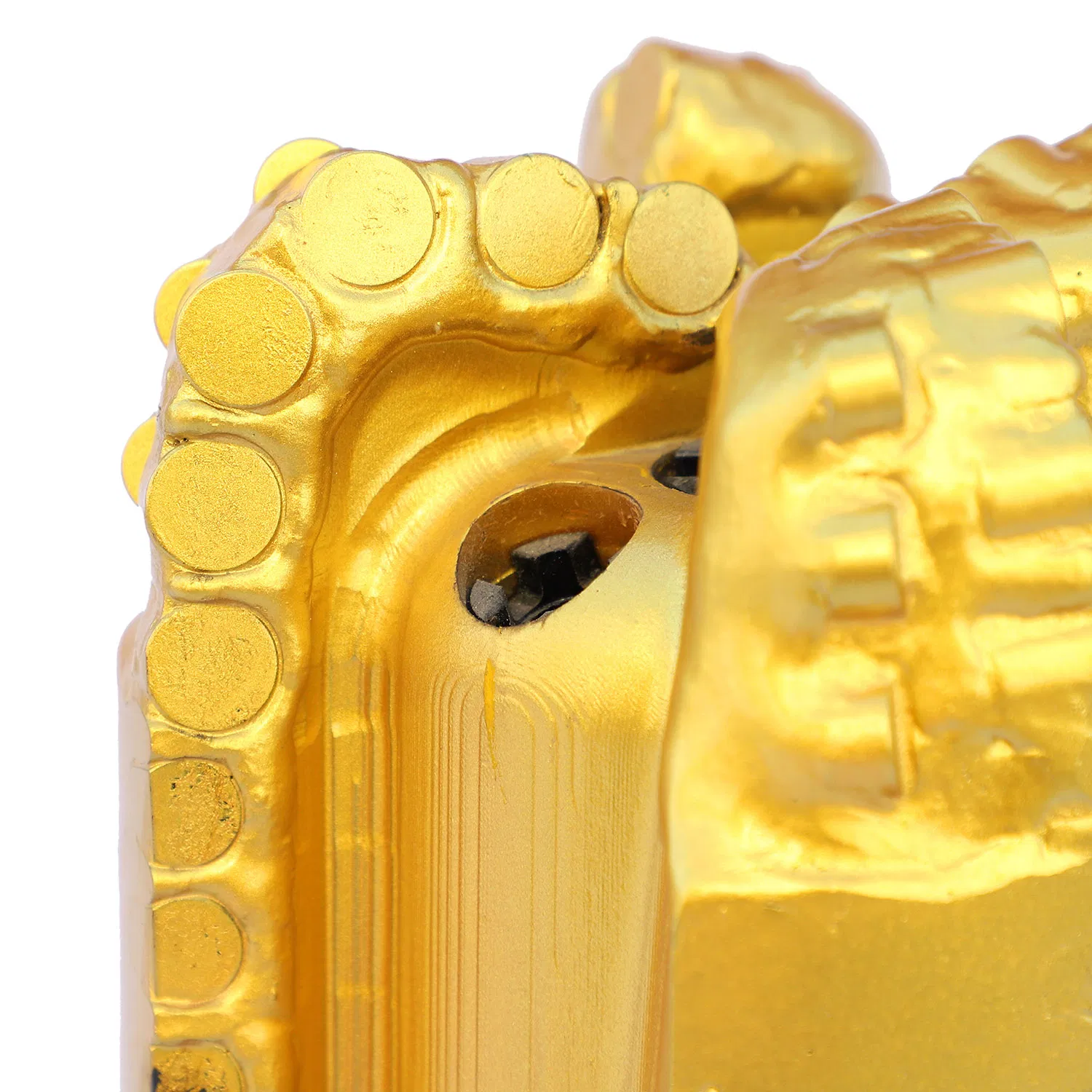

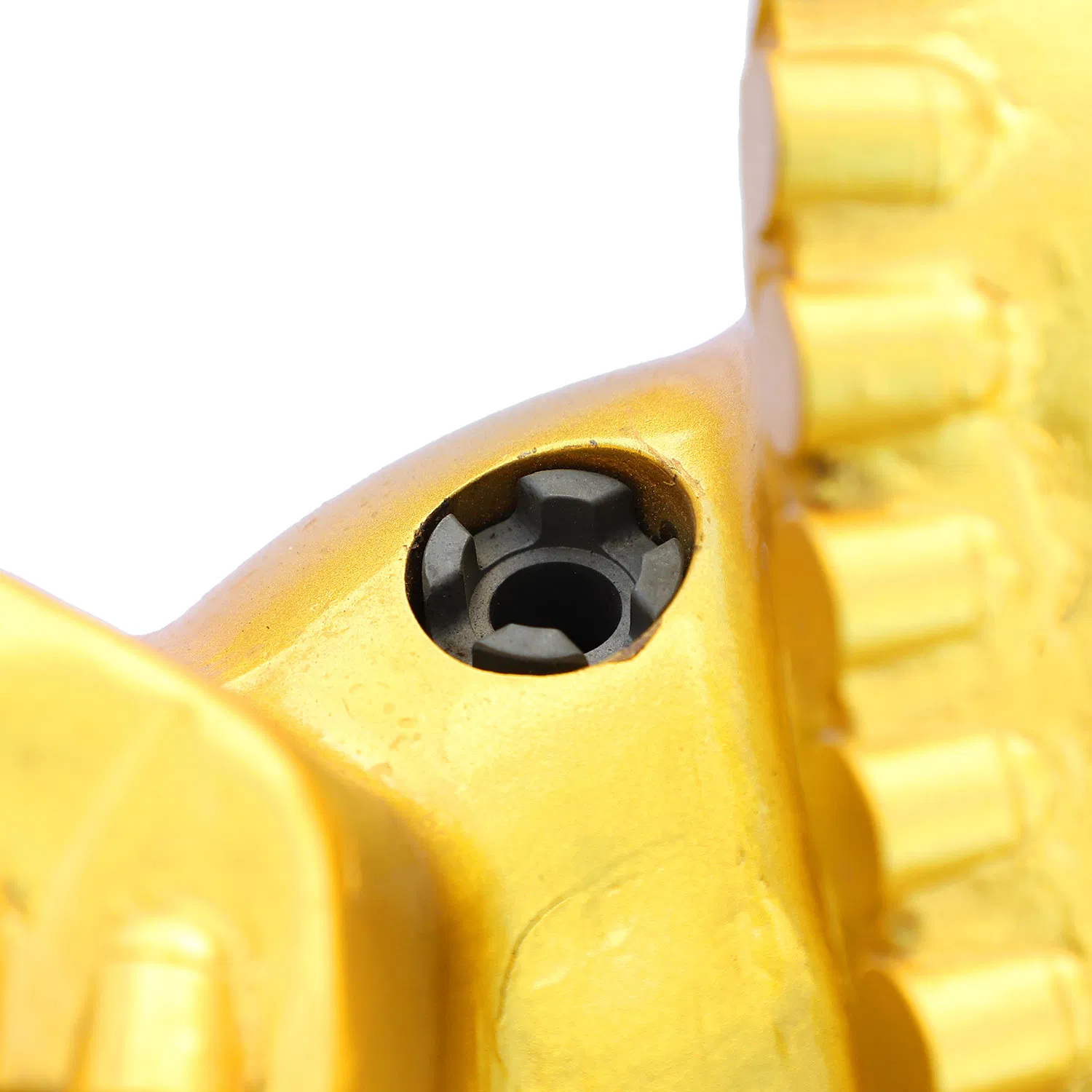

Detailed Photos

⚙

Technical Specifications

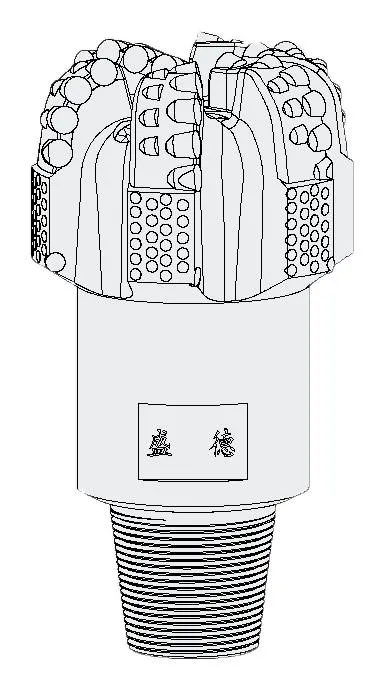

Specification Parameter	Value / Data	Reference View
Bit Type	8-1/2" SS1605DFX
IADC Code	S423
Number of Blades	5
Cutter Size	Φ15.88mm; Φ13.44mm
Cutter Quantity	Φ15.88x24; Φ13.44x49
Nozzle Quantity	7NZ TFA: 1310.38mm²
Gauge Protector Length	75mm
Connector	4-1/2" API REG
N.W/G.W.	54/70KG

★

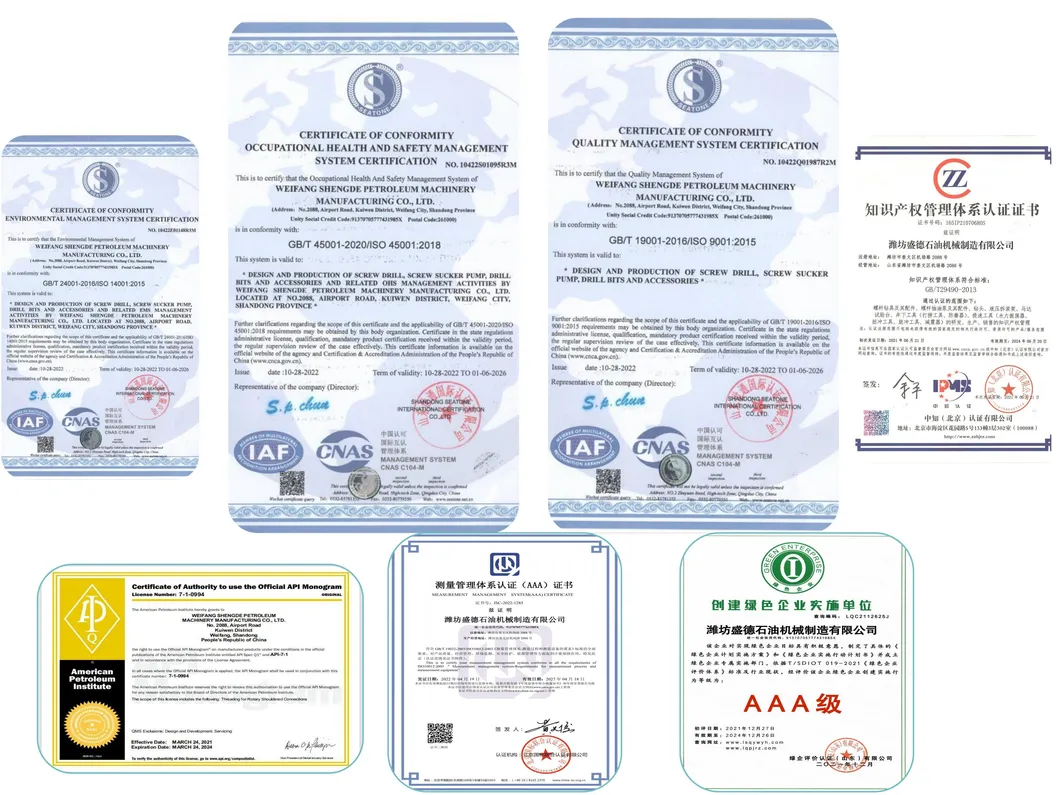

Quality Certifications

🛠

Installation Instructions

1

Check the last bit for damage or cutter loss. Ensure the well bottom is clean of hard debris before use.

2

Inspect the new bit cutters and nozzle O-rings. Install nozzles as required.

3

Clean bit threads thoroughly and apply professional thread oil.

4

Use the unloader to safely align and make up the drill string connection.

5

Tighten the screw threads according to recommended torque values using the turntable bushing.

🏢

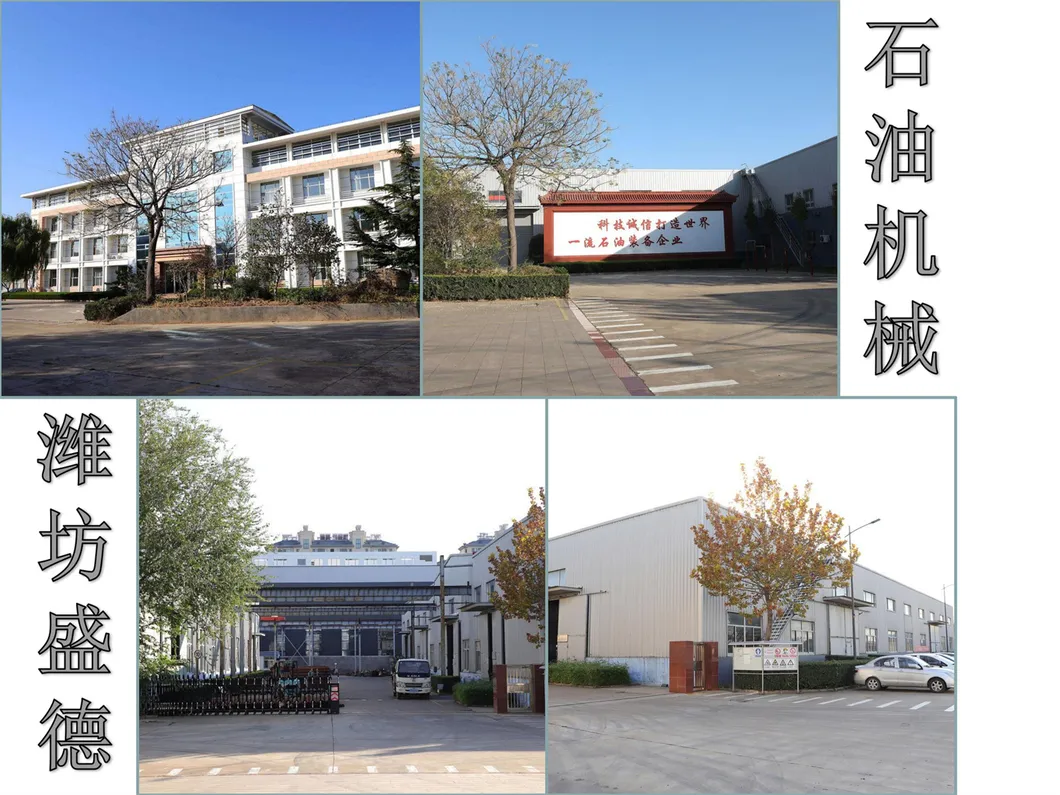

Manufacturing Capability

Our enterprise is an excellent petroleum equipment manufacturer, serving as a first-class network supplier for major industry groups. Our core products include downhole motors, oil drilling bits, and progressive cavity pumps. We maintain a professional R&D team with 9 national invention patents and 16 utility model patents.

Equipped with advanced CNC machine tools and independent physical/chemical laboratories, we ensure high precision and rigorous testing of mechanical properties.

?

Frequently Asked Questions

Are you a manufacturer or a trading company?

We are a specialized manufactory in the petroleum equipment industry with years of experience. Our facilities are ISO9001 and API certified, maintaining AAA grade credit status.

How do you ensure product quality?

We use a multi-stage control system: IQC (Incoming Quality Control) for raw materials, IPQC (Input Process Quality Control) for each production link, and full QC inspection before packaging. Final OQC is performed before every shipment.

What is the annual production capacity for your drilling bits?

Our current production capacity is approximately 2500 pieces per year, supported by advanced CNC machinery and a professional R&D team.

What materials are used in the drill body?

The drill body is primarily manufactured using 42CrMo alloy steel, providing exceptional durability and resistance for high-pressure drilling environments.

Do you provide samples and how is transportation handled?

Freight costs depend on weight, size, and destination. We offer video and photo confirmations for established customers to streamline the process and save costs.

What certifications do your products hold?

Our manufacturing processes and products are certified under ISO 9001:2000 and comply with API standards for the petroleum industry.
