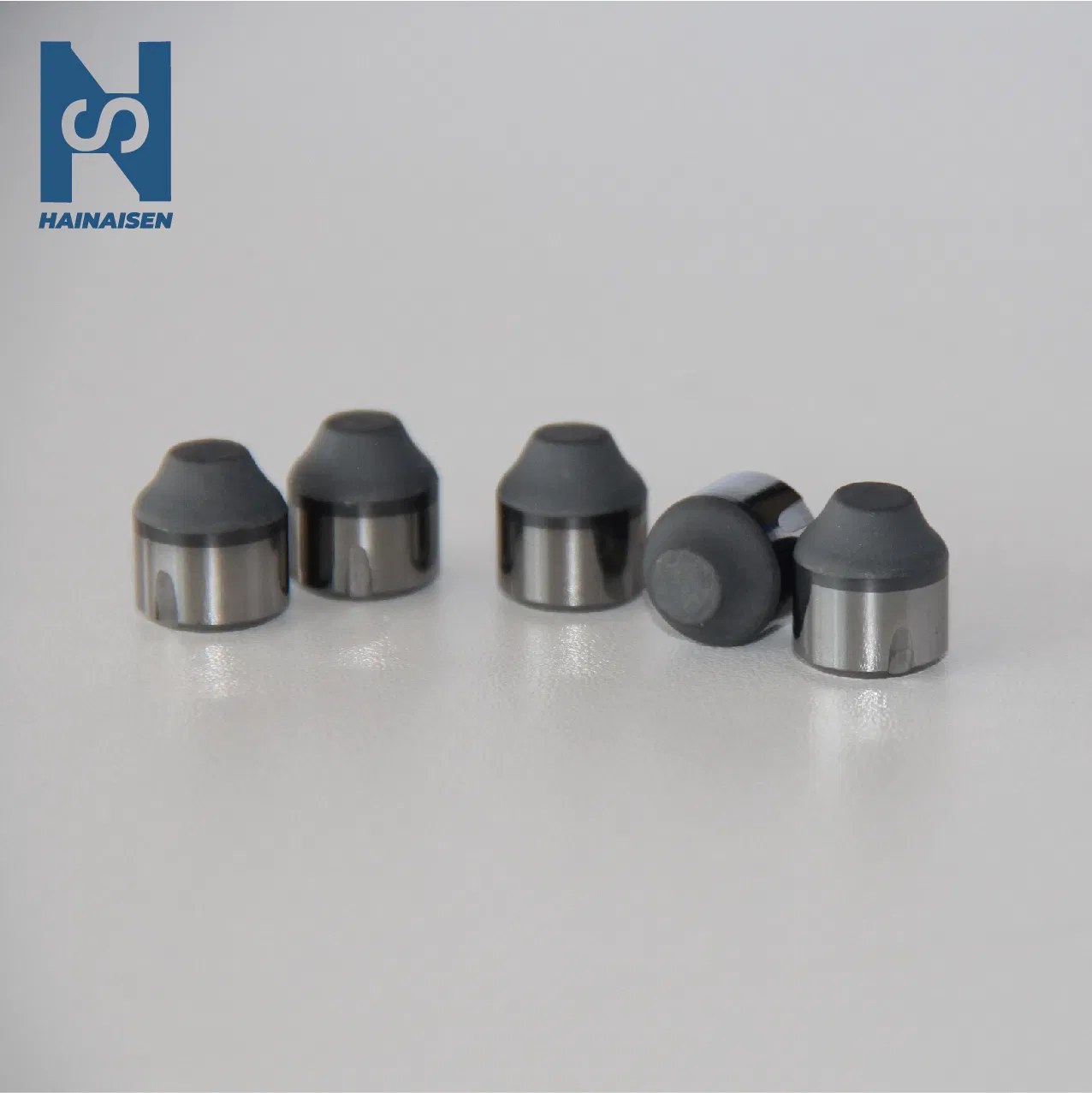

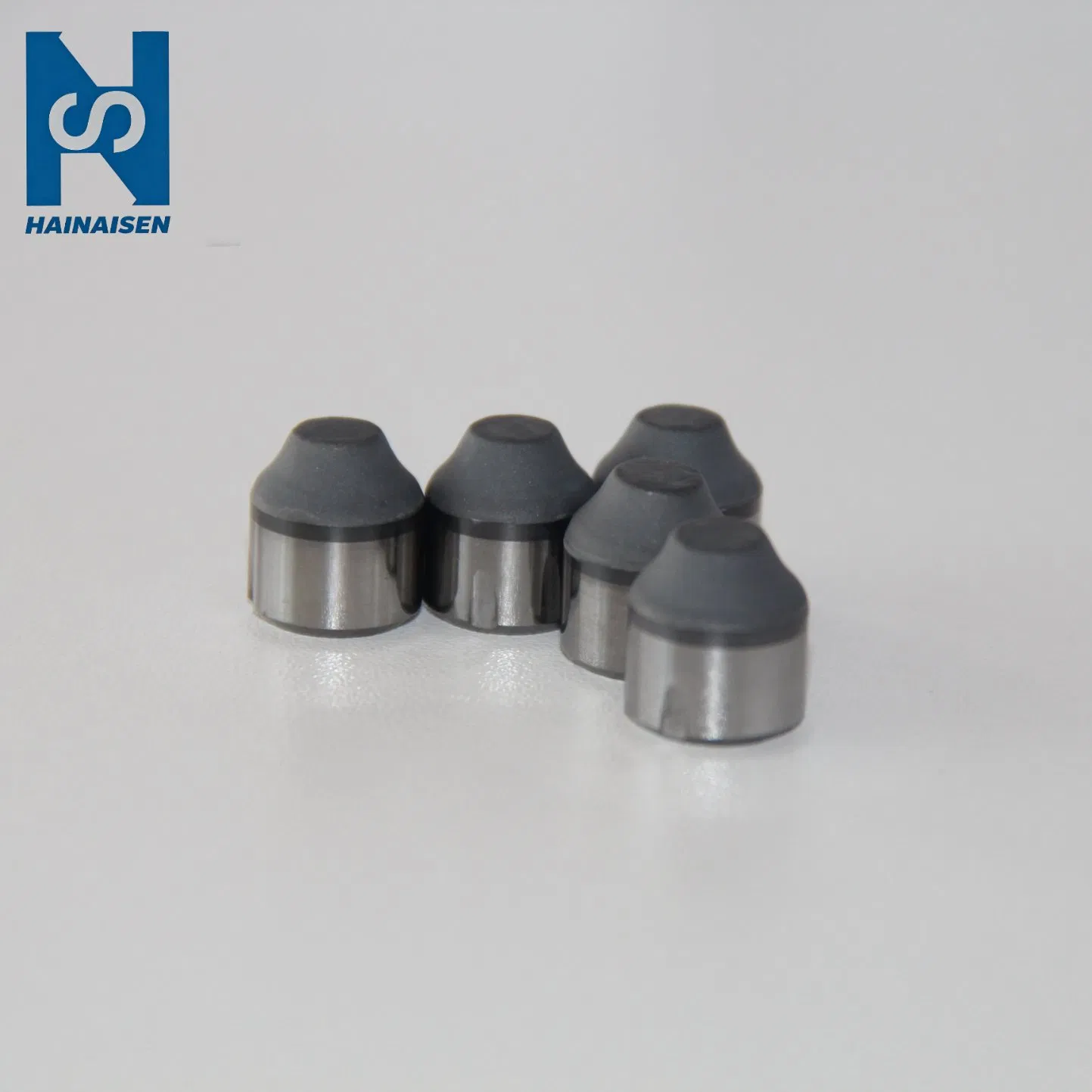

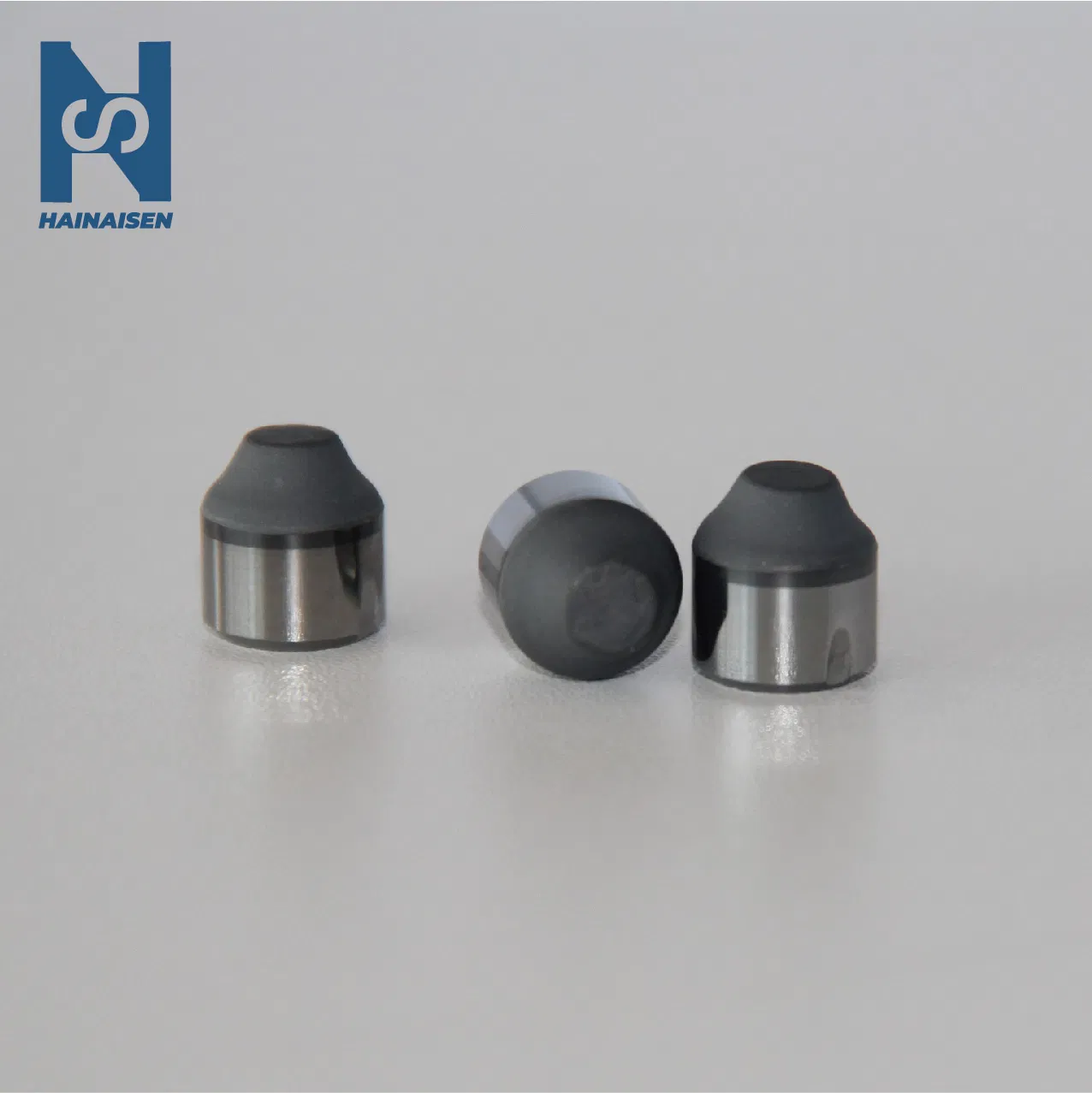

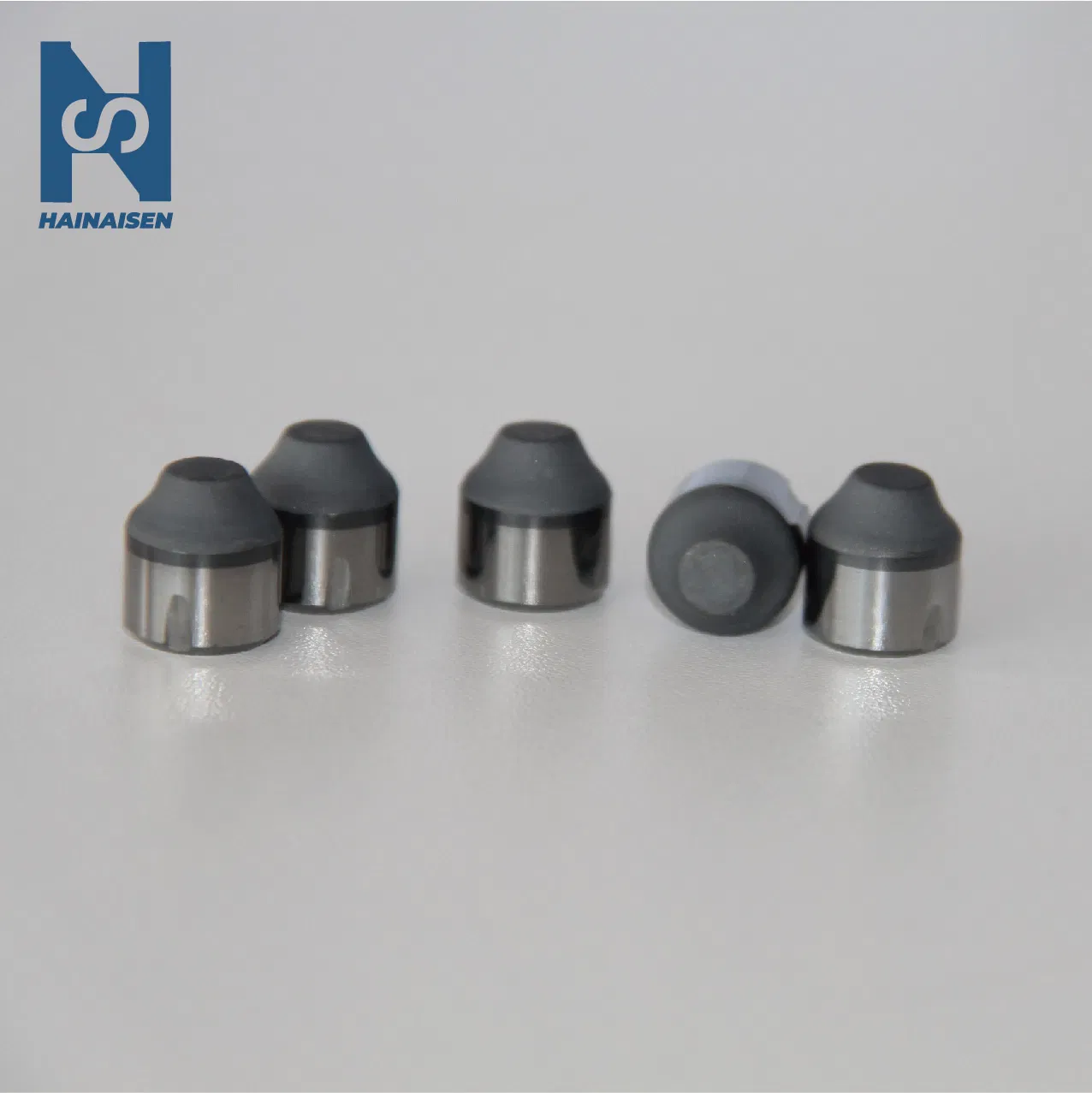

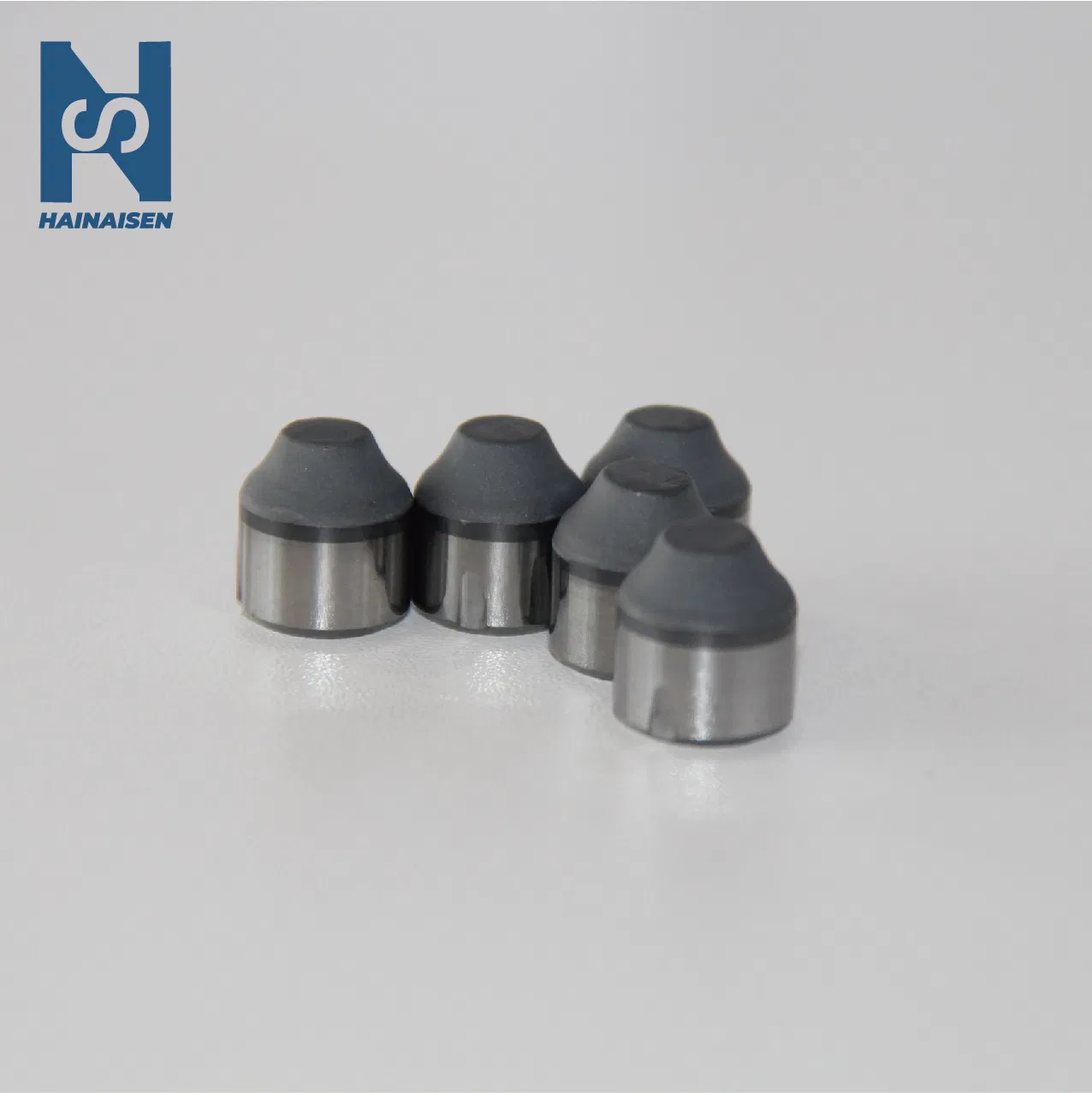

Ultra-Deep Well PDC Cutter Drill Bit for Oil and Gas

1 / 5

Ultra-Deep Well PDC Cutter Drill Bit for Oil and Gas

Customization:	Available
Customized:	Customized
Standard:	ISO

Send Inquiry

Product Description

⚙️ Basic Info

Model NO.

DH1216

Type

PDC Cutter/Insert/Button

Material

Tungsten Carbide

Wear Resistance

Super High

Thermal Stability

750℃ - 900℃

Diameter

12.70 mm

Total Height

16.00 mm

Tolerance

±0.02mm

Impact Toughness

Excellent

Certification

ISO 9001

💎 Product Description

Dome Cutter Series

Core Features: Dome PDC inserts consist of multilayer structure of diamond and transition layer, improving impact resistance greatly, which makes dome PDC inserts the best alternative to be applied in roller cone.

Applicable Bit Position: Priority for rear row teeth, auxiliary for main teeth. As rear row teeth, it buffers impact, protects main teeth and prevents gravel from damaging the main cutting part.

Flat Cutter Series

Core Features: Flat and smooth tooth surface with large contact area, delivering high cutting efficiency and outstanding wear resistance. Uniform force bearing avoids local wear.

Applicable Bit Position: Priority for main teeth, also available for rear row teeth. As main teeth, it crushes formation rocks quickly with high cutting efficiency.

Conical Cutter Series

Core Features: Sharp tapered tooth tip with extremely strong penetration, reducing drilling resistance and breaking medium-hard to hard formations quickly. Tapered structure disperses stress effectively.

Applicable Bit Position: Only for main teeth. Its core advantage is sharp penetration for hard formation crushing.

📊 Specifications

Model No.	Diameter (mm)	Total Height (mm)	Diamond Thickness (mm)	Chamfer (mm)
S1308	13.44	8.00	2.00	0.40
S1313	13.44	13.20	2.00	0.40
S1316	13.20	15.88	2.00	0.35
S1613	15.88	13.20	2.40	0.40
S1913	19.05	13.20	2.40	0.30
S1916	19.05	16.00	2.40	0.30
S2219	22.20	19.05	2.00	0.30

🏗️ Application Case

📦 Packing & Delivery

📜 Certifications

❓ Frequently Asked Questions

Q1: Are you a factory or a trading company?

A: We are a professional PDC Cutter manufacturer with our own production line and R&D team, providing factory direct sales with competitive prices and stable quality.

Q2: Do you accept OEM/ODM customization?

A: Yes. OEM (custom logo/packaging) and ODM (custom size/performance) are supported to meet your specific brand and market requirements.

Q3: Can PDC Cutters be mixed used on one drill bit?

A: Yes. Half moon and full round PDC Cutters can be combined according to stratum characteristics, optimizing drilling efficiency and stability.

Q4: Do you provide technical support after sale?

A: Yes. Our professional technical team provides 24/7 online service, including drill bit matching, usage guidance, and failure analysis.

Q5: What shipping methods do you support?

A: We support express (DHL/FedEx/UPS, 3-7 days), air freight (5-10 days), and sea freight (20-35 days), choosing the most cost-effective way for your needs.

Q6: Can I place a trial order with a small quantity?

A: Yes. Trial orders are acceptable for new customers to test our quality and performance.
