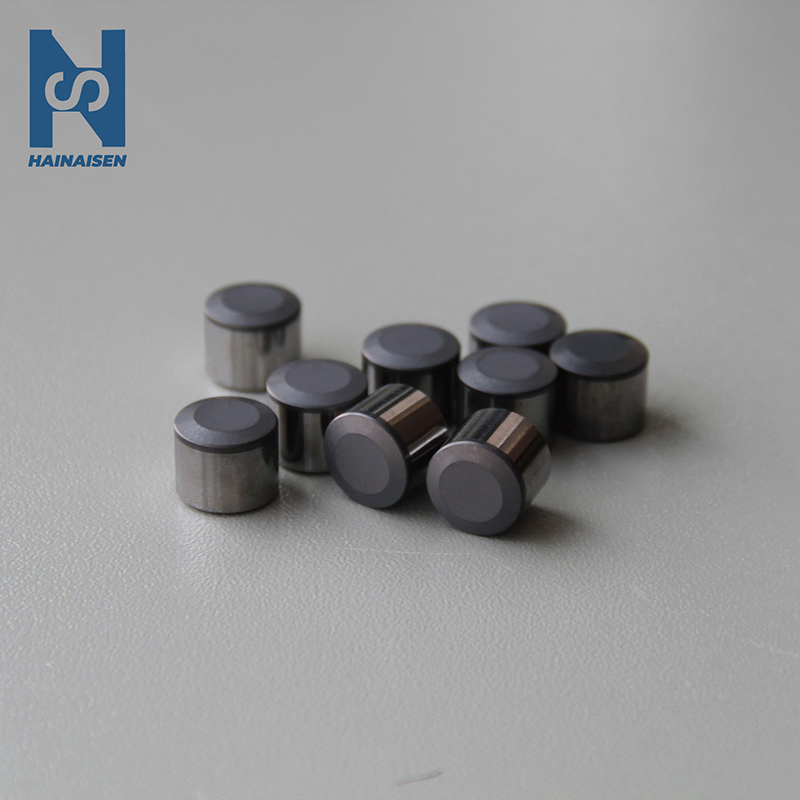

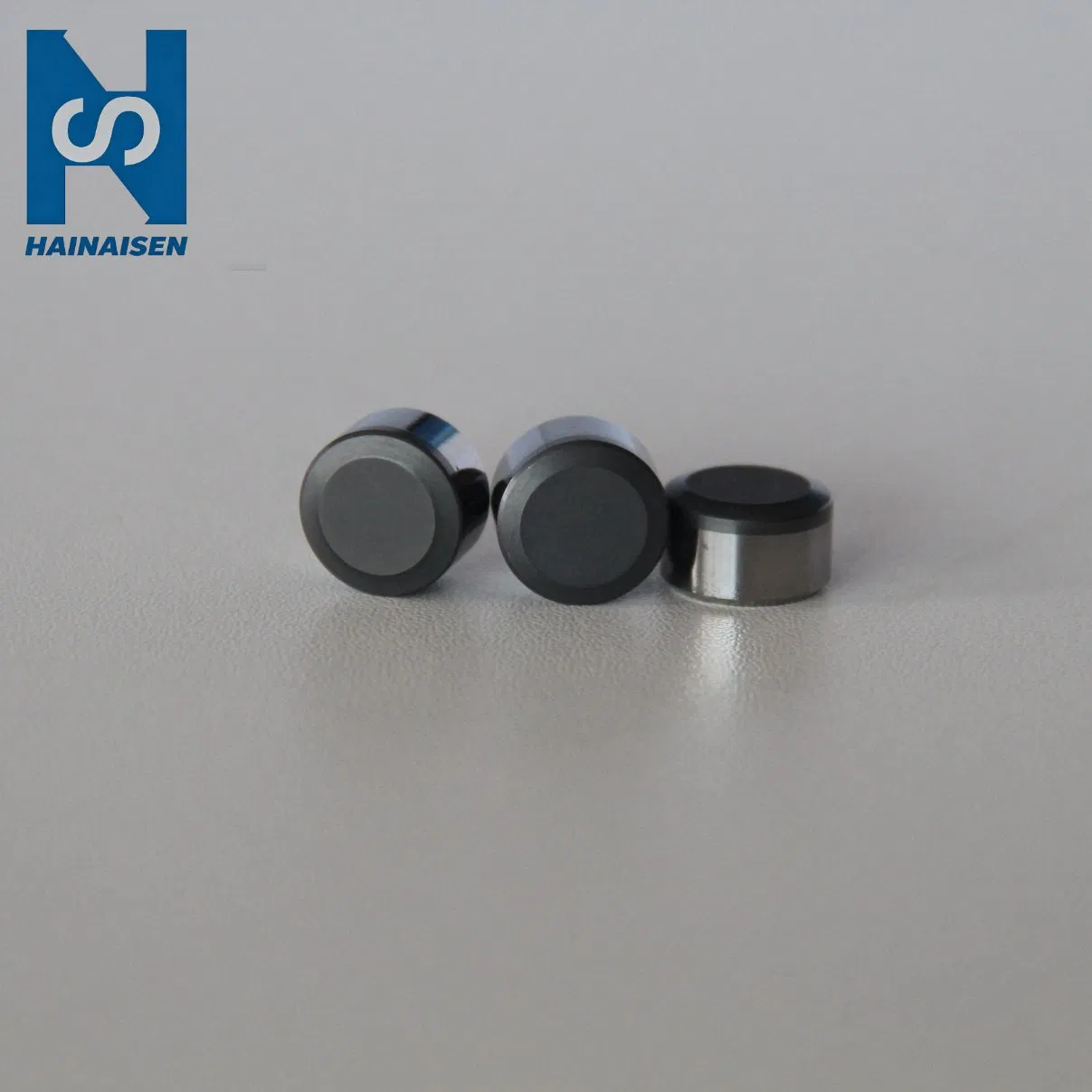

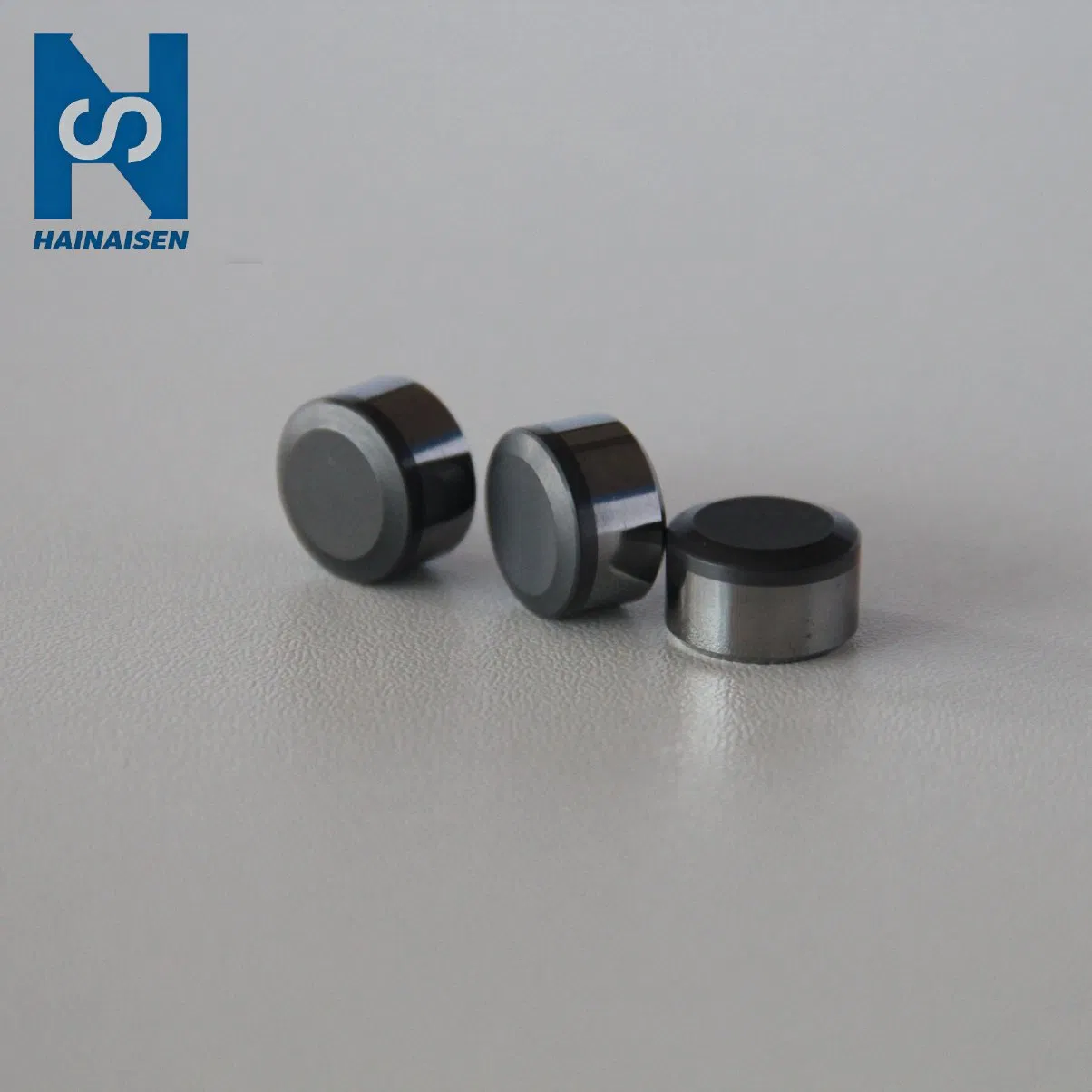

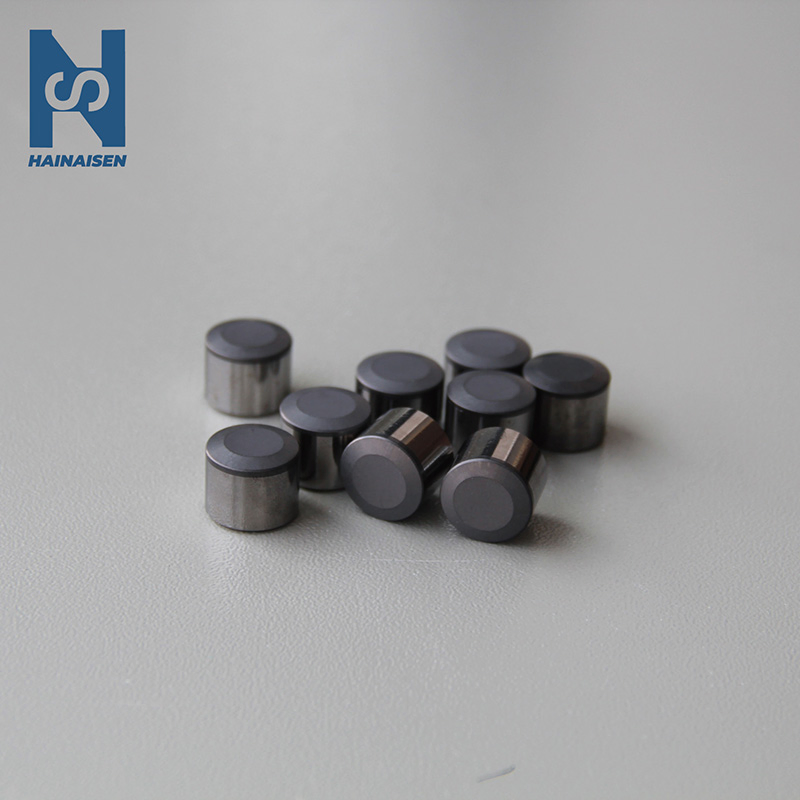

Elliott Cutters
1 / 5
Core Features: Dome PDC inserts consist of a multilayer structure of diamond and transition layer, significantly improving impact resistance. This makes them the best alternative for roller cone applications.
Application: Priority for rear row teeth, auxiliary for main teeth in soft to medium-hard broken formations. It buffers impact and protects main cutting parts.
Core Features: Features a smooth tooth surface with a large contact area, delivering high cutting efficiency and outstanding wear resistance. High processing precision makes it a versatile, cost-effective choice.
Application: Priority for main teeth to crush rocks quickly; also suitable for rear row teeth to assist cutting and provide gauge protection.
Core Features: Sharp tapered tip with extreme penetration power, reducing drilling resistance in medium-hard to hard formations. Stress-dispersing structure avoids chipping.
Application: Recommended exclusively for main teeth where high penetration for hard formation crushing is required.
| Model No. | Diameter (mm) | Total Height (mm) | Diamond Thickness (mm) | Chamfer (mm) |
|---|---|---|---|---|
| S1308 | 13.44 | 8.00 | 2.00 | 0.40 |
| S1313 | 13.44 | 13.20 | 2.00 | 0.40 |
| S1316 | 13.20 | 15.88 | 2.00 | 0.35 |
| S1613 | 15.88 | 13.20 | 2.40 | 0.40 |
| S1913 | 19.05 | 13.20 | 2.40 | 0.30 |
| S2219 | 22.20 | 19.05 | 2.00 | 0.30 |
