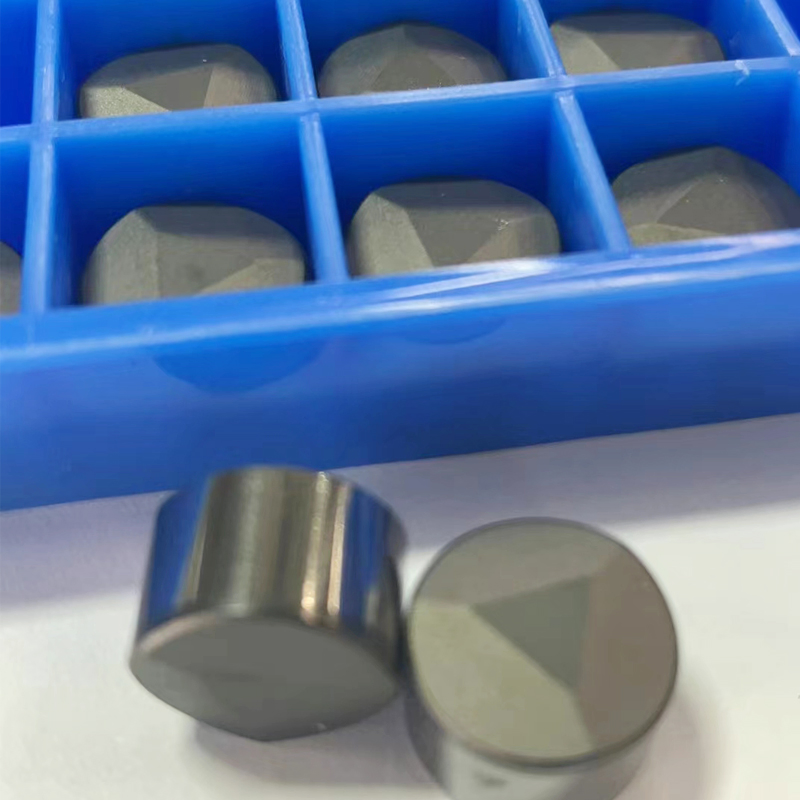

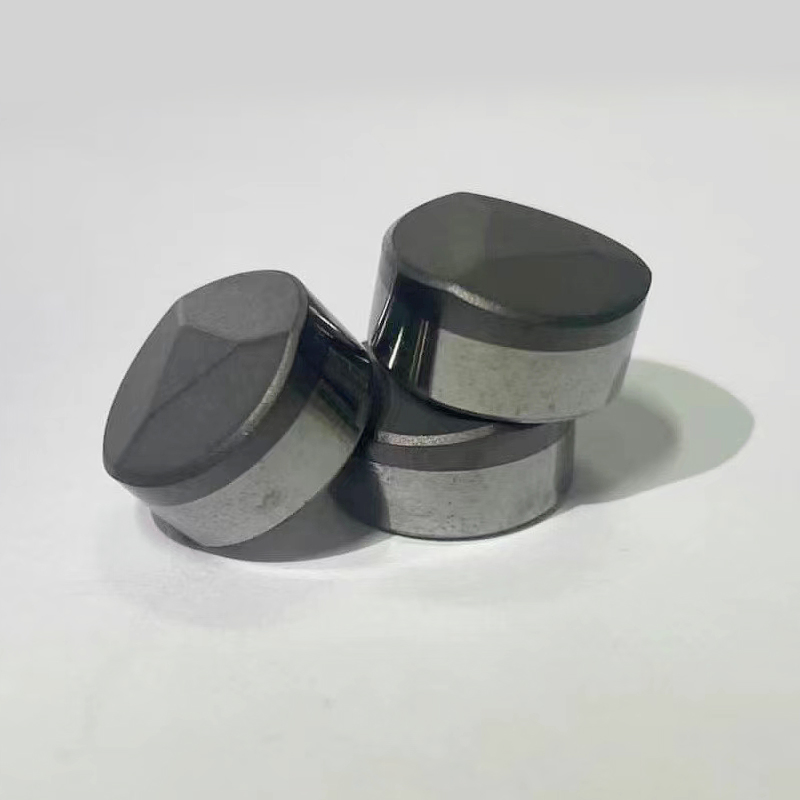

High Quality 1308 PDC Cutter for PDC Drill Bits for Oilfield

1 / 5

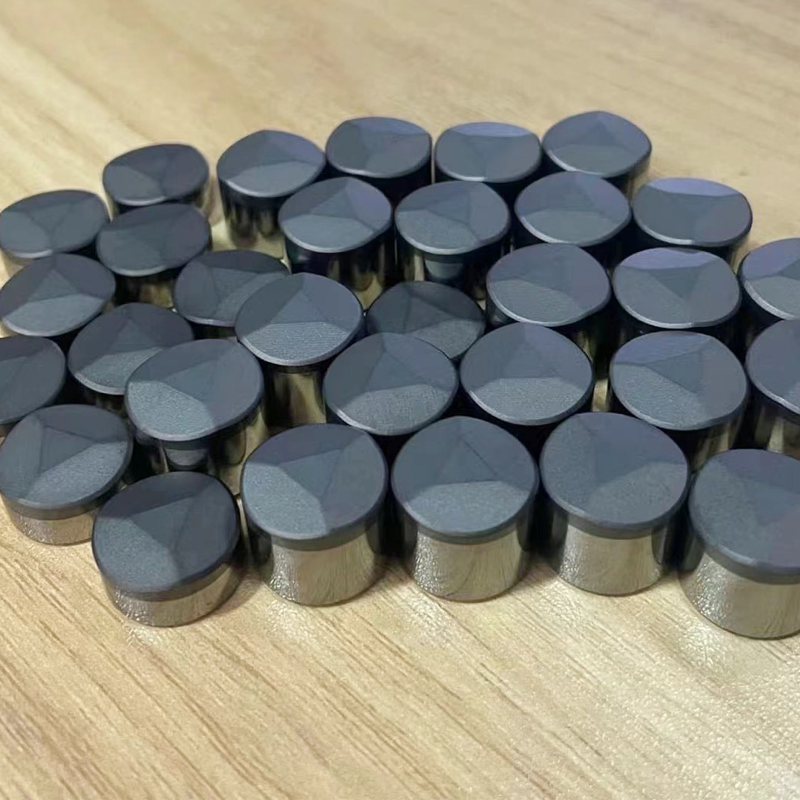

High Quality 1308 PDC Cutter for PDC Drill Bits for Oilfield

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋

Overview & Basic Info

Model NO.

PDC34

Characteristic

High Hardness

Purity

99.9%

Color

Black

Shape

Round

Certificate

ISO9001

Delivery Time

3-5 Business Days

Transport Package

Plastic, Bottle, Carton

Specification

13mm, 16mm, 19mm

HS Code

8209009000

💎

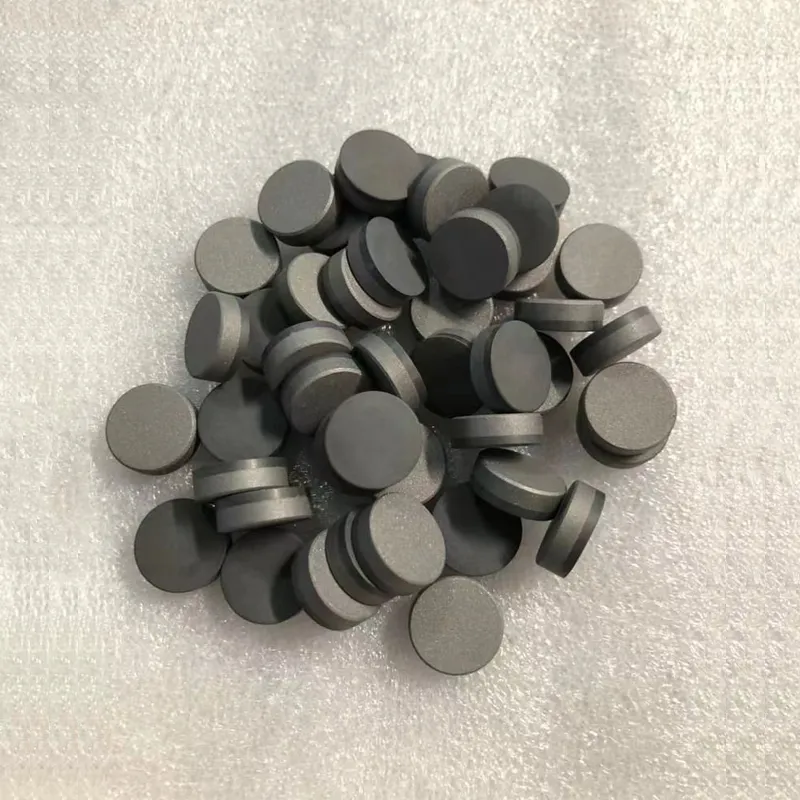

PDC Cutters (Polycrystalline Diamond Compact)

PDC Cutters are composed of a polycrystalline diamond layer and a tungsten carbide substrate. The diamond layer possesses extremely high hardness and abrasion resistance, while the tungsten carbide substrate greatly improves the malleability and weldability of the whole composite.

Product Details:

Material: PDC (Polycrystalline Diamond Composite)
Diameters: 13mm, 16mm, 19mm

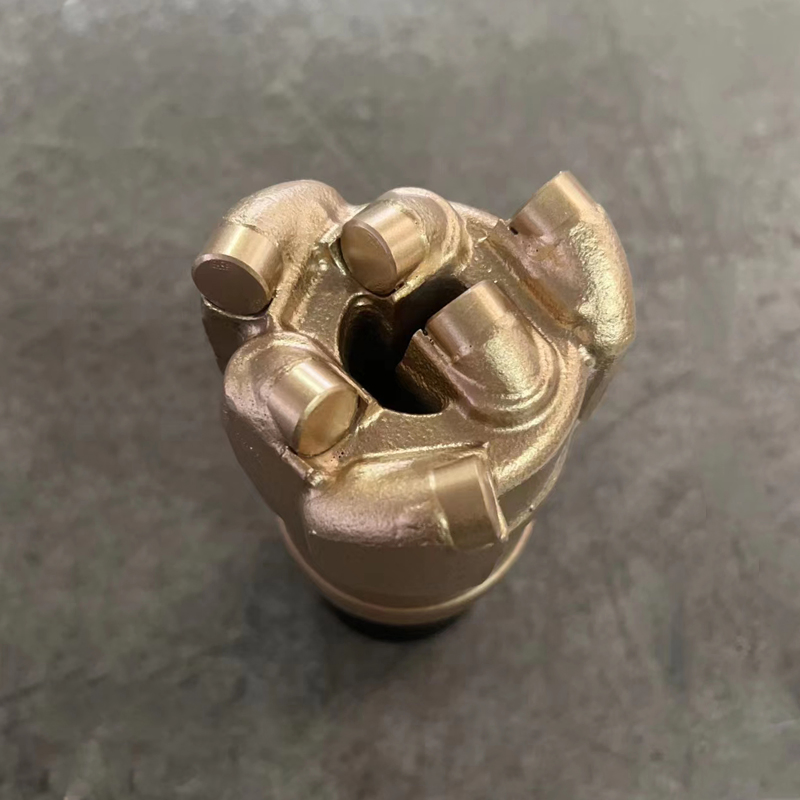

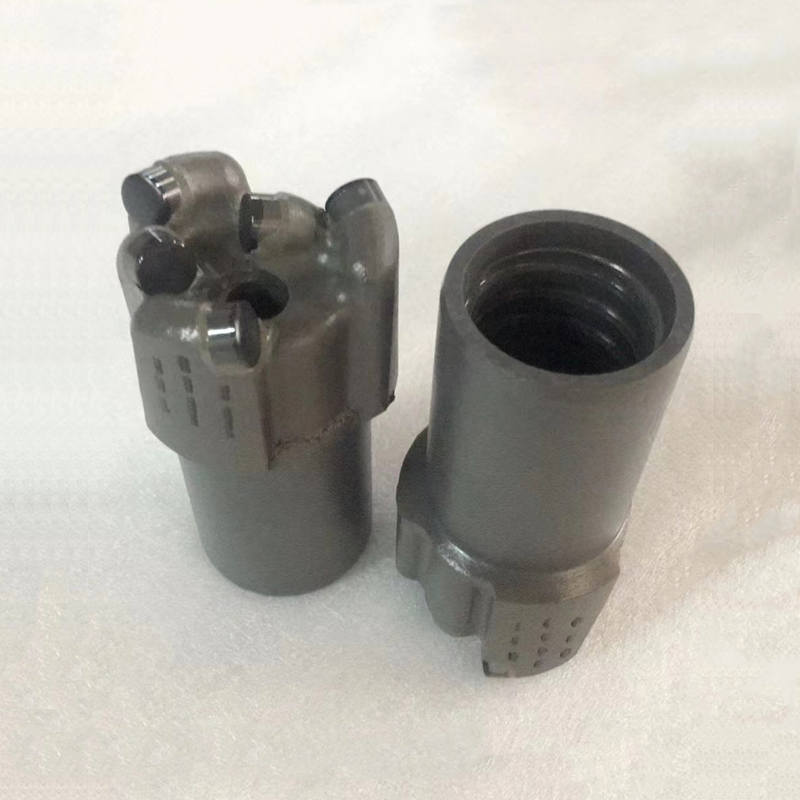

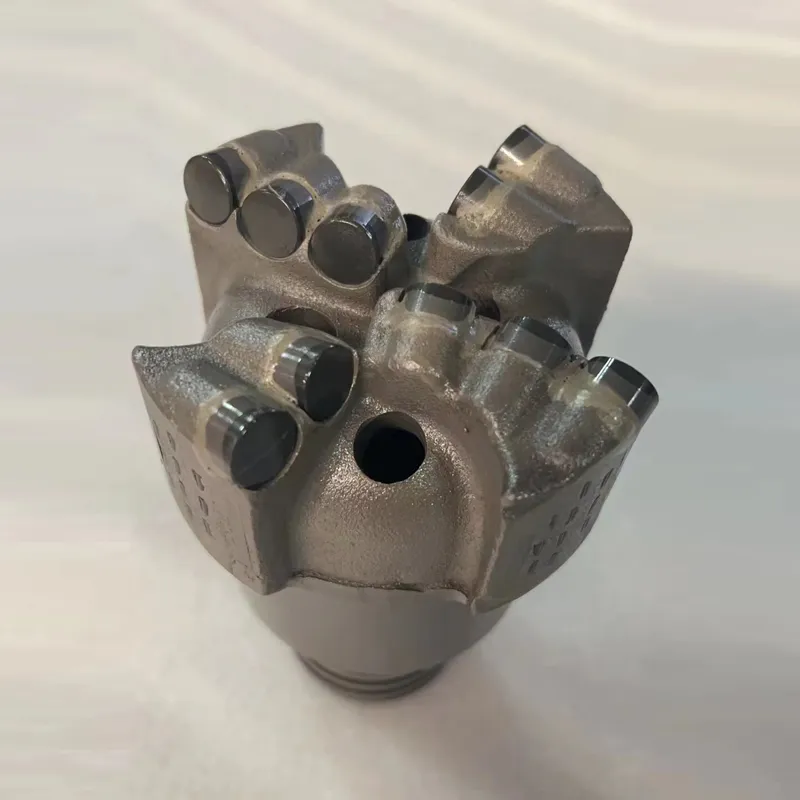

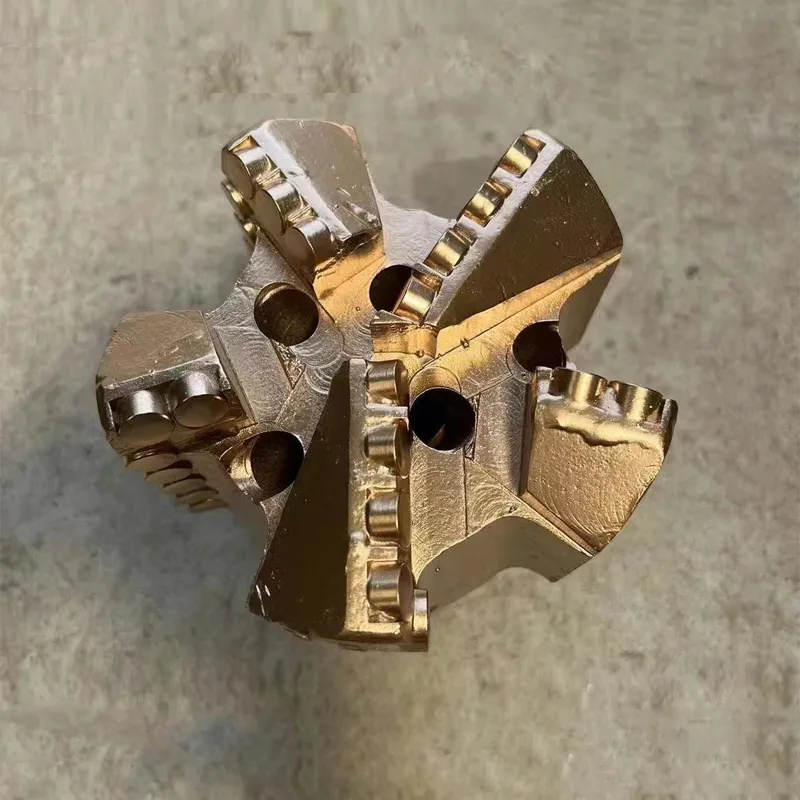

Application Tools: PDC Drill Bits, PDC Reamers

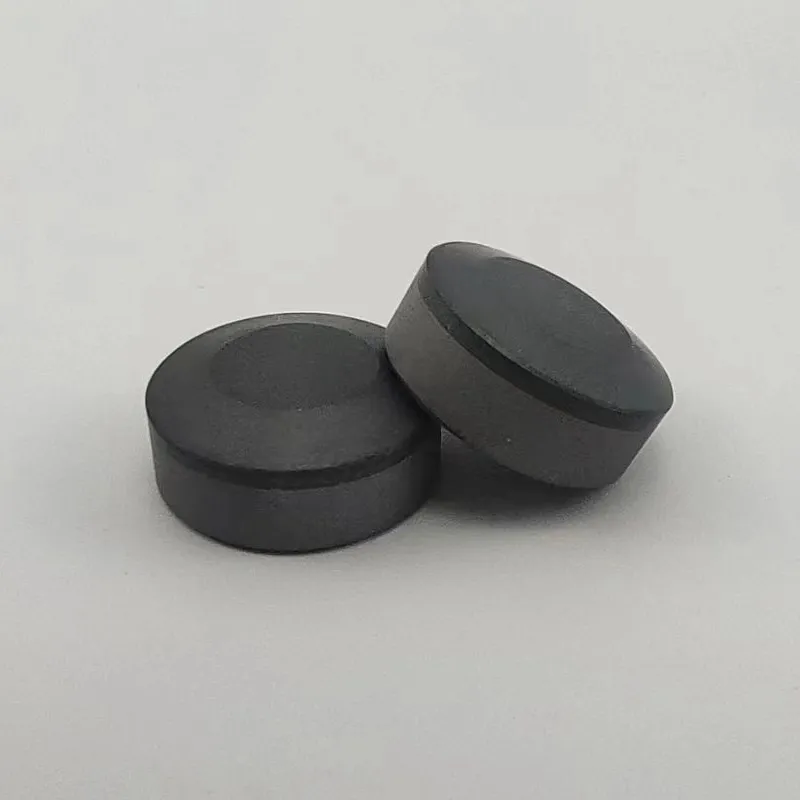

Available Types: Flat face, Convex face, Helmet face, Ridge face, Half cut type

These inserts are suitable for soft to hard geological terrain. We offer claw structures and various chamfer types, with options for grinding and polishing based on customer demand.

📏

Available Specifications

Item Type	Diameter	Height	Diamond Thickness	Diamond Chamfer	Carbide Chamfer
0808	8.2±0.03mm	8.2±0.03mm	2.0±0.02mm	0.3mmX45°	0.5mmX45°
1008	10±0.03mm	8.2±0.03mm	2.0±0.02mm	0.3mmX45°	0.5mmX45°
1304	13.4±0.05mm	4.5±0.03mm	2.0±0.02mm	0.3mmX45°	0.5mmX45°
1308	13.4±0.05mm	13.4±0.03mm	2.0±0.02mm	0.3mmX45°	0.5mmX45°
1613	15.9±0.05mm	15.9±0.05mm	2.0±0.02mm	0.3mmX45°	0.5mmX45°
1913	19.1±0.05mm	15.9±0.05mm	2.0±0.02mm	0.3mmX45°	0.5mmX45°
1916	19.1±0.05mm	15.9±0.05mm	2.0±0.02mm	0.3mmX45°	0.5mmX45°

⭐

Key Features

Super high hardness for demanding environments
Strong impact resistance and abrasion resistance
High working efficiency with a smooth surface finish
Fast drilling speed and exceptionally long working life

🏗️

Main Applications

Stone quarrying, especially marble
Oil, coal, and water well drilling
Street and pavement drilling
Geological exploration and mining

💡

Selection Method

Large Cutters (16-19mm): More aggressive than small cutters but may increase torque fluctuations. Ideal for high productivity when quality factors are well-managed.

Small Cutters (8-13mm): Very sharp and show higher ROP (Rate of Penetration) in certain applications like limestone. They allow for higher cutter density to withstand impact loading.

Cutting Size: Large cutters produce larger cuttings, which require efficient drilling fluid to carry them up the annulus. Small cutters produce finer cuttings.

❓

Frequently Asked Questions

1. What materials are PDC cutters made of? PDC cutters consist of a polycrystalline diamond layer bonded to a high-quality tungsten carbide substrate, combining extreme hardness with toughness.

2. Which industries use these cutters most? They are primarily used in oil and gas drilling, coal mining, geological exploration, and stone quarrying (specifically for marble).

3. What is the difference between large and small cutters? Large cutters (16-19mm) are more aggressive for fast material removal, while smaller cutters (8-13mm) offer higher precision and better impact resistance in specific rock types.

4. What shapes of PDC cutters are available? We provide various shapes including flat face, convex face, helmet face, ridge face, and half-cut types to suit different drilling needs.

5. What is the typical lead time for an order? Standard orders are typically processed and delivered within 3 to 5 business days.

6. Are the cutters certified for quality? Yes, our PDC cutters are manufactured under ISO9001 certification standards to ensure consistent performance and durability.
