Customization:	Available
After-sales Service:	Available
Warranty:	1year

Send Inquiry

Product Description

Basic Information

Model NO.12 1/4"

Manufacturing ProcessCNC Milling

Surface TreatmentSpray-Paint

Operation PressureAtmospheric Pressure

MaterialAlloy

Material of Drill Body42CrMo

Wear-Resistant AlloyPolycrystalline Diamond Compact

CertificationISO 9001:2000

StandardSGS

Transport PackageWooden Boxes

Specification12-1/4"

TrademarkCustomization Available

HS Code8207191000

Production Capacity2500 pieces/Year

Packaging & Delivery

Package Size40.00cm * 40.00cm * 65.00cm

Package Gross Weight200.000kg

Product Description

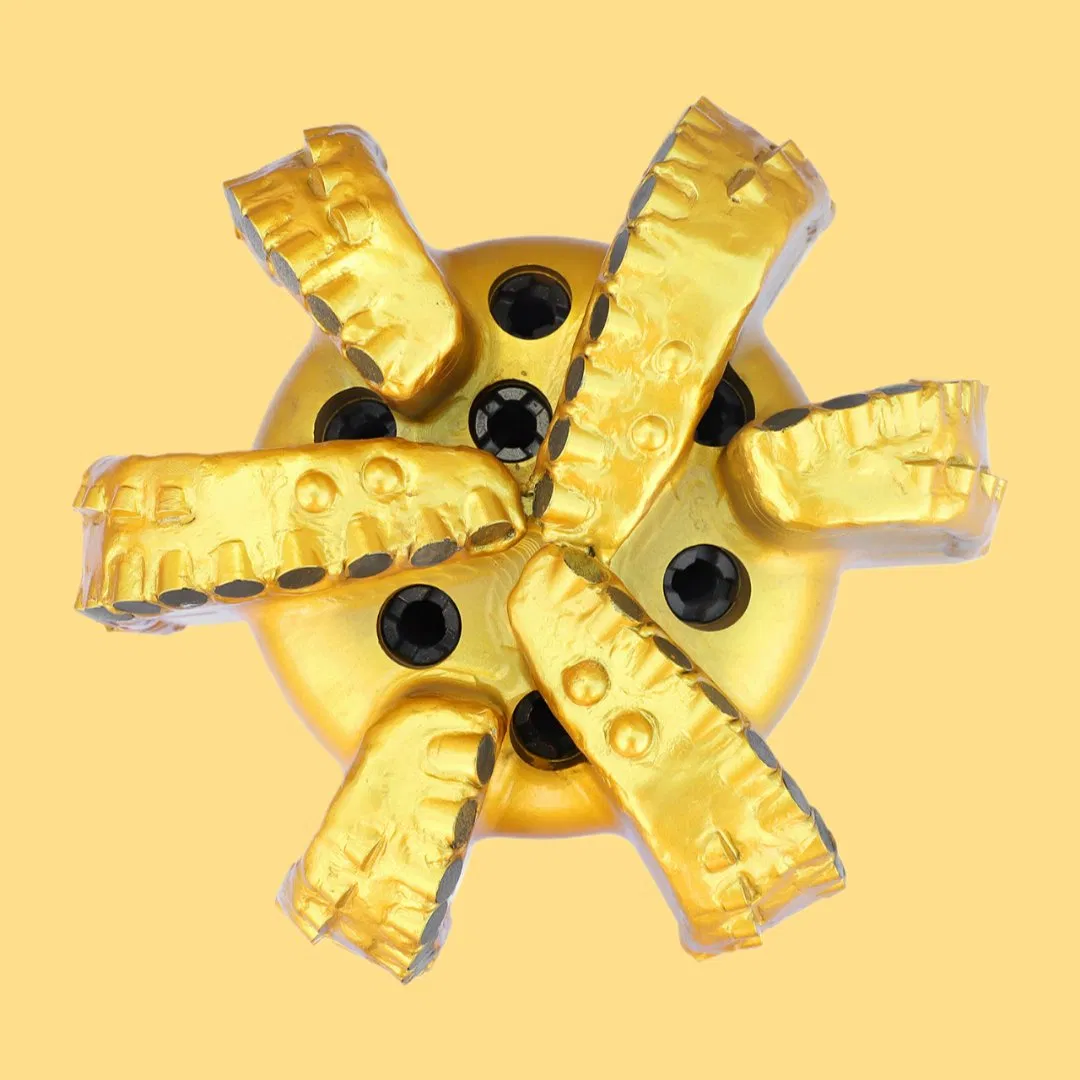

12-1/4 inch Top quality PDC drilling bits of Petroleum Equipment Machinery

PDC Drill Bits Title

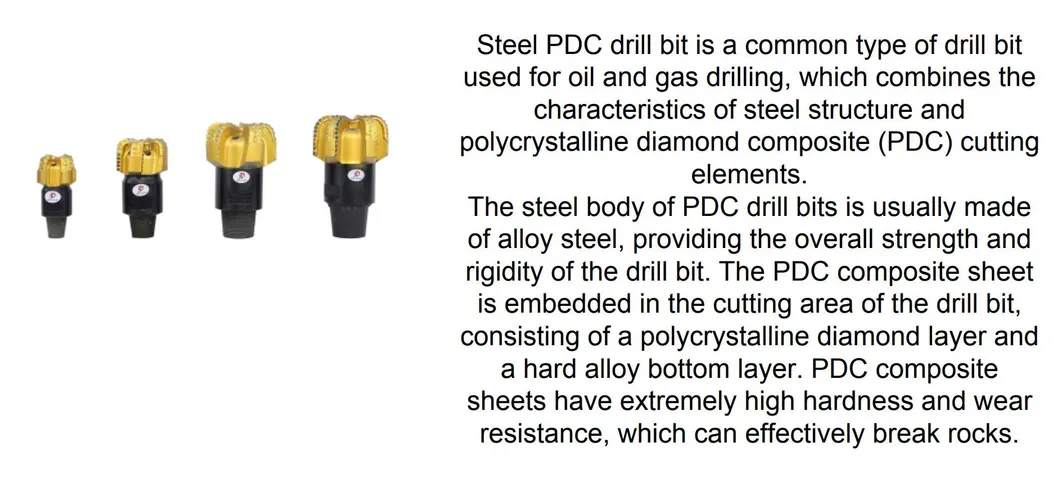

PDC Bit Product View

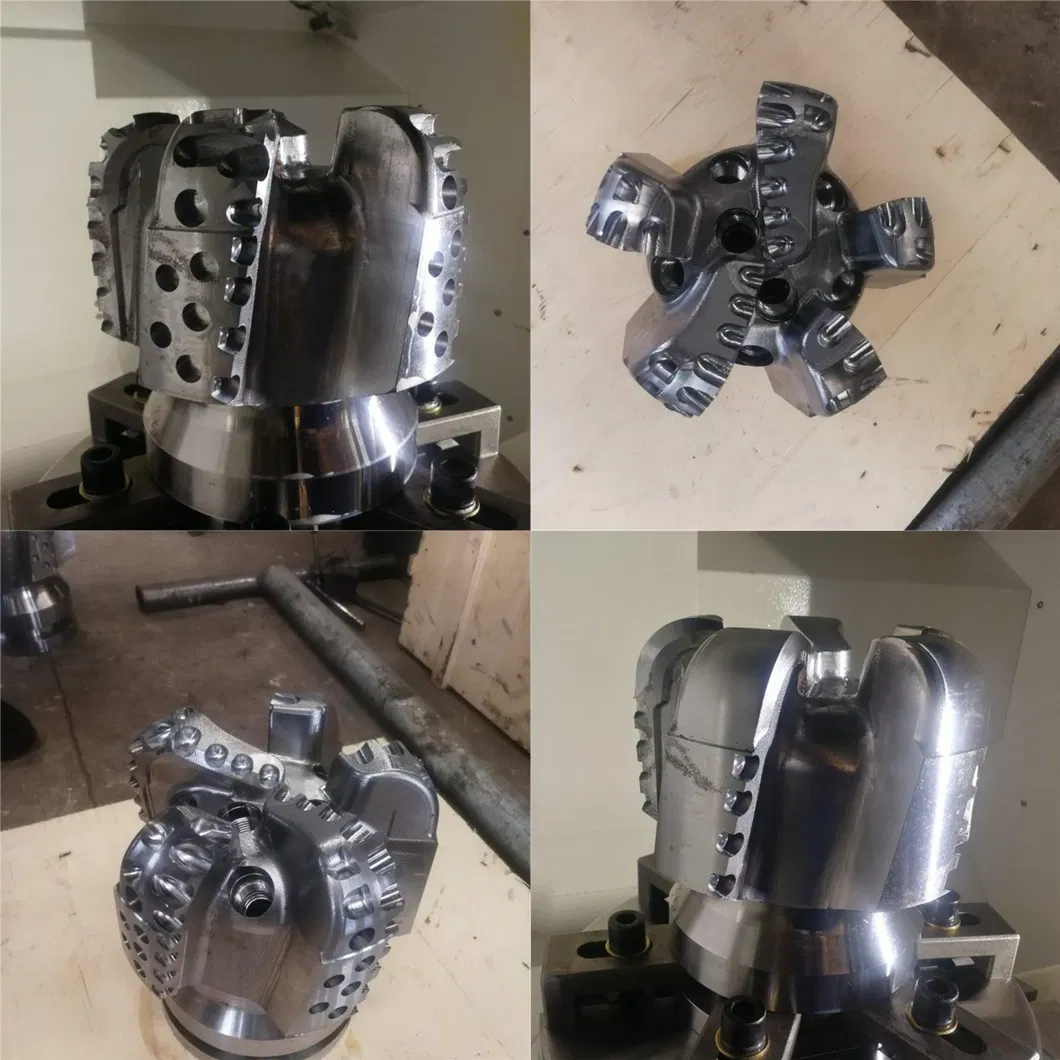

PDC Bit Detail 1

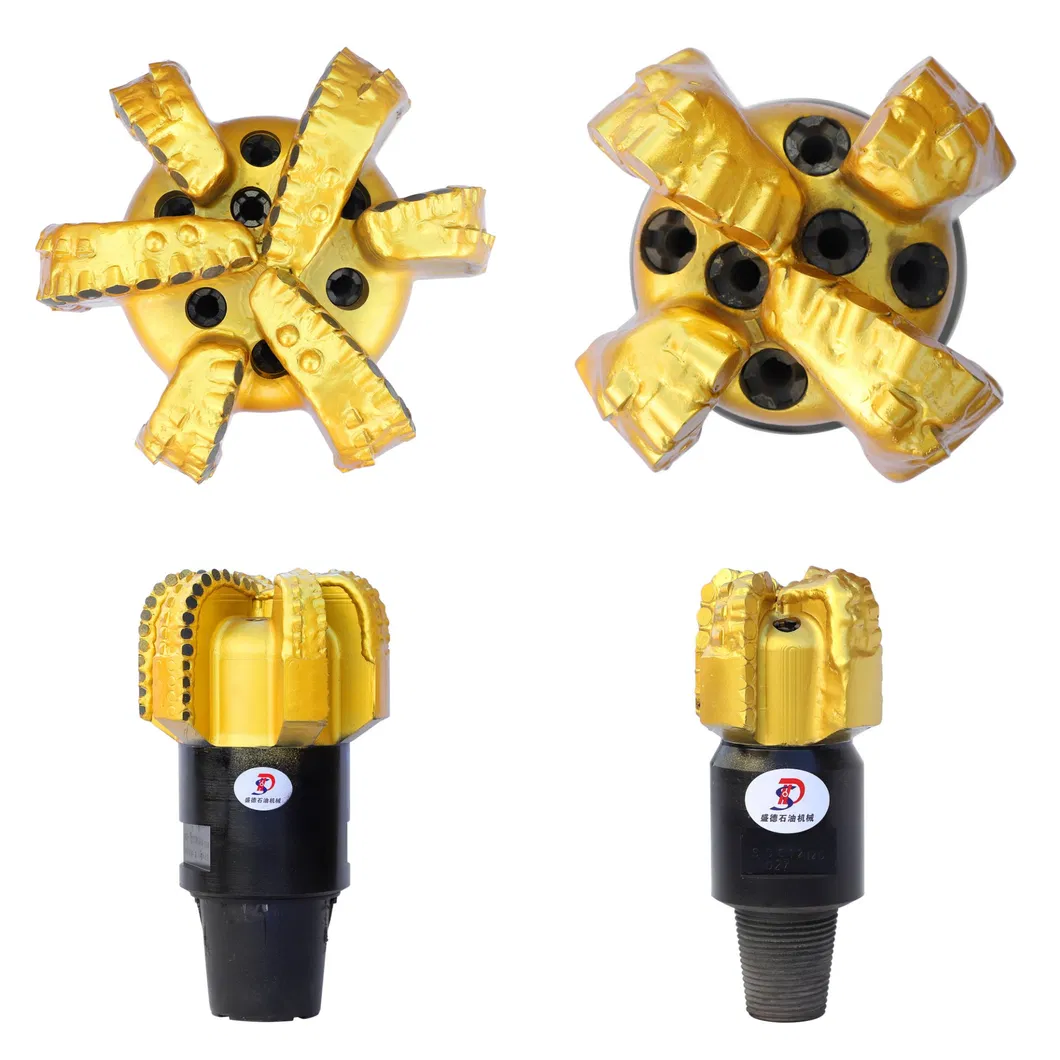

PDC Bit Detail 2

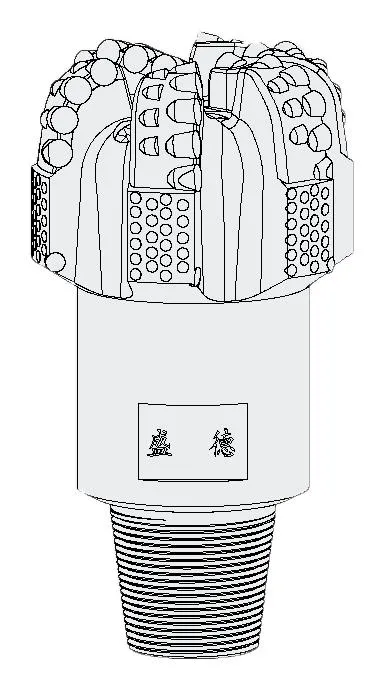

PDC Technical Dimension

PDC Bit Manufacturing

Bit type	12-1/4" SS1605DFX
lADC Code	S423
Number of Blades	5
Cutter Size(mm)	Φ15.88MM; Φ13.44MM
Cutter Qty	Φ15.88x24; Φ13.44x49
Nozzle Qty	7NZ TFA:1310.38mm²
Chip Removal Area	14680.0 mm²
Gauge Length	75mm
Connector	4-1/2"API REG
N.W/G.W.(KG)	54/70KG
Nozzle Size(inch)	5/8x5; 9/16x2

PDC Application Gallery 1

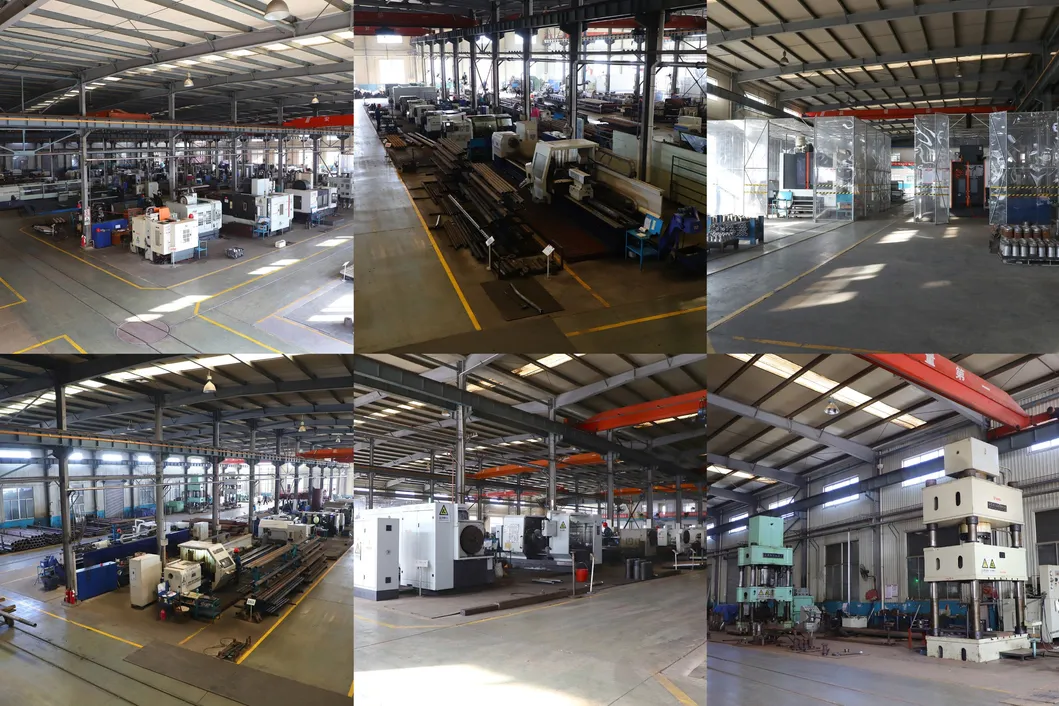

PDC Bit Field Use

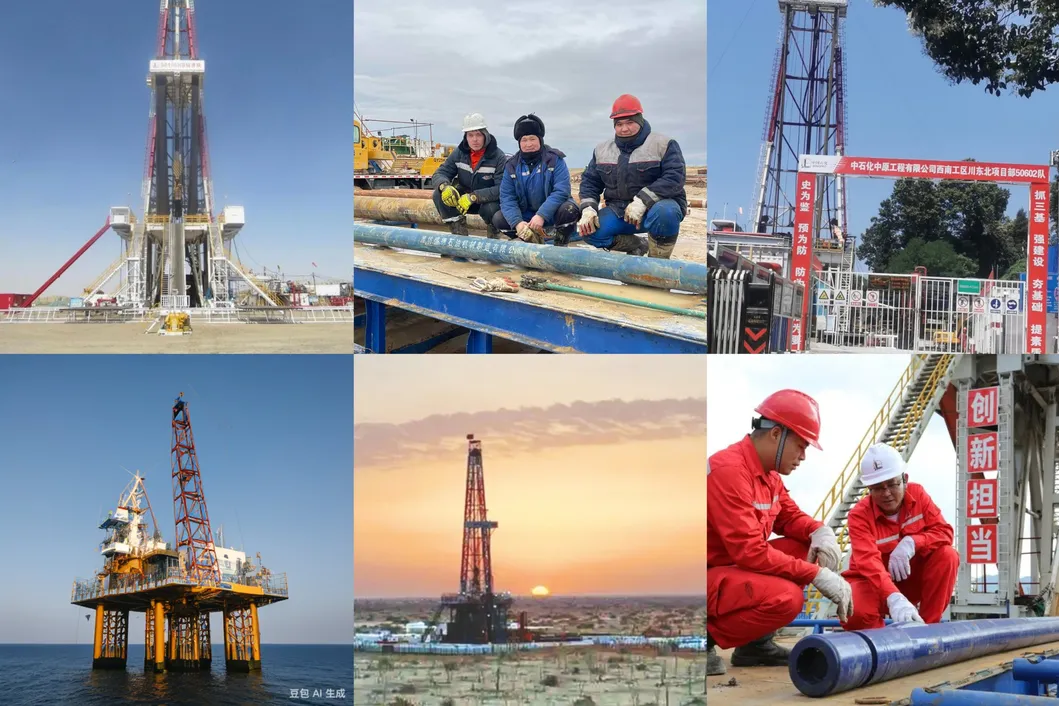

PDC Bit Warehouse

Frequently Asked Questions

How do you perform quality control?

We have a very strict quality controlling system which promises that goods we produced are always of the best quality.

Do you have an export record?

Our products have been sold in a number of areas abroad. They are very popular with the users there.

What is the minimum quantity of an order for your goods?

The minimum order quantity is 1 set.

What standards do these PDC bits comply with?

Our manufacturing processes follow ISO 9001:2000 and SGS standards to ensure high reliability in drilling operations.

Can the bit design be customized for specific drilling conditions?

Yes, we offer customization options for cutters, nozzles, and manufacturing processes to meet your specific geological requirements.

How are the drilling bits packaged for international shipping?

All products are packed in robust wooden boxes to ensure they reach their destination without any damage during transit.
