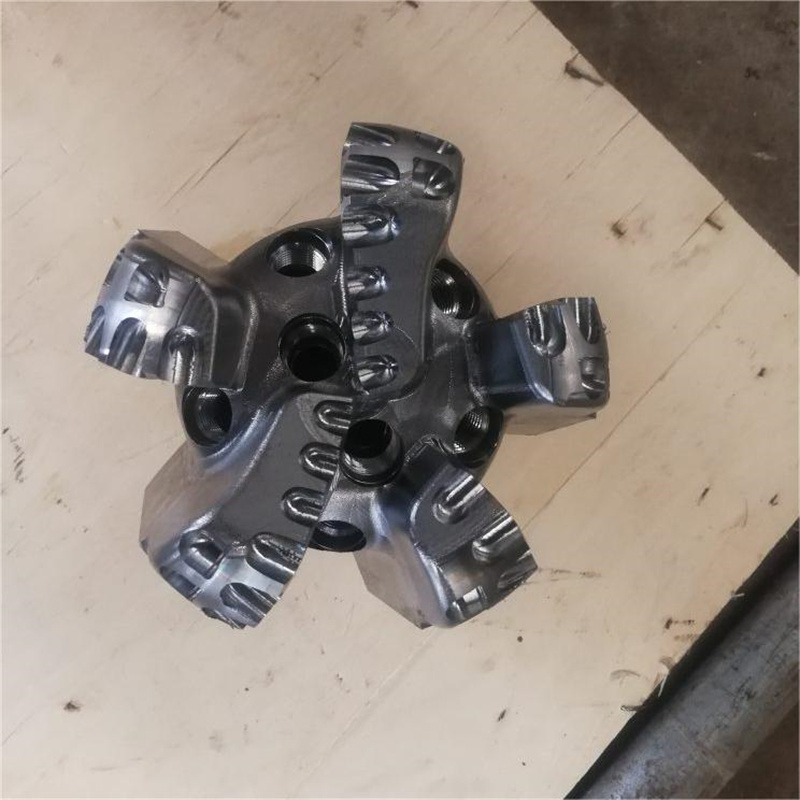

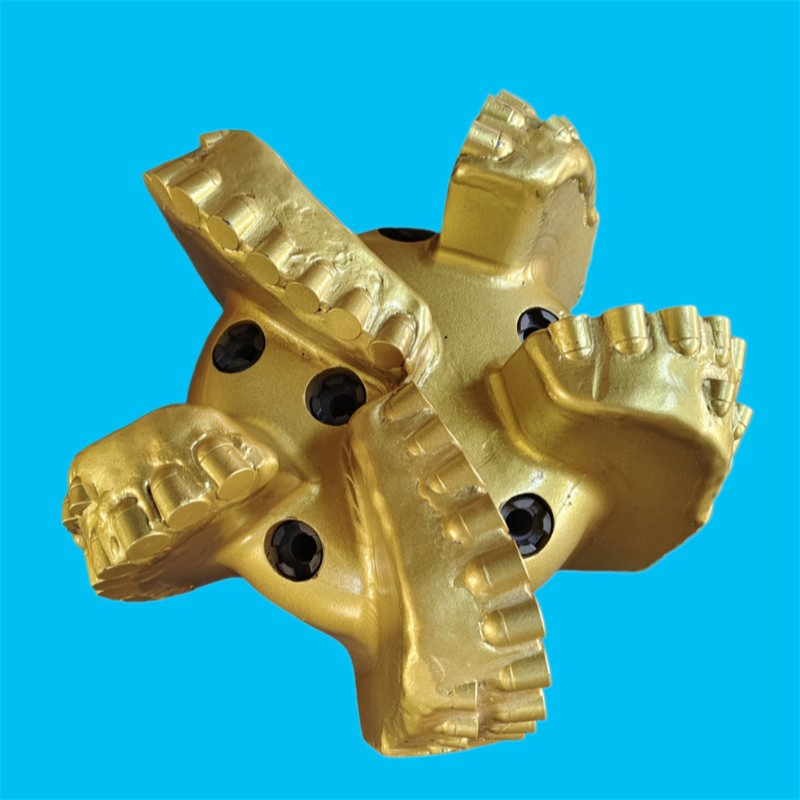

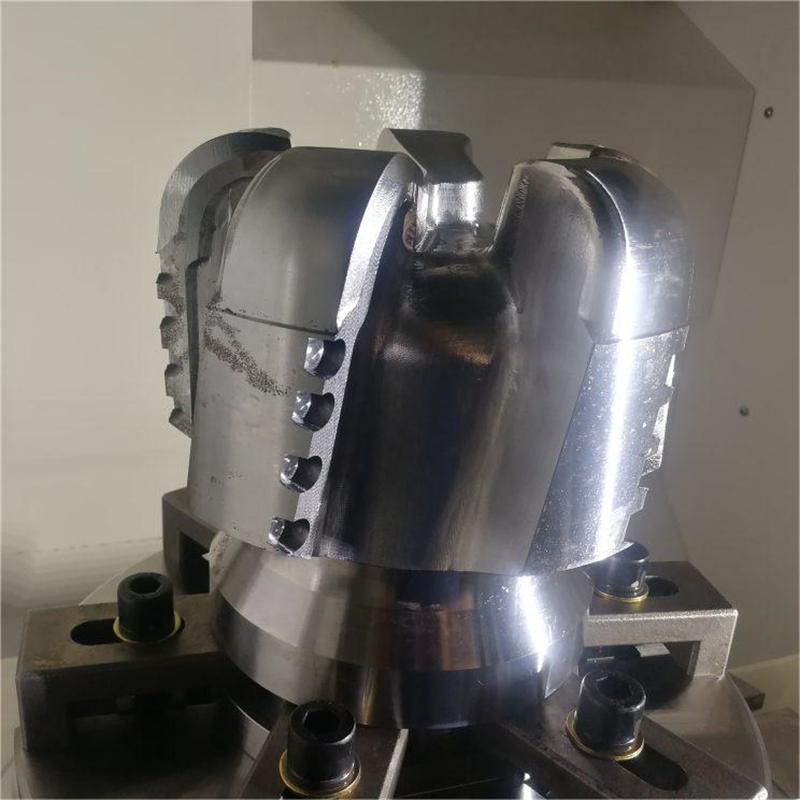

8-3/4 Inch Top Quality PDC Drilling Bits of Petroleum Equipment Machinery
8-3/4 Inch Top Quality PDC Drilling Bits of Petroleum Equipment Machinery
8-3/4 Inch Top Quality PDC Drilling Bits of Petroleum Equipment Machinery
8-3/4 Inch Top Quality PDC Drilling Bits of Petroleum Equipment Machinery
8-3/4 Inch Top Quality PDC Drilling Bits of Petroleum Equipment Machinery
1 / 5
8-3/4 Inch Top Quality PDC Drilling Bits of Petroleum Equipment Machinery
8-3/4 Inch Top Quality PDC Drilling Bits of Petroleum Equipment Machinery
8-3/4 Inch Top Quality PDC Drilling Bits of Petroleum Equipment Machinery
8-3/4 Inch Top Quality PDC Drilling Bits of Petroleum Equipment Machinery
8-3/4 Inch Top Quality PDC Drilling Bits of Petroleum Equipment Machinery

8-3/4 Inch Top Quality PDC Drilling Bits of Petroleum Equipment Machinery

Customization: Available
After-sales Service: Available
Warranty: 1year
Send Inquiry

Product Description

⚙️ Basic Information
Model NO.
8-3/4"
Manufacturing Process
CNC Milling
Surface Treatment
Spray-Paint
Operation Pressure
Atmospheric Pressure
Material
Alloy
Material of Drill Body
42CrMo
Wear-Resistant Alloy
Polycrystalline Diamond Compact
Certification
ISO 9001:2000
Standard
SGS
Transport Package
Wooden Boxes
HS Code
8207191000
Production Capacity
2500 pieces/Year
📦 Packaging & Delivery
Package Size
30.00cm * 30.00cm * 45.00cm
Package Gross Weight
100.000kg
🛠️ Product Description

8-3/4 inch Top Quality PDC Drilling Bits

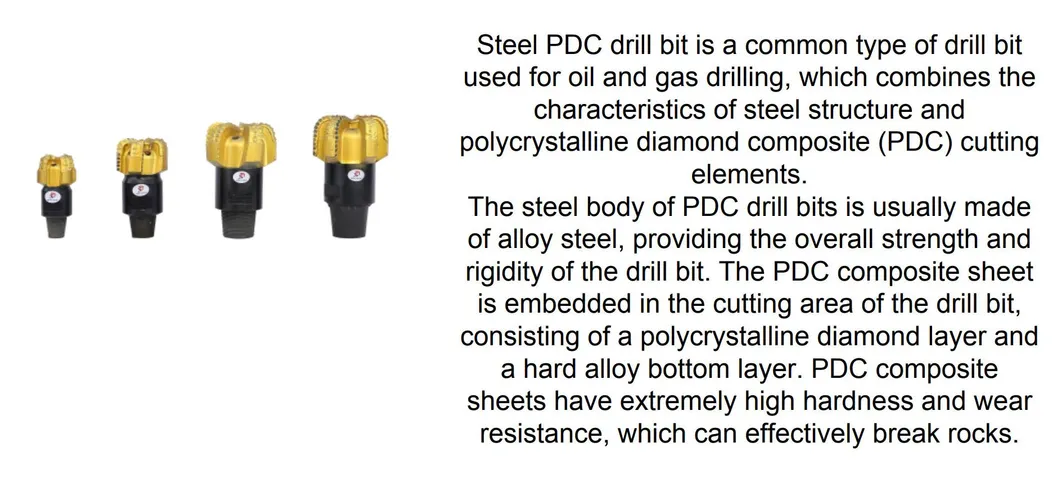

Banner Feature

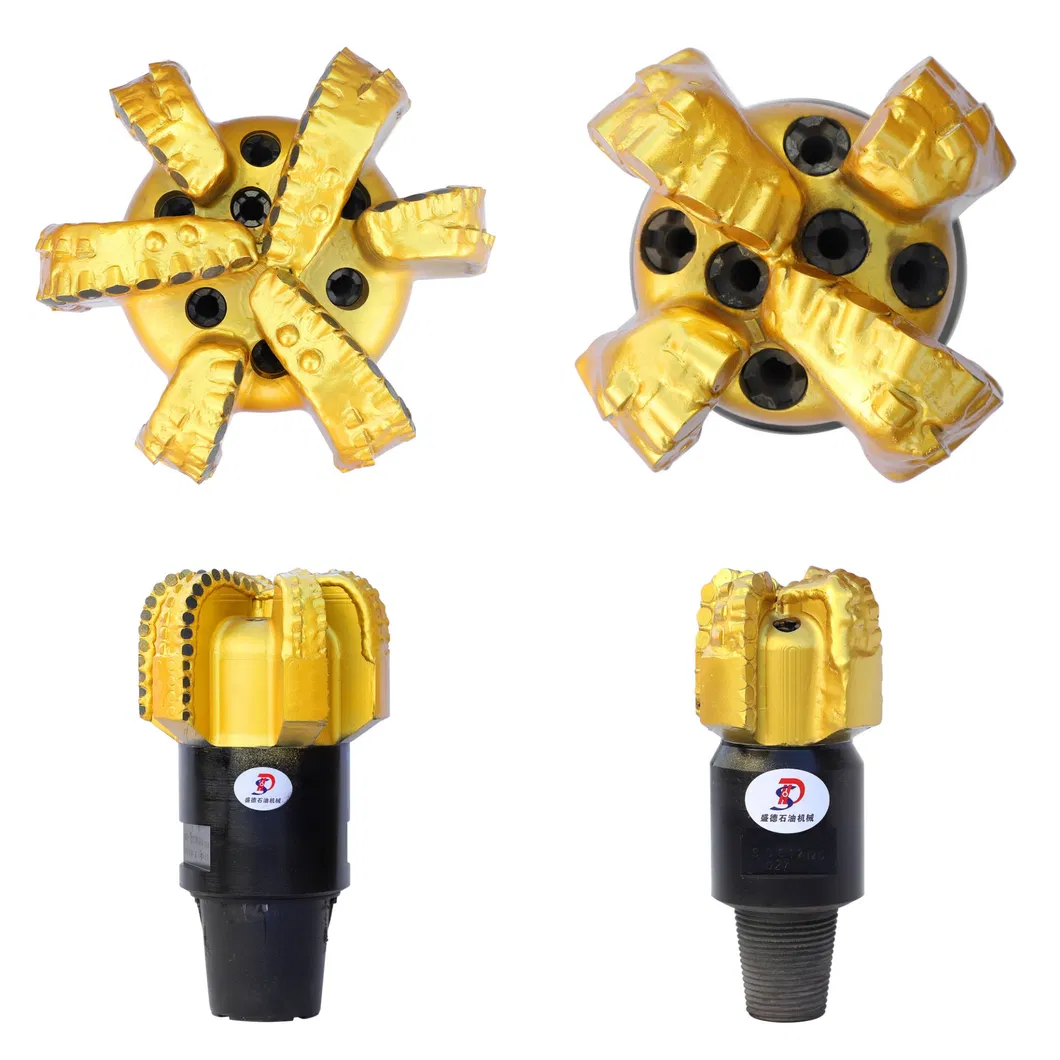

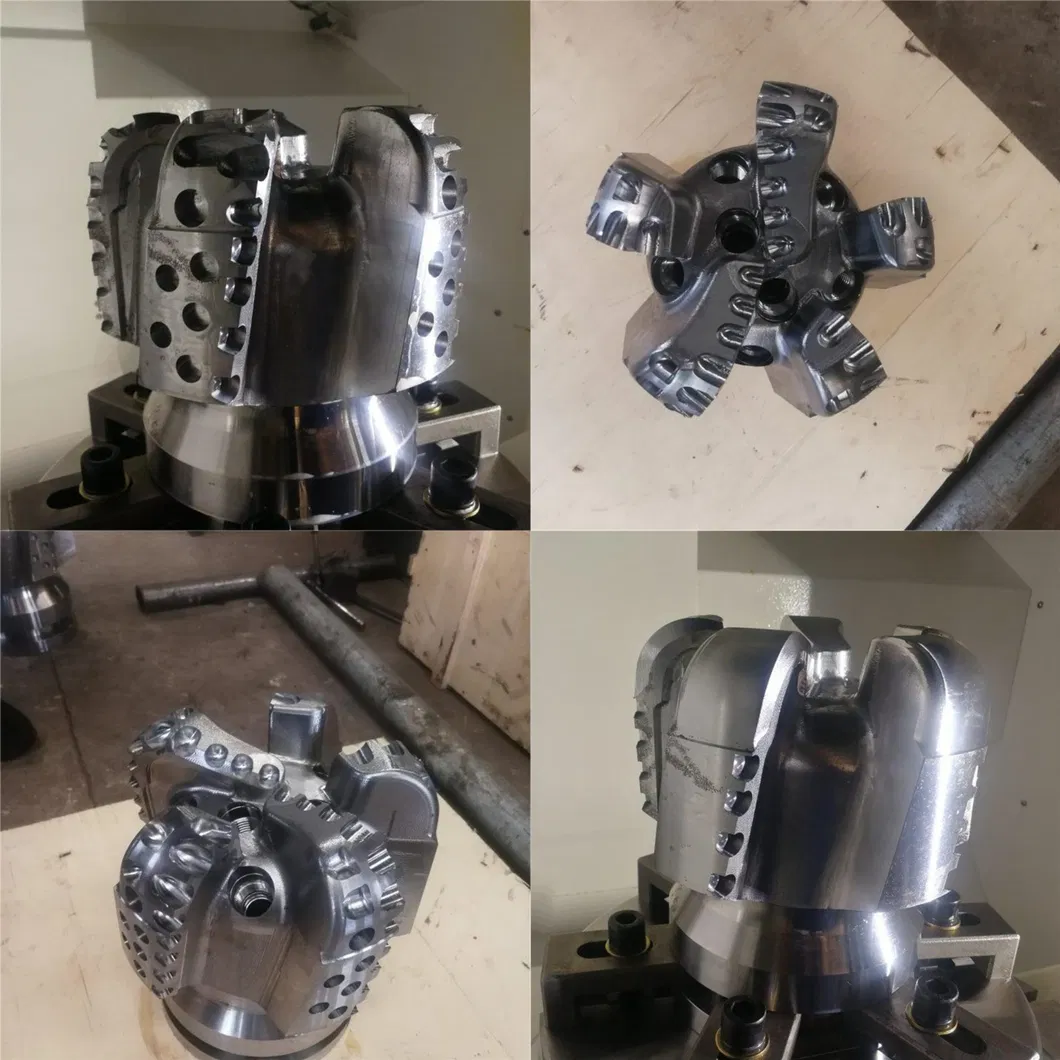

PDC Bit Detail 1 PDC Bit Detail 2

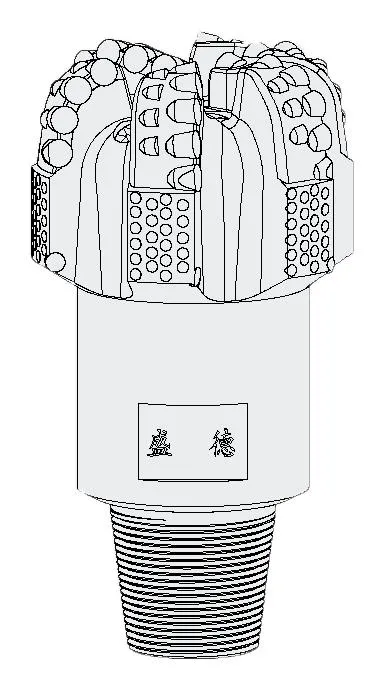

Technical Drawing
Bit type8-3/4" SS1605DFXSide View
IADC CodeS423
Number of Blades5
Cutter Size(mm)Φ15.88MM; Φ13.44MM
Cutter QtyΦ15.88x24; Φ13.44x49
Nozzle Qty7NZ TFA:1310.38mm²
Channel area of chip removal chute14680.0 mm²
Gauge protector length75mm
Connector4-1/2"API REG
N.W/G.W.(KG)54/70KG
Nozzle Size(inch)5/8x5; 9/16x2

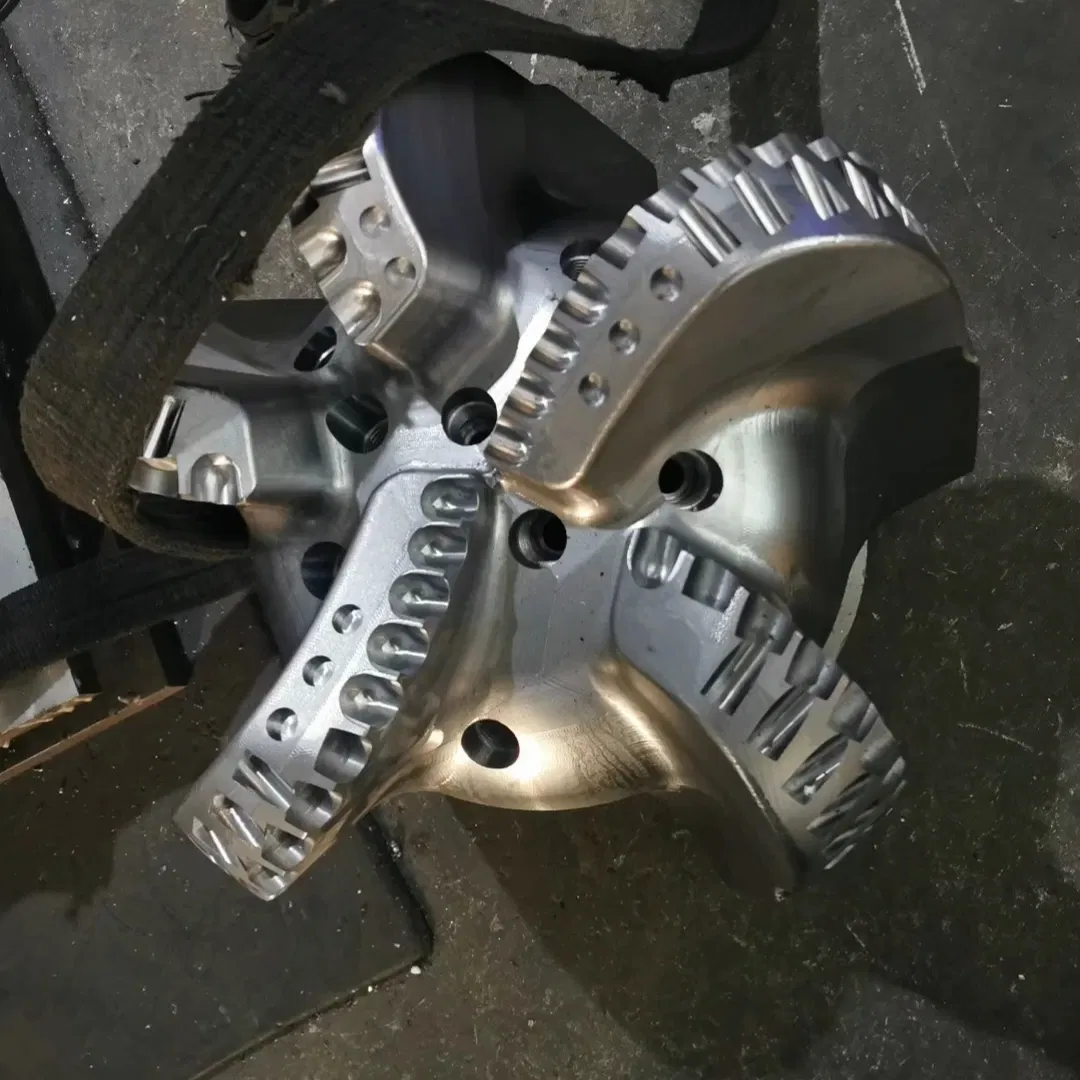

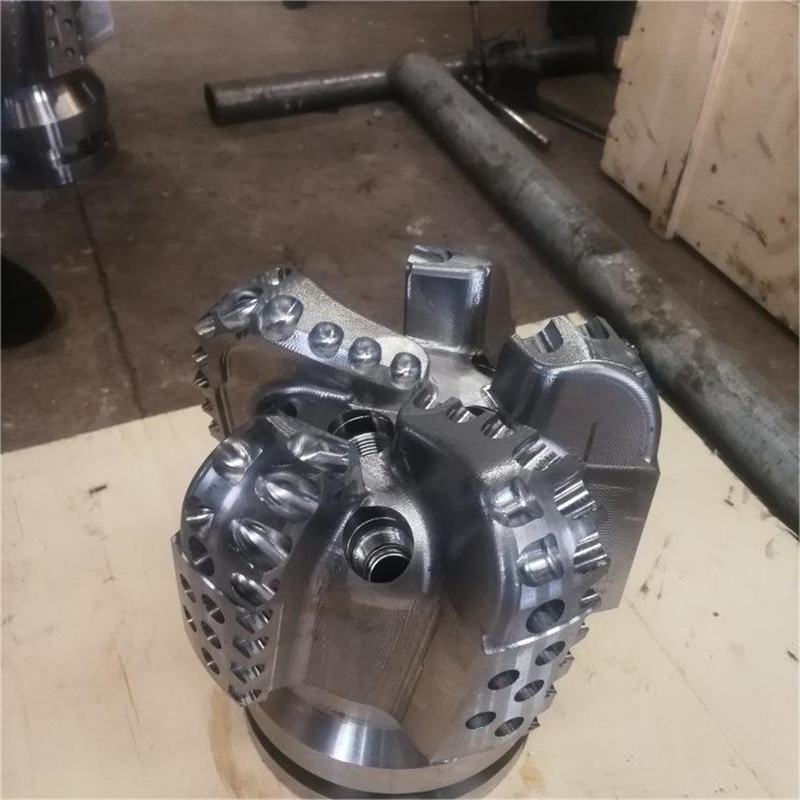

Drilling Bit Image 1 Drilling Bit Image 2 Drilling Bit Image 3
❓ Frequently Asked Questions
How do you perform quality control?
We have a very strict quality controlling system which promises that goods we produced are always of the best quality.
Do you have an export record?
Our products have been sold in a number of areas abroad and are very popular with international users.
What's the minimum quantity of an order (MOQ)?
The minimum order quantity is 1 set.
What materials are used in the drill body?
The drill body is manufactured using high-grade 42CrMo alloy steel for maximum durability and strength.
What is the advantage of the PDC cutters used?
The Polycrystalline Diamond Compact (PDC) cutters provide exceptional wear resistance and efficiency in challenging drilling environments.
Is the product compliant with international standards?
Yes, the products are certified according to ISO 9001:2000 and meet SGS standards.
