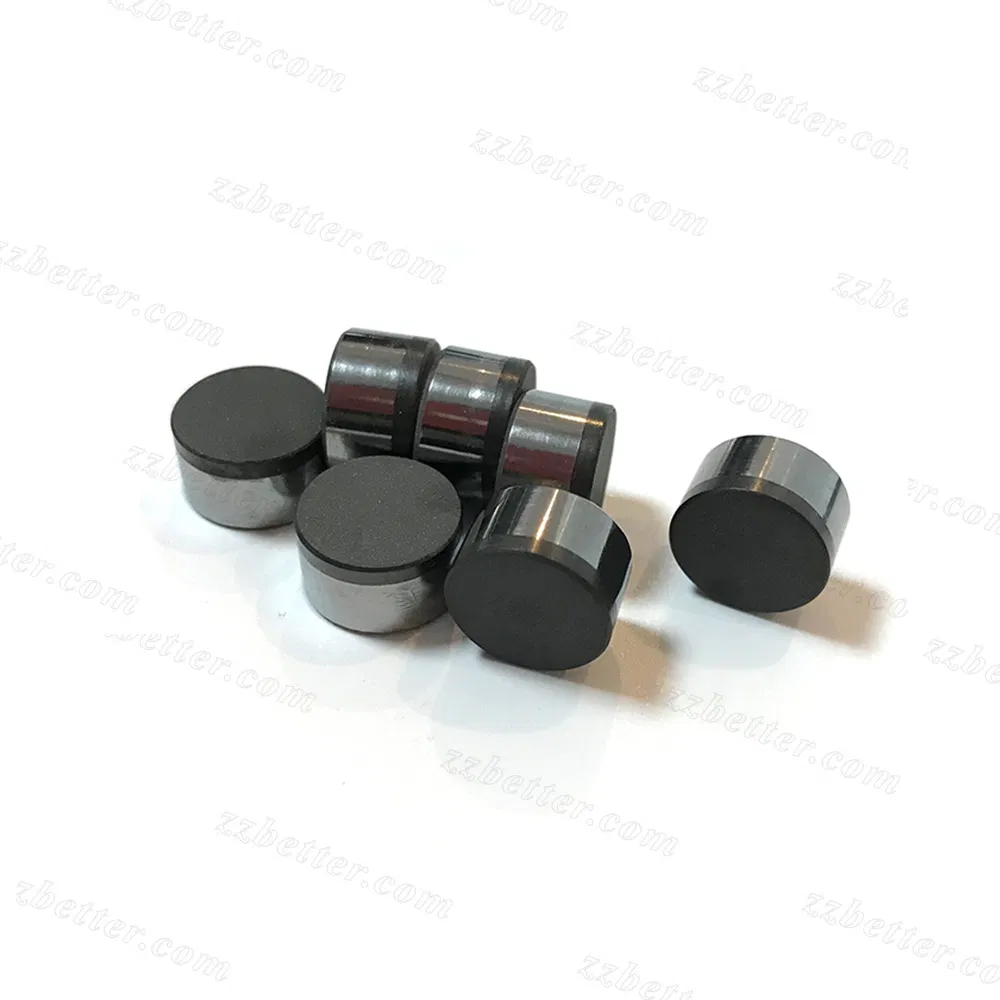

Mining Drill Bits PDC Inserts PCD Cutters

1 / 5

Mining Drill Bits PDC Inserts PCD Cutters

Customization:	Available
Logo Printing:	Without Logo Printing
Size:	Small

Send Inquiry

Product Description

Technical Specifications

Type:

Cutting Tool

Material:

PCD (Polycrystalline Diamond)

Certification:

ISO 9001:2000

Product Name:

Mining Drill Bits PDC Inserts PCD Cutters

Applications:

Oil Drilling, Mining and Engineering

HS Code:

82090

Capacity:

500,000 PCS/Month

Package:

In Cartons

Product Overview

Polycrystalline Diamond Cutters (PDC) comprise a polycrystalline diamond (PCD) top layer integrally sintered onto a tungsten carbide substrate using a high-pressure, high-temperature process.

💎 High Hardness

Sintered under ultra-high pressure for maximum durability.

🛡️ Abrasion Resistance

Superior wear resistance for long-lasting drilling performance.

🔨 Impact Resistance

Designed to withstand high-impact geological environments.

PDC cutters are widely utilized in oil and gas well drill bits, geological exploration, and mining drill bits. Additionally, they serve as high-performance cutting tools for grinding and polishing applications.

Available Sizes: 1304, 1308, 1313, 1608, 1613, 1616, 1908, 1913, 1916, 1919mm. Custom shapes and sizes are available upon request.

Oilfield Drilling PDC Cutters Spec Sheet

Dimension Code	Diameter (D)	Height Total (H)	Height Diamond	Diamond Chamfer	Carbide Chamfer
1916	19.05 +/- 0.05	16.0 +/- 0.10	2.0-2.5	0.5x45	0.5x45
1913	19.05 +/- 0.05	13.2 +/- 0.10	2.0-2.5	0.5x45	0.5x45
1613	15.88 +/- 0.03	13.2 +/- 0.10	2.0-2.5	0.3x45	0.5x45
1610	15.88 +/- 0.03	10.0 +/- 0.10	2.0-2.5	0.3x45	0.5x45
1313	13.44 +/- 0.03	13.2 +/- 0.10	2.0-2.5	0.3x45	0.5x45
1308	13.44 +/- 0.03	8.0 +/- 0.10	2.0-2.5	0.3x45	0.5x45

Mining & Shallow Oil PDC Cutters Spec Sheet

Dimension Code	Diameter (D)	Height Total (H)	Height Diamond	Diamond Chamfer	Carbide Chamfer
1313	13.44 +/- 0.03	13.2 +/- 0.10	2.0-2.5	0.3x45	0.5x45
1308	13.44 +/- 0.03	8.0 +/- 0.10	2.0-2.5	0.3x45	0.5x45
1304	13.44 +/- 0.03	4.5 +/- 0.10	2.0-2.5	0.3x45	0.5x45
1010	10.00 +/- 0.03	10.0 +/- 0.10	2.0-2.5	0.3x45	0.5x45
810	8.00 +/- 0.03	10.0 +/- 0.10	2.0-2.5	0.3x45	0.5x45
804	8.00 +/- 0.03	4.5 +/- 0.10	2.0-2.5	0.3x45	0.5x45

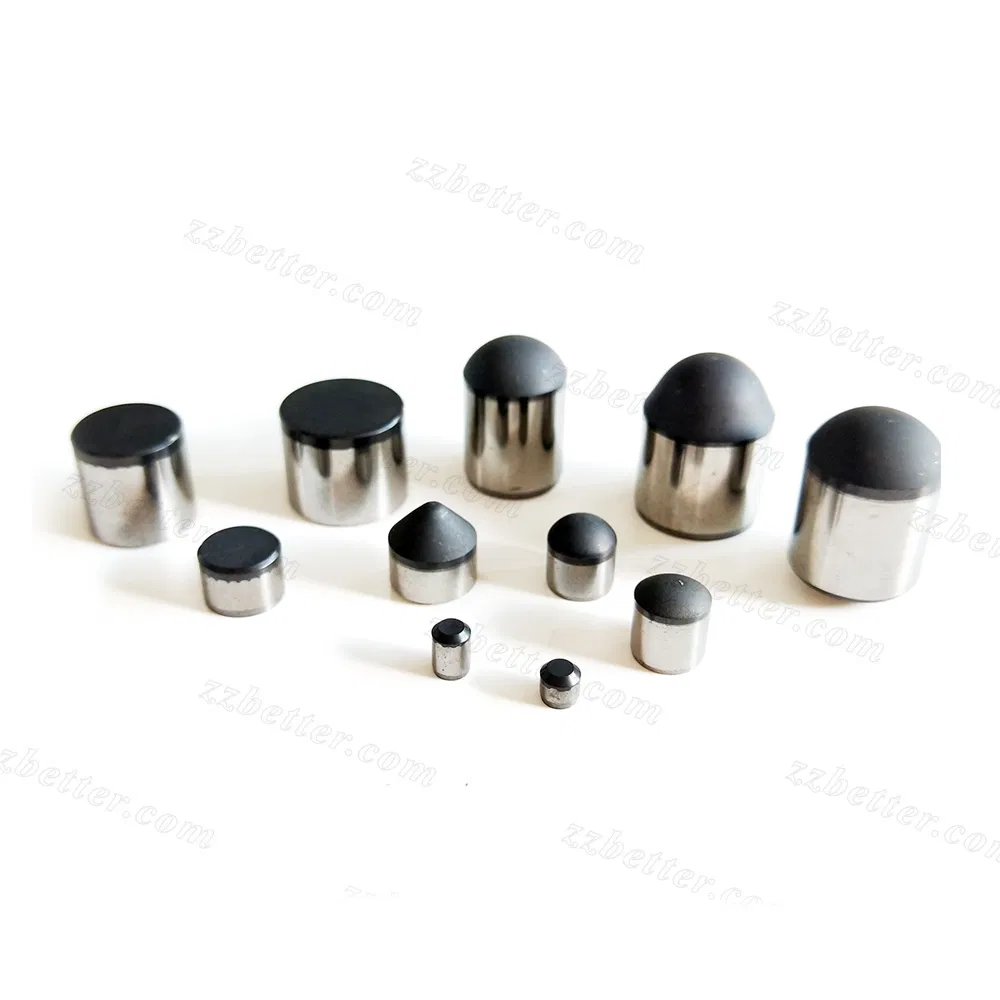

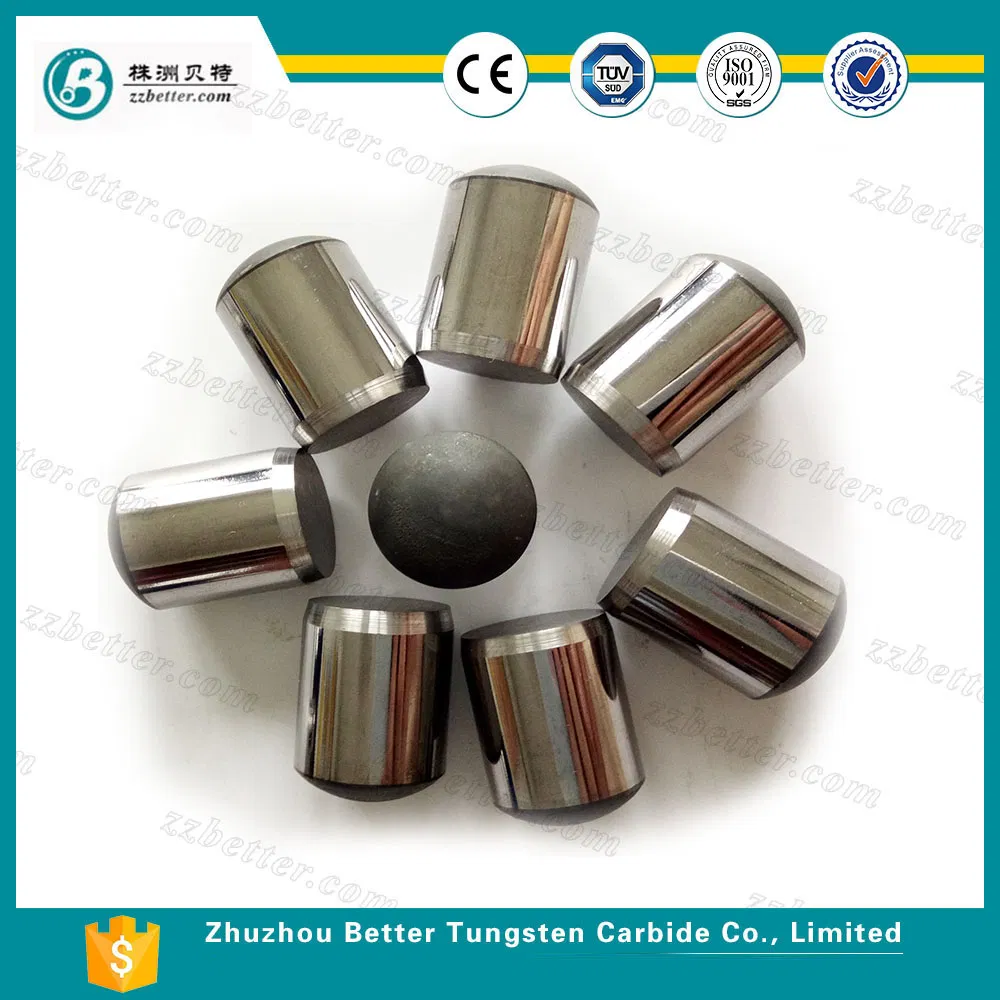

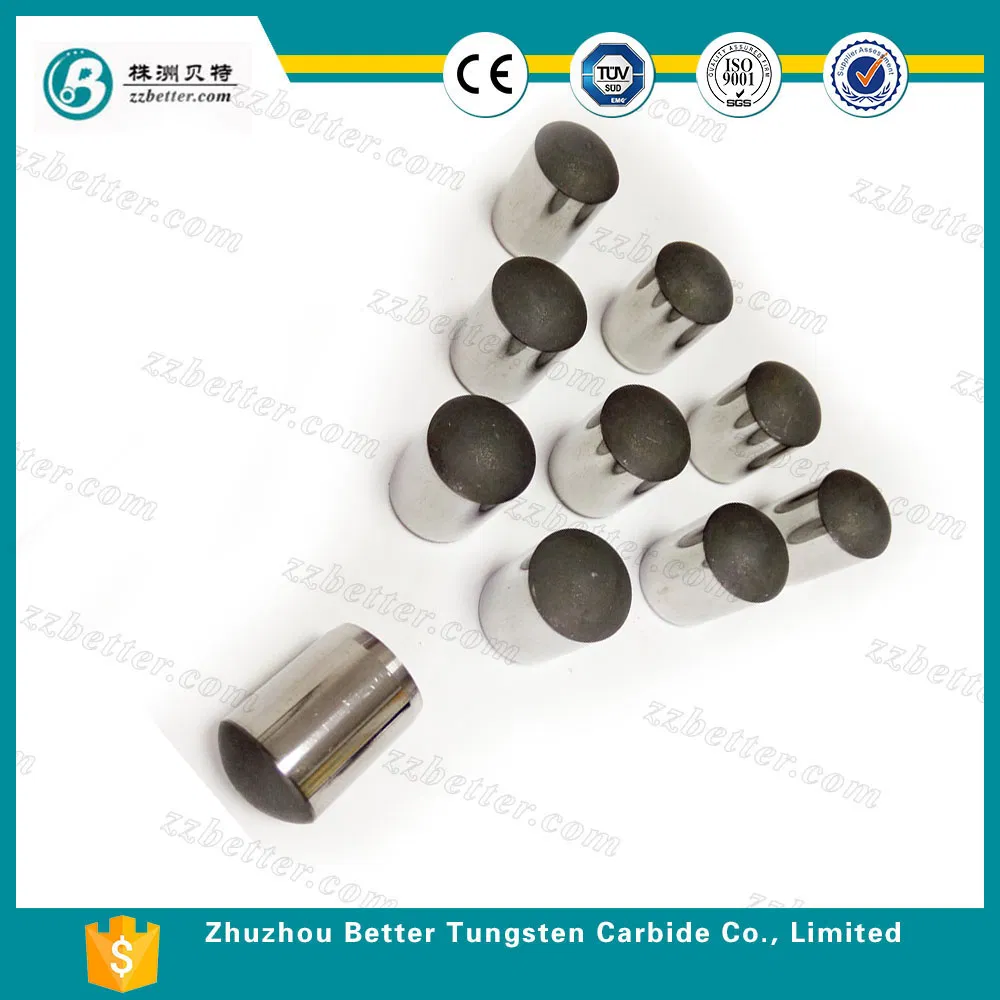

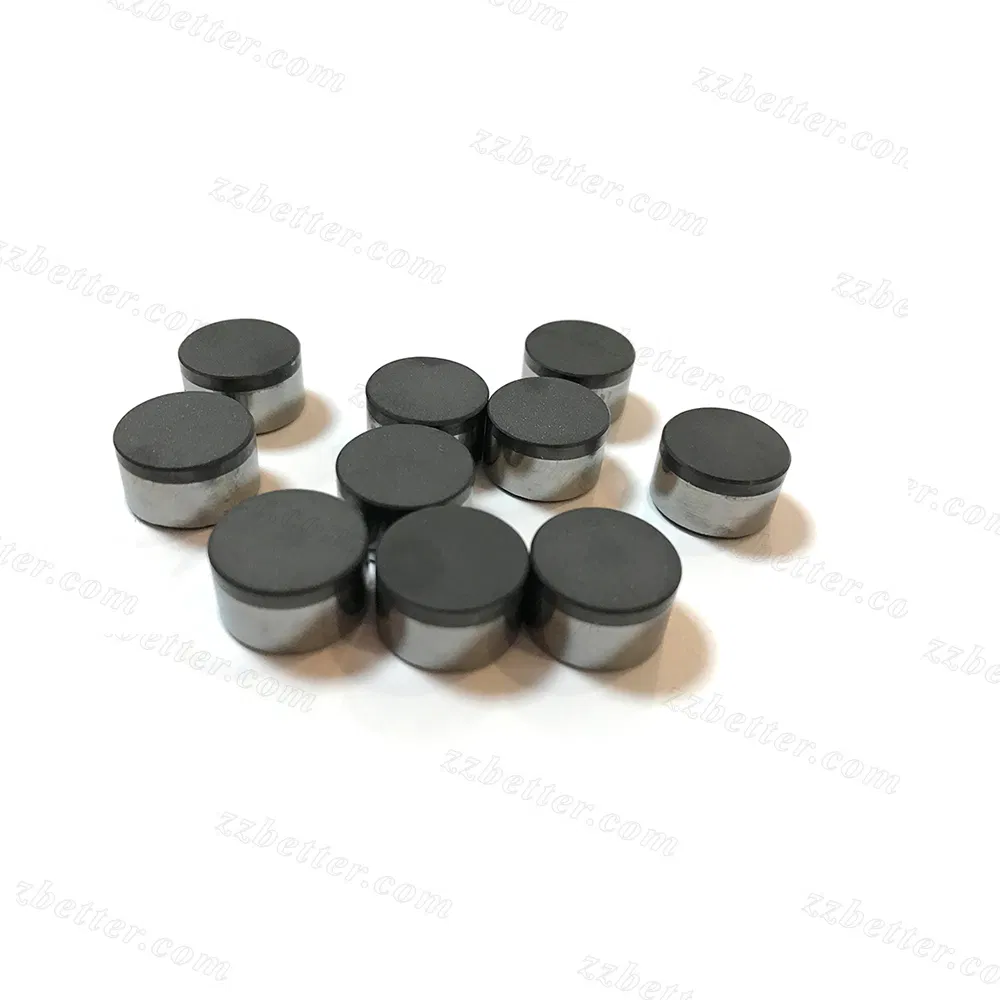

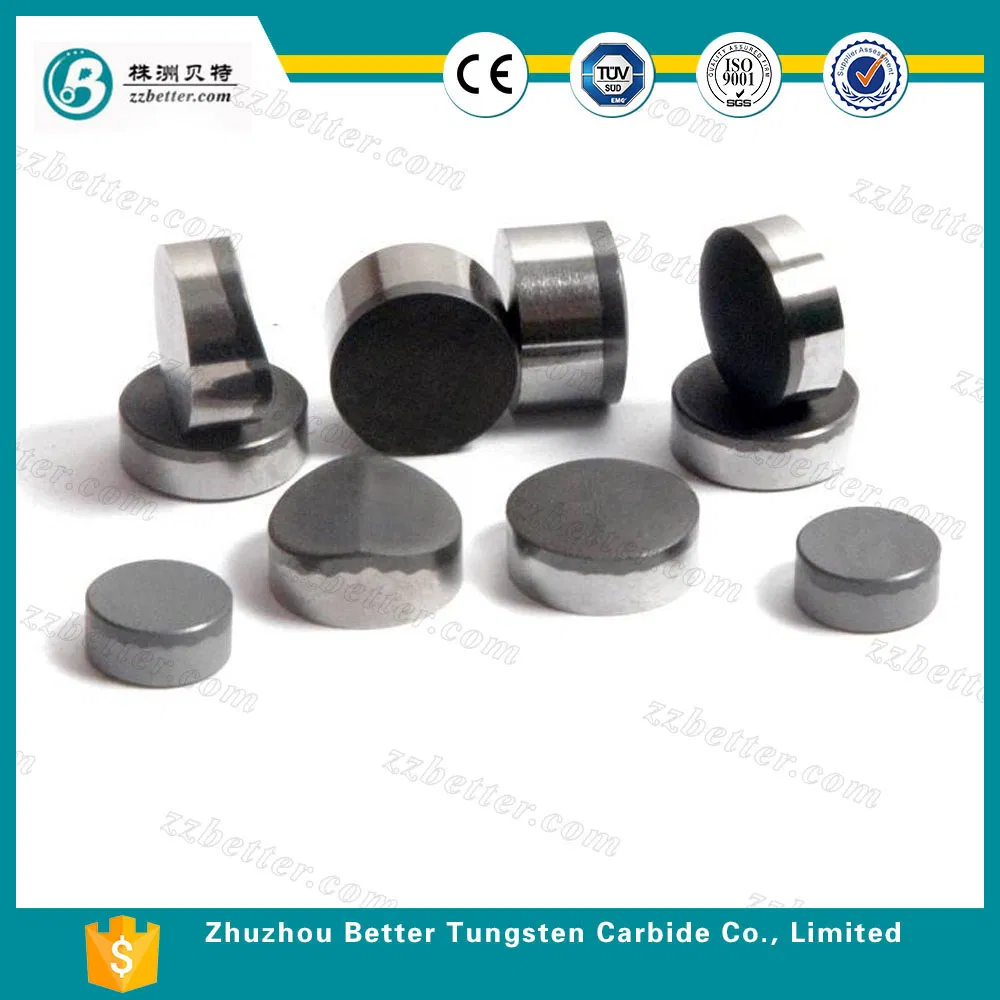

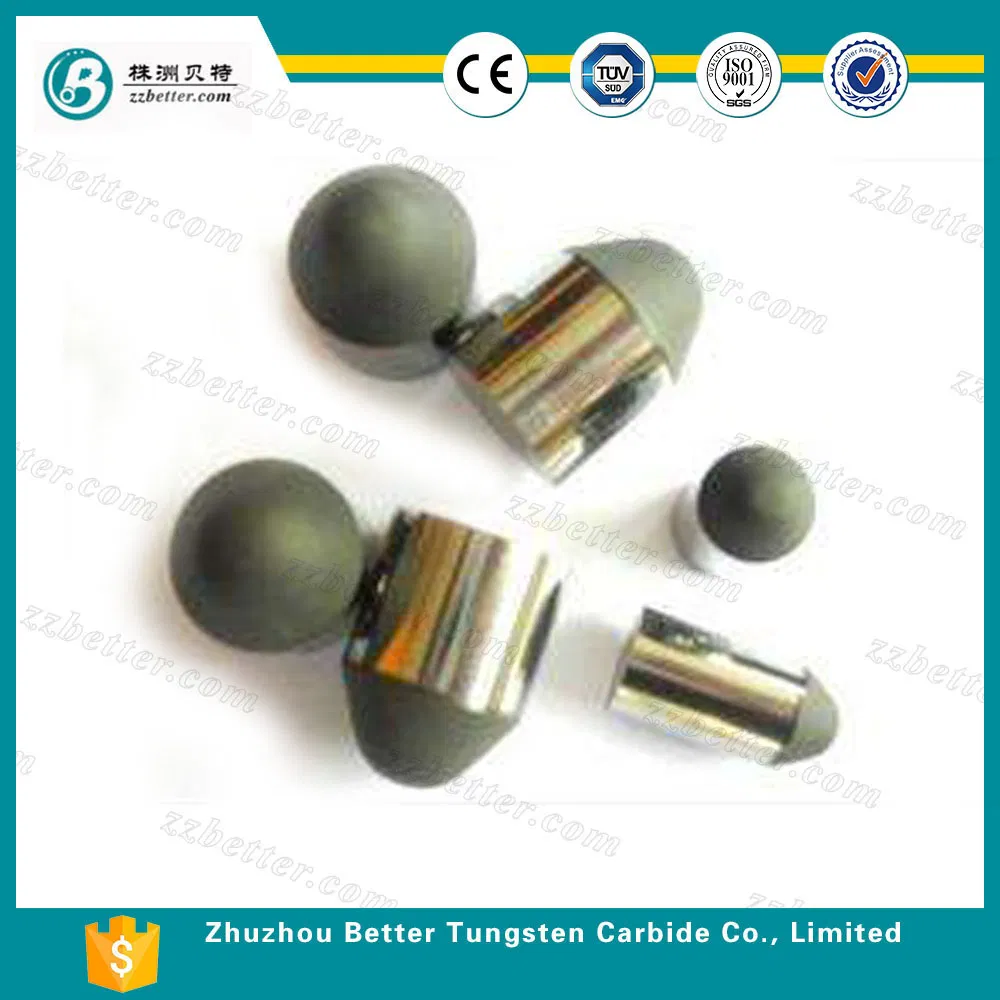

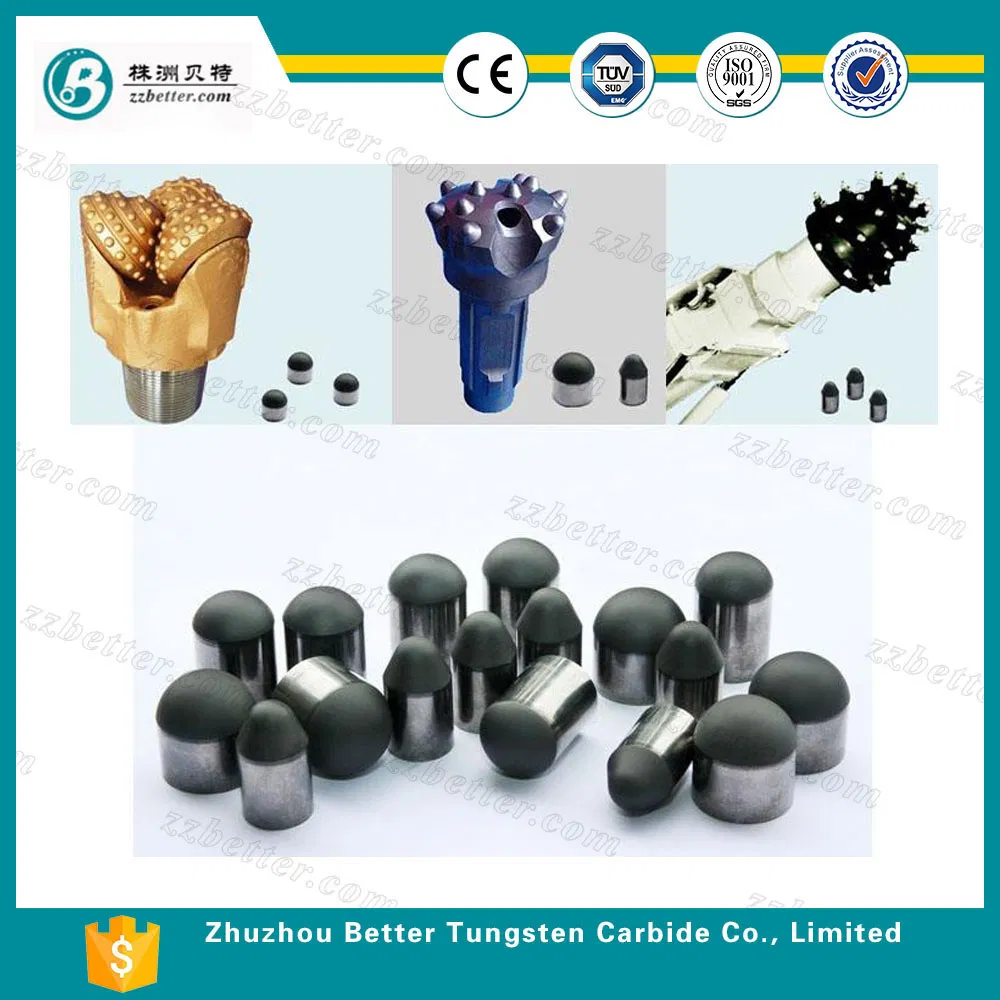

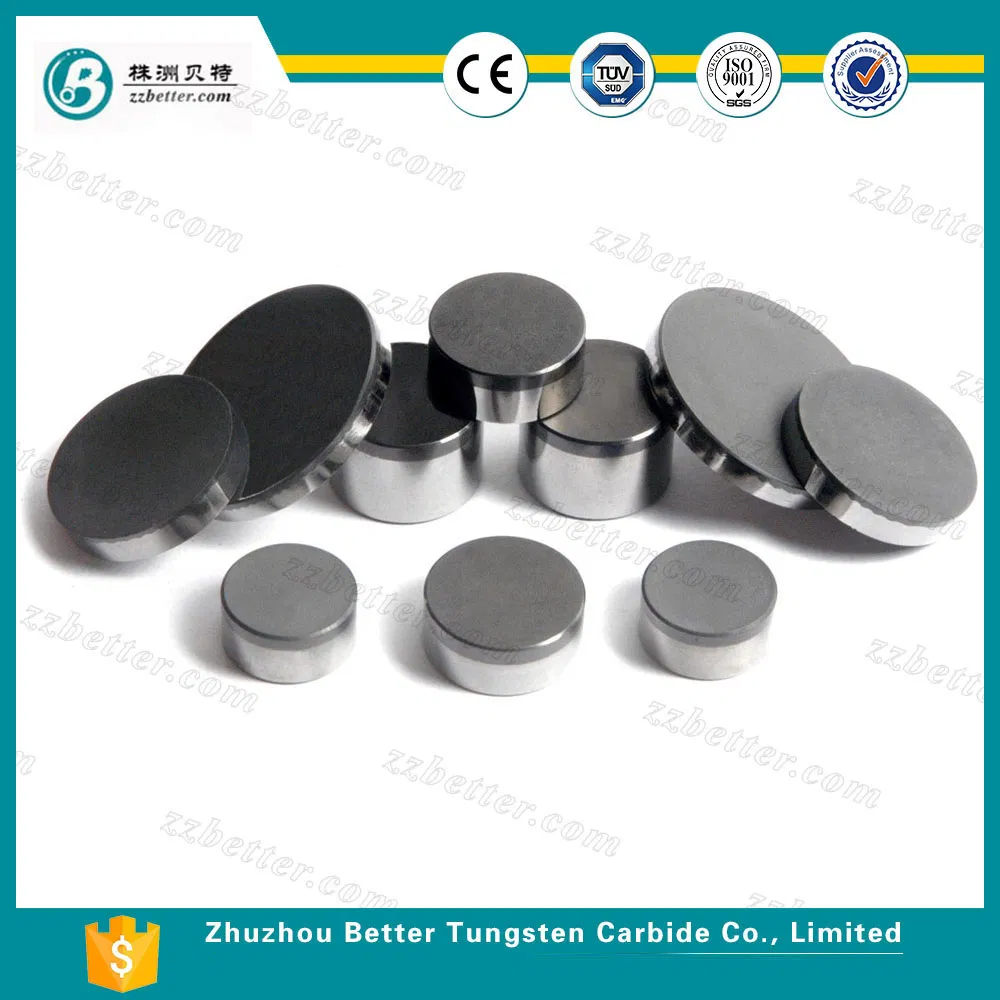

Product Visuals

Frequently Asked Questions

What is the composition of a PDC cutter?

PDC cutters consist of a Polycrystalline Diamond (PCD) top layer that is integrally sintered onto a tungsten carbide substrate using high-pressure and high-temperature processes.

What are the primary applications for these cutters?

They are mainly used for oil and gas well drill bits, geological exploration bits, mining drill bits, and as tools for high-precision cutting, grinding, and polishing.

What makes PDC cutters better than traditional tools?

PDC cutters offer exceptional hardness, superior abrasion resistance, and high impact resistance, making them ideal for drilling through tough geological formations.

Can I get customized sizes for my project?

Yes, while we offer standard sizes like 13mm, 16mm, and 19mm, other specific sizes and shapes can be manufactured according to your requirements.

What is the monthly production capacity?

Our current production capacity is 500,000 pieces per month, ensuring a steady supply for large-scale operations.

Are these cutters suitable for oilfield drilling?

Absolutely. We provide a specific range of PDC cutters designed specifically for oilfield drilling with optimized diameters and heights for deep-well performance.
