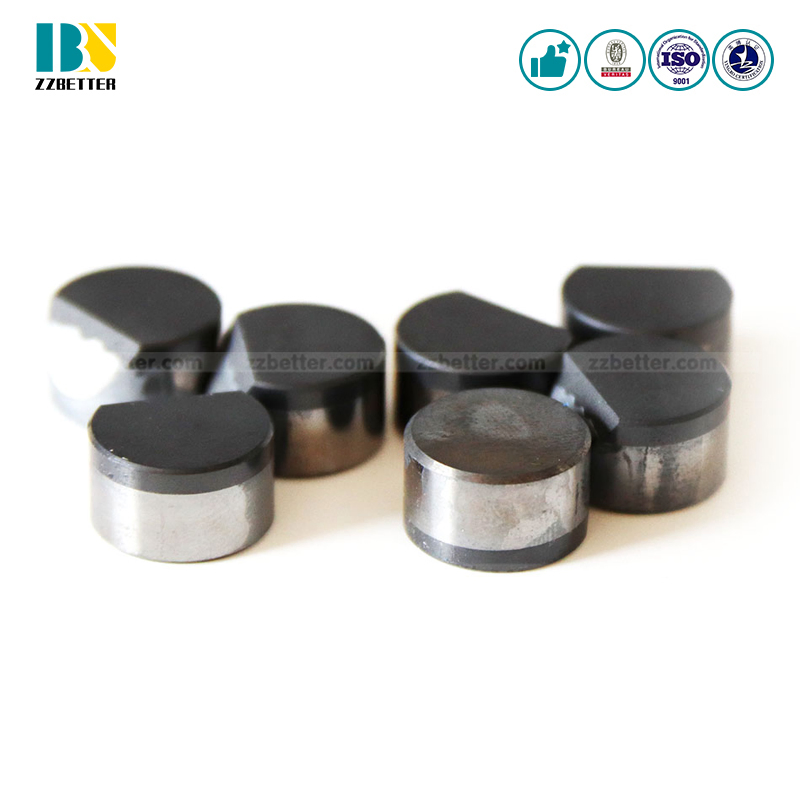

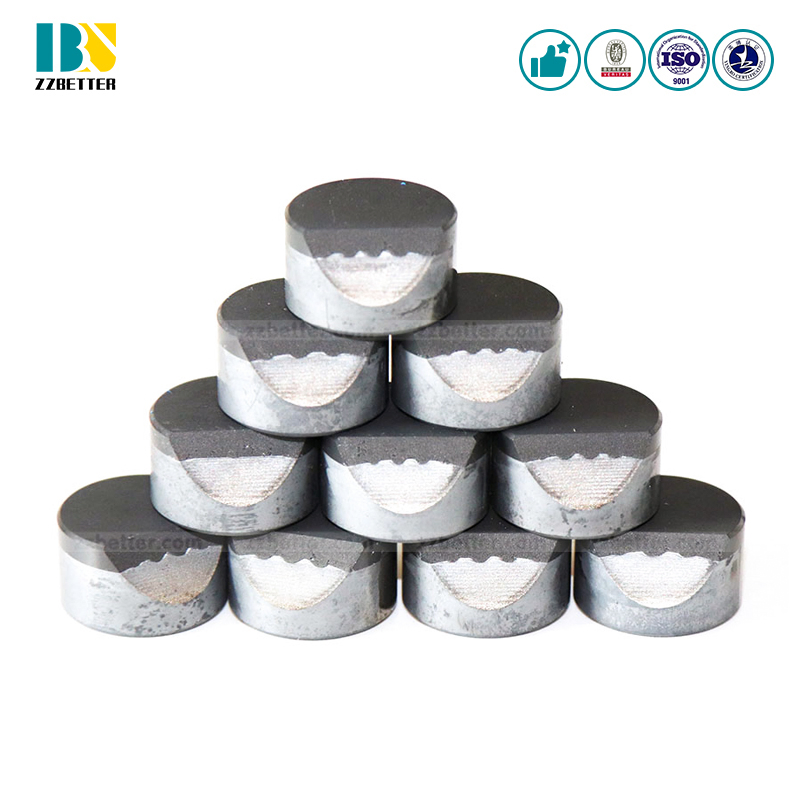

Drilling industrial Cutting Teeth PDC Gauge Cutter 1308 3/4 Cutter

1 / 5

Drilling industrial Cutting Teeth PDC Gauge Cutter 1308 3/4 Cutter

Customization:	Available
Certification:	ISO 9001:2008
Standard:	GB

Send Inquiry

Product Description

📋 Basic Information

Product Name

Good Price China Factory Made PDC Cutter

Surface Treatment

Polishing

Application

Oil Drilling, Mining and Engineering

Types Available

Flat Top, Spherical Top, Spoon Shape

Other Name

PCD Drilling Insert / PCD Button Bits

Specification

300*270*170

Origin

Hunan, China

Capacity

50000 PCS/Month

💎 Product Description

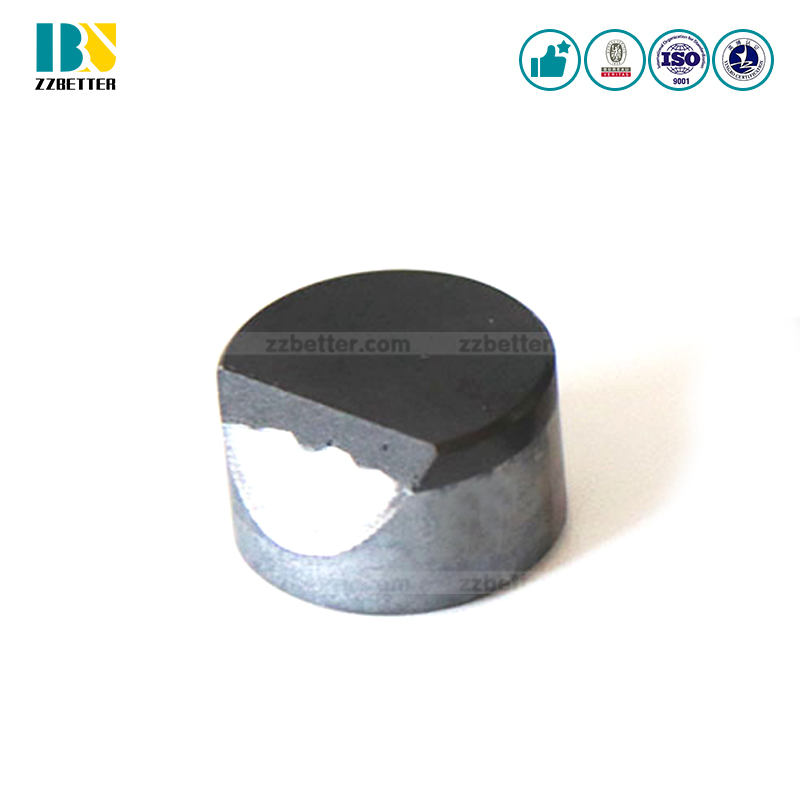

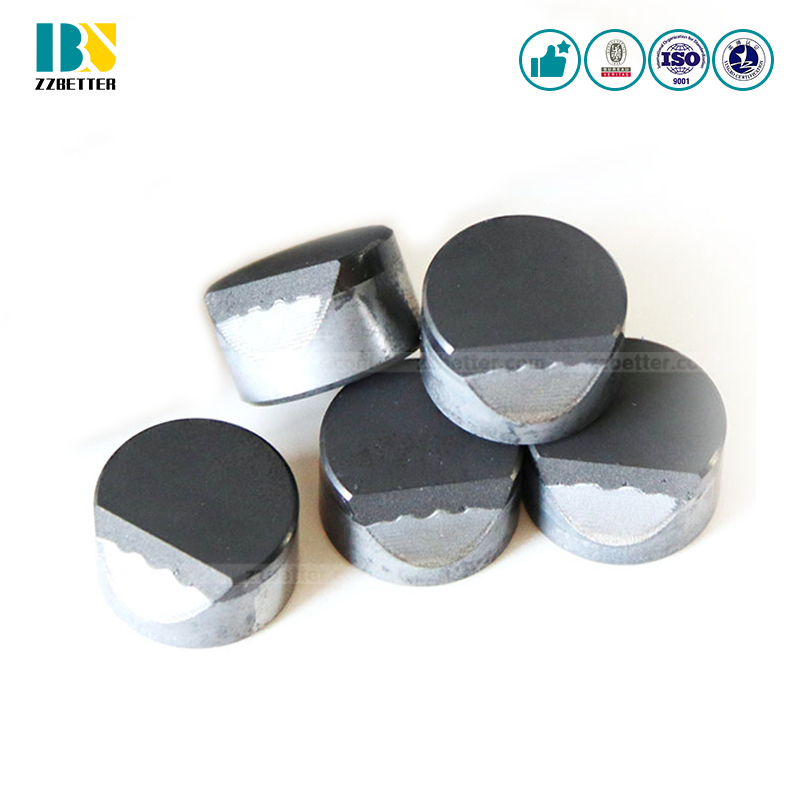

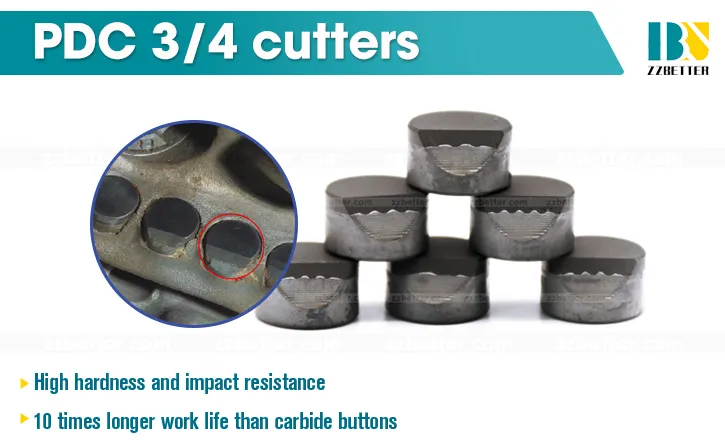

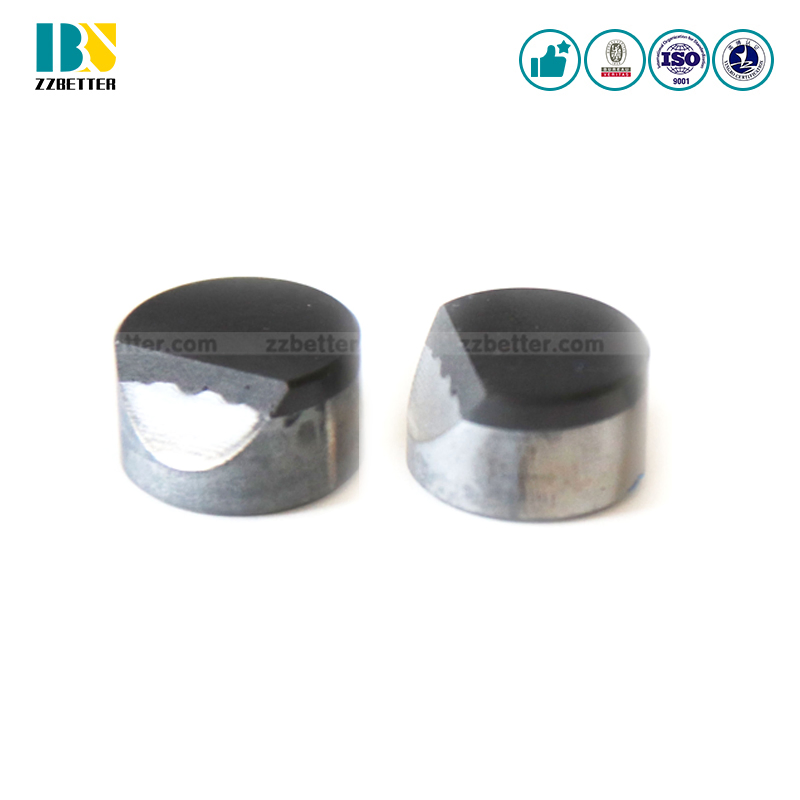

Rock drilling oil drilling cutter drill bit cutting teeth 1308 3/4 PDC gauge cutter

PDC cutters are also named Polycrystalline Diamond Compact cutters, PDC bits, or PDC inserts. They consist of a Polycrystalline Diamond layer and a carbide substrate. The diamond is grown directly on the carbide substrate.

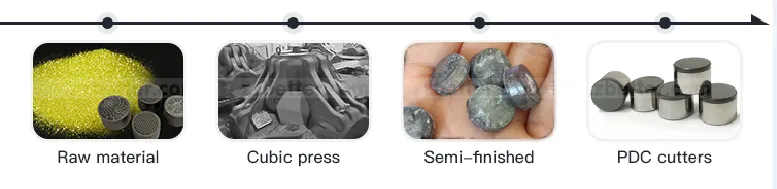

🛠️ How PDC Cutters are Made

PDC Cutters are made from tungsten carbide substrate and synthetic diamond grit. It is manufactured using a combination of high temperature and high pressure with a catalyst of cobalt alloy to help bond diamond and carbide during the sintering process. During the cooling process, the tungsten carbide shrinks at a rate 2.5 times faster than the diamond, which tightly combines Diamond and Tungsten Carbide together to form a PDC Cutter.

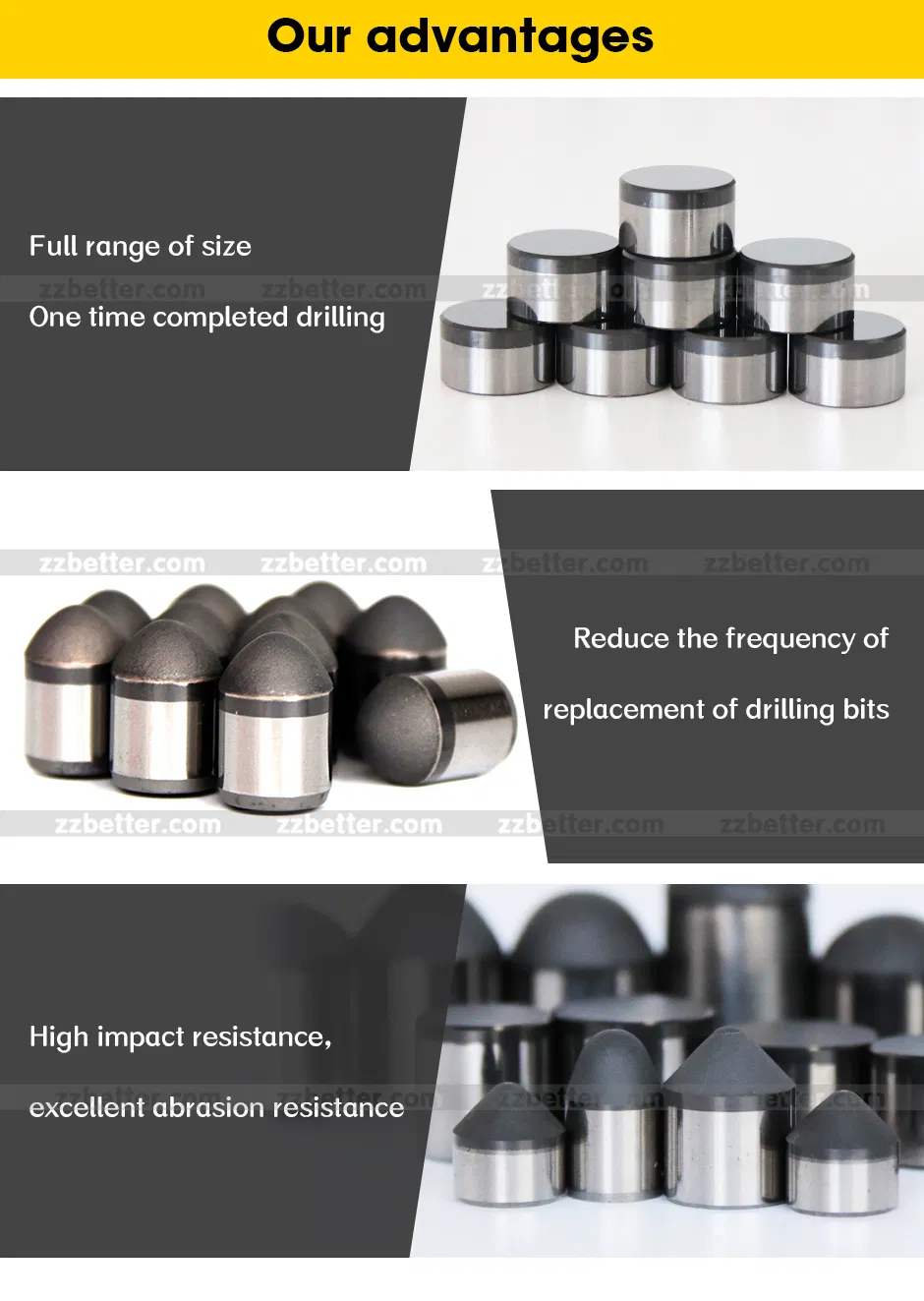

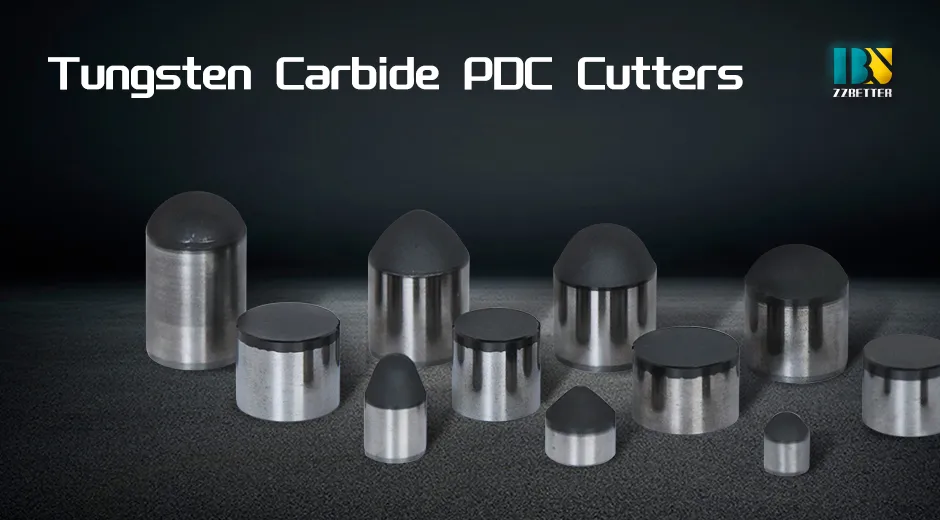

🚀 Characteristics and Applications

Since PDC Cutters consist of diamond grit and tungsten carbide substrate, it combines the advantages of both materials: high abrasion resistance, high impact resistance, and high thermal stability.

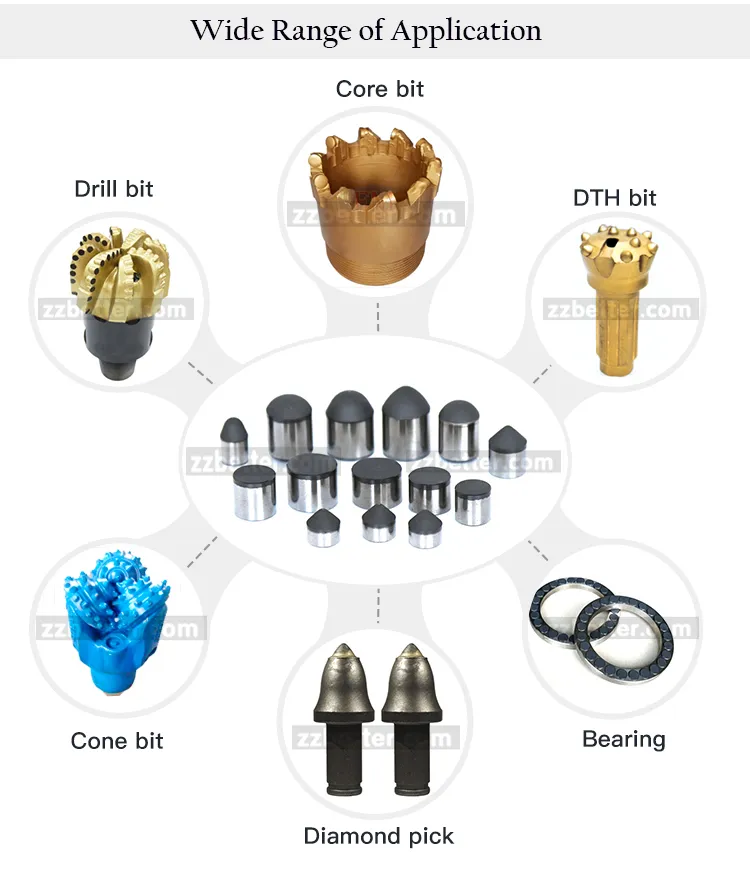

Currently, PDC Cutters are widely applied to oilfield drilling, gas and geological exploration, coal mining, and many other drilling and milling applications. They are used in tools such as:

Steel PDC Drill Bits & Matrix PDC Drill Bits for oil drilling

Tri-cone PDC Drill Bits for coal mining

Geological bits and Diamond DTH bits

Diamond picks and geothermal energy drilling tools

📊 Specifications Sheet

SPEC SHEET FOR OILFIELD DRILLING PDC CUTTERS
Drawings	Code	Diameter(D)	Total Height(H)	Diamond Height	Diamond Chamfer	Carbide Chamfer
	1916	19.05+/-0.05	16.0+/-0.10	2.0-2.5	0.5x45	0.5x45
	1913	19.05+/-0.05	13.2+/-0.10	2.0-2.5	0.5x45	0.5x45
	1613	15.88+/-0.03	13.2+/-0.10	2.0-2.5	0.3x45	0.5x45
	1610	15.88+/-0.03	10.0+/-0.10	2.0-2.5	0.3x45	0.5x45
	1313	13.44+/-0.03	13.2+/-0.10	2.0-2.5	0.3x45	0.5x45
	1308	13.44+/-0.03	8.0+/-0.10	2.0-2.5	0.3x45	0.5x45

SPEC SHEET FOR MINING / SHALLOW OIL AND GAS
Drawings	Code	Diameter(D)	Total Height(H)	Diamond Height	Diamond Chamfer	Carbide Chamfer
	1313	13.44+/-0.03	13.2+/-0.10	2.0-2.5	0.3x45	0.5x45
	1010	10.00+/-0.03	10.0+/-0.10	2.0-2.5	0.3x45	0.5x45
	810	8.00+/-0.03	10.0+/-0.10	2.0-2.5	0.3x45	0.5x45
	804	8.00+/-0.03	4.5+/-0.10	2.0-2.5	0.3x45	0.5x45

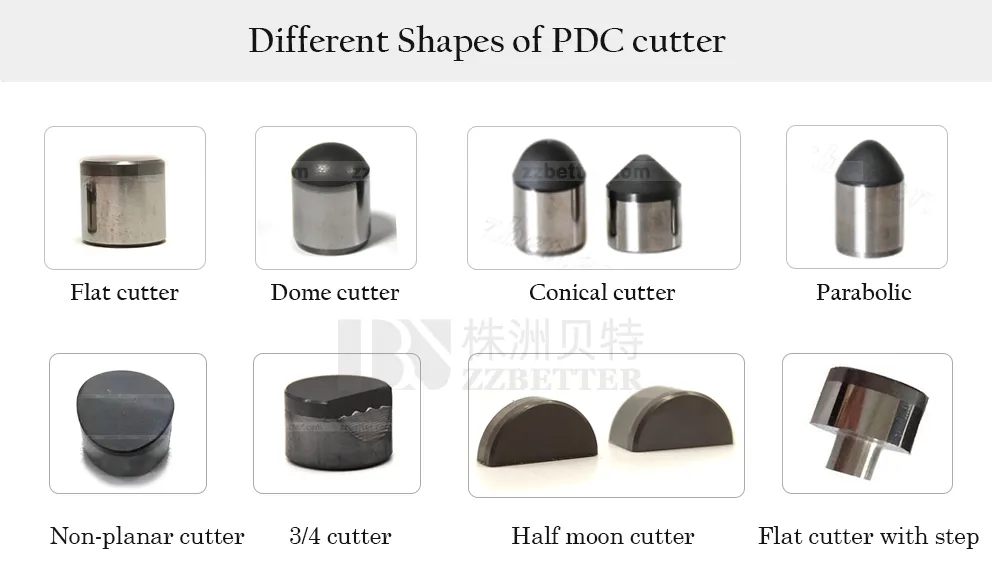

📦 Different Types and Packaging

❓ Frequently Asked Questions

What is a PDC cutter?

PDC stands for Polycrystalline Diamond Compact. These cutters consist of a diamond layer bonded to a tungsten carbide substrate under extremely high pressure and temperature.

In which industries are PDC cutters used?

They are primarily used in oil and gas drilling, coal mining, geological exploration, and geothermal energy drilling due to their extreme hardness and durability.

What are the advantages of PDC cutters over traditional materials?

PDC cutters offer superior abrasion resistance, high impact strength, and excellent thermal stability, allowing for faster drilling rates and longer tool life.

How many types of PDC cutters are available?

Common types include Flat Top PDC buttons, Spherical Top buttons, and Spoon Shape drill bits, each designed for specific rock formations and drilling needs.

Can PDC cutters handle high temperatures?

Yes, they are engineered for high thermal stability, though the specific grade should be chosen based on the heat generated during the drilling process.

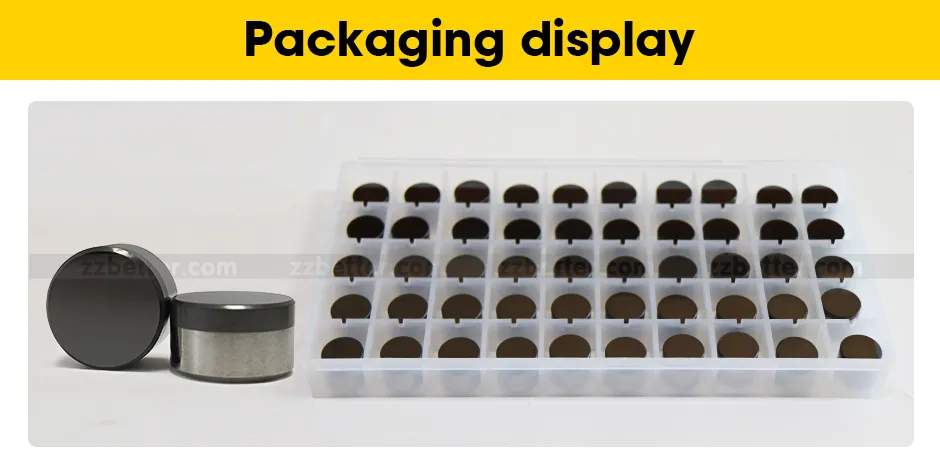

What is the standard packaging for these products?

PDC cutters are typically packed in firm cartons with internal protection to prevent damage during transport.
