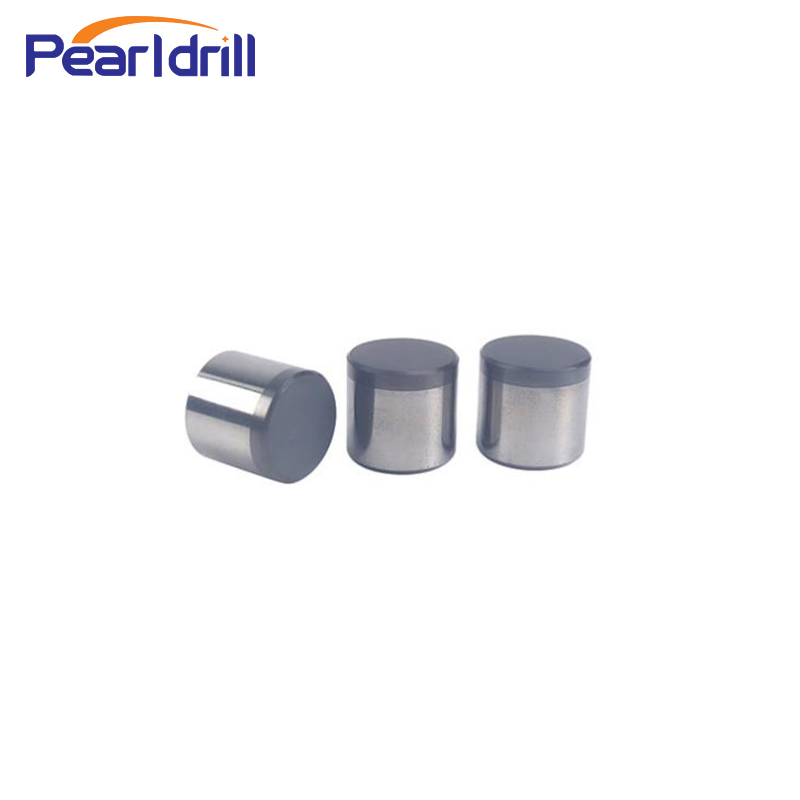

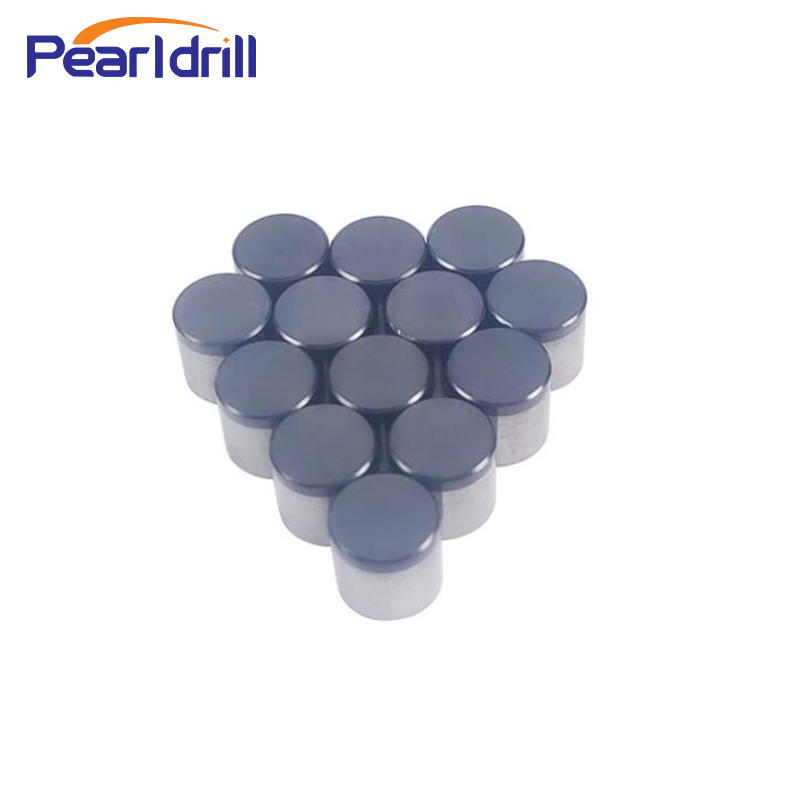

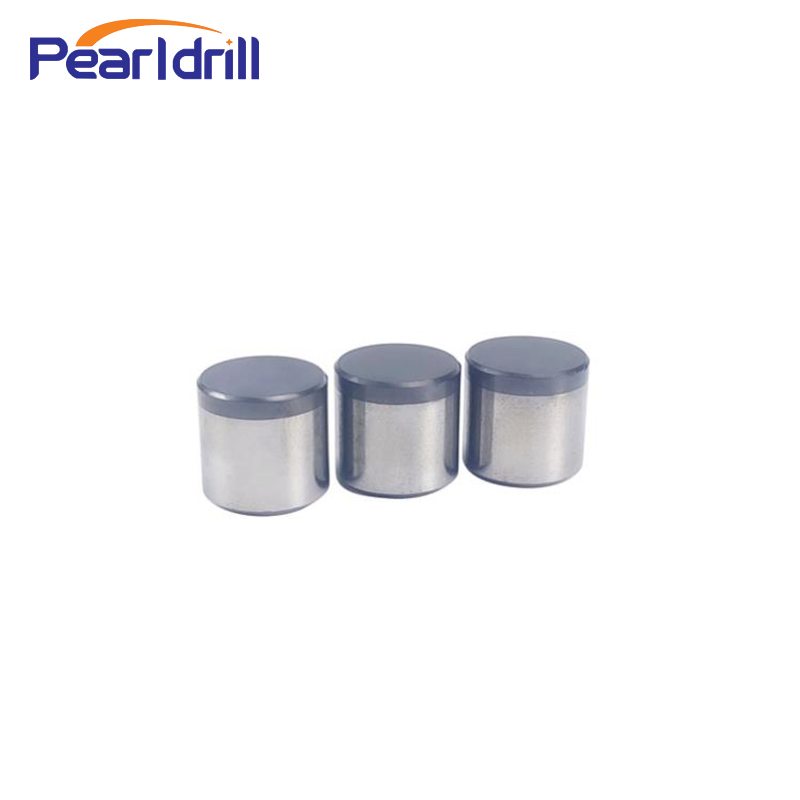

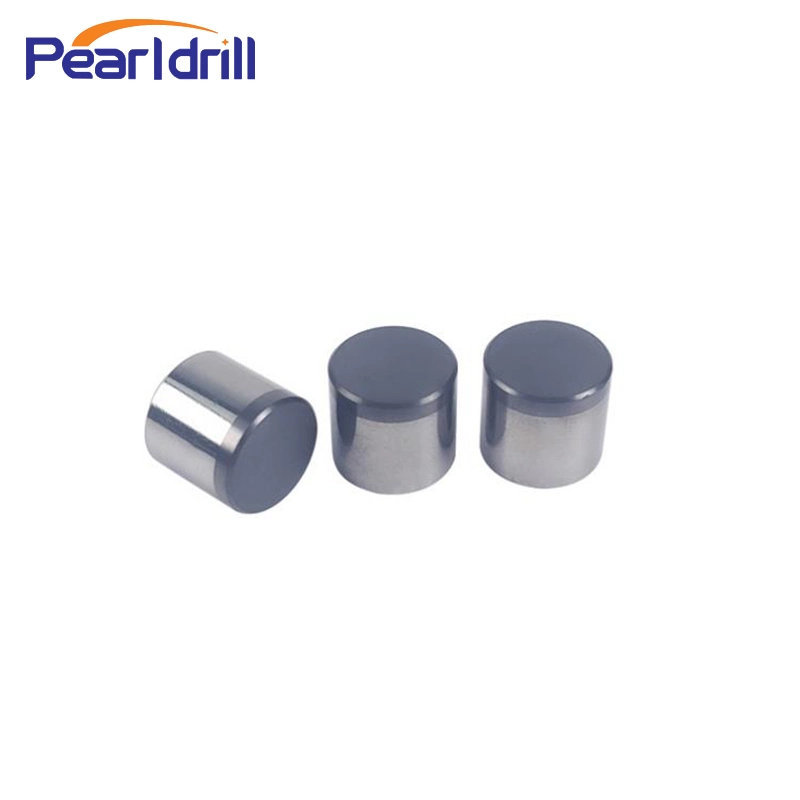

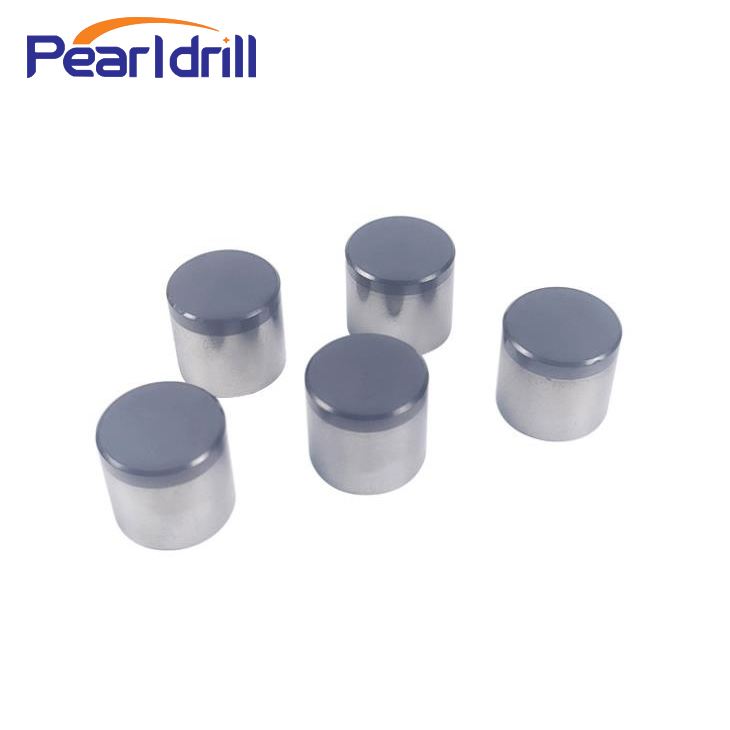

High Quality Manufacture All Sizes Polycrystalline Diamond Compact PDC Cutter

1 / 5

High Quality Manufacture All Sizes Polycrystalline Diamond Compact PDC Cutter

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

Oil cutter

Blade Material

Diamond

Product Name

PDC Cutters

Models

1304, 1308, 1313, 1613, 1616, 1913

Tip Material

Diamond Button

Substrate

Tungsten Carbide

Process

Sintering

Application

Oil Drilling, Geological Exploration

Product Description

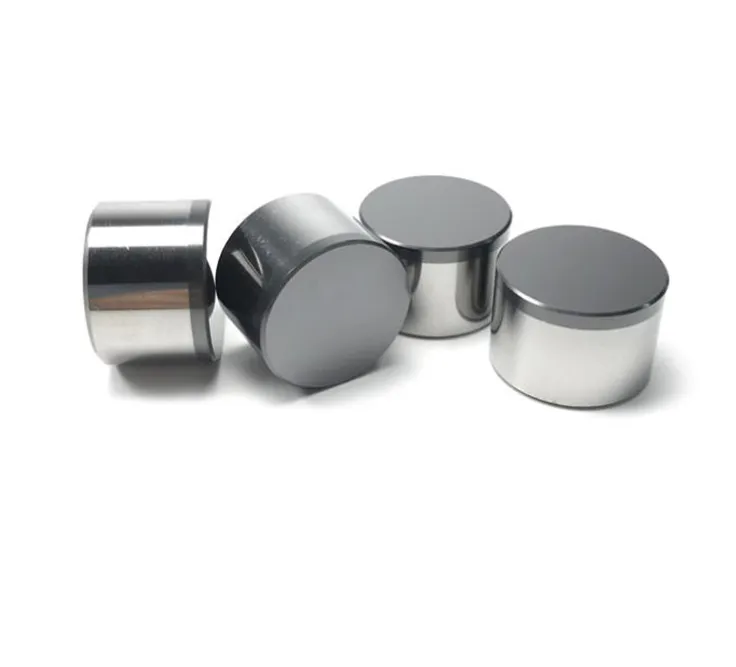

Diamond composite sheet is a composite material composed of diamond and cemented carbide matrix. It features high hardness and excellent wear resistance, widely used in oil drilling, geological exploration, coal mining drill bits, and machining tools.

⚙️ Drilling & Mining: Suitable for soft to medium-hard geological drilling, with impact toughness and thermal stability up to 750 ºC.

🛠️ Mechanical Tools: Ideal for cutting high-hardness alloys, wood, and ceramics with high cutting accuracy.

Key Features

✔High wear resistance and thermal stability.
✔Strong impact toughness with firm and uniform interfaces.
✔Advanced sintering processes for various tooth structures.

Technical Specifications

Dimension Code	Diameter (mm)	Height (mm)	Table Thickness (mm)	Poly Chamfer (mm)	HSCODE
0808	8.00±0.03	8.0±0.1	2.1±0.2	0.40±0.1	8207191000
1008	10.00±0.03	8.0±0.1	2.1±0.2	0.40±0.1	8207191000
1305	13.44±0.03	5.0±0.1	1.5±0.2	0.35 x 45°	8207191000
1308	13.44±0.03	8.0±0.1	1.5±0.2	0.35 x 45°	8207191000
1313	13.44±0.03	13.2±0.1	2.1±0.2	0.40±0.1	8207191000
1613	15.88±0.03	13.2±0.1	2.1±0.2	0.40±0.1	8207191000
1616	15.88±0.03	16.3±0.1	2.1±0.2	0.40±0.1	8207191000
1916	19.05±0.03	16.3±0.1	2.1±0.2	0.40±0.1	8207191000

Quality & Application

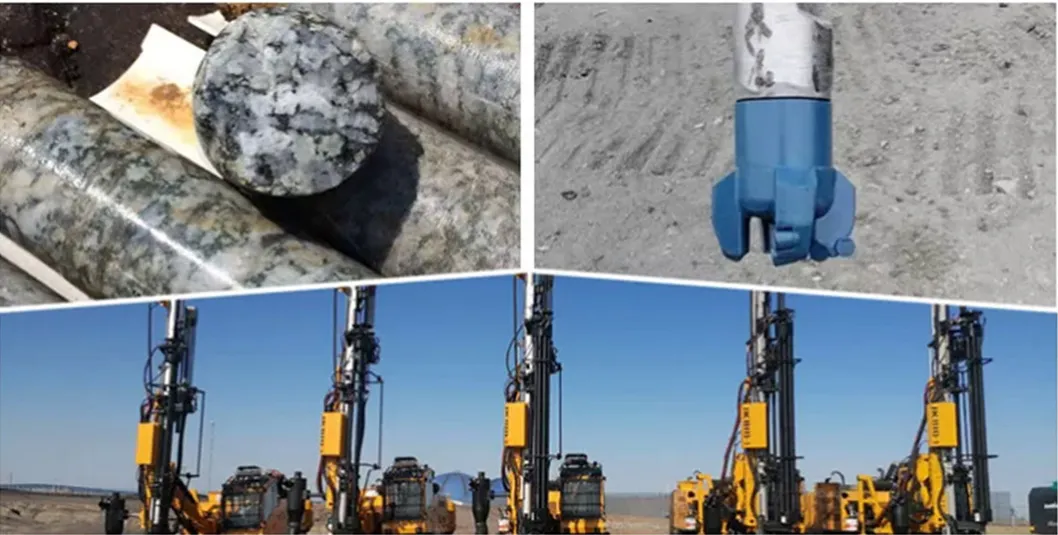

Applications include: Borehole drilling, Civil Infrastructure, Soil Testing, Pile foundation, Bridge drilling, Oil field exploration, and Mine tunnel drilling.

Why Choose Us

⭐ First-class engineers for tricone and PDC bits.

⭐ Advanced international standard technology.

⭐ 10+ Years of global service experience.

⭐ ISO 9001:2008 Certified quality management.

Frequently Asked Questions

Q: What is the composition of a PDC cutter?

A: It is a composite material consisting of a polycrystalline diamond layer sintered onto a tungsten carbide substrate under high pressure and temperature.

Q: What is the maximum heat resistance of these cutters?

A: Our PDC cutters can withstand heat-resistant temperatures up to 750 ºC for short durations during drilling operations.

Q: Can I request customized sizes?

A: Yes, we offer DIY customization. Please provide your rock formation information or detailed size drawings for bespoke production.

Q: What are the primary applications for these cutters?

A: They are widely used in oil and gas drilling, geological exploration, coal mining, and as high-performance mechanical cutting tools.

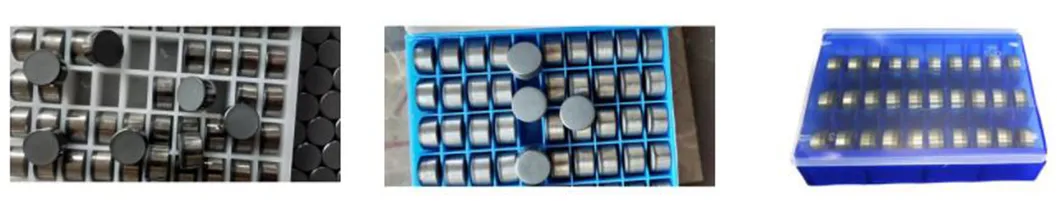

Q: How are the products packaged for shipping?

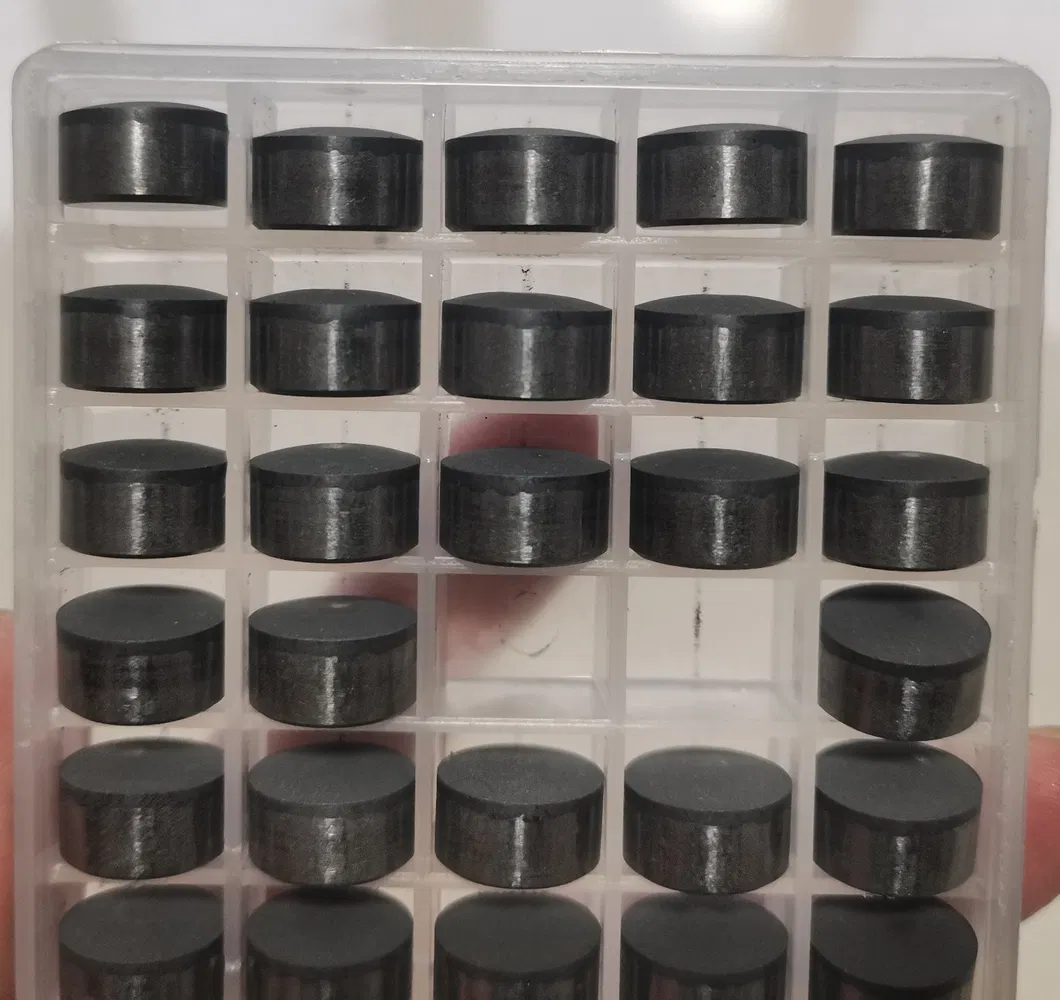

A: We typically use specialized plastic boxes for individual cutters, which are then placed in wooden boxes or fumigation trays for safe international transport.

Q: What testing methods are used for quality control?

A: We employ direct reading spectrum analysis, microhardness detection, metallographic microscopic observation, and carbon/sulfur analysis.
