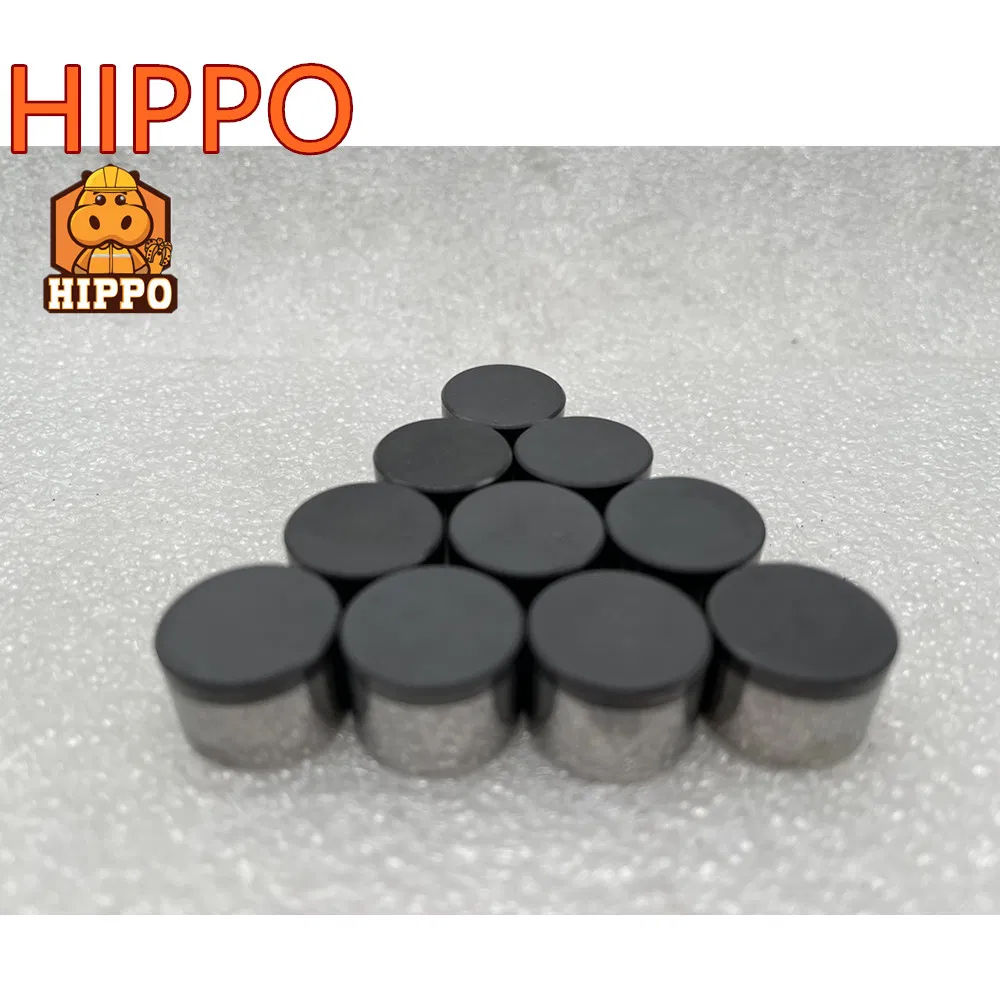

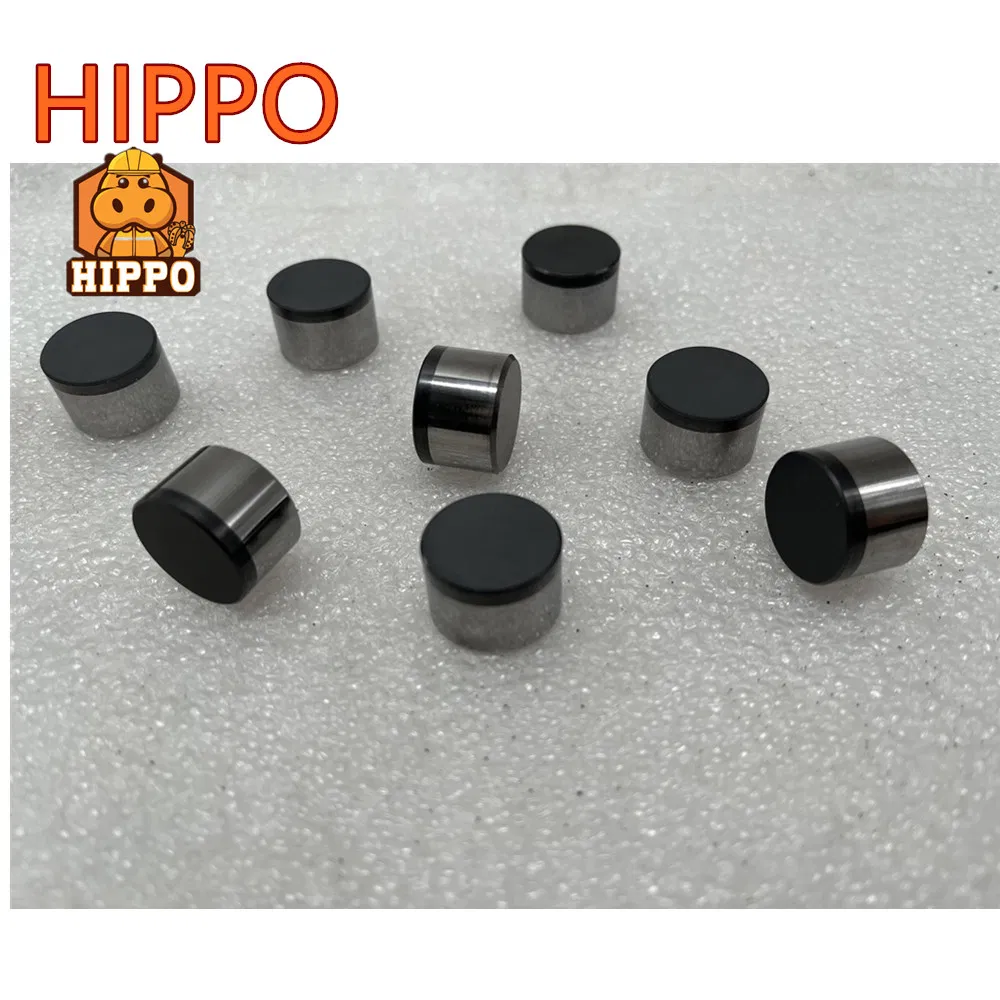

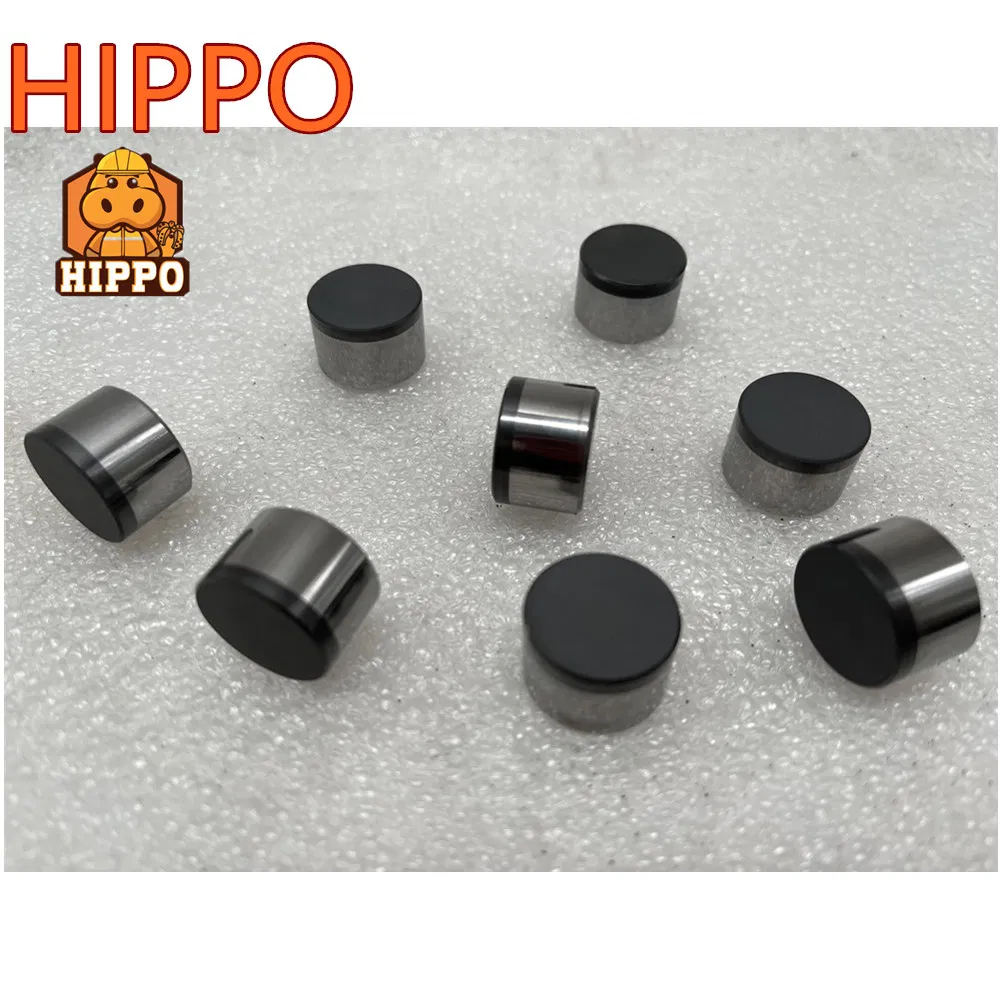

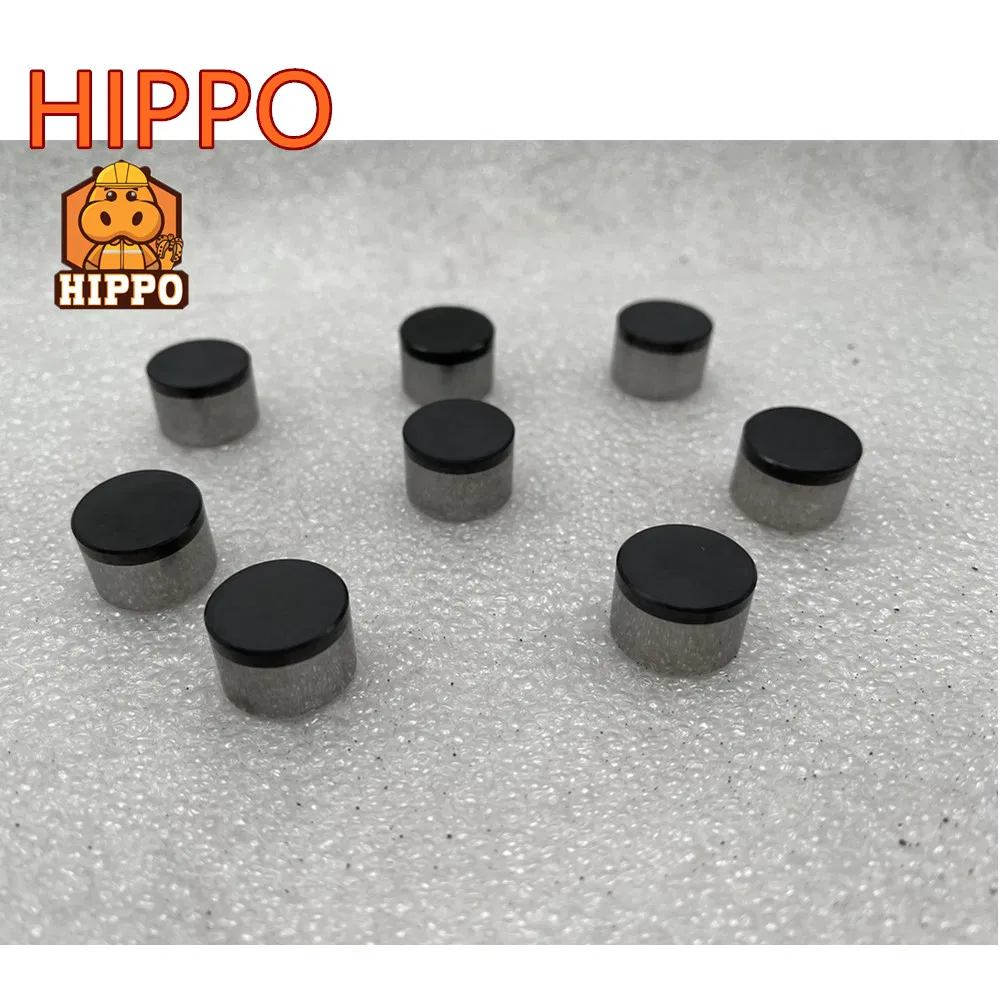

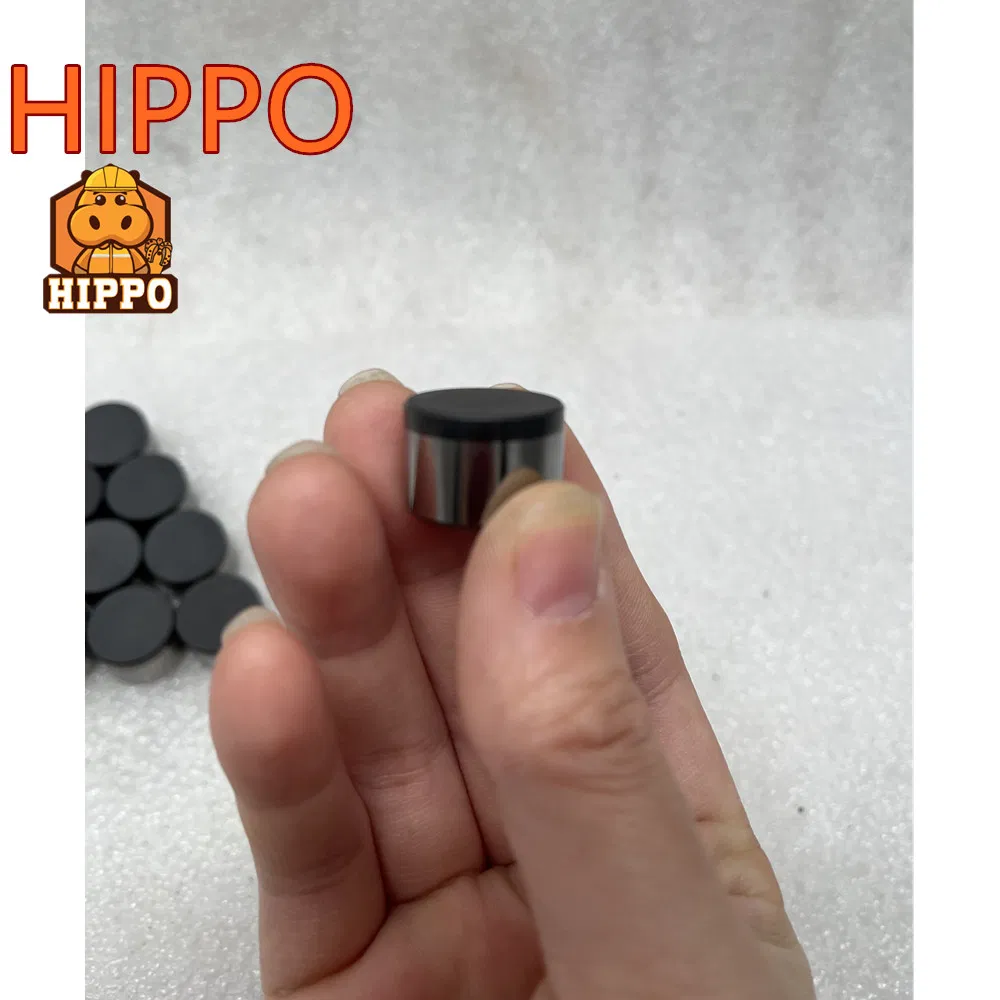

PDC cutter for mining and oil drilling: The PDC cutters consist of a Polycrystalline Diamond layer and carbide substrate. PDC cutters are also named Polycrystalline Diamond Compact cutters, which is a kind of super hard material. The use of polycrystalline diamond compact (PDC) cutters is widely spread nowadays due to their high performance and durability in harsh environments.

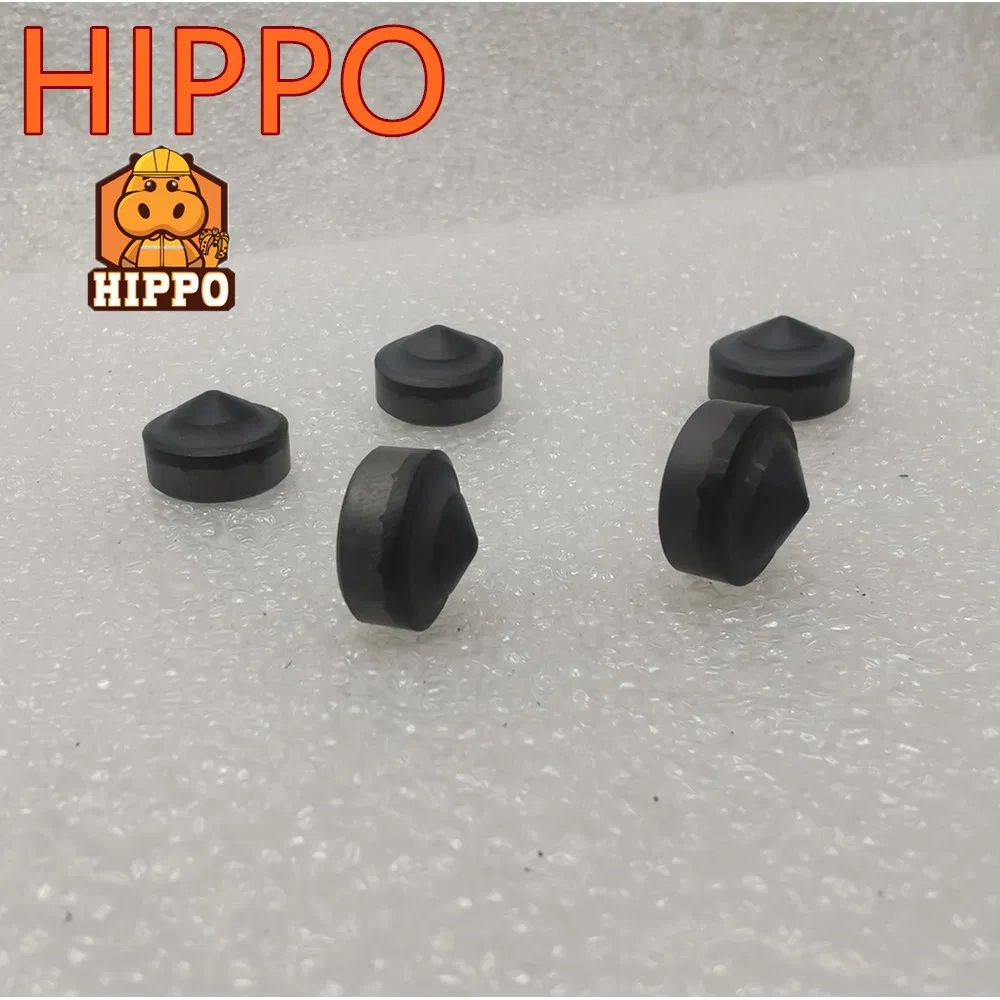

The low rock breaking efficiency of conventional planar PDC bits in hard abrasive formations prompts the development of PDC cutting elements from the planar structure to the non-planar structure.
| Product Code | Diamond Table Thickness(mm) | Diameter(mm) | Length(mm) | Available Chamfer |
|---|---|---|---|---|
| 1308 | 2.00+/-0.20 | 13.44+/-0.03 | 8.0+/-0.1 | 0.012"/0.016"/0.020"x45° |
| 1313 | 2.00+/-0.20 | 13.44+/-0.03 | 13.20+/-0.1 | 0.012"/0.016"/0.020"x45° |
| 1608 | 2.00+/-0.20 | 15.88+/-0.03 | 8.0+/-0.1 | 0.012"/0.016"/0.020"x45° |
| 1613 | 2.00+/-0.20 | 15.88+/-0.03 | 13.20+/-0.1 | 0.012"/0.016"/0.020"x45° |
| 1908 | 2.00+/-0.20 | 19.05+/-0.03 | 8.0+/-0.1 | 0.012"/0.016"/0.020"x45° |
| 1913 | 2.00+/-0.20 | 19.05+/-0.03 | 13.20+/-0.1 | 0.012"/0.016"/0.020"x45° |
| 1916 | 2.00+/-0.20 | 19.05+/-0.03 | 16.0+/-0.1 | 0.012"/0.016"/0.020"x45° |
* Standard Size Chart. Non-standard sizes are available on requests.

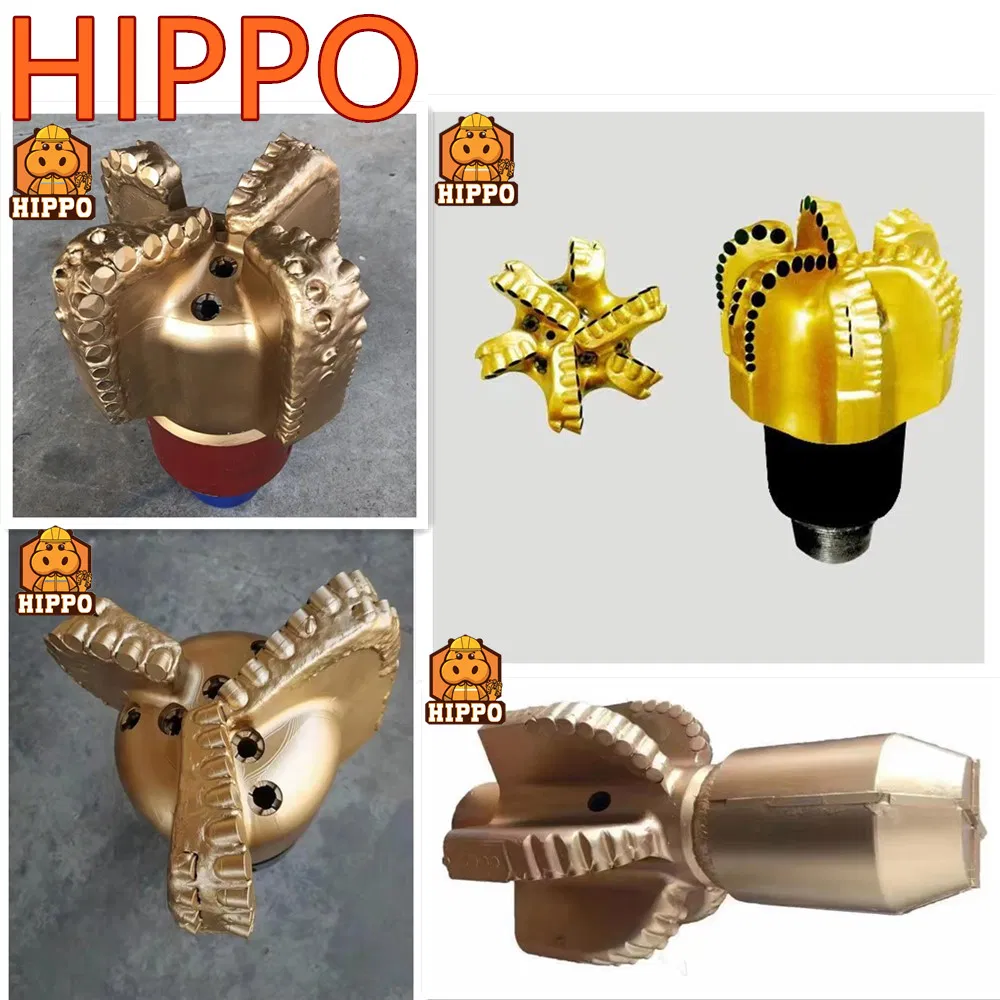

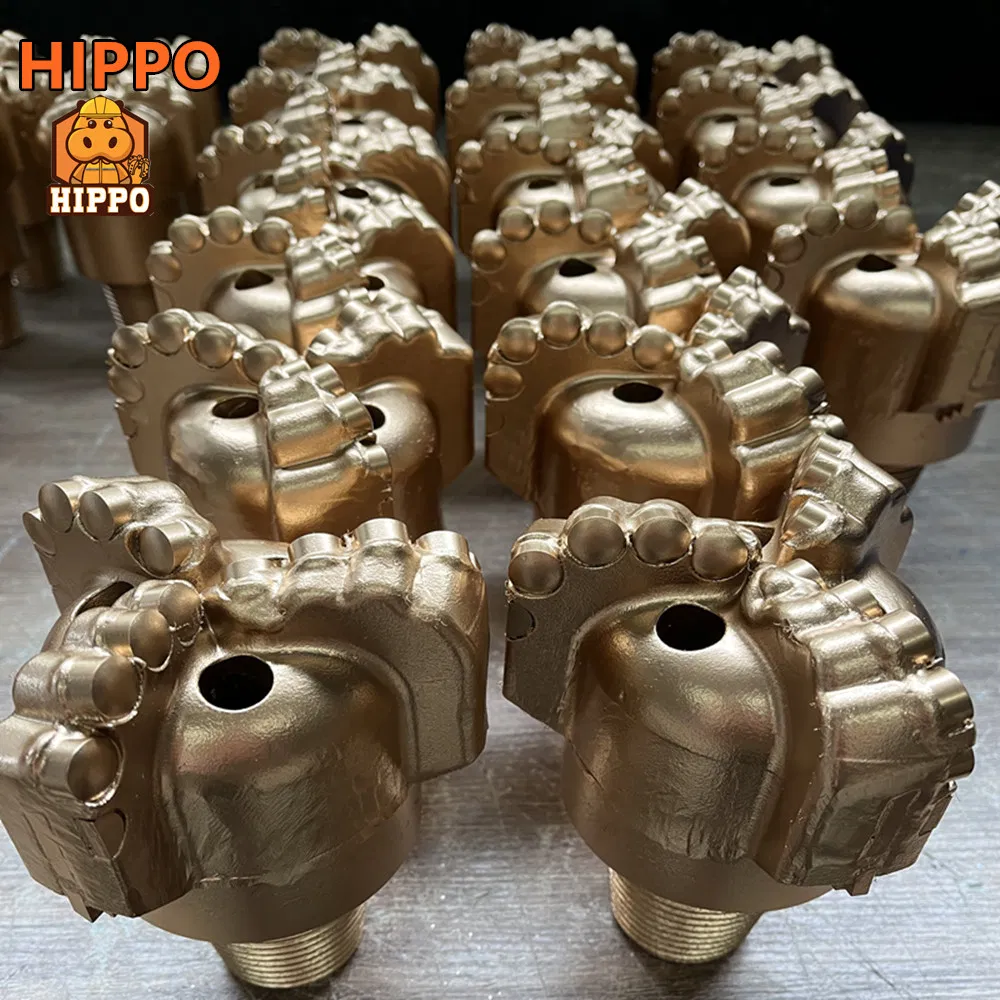

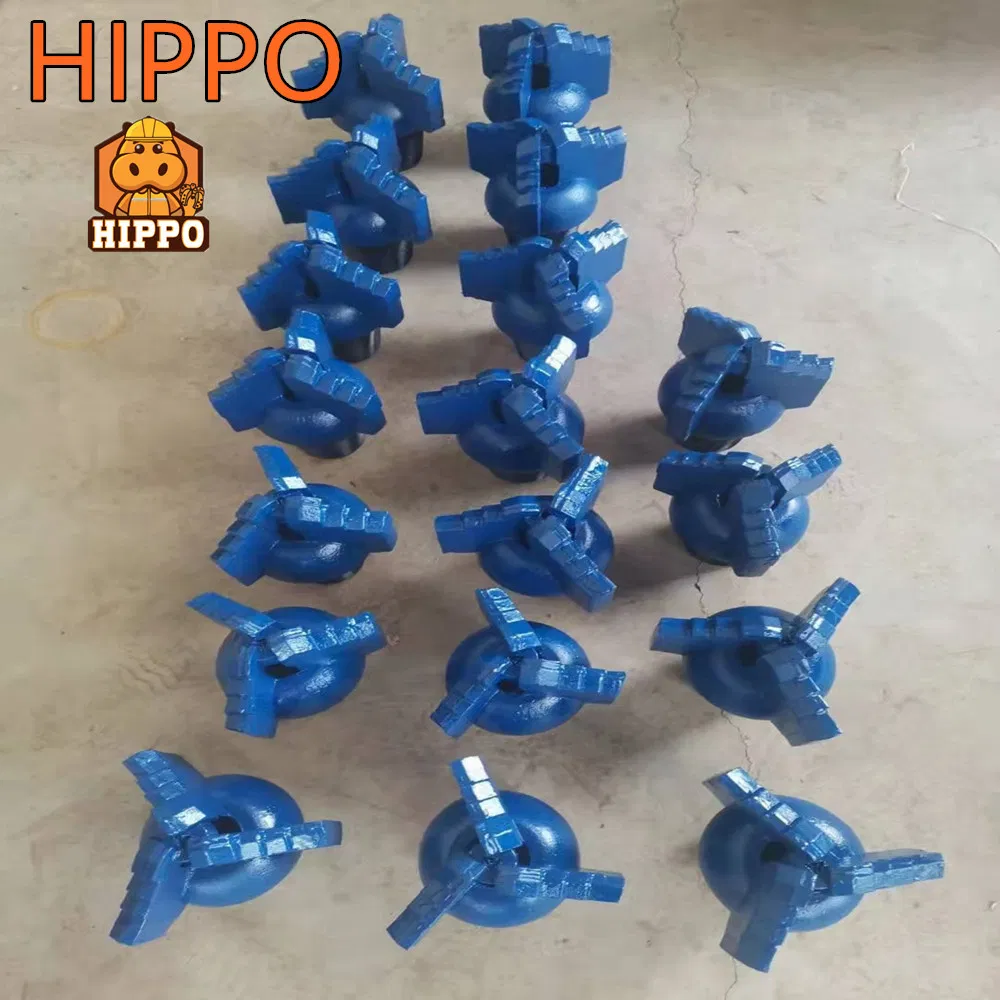

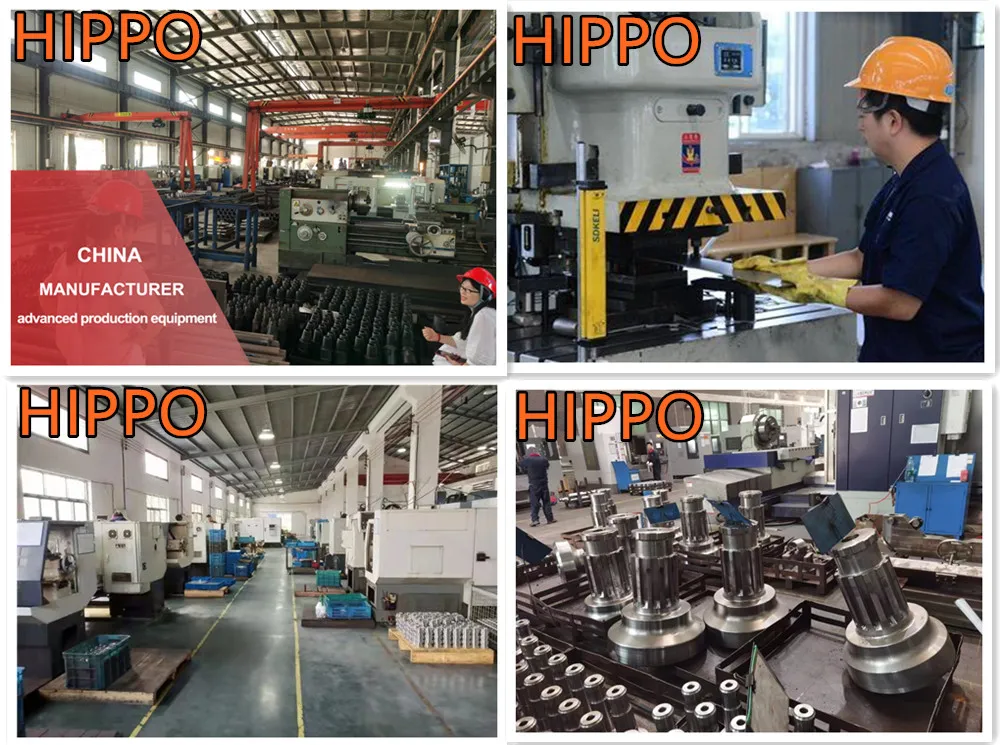

We are a specialized manufacturer in the production of PDC drill bits, diamond drill, well drilling bits, mine drill, oil drill, and composite drill teeth. Our technical staff and advanced production equipment provide rich experience and independent design capabilities. We accept OEM and ODM orders, integrating development, production, and sales.

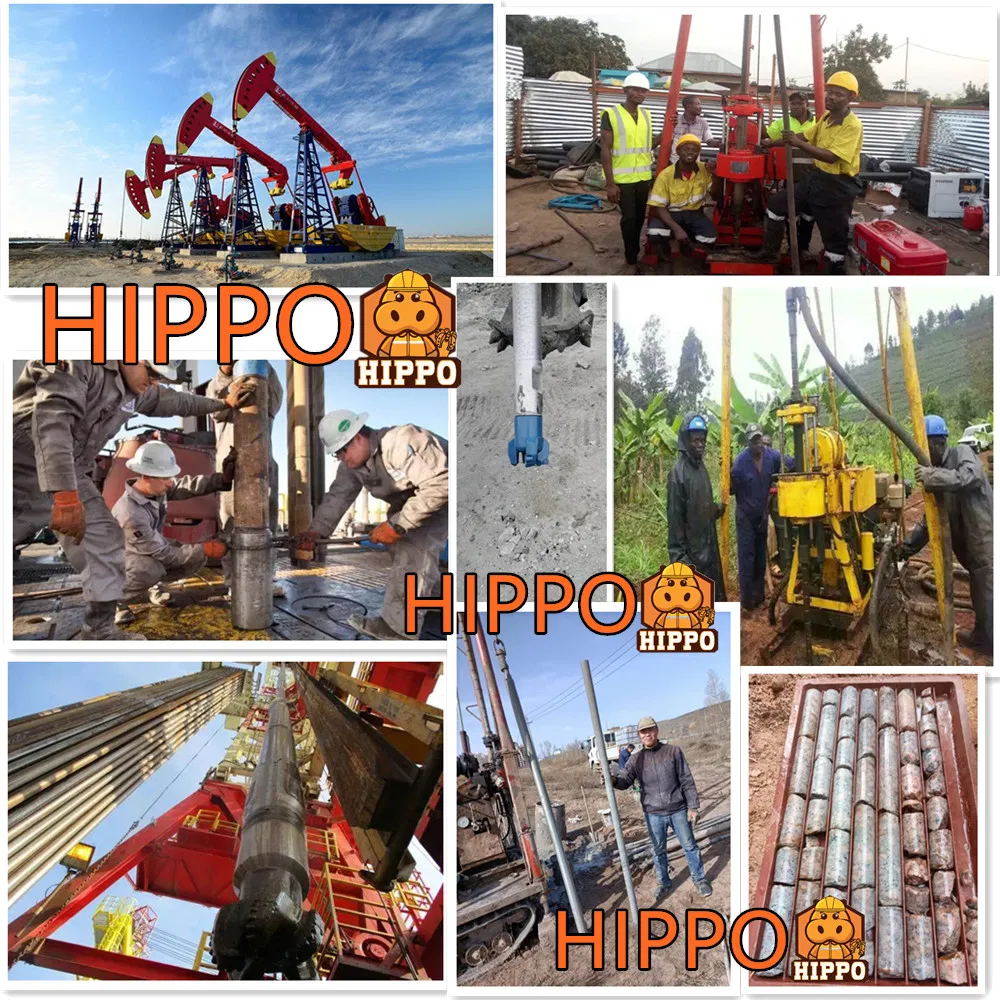

Products are widely used in well drilling, geological exploration, coal mines, mining stone, oil and gas mining, roads, railways, bridges, water conservancy and hydropower, engineering anchoring, and construction industries.
