Elliott Cutters
1 / 5

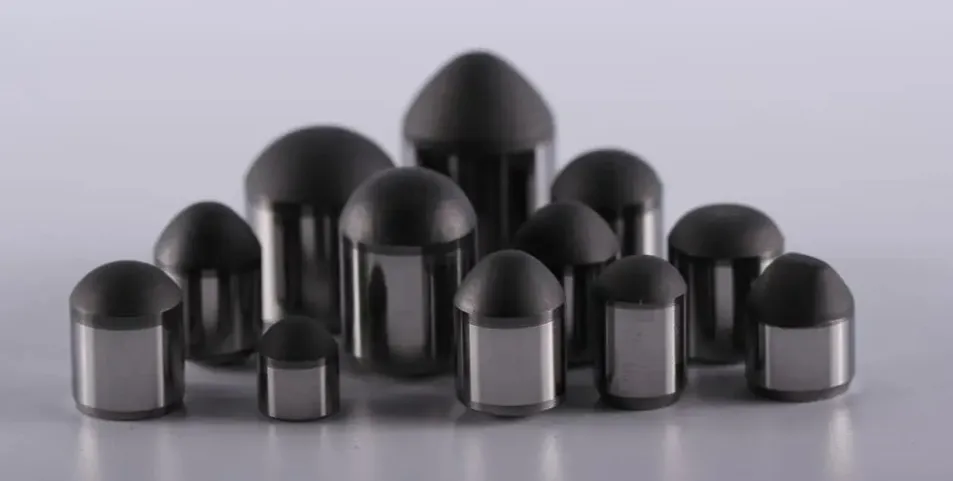

Core Features: Multilayer structure of diamond and transition layer, improving impact resistance greatly. Best alternative for roller cone applications.

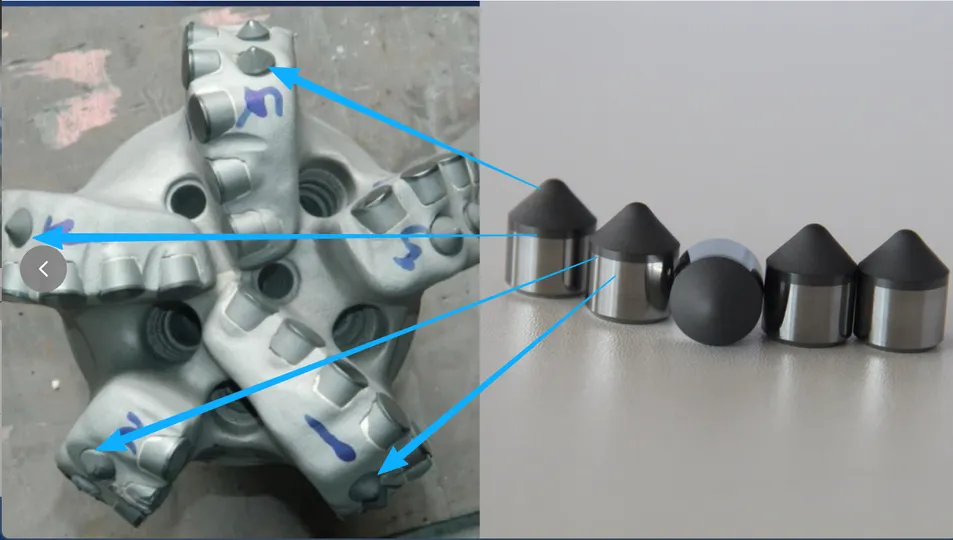

Applicable Position: Priority for rear row teeth. Buffers impact, protects main teeth and prevents gravel damage.

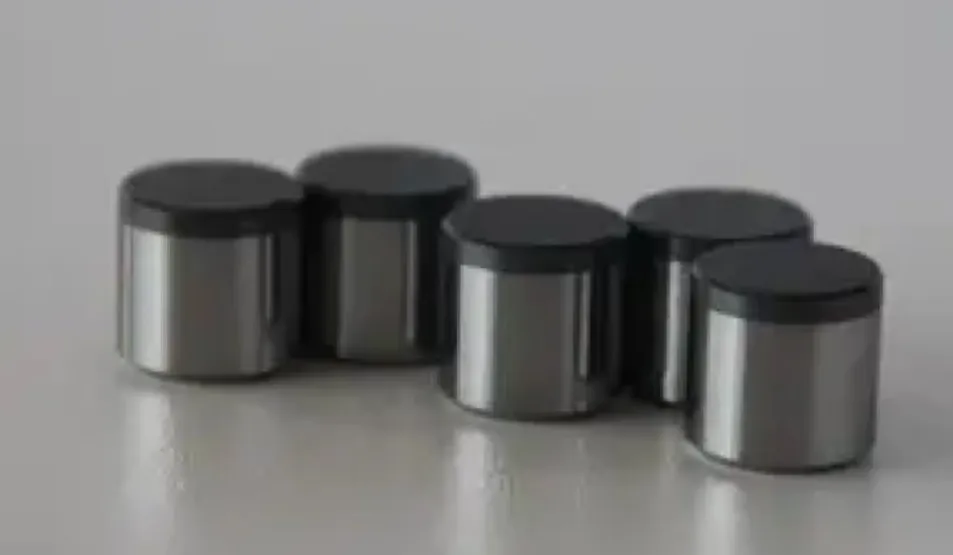

Core Features: Flat and smooth tooth surface with large contact area. High cutting efficiency and outstanding wear resistance. Uniform force bearing avoids local wear.
Applicable Position: Priority for main teeth, assists in crushing formation rocks quickly with high efficiency.

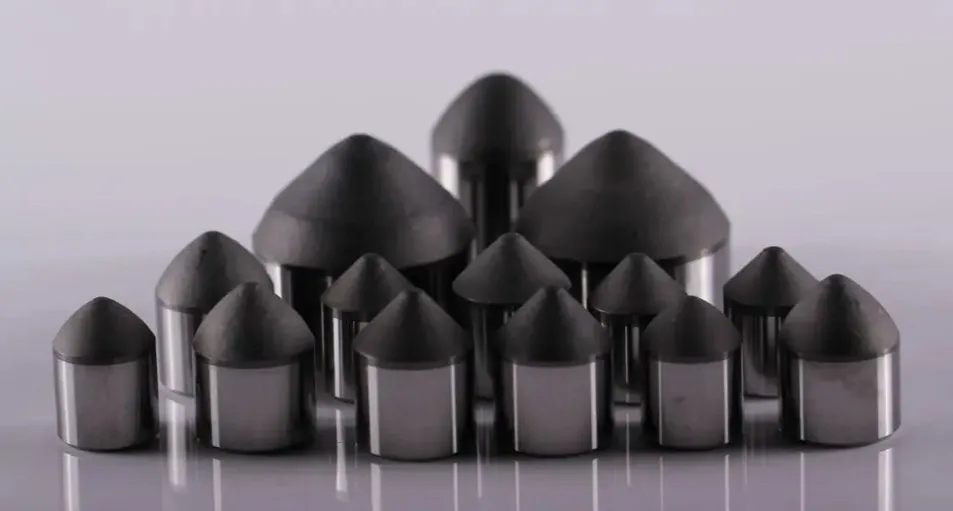

Core Features: Sharp tapered tip with extremely strong penetration. Reduces drilling resistance in medium-hard to hard formations.
Applicable Position: Specifically for main teeth to achieve deep penetration and hard formation crushing.
| Model No. | Diameter (mm) | Total Height (mm) | Diamond Thickness (mm) | Chamfer (mm) |
|---|---|---|---|---|
| S1308 | 13.44 | 8.00 | 2.00 | 0.40 |
| S1313 | 13.44 | 13.20 | 2.00 | 0.40 |
| S1316 | 13.20 | 15.88 | 2.00 | 0.35 |
| S1613 | 15.88 | 13.20 | 2.40 | 0.40 |
| S1913 | 19.05 | 13.20 | 2.40 | 0.30 |
| S2219 | 22.20 | 19.05 | 2.00 | 0.30 |
| DE1319 | 12.92 | 19.00 | 4.60 | 5.94 |
