PDC Cutter P1308

Customization:	Available
Certification:	ISO 9001:2008
Surface Treatment:	Polishing

Send Inquiry

Product Description

Basic Information

Model NO.

1308

Manufacturing Process

Sintering

Material

Tungsten Carbide and Diamond

Product Name

PDC Cutter P1308

Application 1

Oil Drilling Field

Application 2

Mining and Engineering

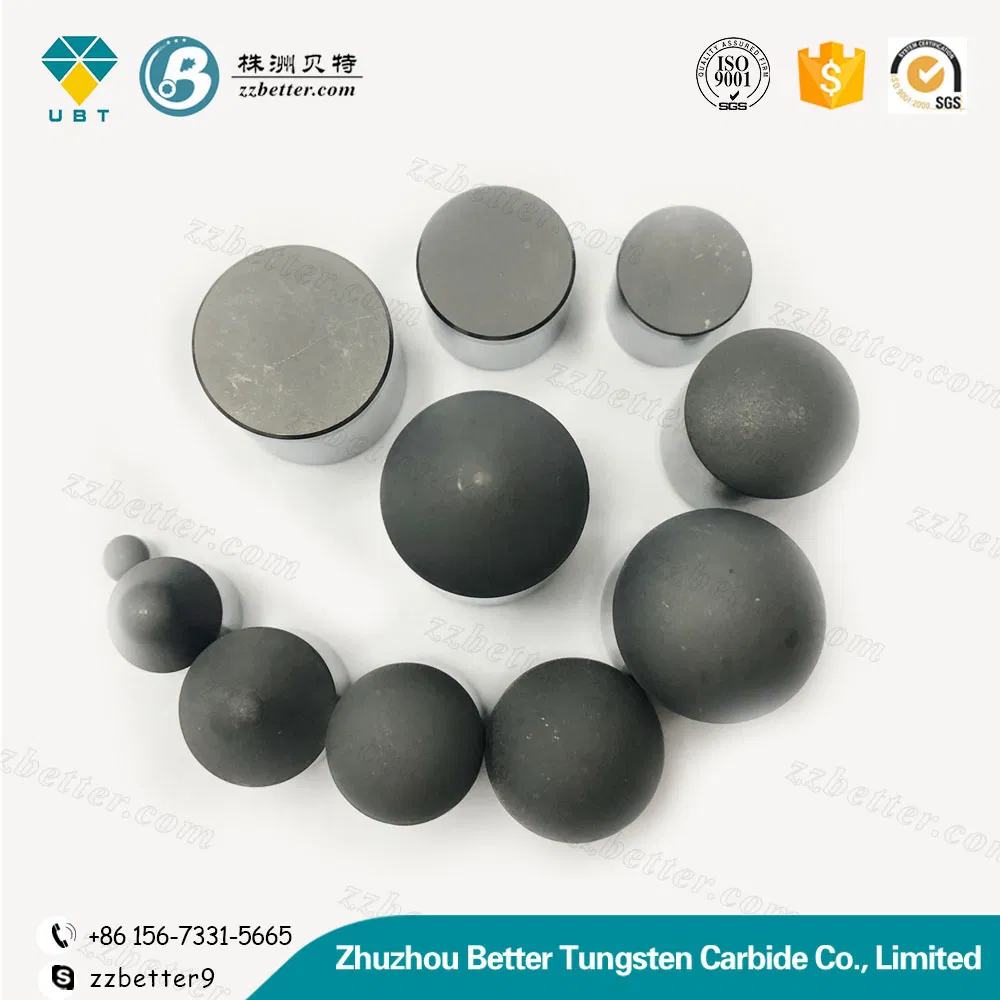

Type 1

Flat Top PDC Button

Type 2

Spherical Top PDC Buttons

Type 3

Spoon Shape PDC Drill Bits

Other Name

PCD Drill Bits

Transport Package

in Cartons

Production Capacity

50000PCS/Month

Product Description

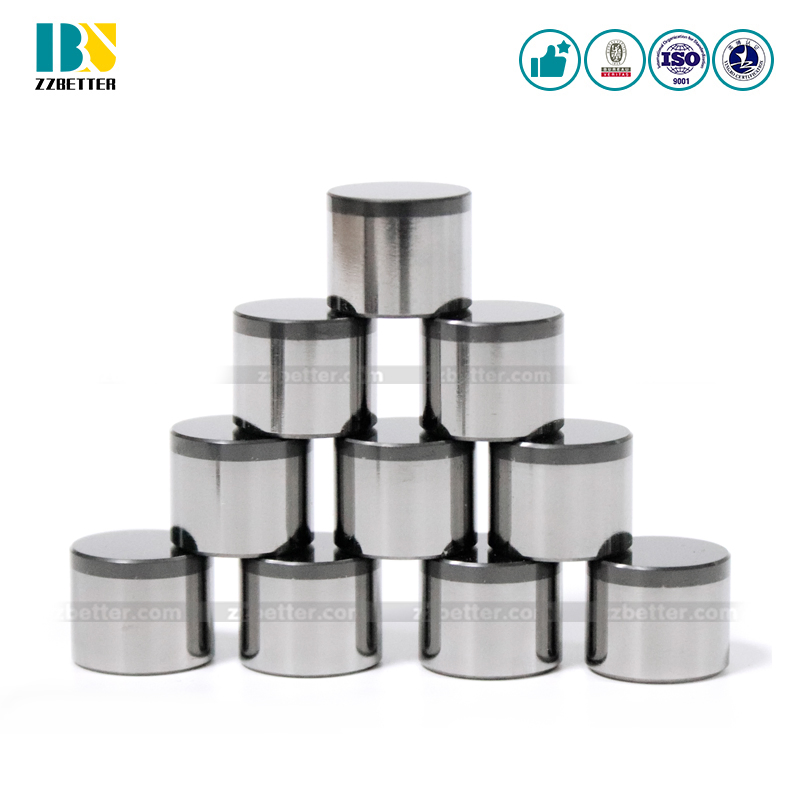

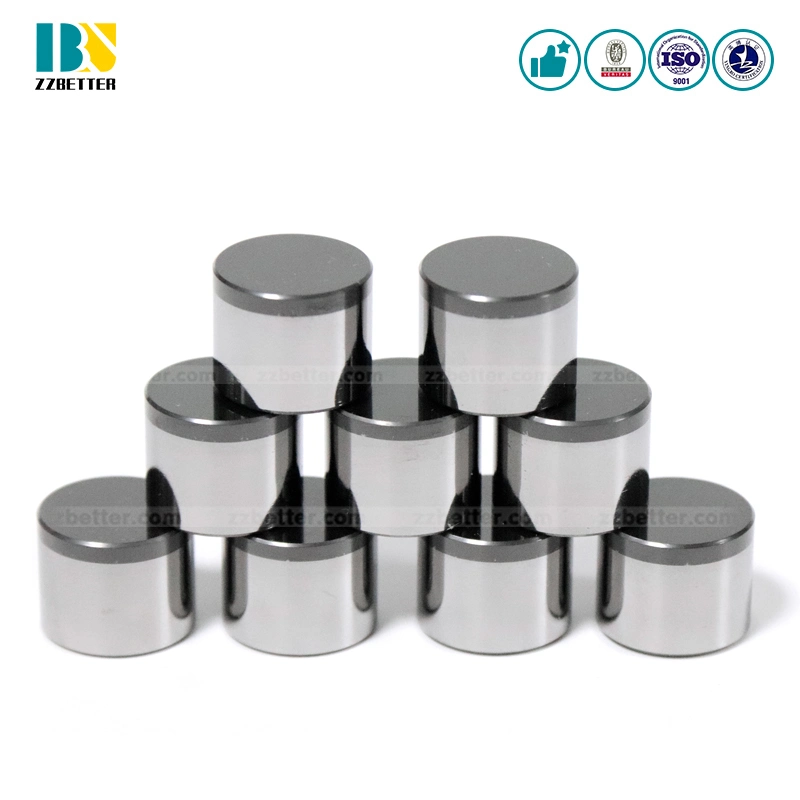

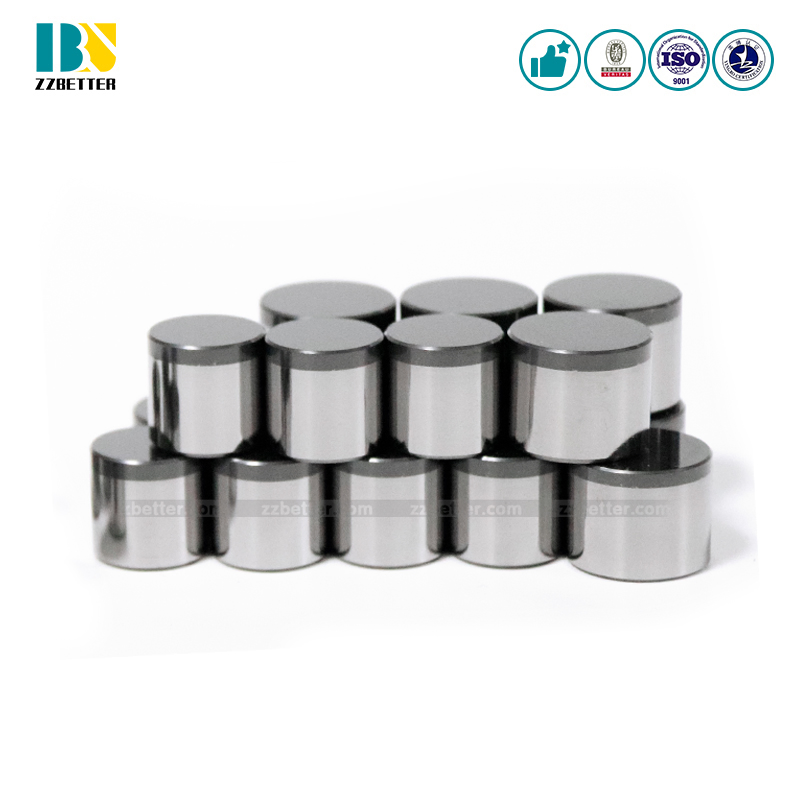

PDC Cutter P1308

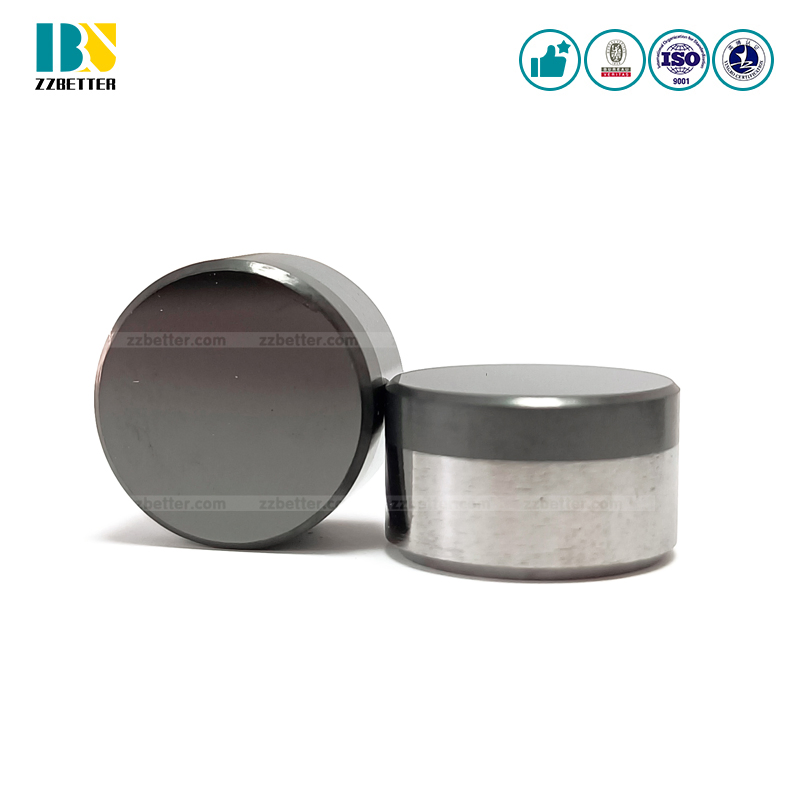

Polycrystalline diamond cutters (PDC) comprise a polycrystalline diamond (PCD) top layer integrally sintered onto a tungsten carbide substrate using a high-pressure, high-temperature (HPHT) process.

PDC cutters are sintered with selected diamond powder and tungsten carbide compact under ultra-high pressure. These cutters feature high hardness, superior abrasion resistance, and exceptional impact resistance. They are widely utilized in oil and gas well drill bits, geological exploration, and mining operations.

Available sizes include: 1304, 1308, 1313, 1608, 1613, 1616, 1908, 1913, 1916, 1919mm. Custom sizes and shapes can be manufactured according to specific requirements.

Technical Specifications

SPEC SHEET FOR OILFIELD DRILLING PDC CUTTERS
SPEC Drawings	Dimension Code	Diameter (D)	Height Total (H)	Height Diamond	Diamond Chamfer	Carbide Chamfer
	1916	19.05 +/- 0.05	16.0 +/- 0.10	2.0-2.5	0.5x45	0.5x45
	1913	19.05 +/- 0.05	13.2 +/- 0.10	2.0-2.5	0.5x45	0.5x45
	1613	15.88 +/- 0.03	13.2 +/- 0.10	2.0-2.5	0.3x45	0.5x45
	1610	15.88 +/- 0.03	10.0 +/- 0.10	2.0-2.5	0.3x45	0.5x45
	1313	13.44 +/- 0.03	13.2 +/- 0.10	2.0-2.5	0.3x45	0.5x45
	1308	13.44 +/- 0.03	8.0 +/- 0.10	2.0-2.5	0.3x45	0.5x45

SPEC SHEET FOR MINING/SHALLOW OIL AND GAS PDC CUTTERS
SPEC Drawings	Dimension Code	Diameter (D)	Height Total (H)	Height Diamond	Diamond Chamfer	Carbide Chamfer
	1313	13.44 +/- 0.03	13.2 +/- 0.10	2.0-2.5	0.3x45	0.5x45
	1308	13.44 +/- 0.03	8.0 +/- 0.10	2.0-2.5	0.3x45	0.5x45
	1010	10.00 +/- 0.03	10.0 +/- 0.10	2.0-2.5	0.3x45	0.5x45
	808	8.00 +/- 0.03	8.0 +/- 0.10	2.0-2.5	0.3x45	0.5x45
