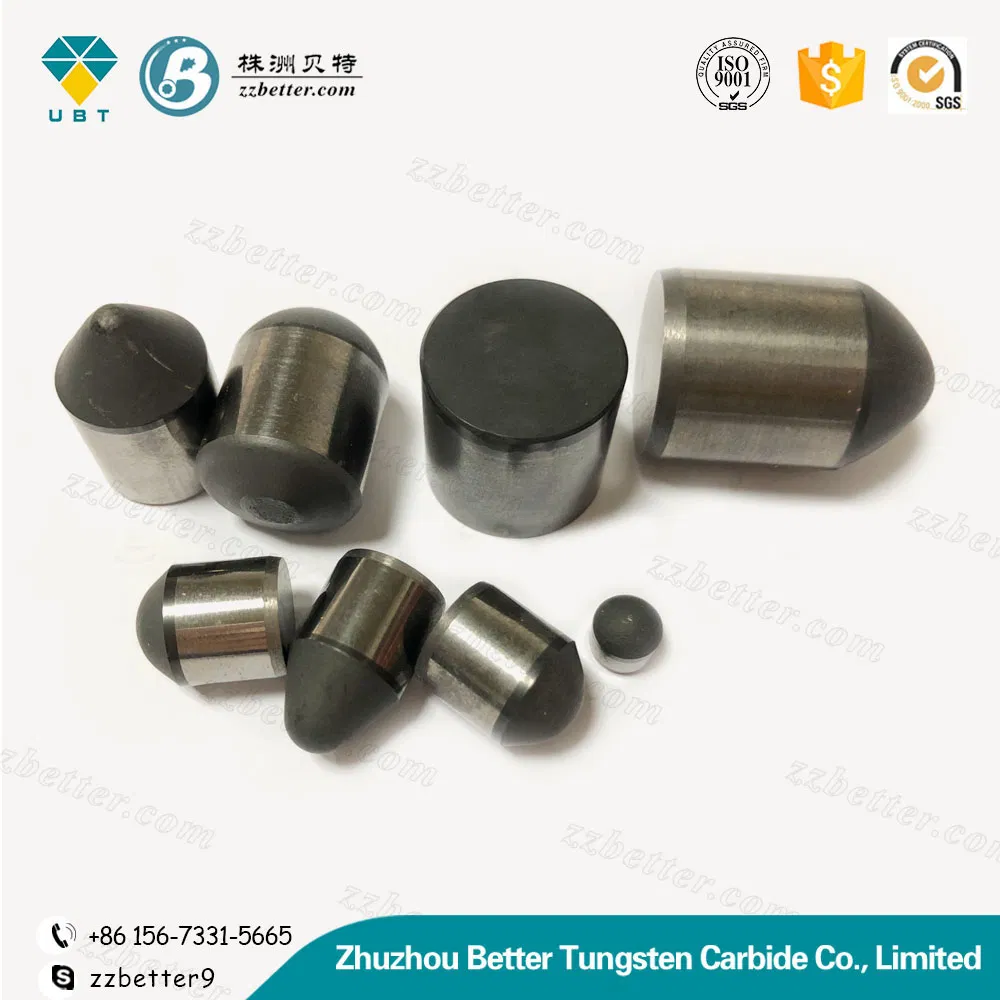

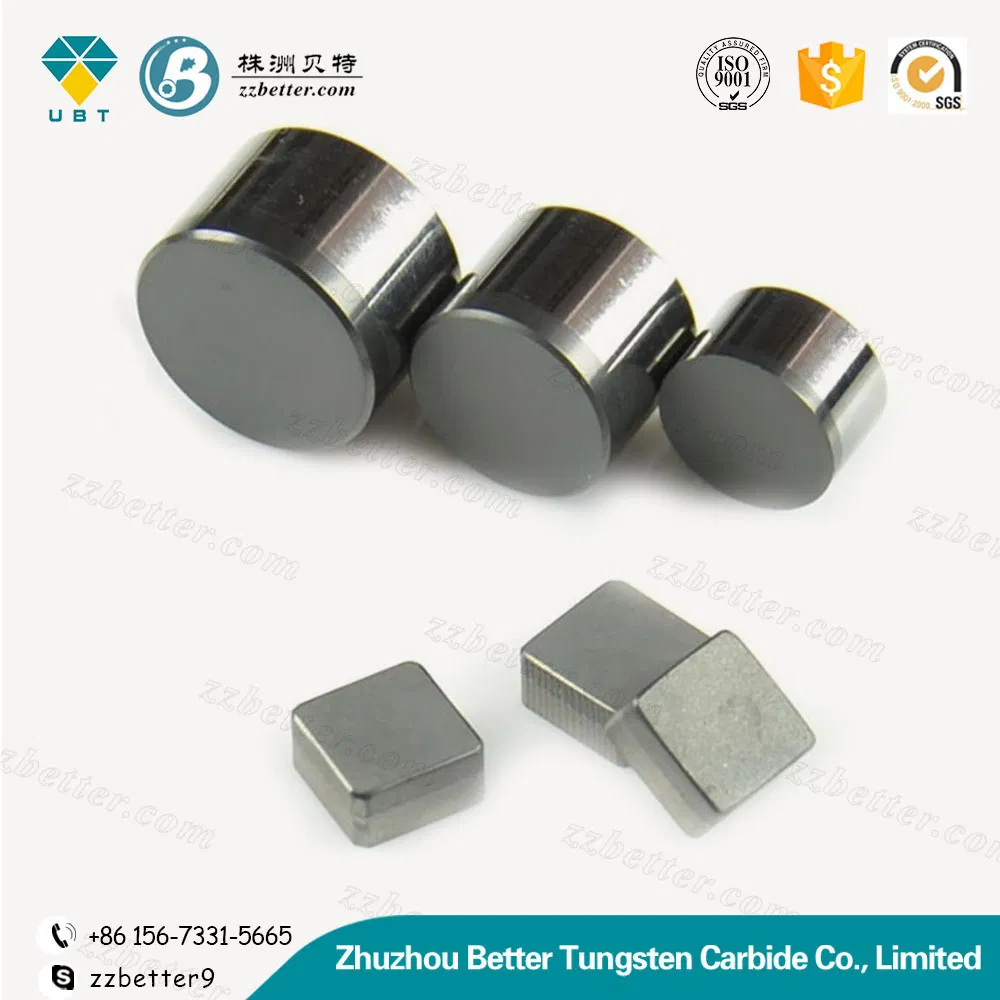

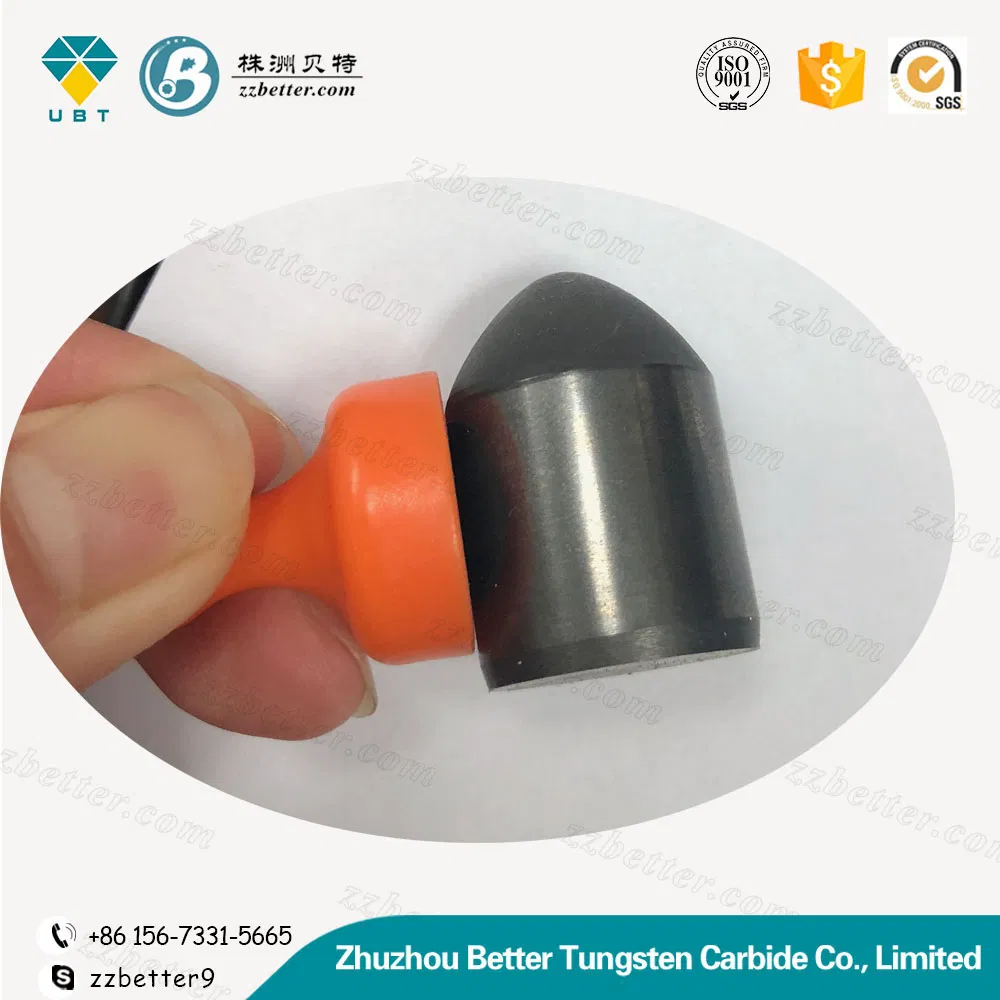

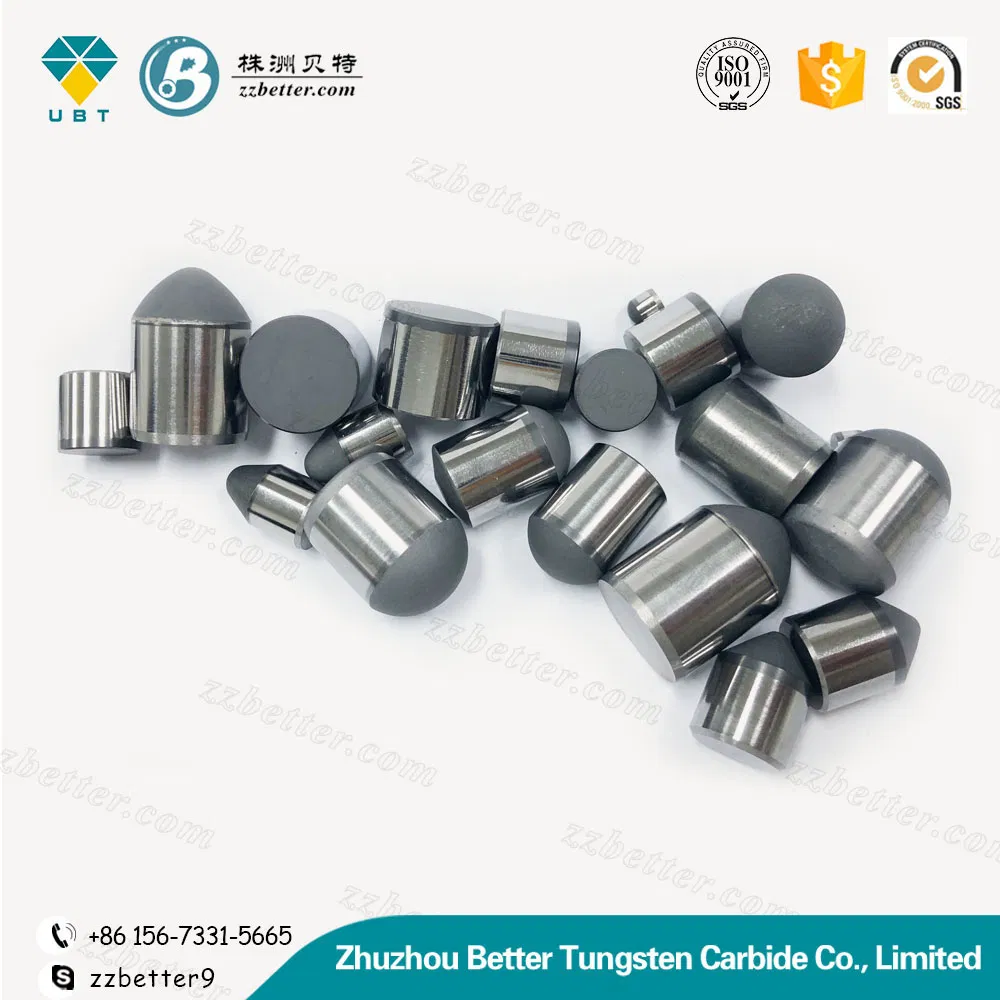

1313 PDC Cutter for Gas and Oil Drilling on Drilling Bit

1 / 5

1313 PDC Cutter for Gas and Oil Drilling on Drilling Bit

Customization:	Available
Logo Printing:	Without Logo Printing
Size:	Small

Send Inquiry

Product Description

Basic Specifications

Product Name

1313 PDC Cutter for Gas and Oil Drilling

Material

Tungsten Carbide and Diamond

Type

Cutting Tool

Certification

ISO 9001:2008

Customized

Available

Capacity

50000PCS/Month

Transport

In Cartons

Product Introduction

💎

Polycrystalline diamond cutters (PDC) comprise a polycrystalline diamond (PCD) top layer integrally sintered onto a tungsten carbide substrate using a high-pressure, high-temperature process.

PDC cutters are sintered with selected diamond powder and tungsten carbide compact under high temperature and ultra-high pressure. These cutters exhibit high hardness, high abrasion resistance, and high impact resistance.

Key Applications

Application 1

Oil and Gas Drilling Fields

Application 2

Mining and Engineering

Application 3

Geological Drill Bits

Application 4

Cutting, Grinding and Polishing Tools

Technical Specifications

OILFIELD DRILLING PDC CUTTERS
Dimension Code	Diameter (D)	Height Total (H)	Height Diamond	Diamond Chamfer	Carbide Chamfer
1916	19.05 +/-0.05	16.0 +/-0.10	2.0-2.5	0.5x45	0.5x45
1913	19.05 +/-0.05	13.2 +/-0.10	2.0-2.5	0.5x45	0.5x45
1613	15.88 +/-0.03	13.2 +/-0.10	2.0-2.5	0.3x45	0.5x45
1610	15.88 +/-0.03	10.0 +/-0.10	2.0-2.5	0.3x45	0.5x45
1313	13.44 +/-0.03	13.2 +/-0.10	2.0-2.5	0.3x45	0.5x45
1308	13.44 +/-0.03	8.0 +/-0.10	2.0-2.5	0.3x45	0.5x45

MINING/SHALLOW OIL AND GAS PDC CUTTERS
Dimension Code	Diameter (D)	Height Total (H)	Height Diamond	Diamond Chamfer	Carbide Chamfer
1313	13.44 +/-0.03	13.2	2.0-2.5	0.3x45	0.5x45
1308	13.44 +/-0.03	8.0	2.0-2.5	0.3x45	0.5x45
1010	10.00 +/-0.03	10.0	2.0-2.5	0.3x45	0.5x45
810	8.00 +/-0.03	10.0	2.0-2.5	0.3x45	0.5x45
804	8.00 +/-0.03	4.5	2.0-2.5	0.3x45	0.5x45

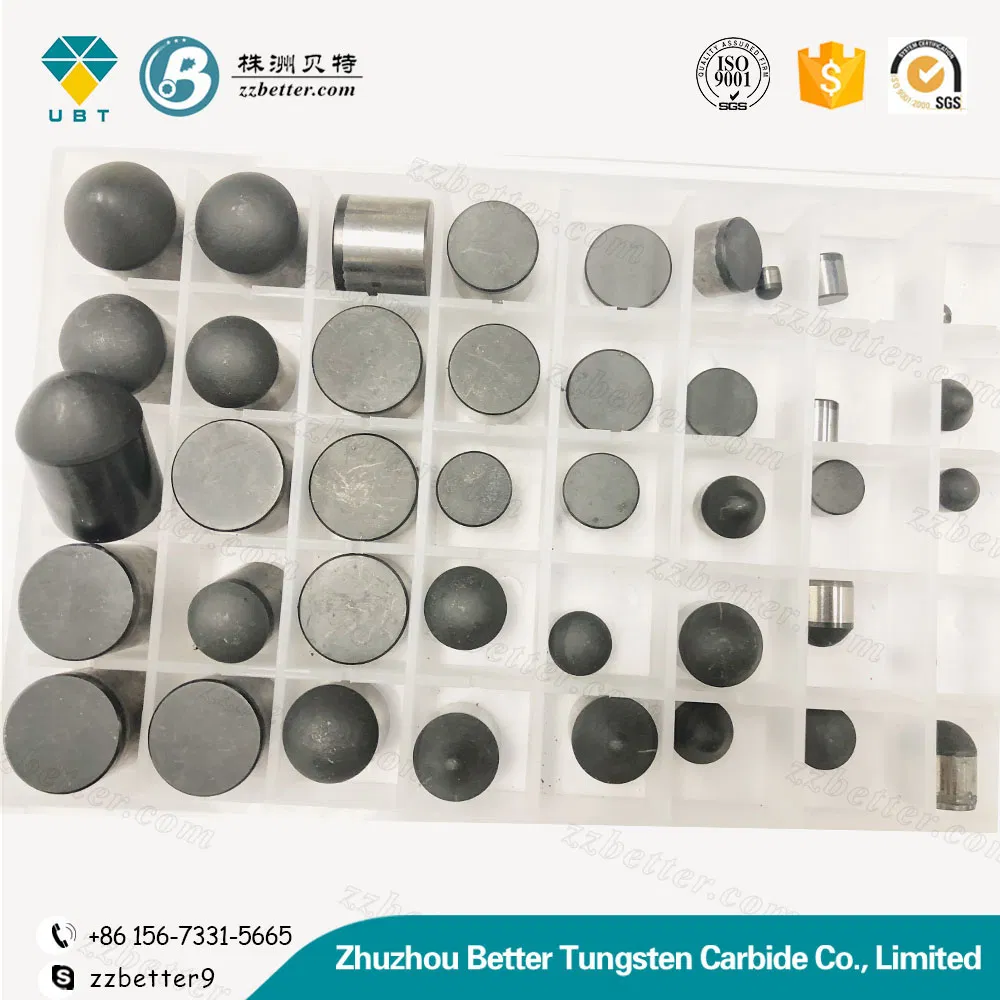

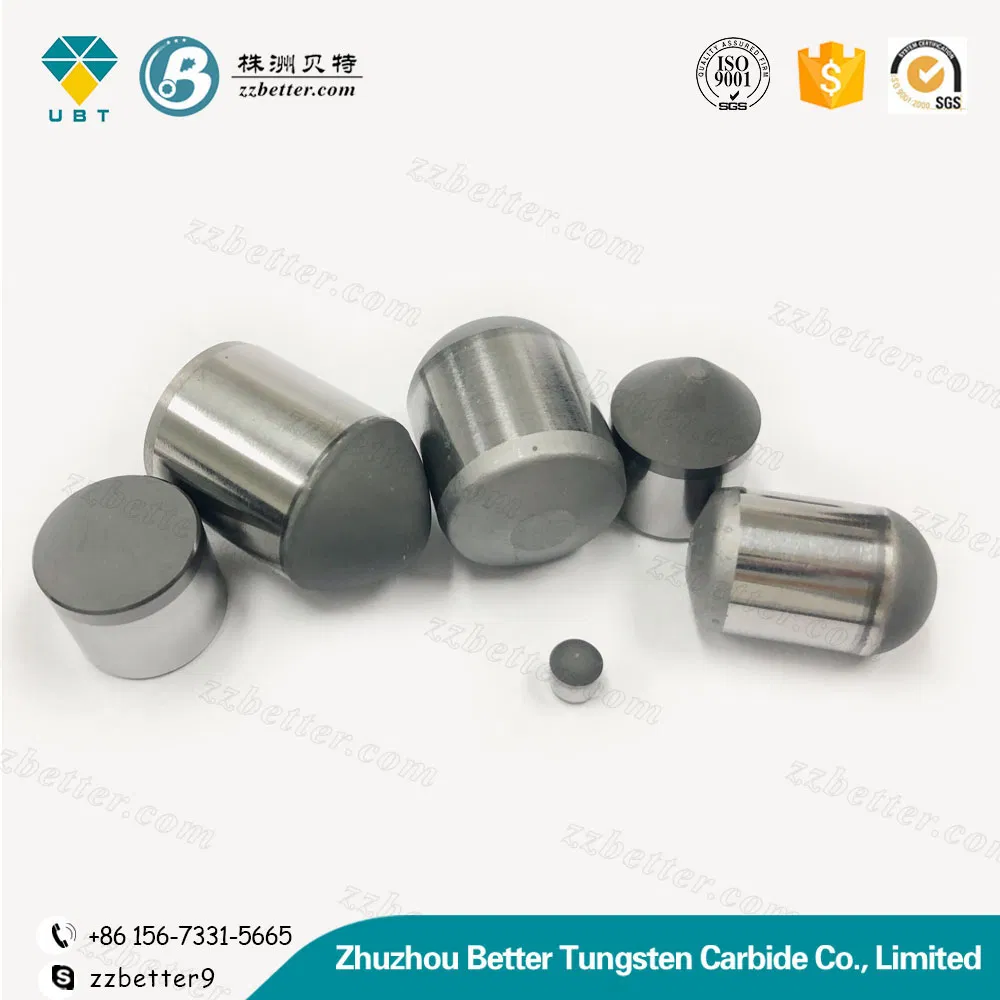

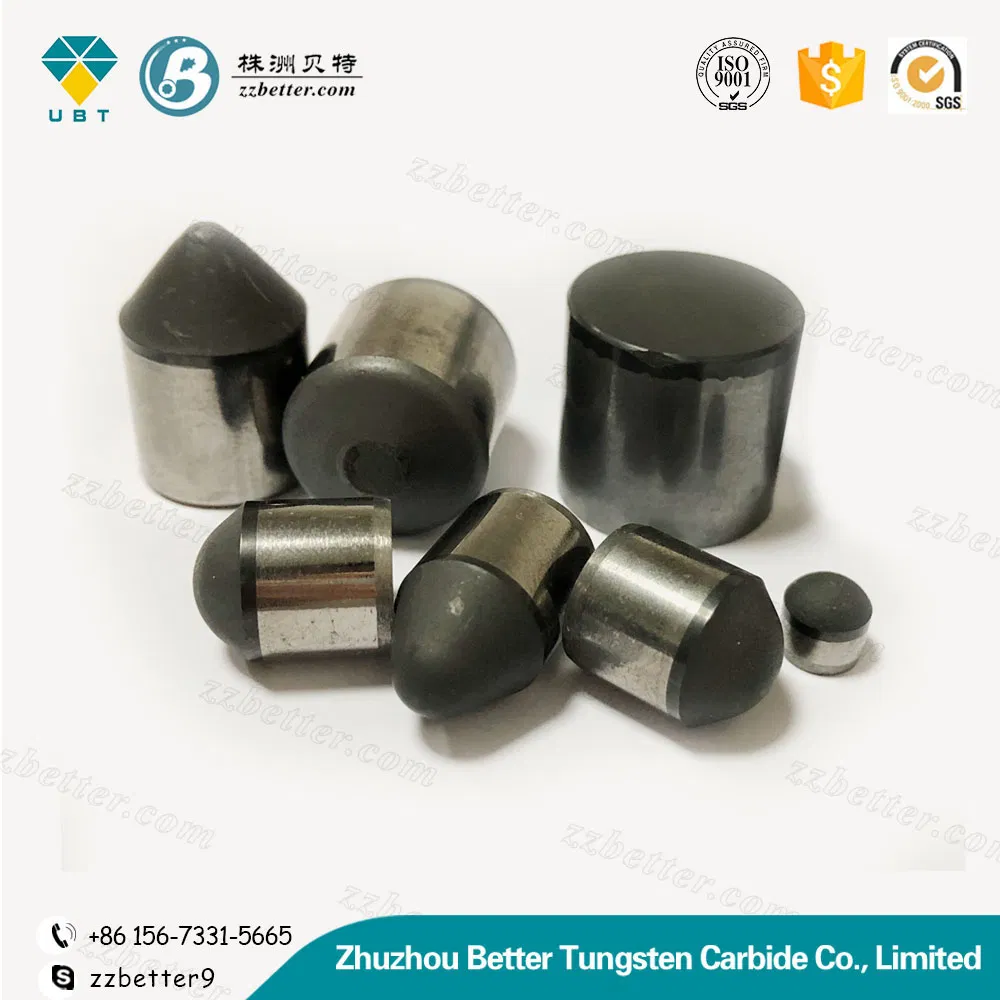

Product Gallery

Frequently Asked Questions

What is a PDC Cutter?

PDC stands for Polycrystalline Diamond Cutter. It consists of a diamond top layer sintered onto a tungsten carbide substrate under high pressure and temperature, combining the hardness of diamond with the toughness of carbide.

What are the primary benefits of using PDC cutters?

Our PDC cutters offer exceptional hardness, superior abrasion resistance, and high impact resistance, making them ideal for demanding drilling environments.

What industries use 1313 PDC Cutters?

They are primarily used in the oil and gas drilling industry, mining, geological exploration, and engineering sectors for various types of drill bits.

Are there different shapes available?

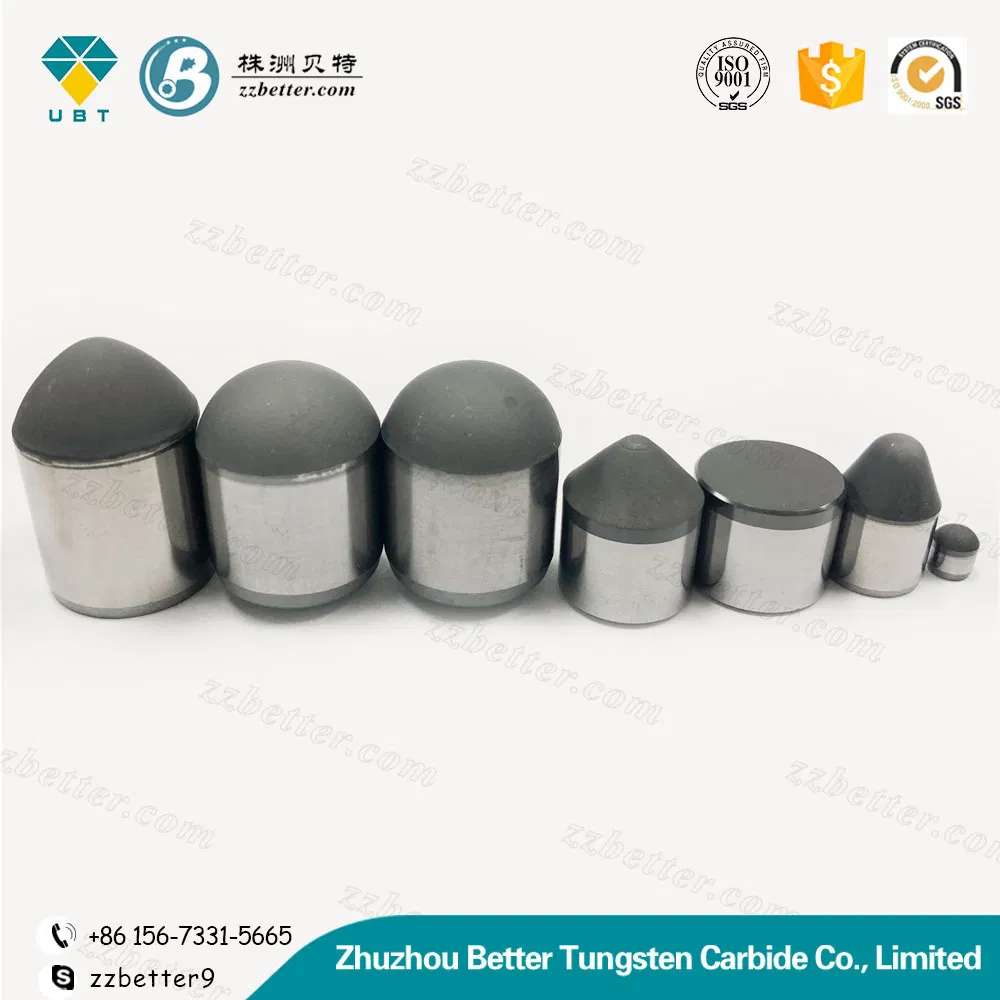

Yes, we offer various types including Flat Top PDC Buttons, Spherical Top PDC Buttons, and Spoon Shape PDC cutters to suit different drilling requirements.

Can the size be customized?

While standard sizes like 1308, 1313, and 1613 are common, other sizes and shapes can be manufactured according to your specific requirements.

What is the production capacity?

We have a stable production capacity of 50,000 pieces per month to ensure timely delivery for large-scale projects.
