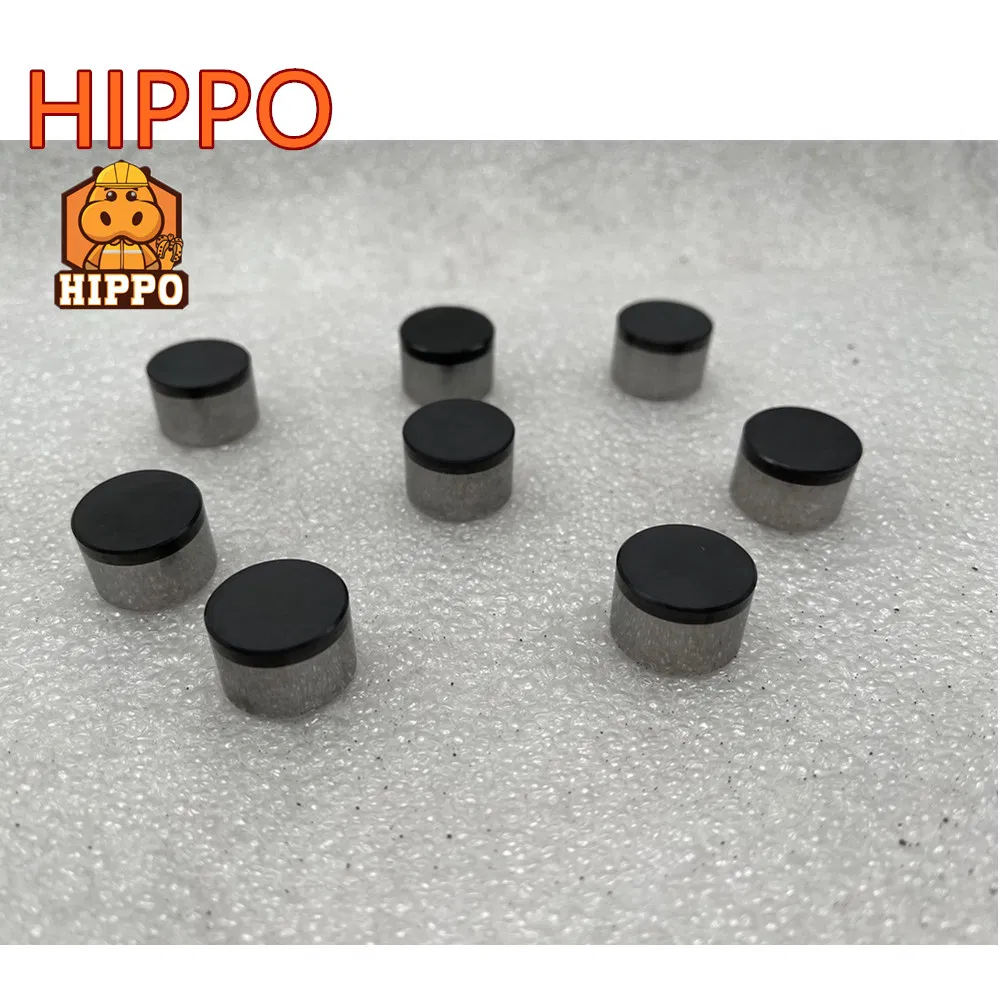

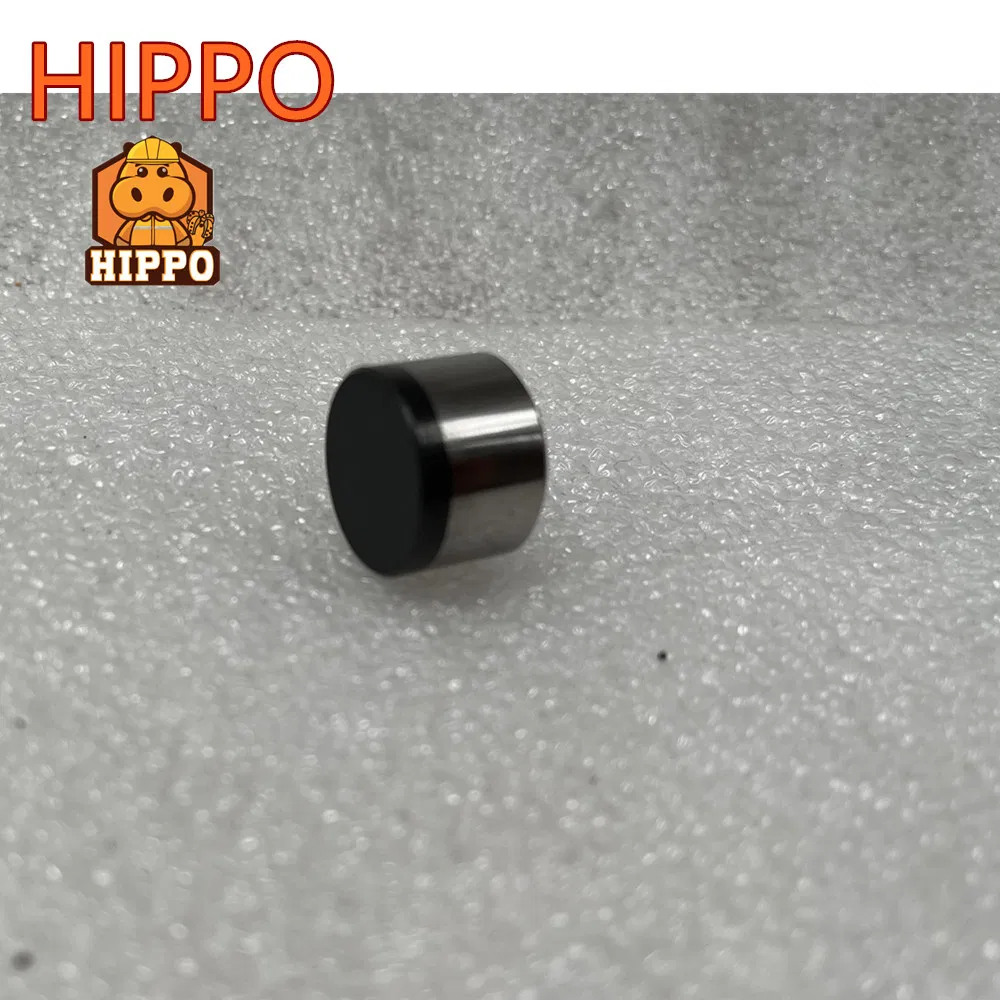

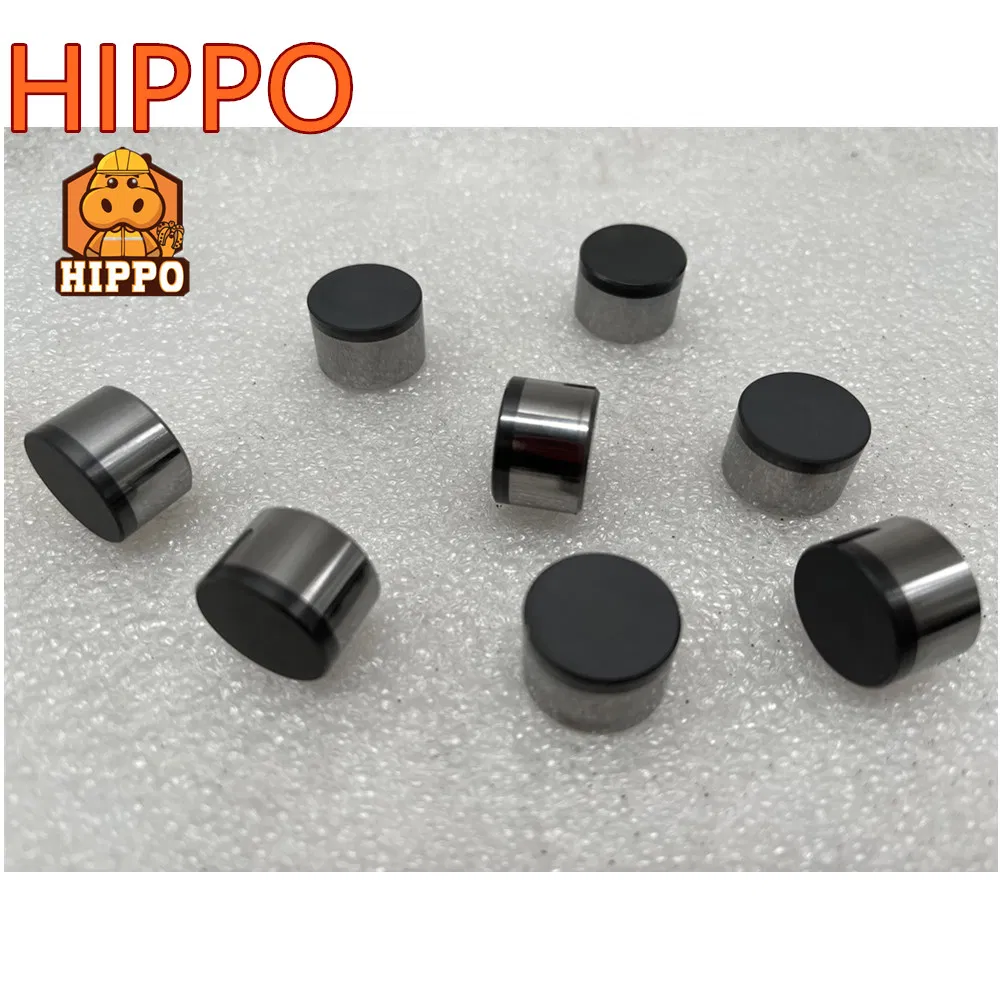

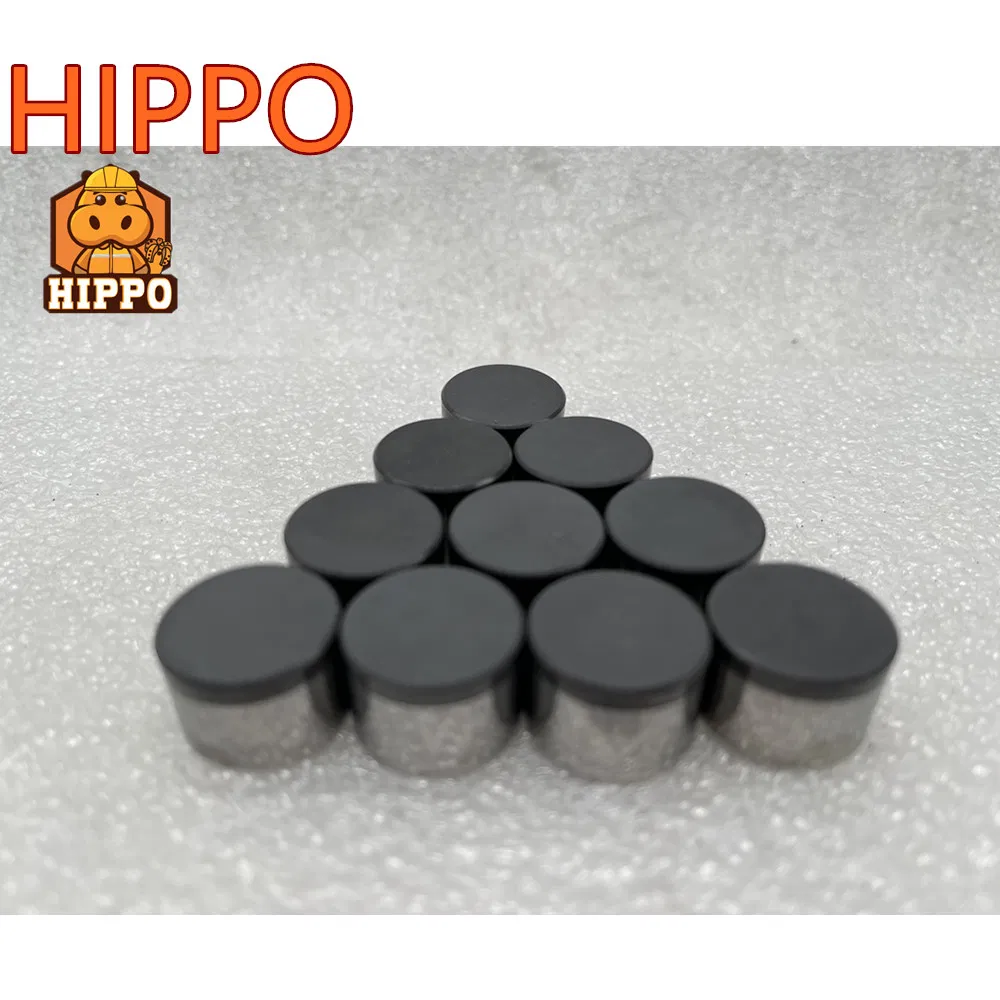

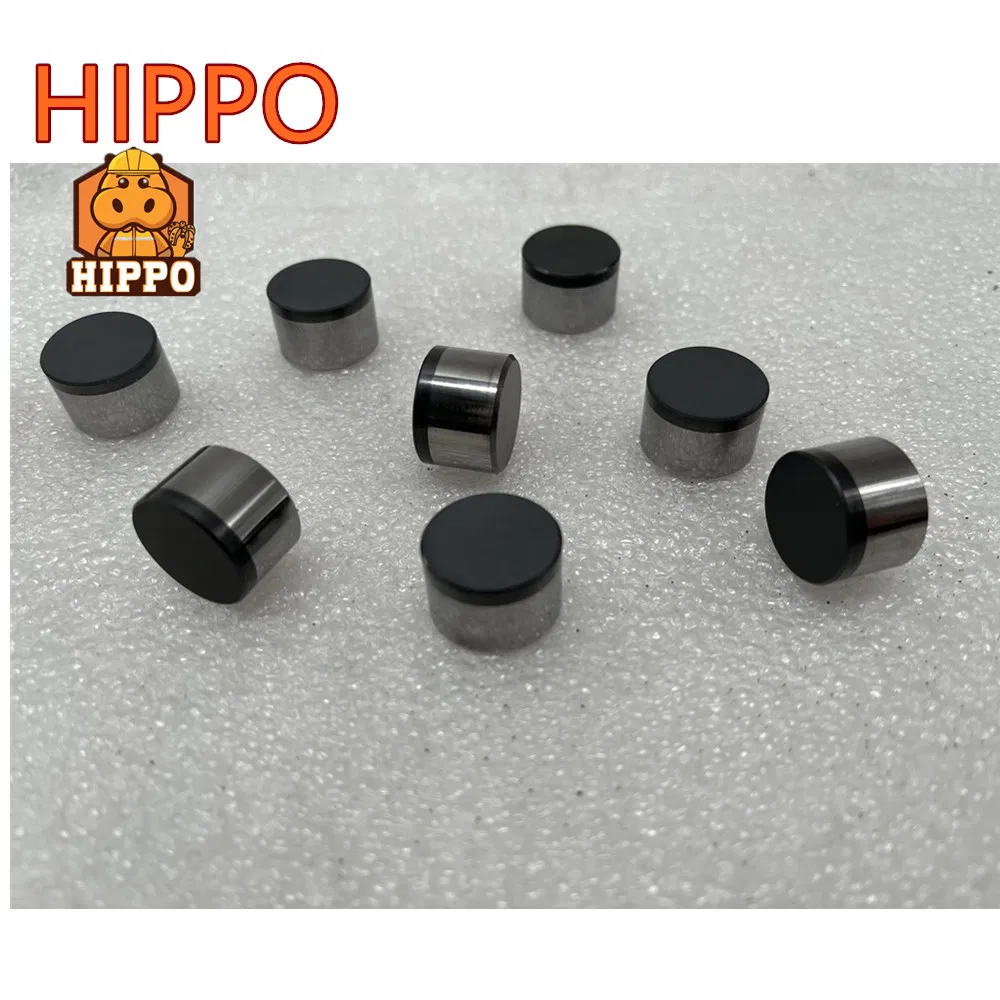

1208 1308 1313 1613 PDC Cutter Bit for PDC Drill Bits for Oilfield Hard Rock Well Drilling Bit

Basic Specifications

Model NO.

1616

Blade Material

Diamond

Machine Type

Drilling Tool

Shape Cutter

Flat, Dome, Conical and Other Shape

Processing Type

Welded to Drill Bit

Series

Oil, Gas, and Coal Drilling

Process

High Pressure and Temperature

Diameter

10mm / 13mm / 16mm / 19mm / 25mm

Component

Tungsten Carbide and Diamond

Diamond Layer

2mm

Transport Package

Carton or Wooden Box

HS Code

8207191000

Key Features

✓ Direct Supply

✓ Wholesale Pricing

✓ Stable Quality

✓ High Efficiency

✓ Wear Resistance

✓ Long Service Life

Product Overview

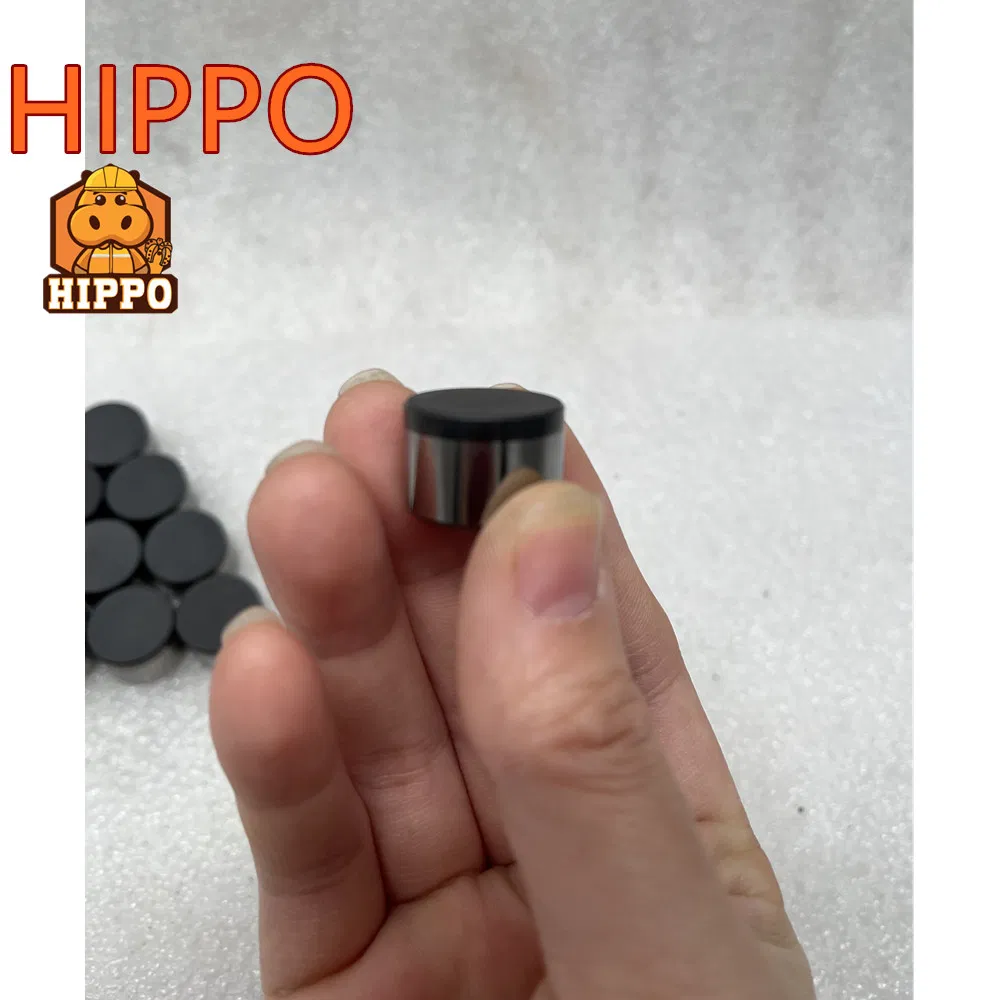

The PDC cutters consist of a Polycrystalline Diamond layer and carbide substrate. PDC cutters are also named Polycrystalline Diamond Compact cutters, which is a kind of super hard material. The use of polycrystalline diamond compact (PDC) cutters is widely spread nowadays due to their high performance and durability in harsh environments.

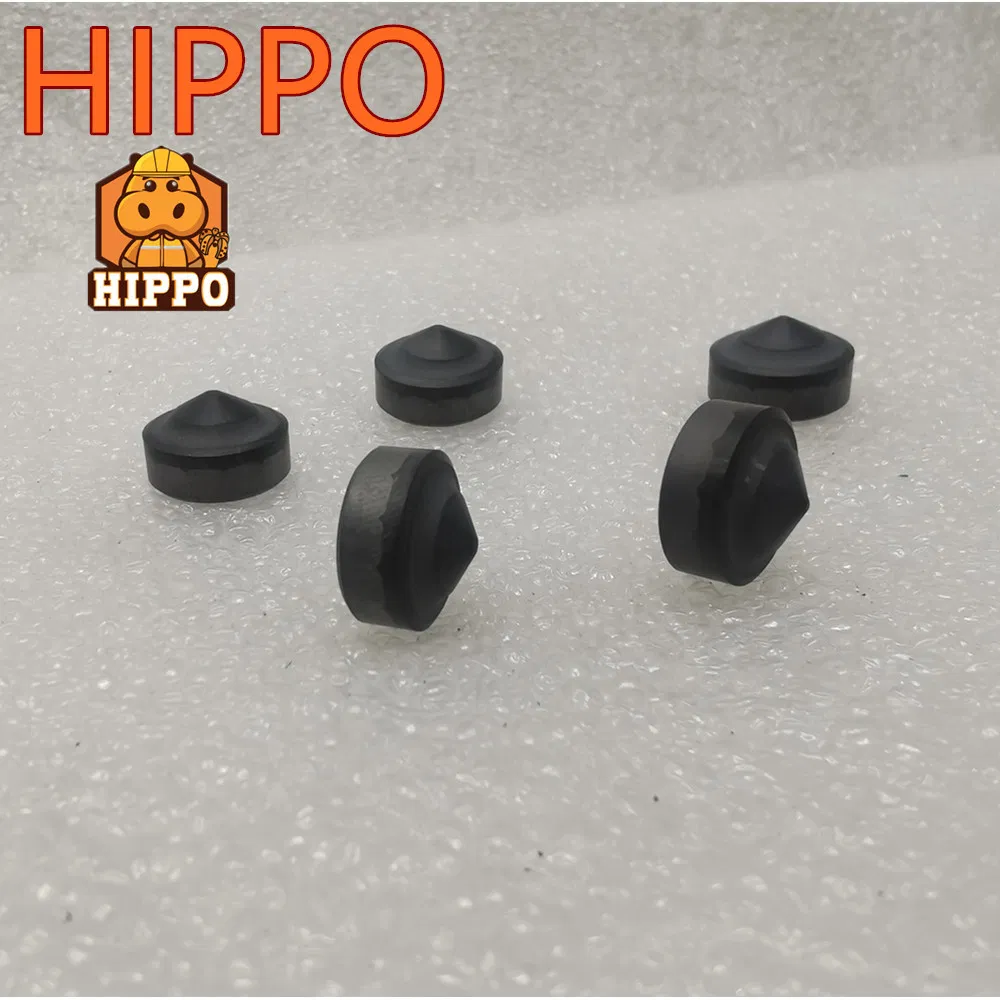

The development of PDC cutting elements from the planar structure to the non-planar structure significantly improves rock breaking efficiency in hard abrasive formations compared to conventional bits.

Technical Specifications

Product Code	Diamond Table Thickness (mm)	Diameter (mm)	Length (mm)	Available Chamfer
1308	2.00+/-0.20	13.44+/-0.03	8.0+/-0.1	0.012"/0.016"/0.020"x45°
1313	2.00+/-0.20	13.44+/-0.03	13.20+/-0.1	0.012"/0.016"/0.020"x45°
1608	2.00+/-0.20	15.88+/-0.03	8.0+/-0.1	0.012"/0.016"/0.020"x45°
1613	2.00+/-0.20	15.88+/-0.03	13.20+/-0.1	0.012"/0.016"/0.020"x45°
1908	2.00+/-0.20	19.05+/-0.03	8.0+/-0.1	0.012"/0.016"/0.020"x45°
1913	2.00+/-0.20	19.05+/-0.03	13.20+/-0.1	0.012"/0.016"/0.020"x45°
1916	2.00+/-0.20	19.05+/-0.03	16.0+/-0.1	0.012"/0.016"/0.020"x45°

* Standard Size Chart. Non-standard sizes are available on request.

Product Gallery

Applications & Expertise

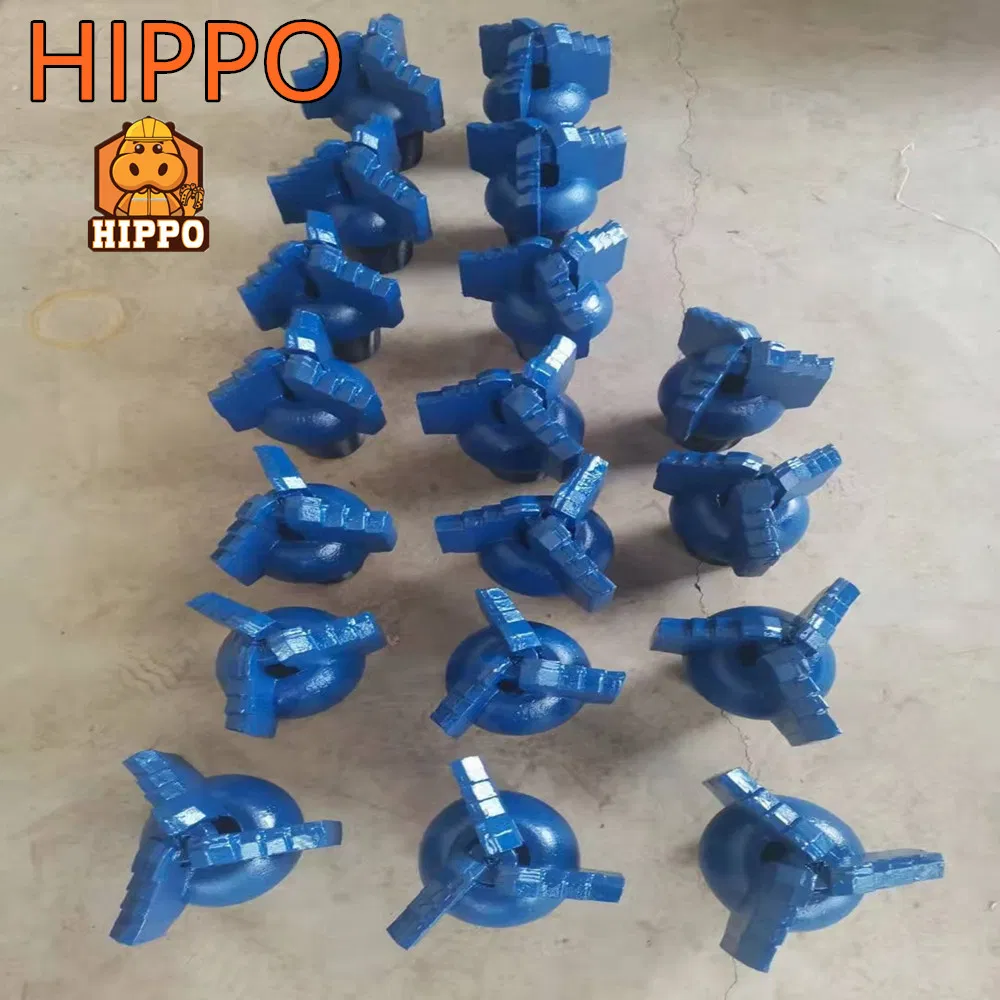

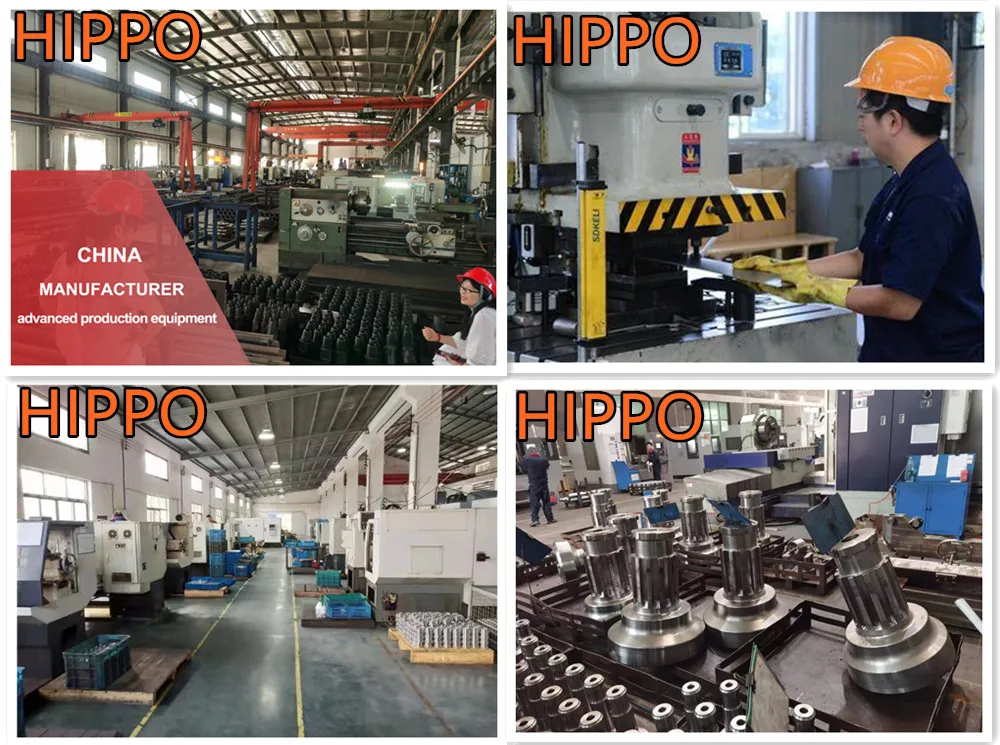

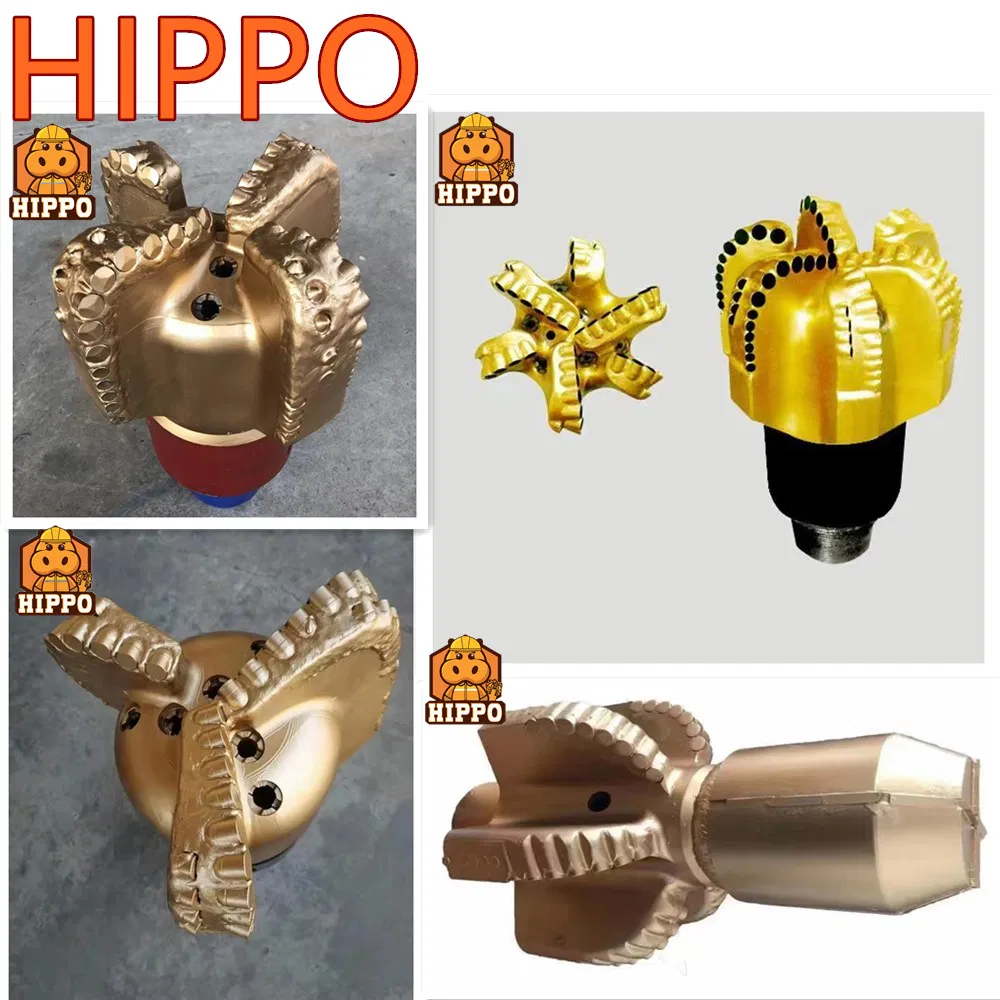

Specializing in the production of PDC drill bits, diamond drill bits, well drilling bits, mine drills, oil drills, and composite drill teeth. Our facilities cover an area of more than 2,000 square meters, equipped with advanced CNC machinery and a dedicated technical staff with rich experience in independent design and development.

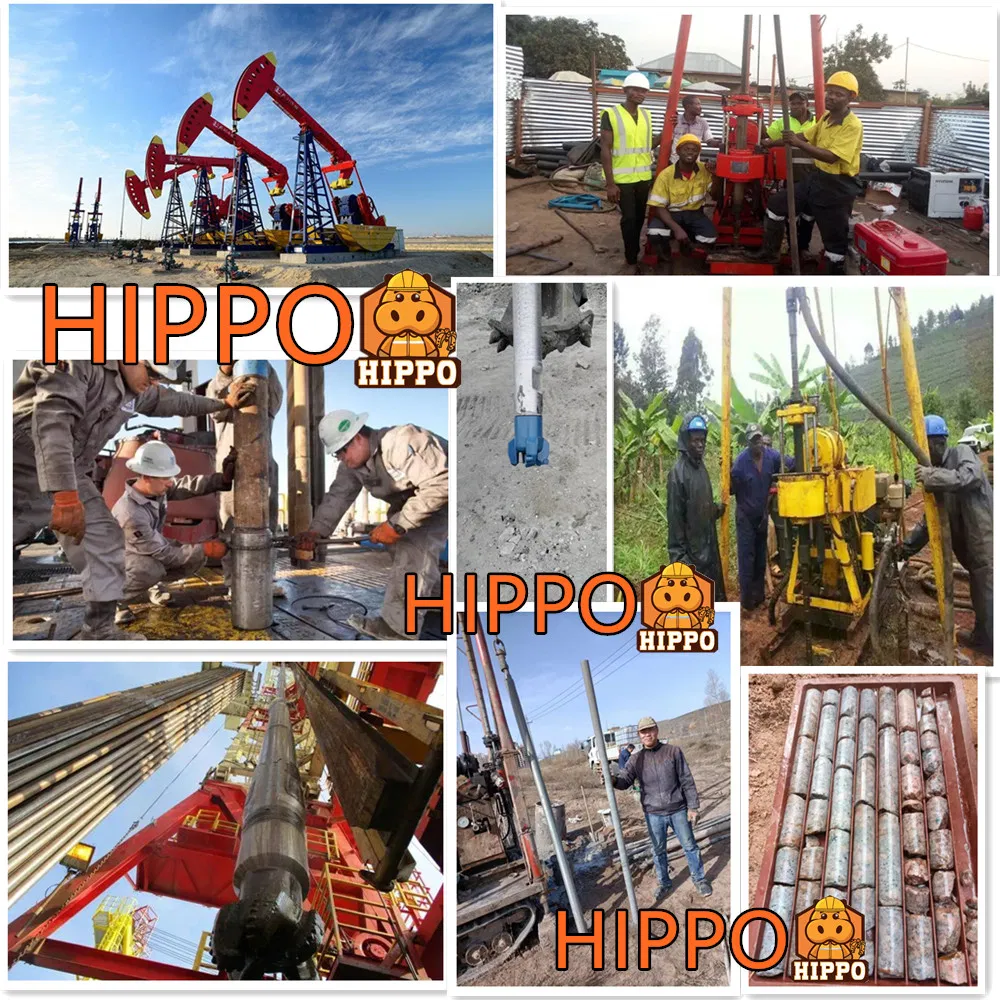

Our products are widely used in:

Geological Exploration

Oil & Gas Mining

Water Conservancy

Engineering Anchoring

Frequently Asked Questions

? What products can I purchase from you?

We specialize in producing PDC bits, PDC coring bits, impregnated diamond core bits, tricone bits, DTH hammer bits, reaming shells, water well drilling rigs, drill pipes, and geological pipe casings.

? How do you ensure product quality?

Adhering to the principles of quality first, we have experienced QC teams. Each order is strictly inspected and tested before delivery to ensure high performance.

? What are your manufacturing strengths?

We are an enterprise integrating R&D, production, and sales. With over 12 years of experience, we operate high-performance production lines for PDC rock bits and DTH hammers, offering both OEM and ODM services.

? What delivery and payment terms do you accept?

We accept EXW, FOB, C&F, and CIF terms. Payments can be made in USD, EUR, RMB, etc., via TT, LC, Western Union, PayPal, or Credit Card.

? How are the products packaged for shipping?

Goods are packed in reinforced wooden cases, cardboard boxes, or pallets. We support delivery by express, sea, air, or land. Sample orders (MOQ: 1 piece) are also welcome.

? Do you support non-standard sizes?

Yes, while we have standard charts, non-standard sizes are available upon request to meet specific engineering requirements.
