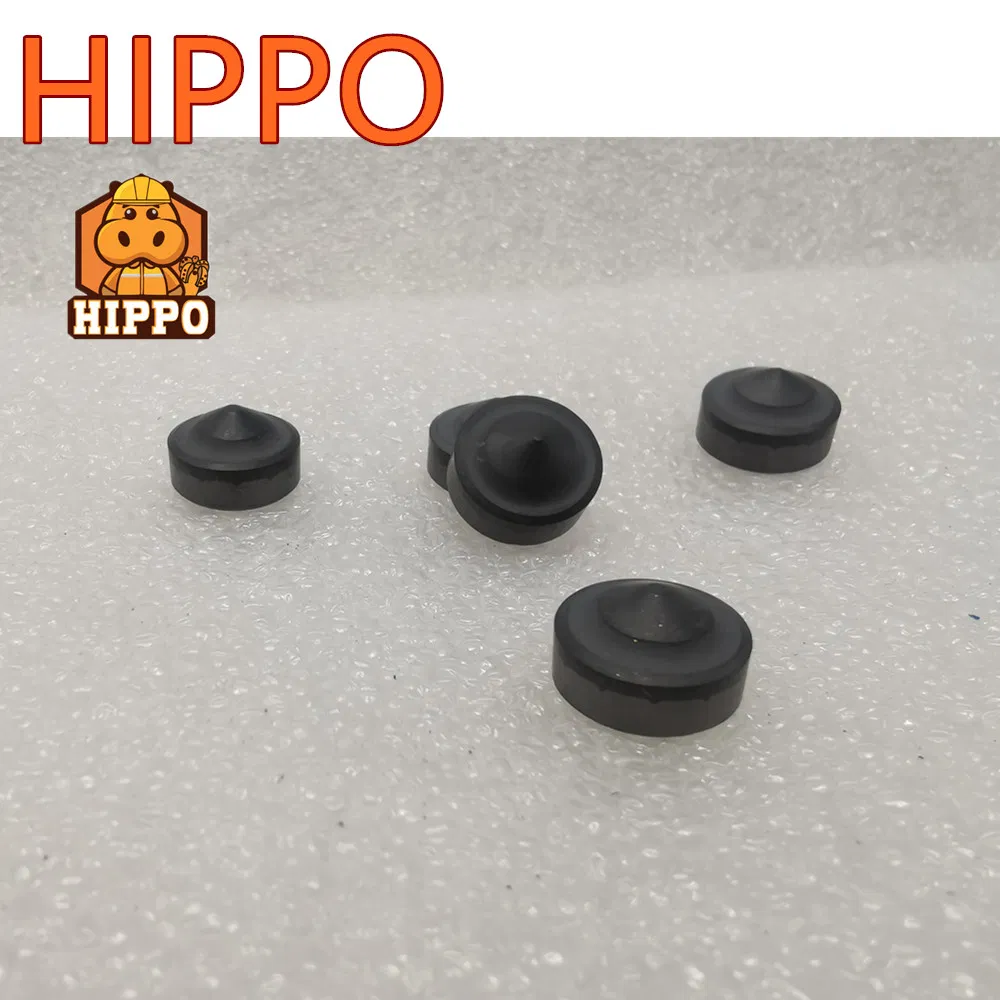

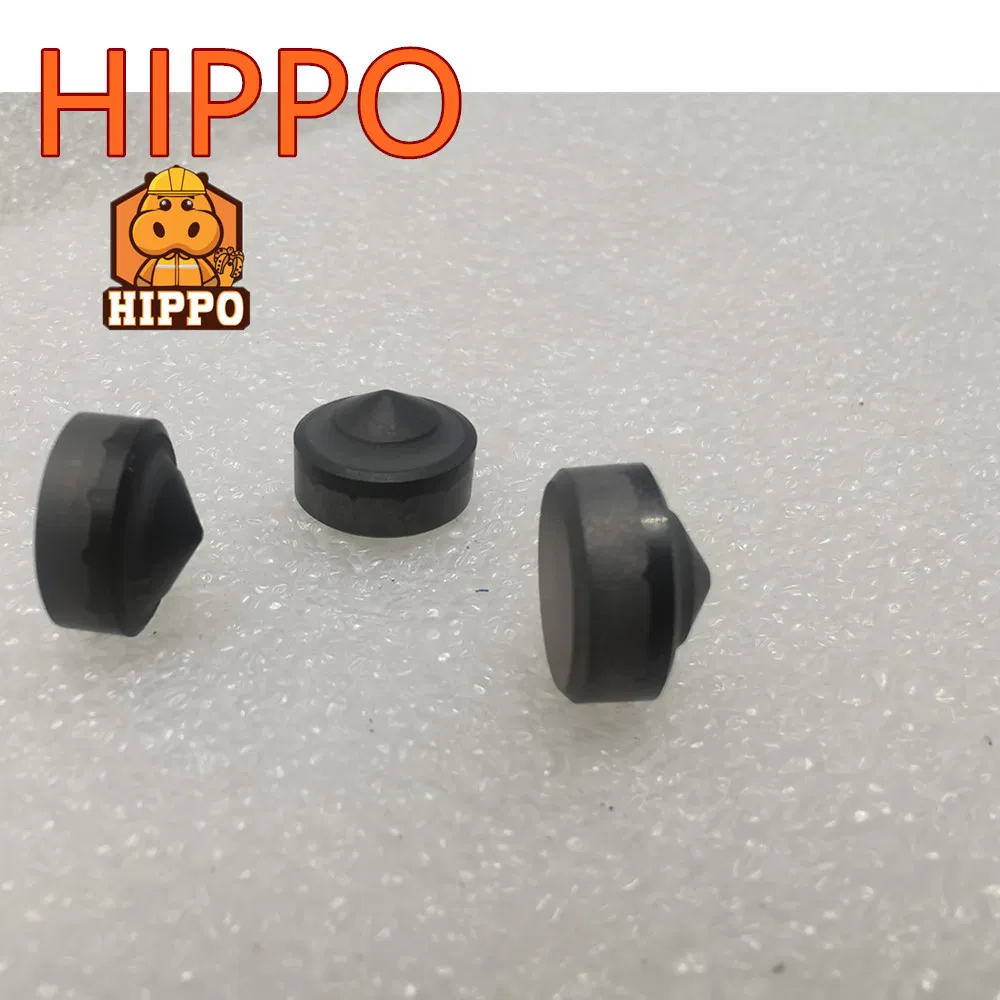

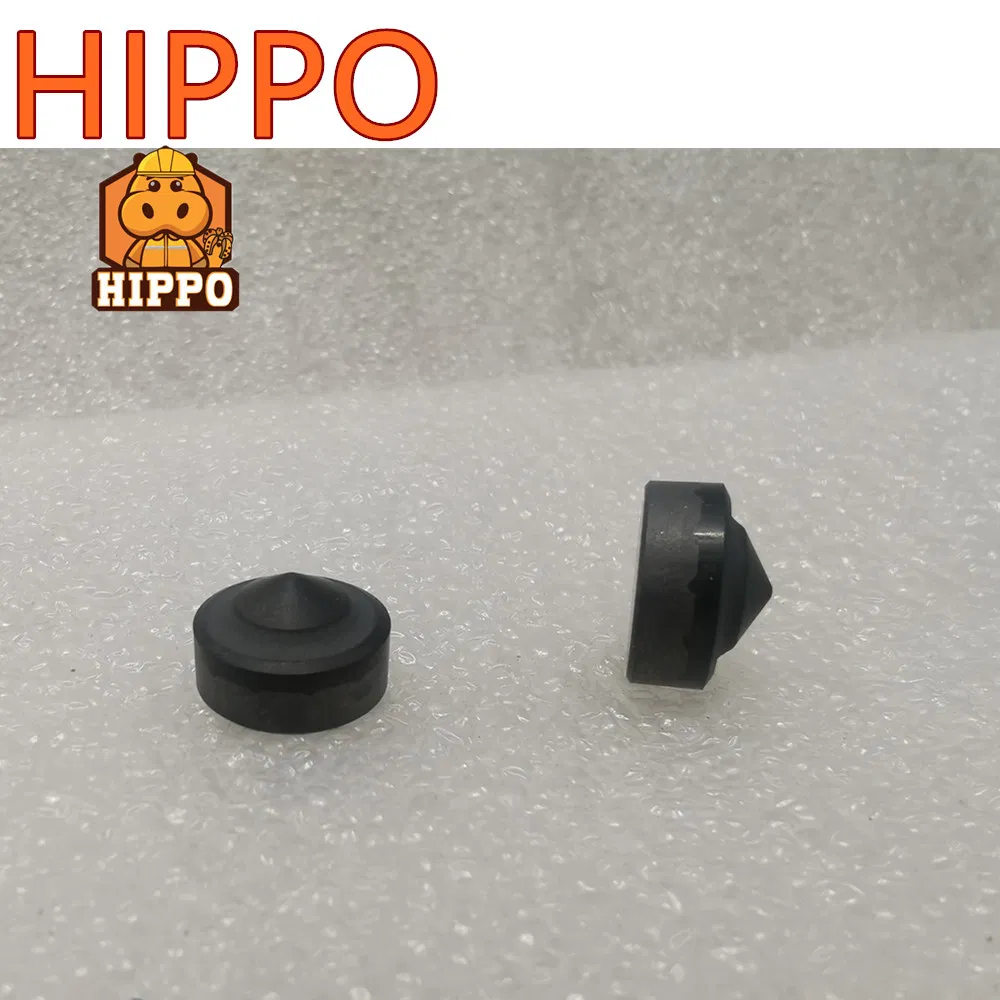

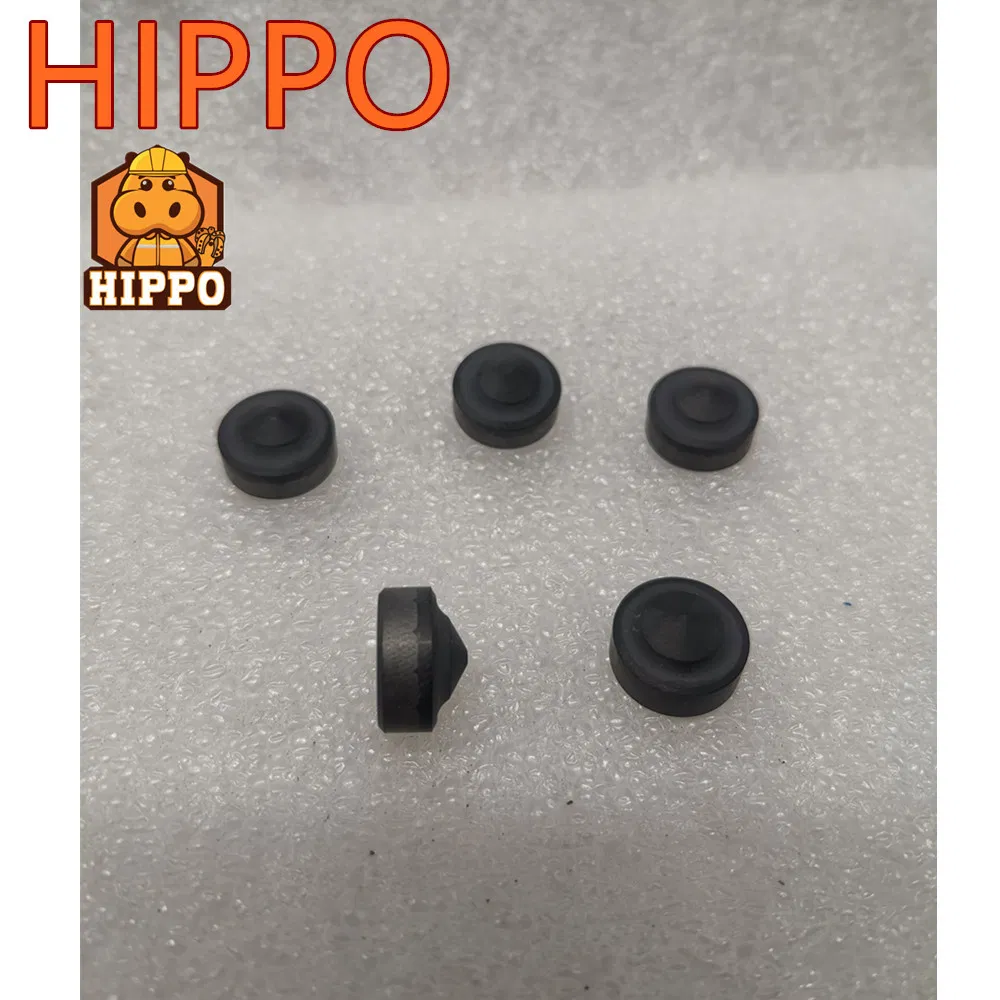

1306 1308 Geological Series Helmet PDC Cutter Insert for PDC Drilling Bits, Back Cones PDC Cutters

Basic Specifications

Model NO.

1306

Characteristic

High Hardness

Material

Natural Diamond / Tungsten Carbide

Application

Mineral Exploration, Geological Drilling

Machine Type

Drilling Tool

Shape Cutter

Flat, Dome, Conical and Other Shapes

Process

High Pressure and Temperature

Diameter

10mm / 13mm / 16mm / 19mm / 25mm

Diamond Layer

2mm

Production Capacity

500,000 / Month

Origin

China

HS Code

8207191000

Key Features & Advantages

✦ Factory Direct Supply

✦ Competitive Wholesale Pricing

✦ Stable Quality Control

✦ High Drilling Efficiency

✦ Excellent Wear Resistance

✦ Extended Service Life

Product Description

PDC Cutter for Mining and Oil Drilling

The PDC cutters consist of a Polycrystalline Diamond layer and carbide substrate. PDC cutters are also named Polycrystalline Diamond Compact cutters, which is a kind of super-hard material. The use of polycrystalline diamond compact (PDC) cutters is widely spread nowadays due to their high performance and durability in harsh environments.

The low rock-breaking efficiency of conventional planar PDC bits in hard abrasive formations prompts the development of PDC cutting elements from the planar structure to the non-planar structure, enhancing performance in demanding geological conditions.

Standard Size Chart

Product Code	Diamond Table Thickness (mm)	Diameter (mm)	Length (mm)	Available Chamfer
1308	2.00+/-0.20	13.44+/-0.03	8.0+/-0.1	0.012"/0.016"/0.020"x45°
1313	2.00+/-0.20	13.44+/-0.03	13.20+/-0.1	0.012"/0.016"/0.020"x45°
1608	2.00+/-0.20	15.88+/-0.03	8.0+/-0.1	0.012"/0.016"/0.020"x45°
1613	2.00+/-0.20	15.88+/-0.03	13.20+/-0.1	0.012"/0.016"/0.020"x45°
1908	2.00+/-0.20	19.05+/-0.03	8.0+/-0.1	0.012"/0.016"/0.020"x45°
1913	2.00+/-0.20	19.05+/-0.03	13.20+/-0.1	0.012"/0.016"/0.020"x45°
1916	2.00+/-0.20	19.05+/-0.03	16.0+/-0.1	0.012"/0.016"/0.020"x45°

* Non-standard sizes are available upon request.

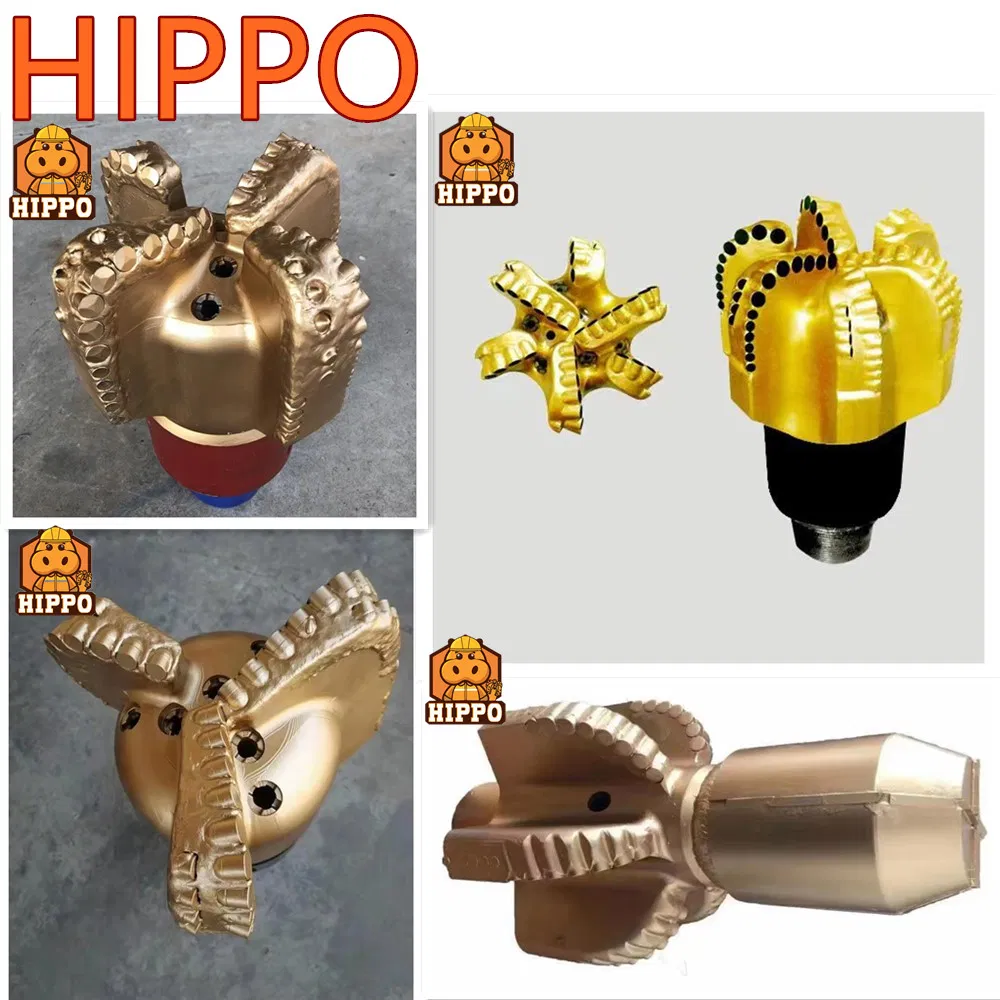

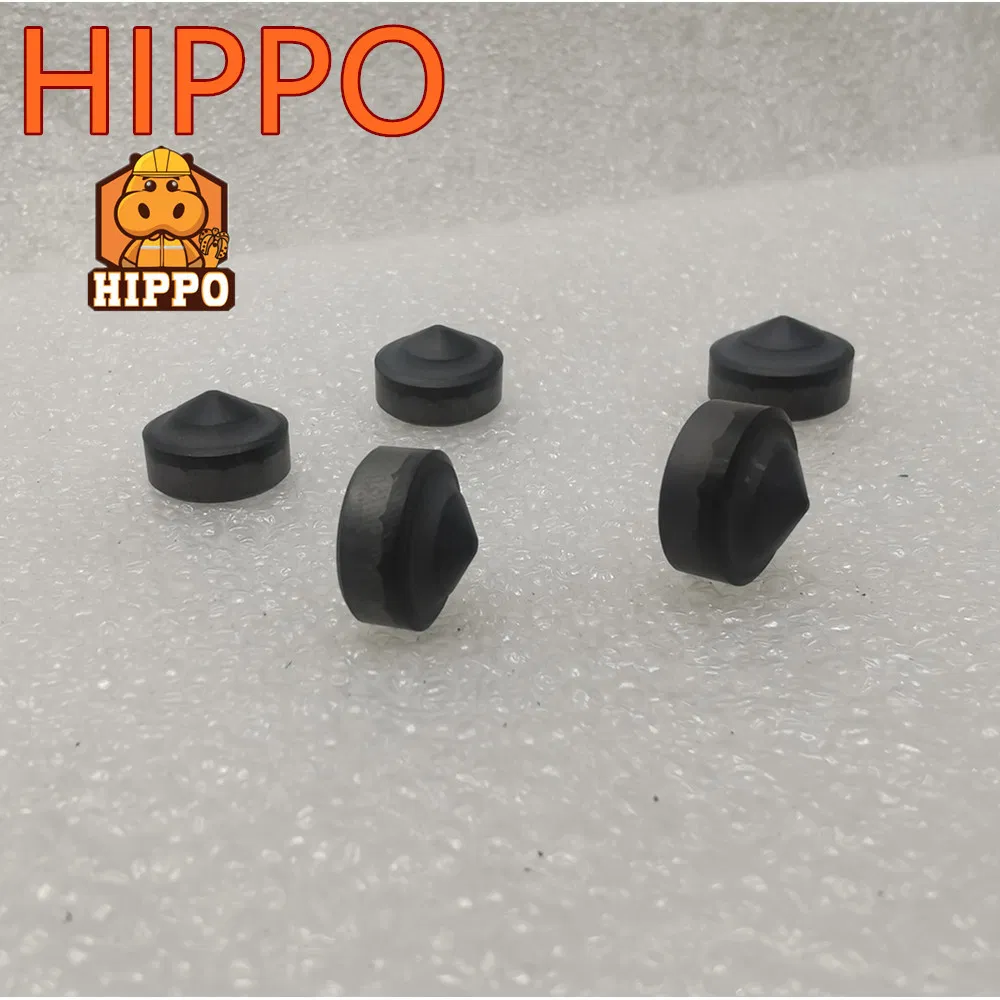

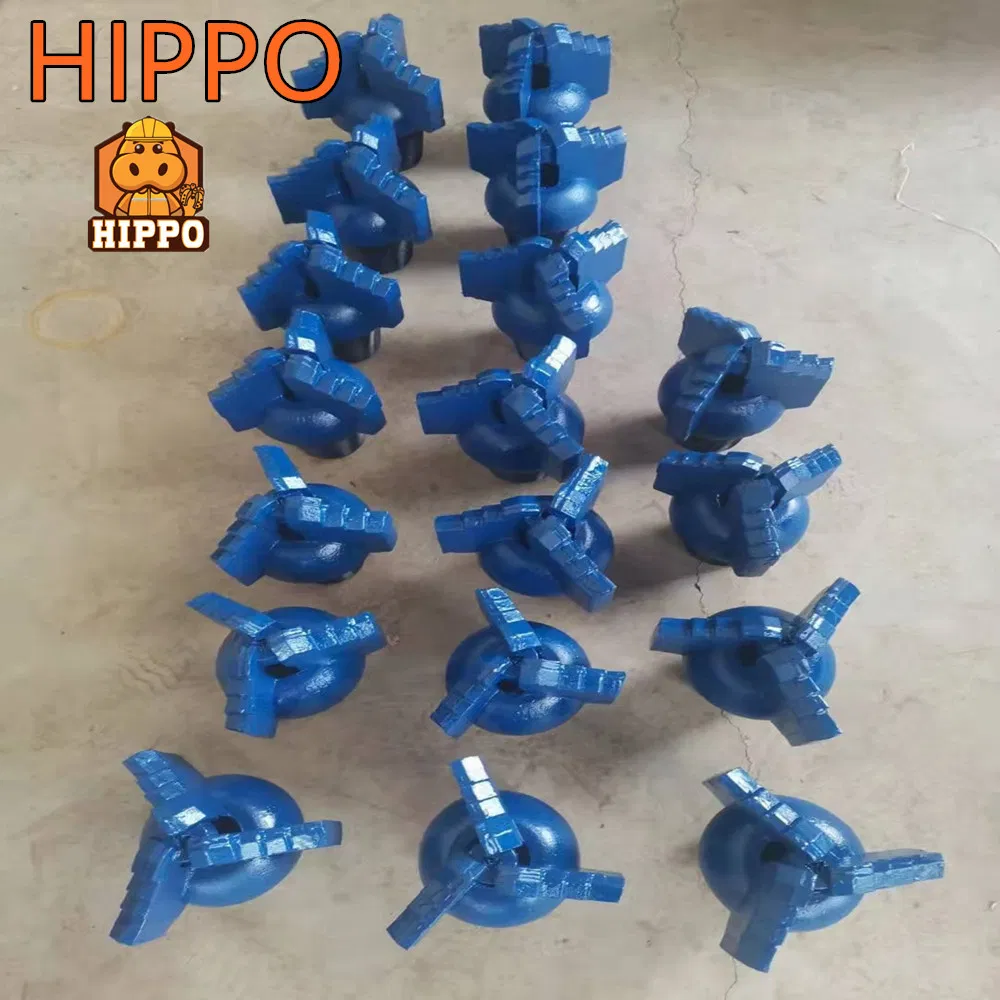

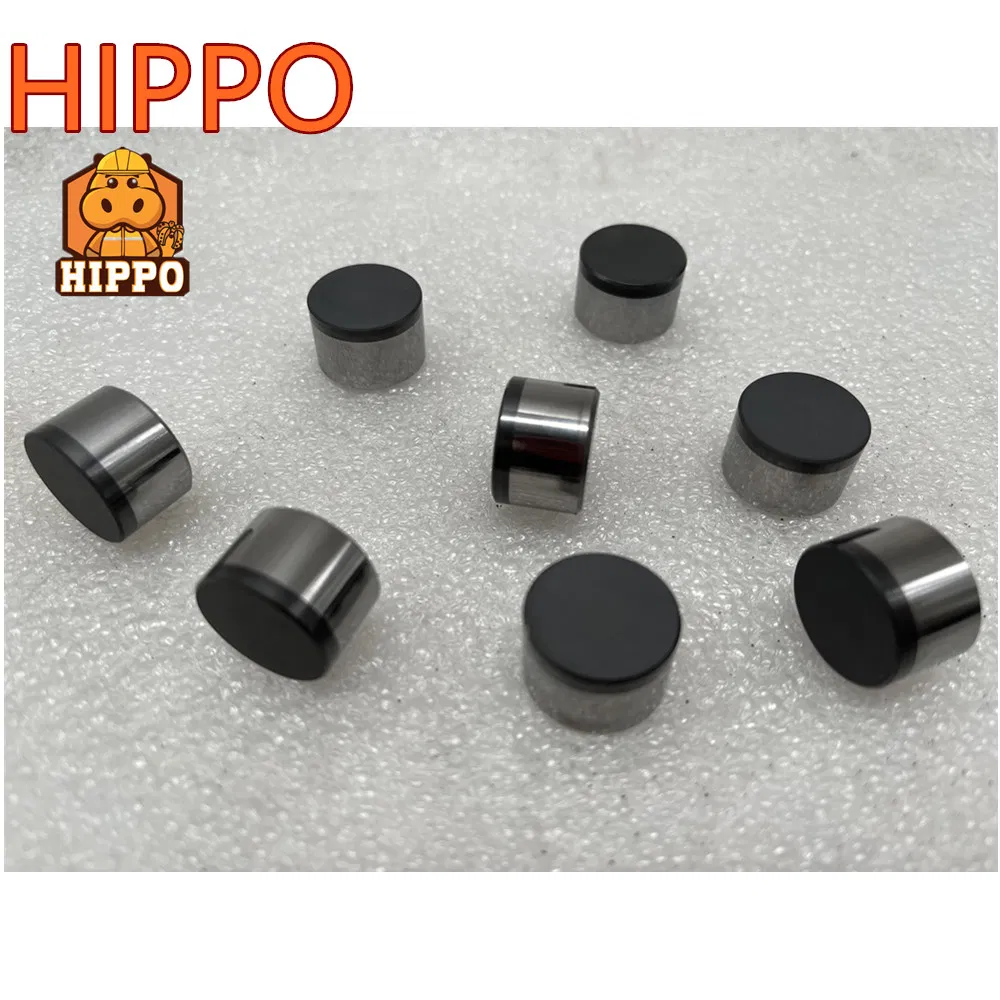

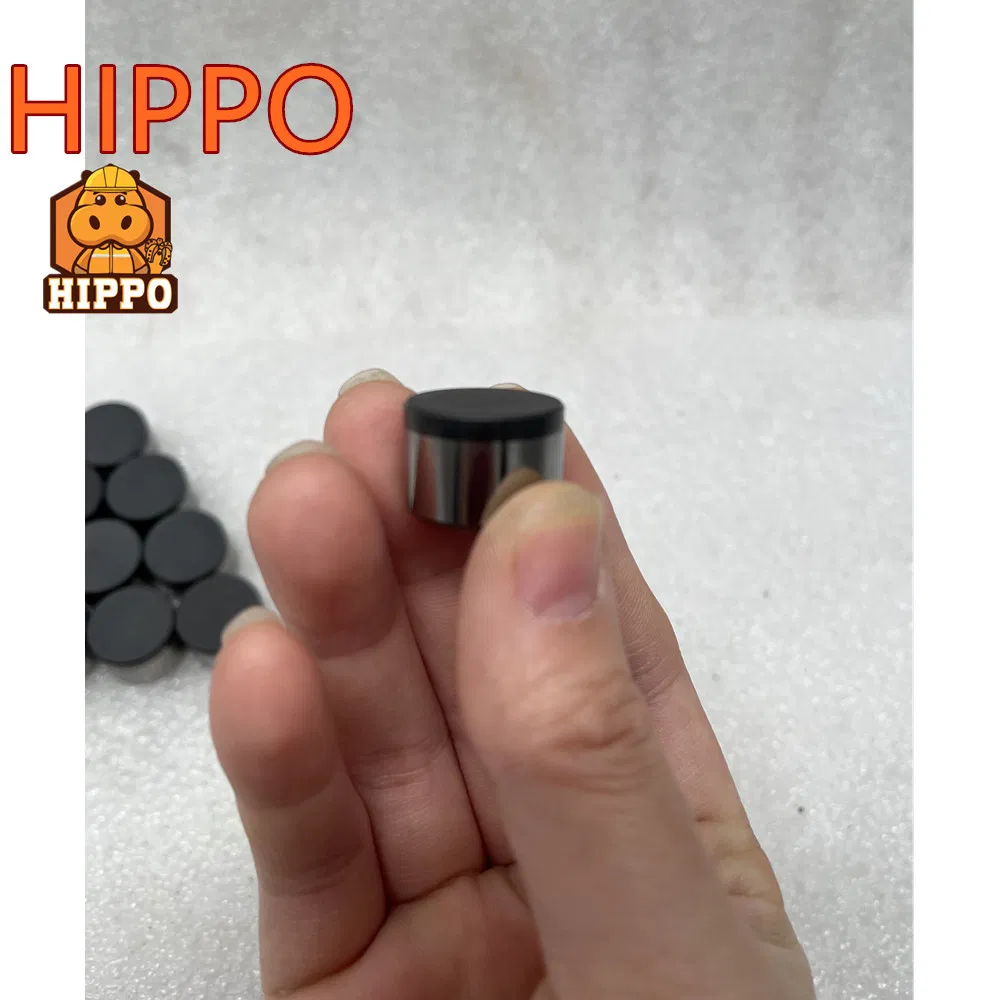

Product Gallery

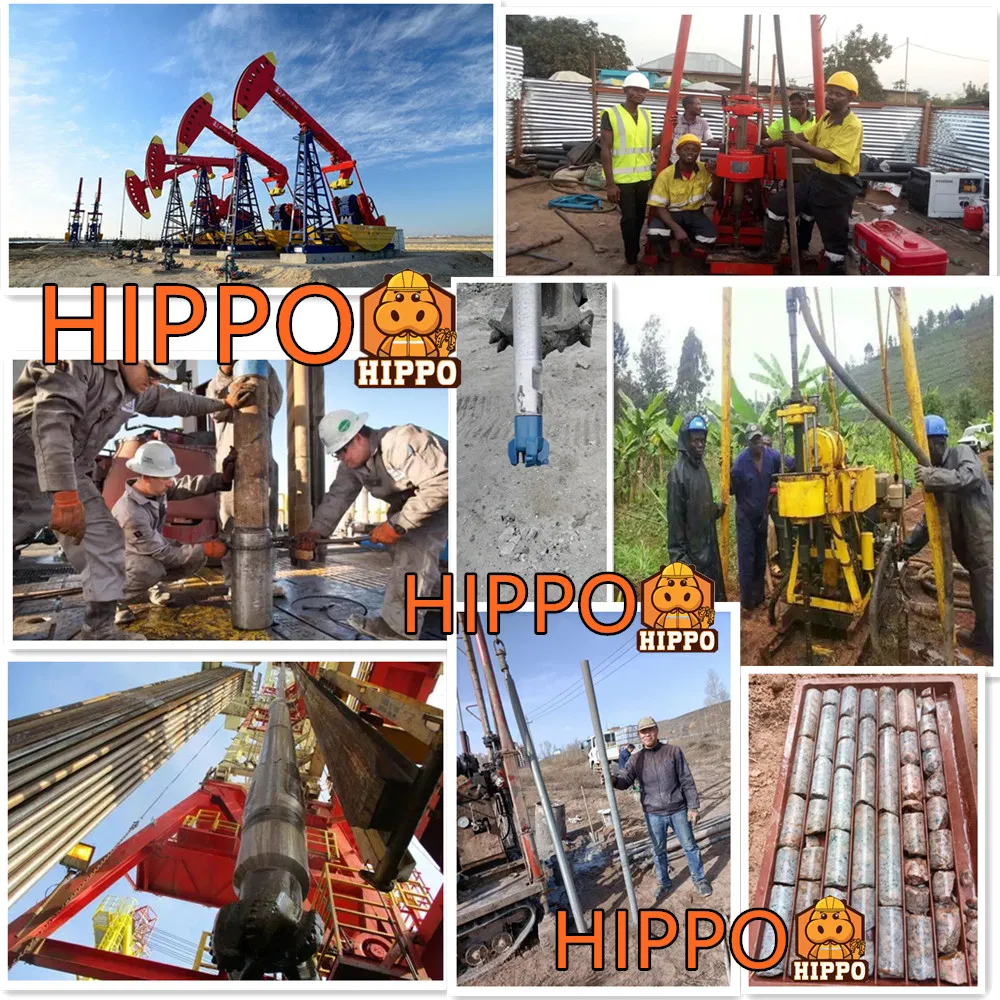

Industrial Applications

Our products are widely utilized across multiple sectors including:

Well Drilling
Geological Exploration
Coal Mining
Oil & Gas Extraction
Railway & Bridge Construction
Hydropower Engineering
Anchoring & Construction

Frequently Asked Questions

Q1: Are you a manufacturer and what products do you offer?

Yes, we are a professional manufacturer. We specialize in producing PDC bits, PDC coring bits, impregnated diamond core bits, tricone bits, DTH hammer bits, reaming shells, and geological pipe casings.

Q2: How do you ensure product quality?

Adhering to quality-first principles, we have an experienced QC team. Every order undergoes strict inspection and testing before delivery to ensure performance.

Q3: What are your core strengths?

We integrate R&D, production, and sales with over 12 years of experience. We operate high-performance production lines for PDC rock bits and DTH tools, providing both OEM and ODM services.

Q4: What delivery and payment terms do you accept?

We accept delivery terms such as EXW, FOB, C&F, and CIF. Accepted payment methods include TT, LC, Western Union, PayPal, and Credit Cards in various international currencies.

Q5: What is the standard packaging and shipping mode?

Goods are packed in specialized wooden cases, cardboard boxes, or pallets. Delivery is available via express, sea, air, or land. Small sample orders (MOQ: 1 piece) are also welcome.

Q6: Do you offer customization for non-standard sizes?

Yes, with our advanced CNC equipment and technical expertise, we can design and produce customized PDC cutters and drill bits based on specific client requirements.
