Supports Factory Inspection 9-3/4" Faster Cutting and Wear-Resistant PDC Drill Bits

Customization: Available
After-sales Service: Available
Warranty: 1year

Product Description

📋
Basic Information
Model NO. 9-3/4" Process CNC Milling
Surface Treatment Spray-Paint Operation Pressure Atmospheric Pressure
Material Alloy Drill Body 42CrMo
Wear-Resistant Polycrystalline Diamond Compact (PDC) Certification ISO 9001:2000
Standard SGS HS Code 8207191000
🛠️
Product Description

Supports Factory Inspection 9-3/4" Faster Cutting and Wear-resistant PDC Drill Bits

Our company specializes in producing high-quality downhole motors, drills, screw pumps, reamers, and other top-of-the-line oil equipment. With a team of over twenty senior technicians, each with more than twenty years of experience, we are committed to providing our customers with the best possible products.

By adjusting the angle of the drill and the heating method, we have been able to greatly enhance its wear and rock resistance, resulting in a longer lifespan and increased speed. Our state-of-the-art production techniques ensure that our products meet the highest standards of quality.

📸

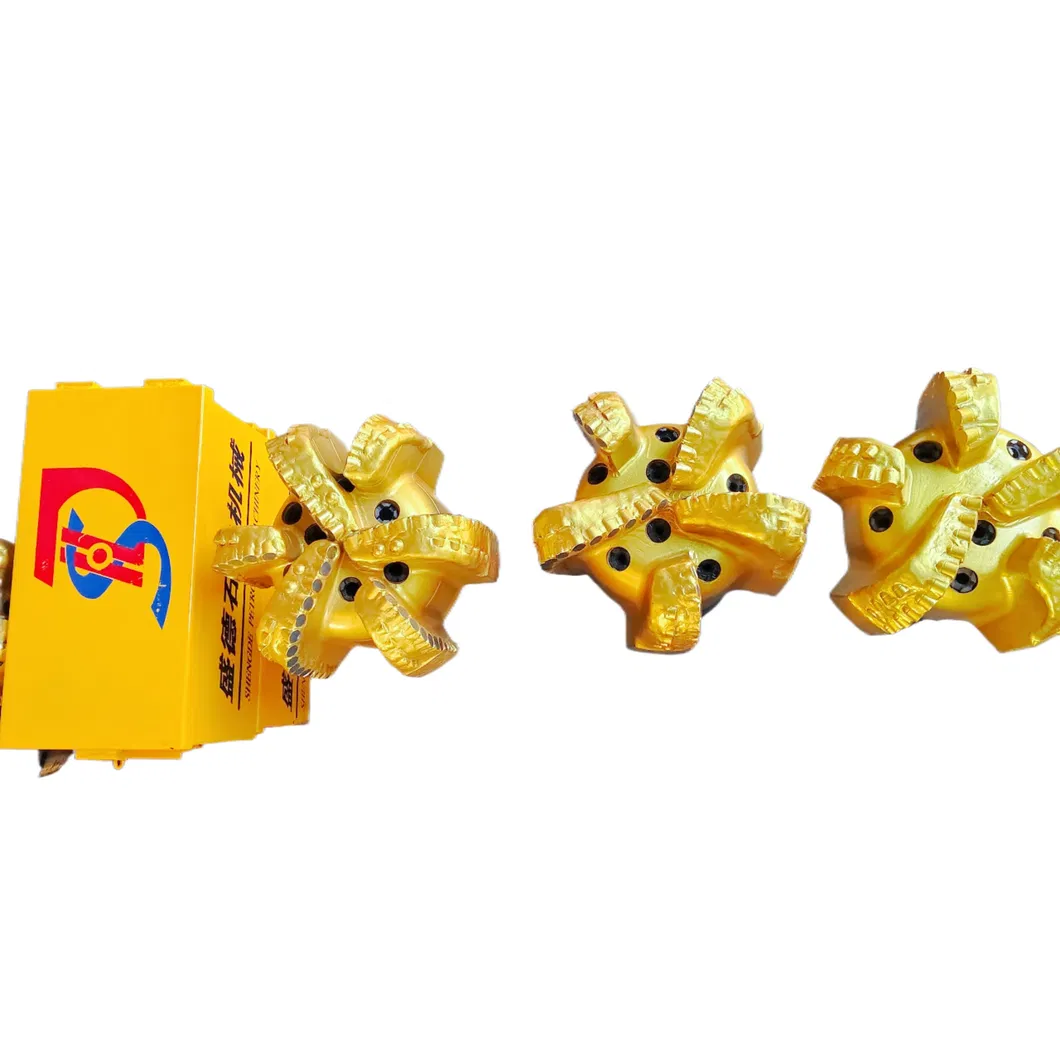

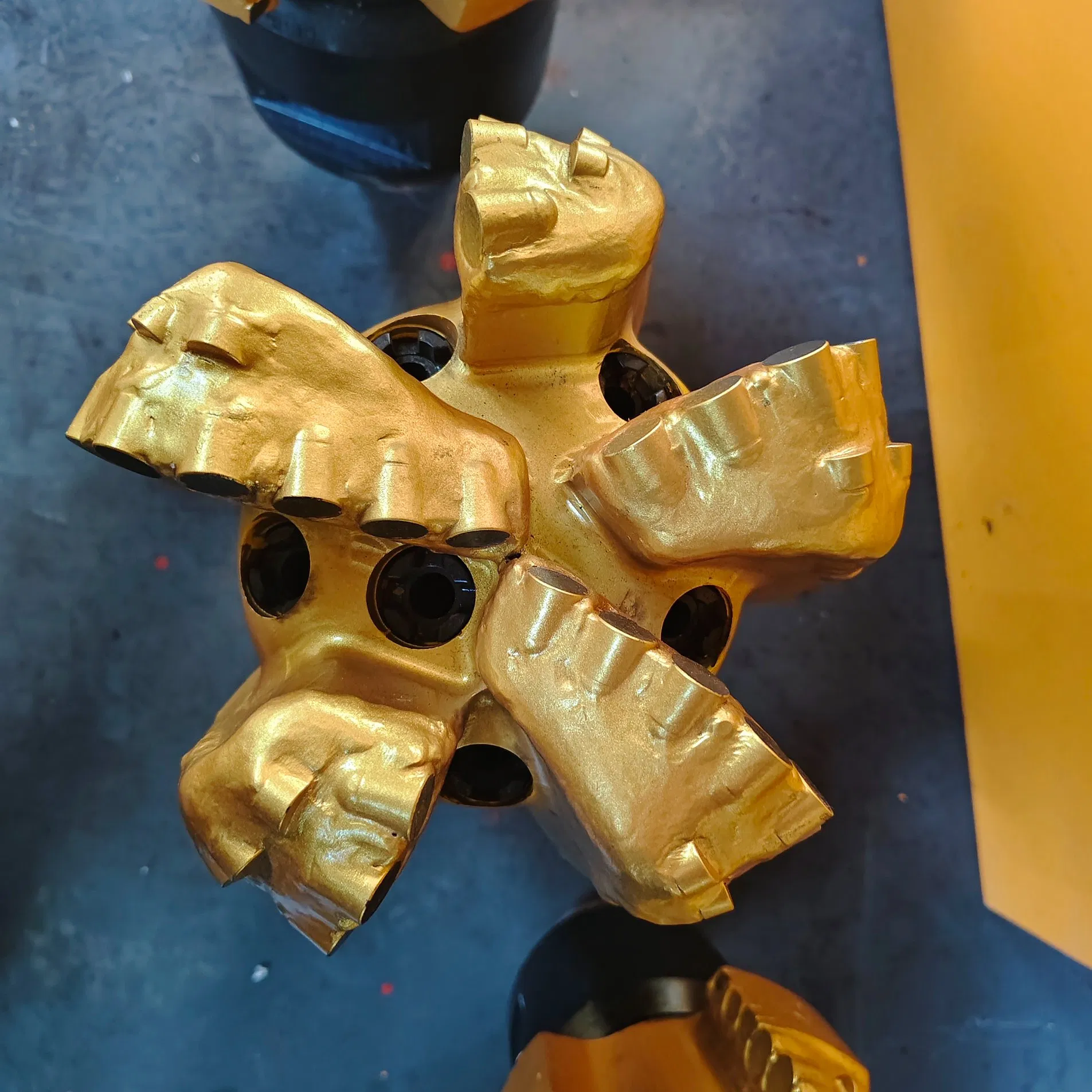

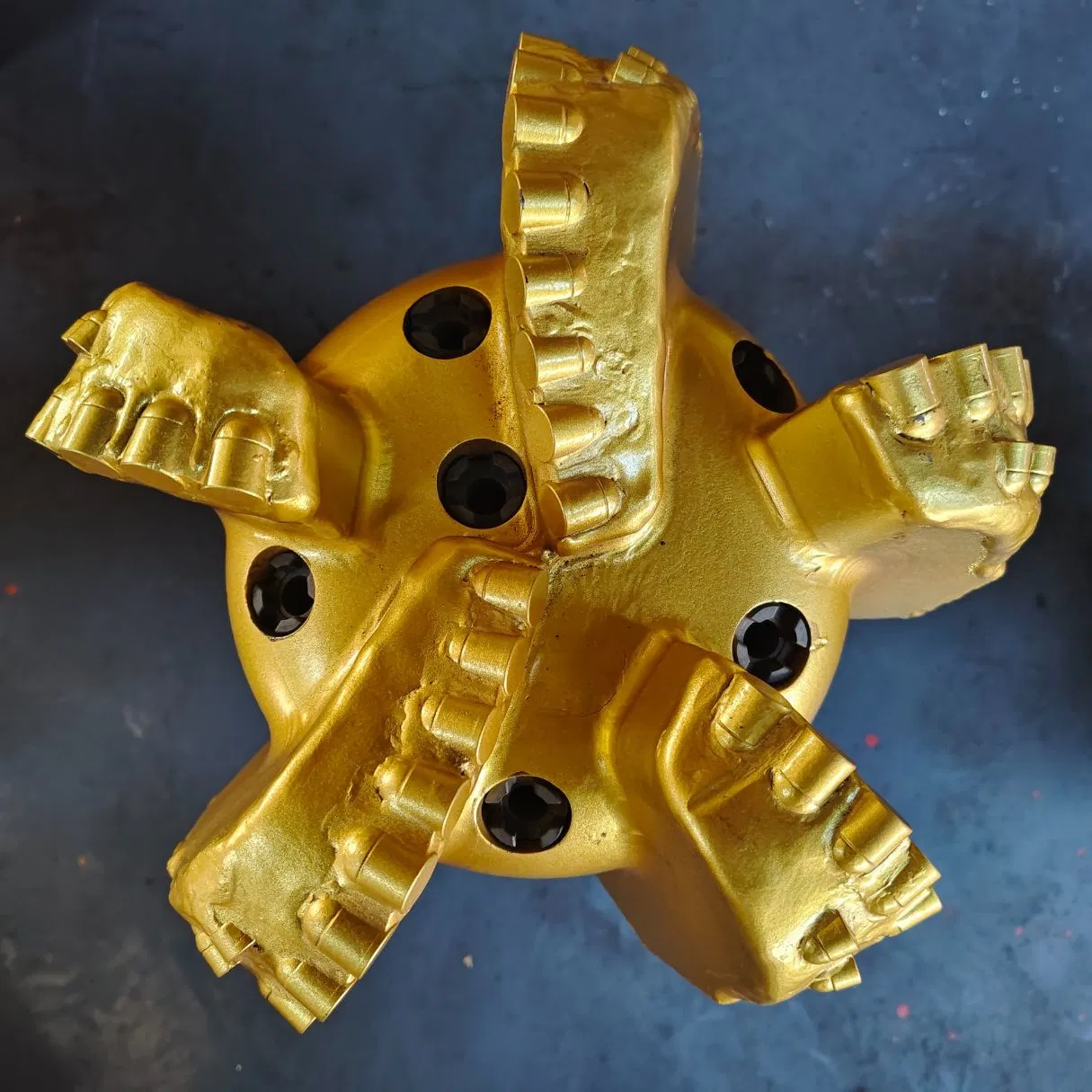

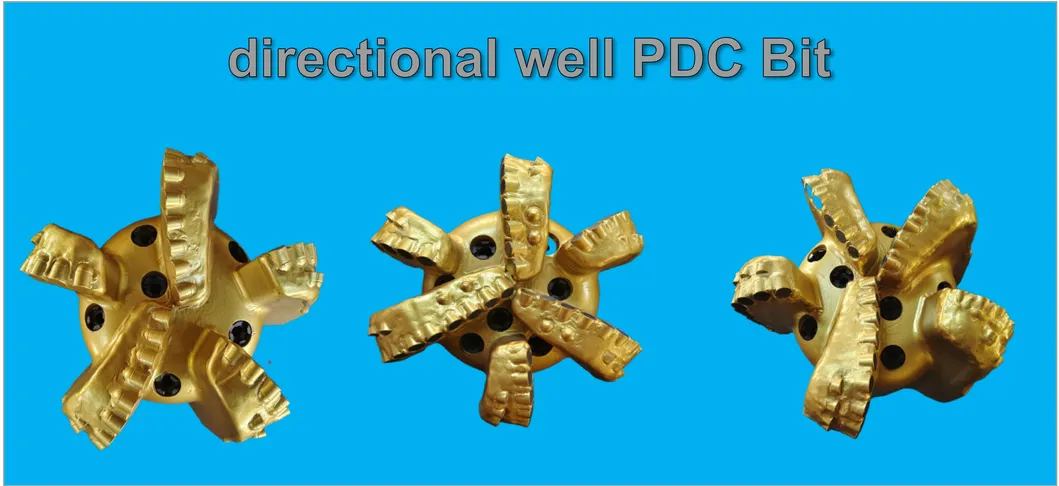

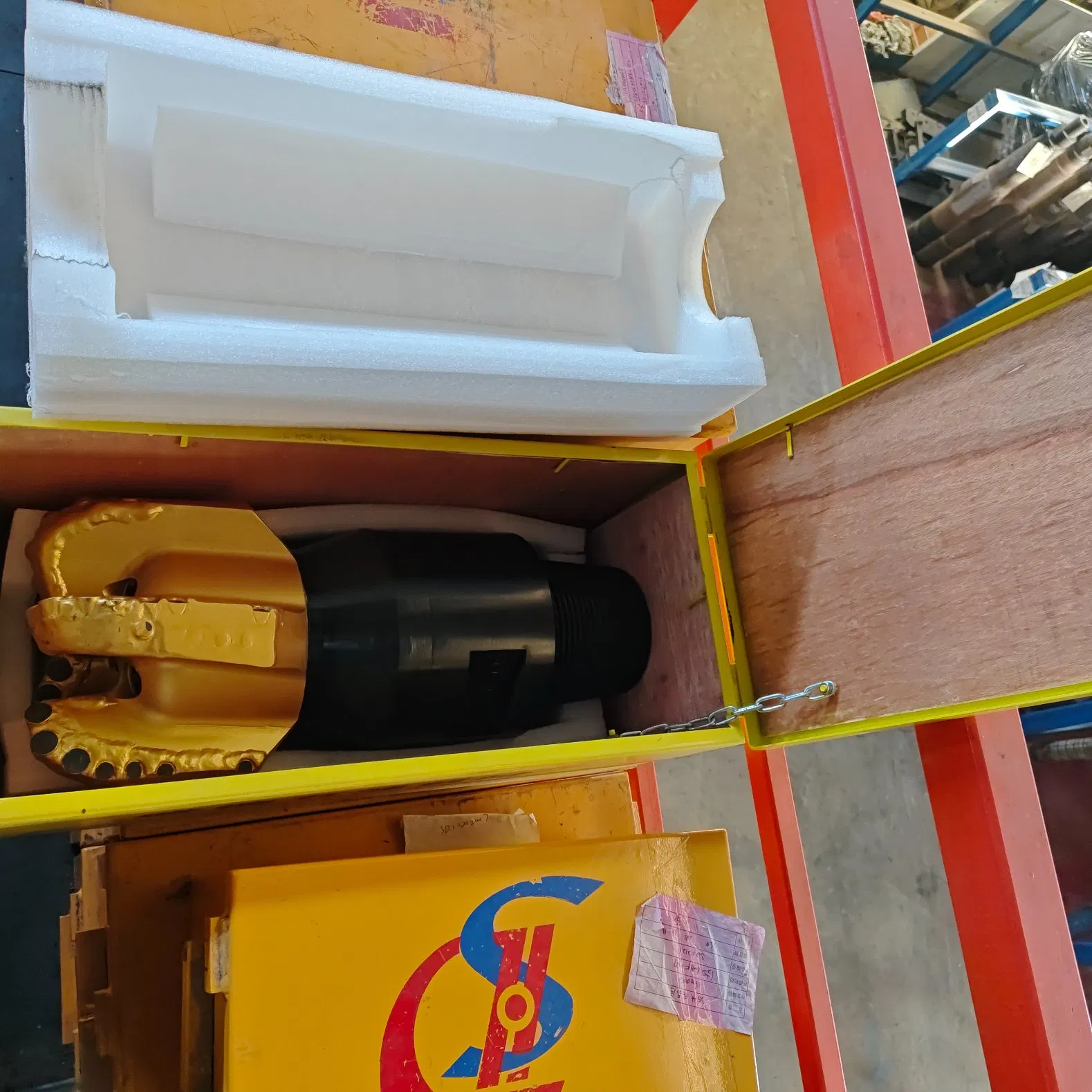

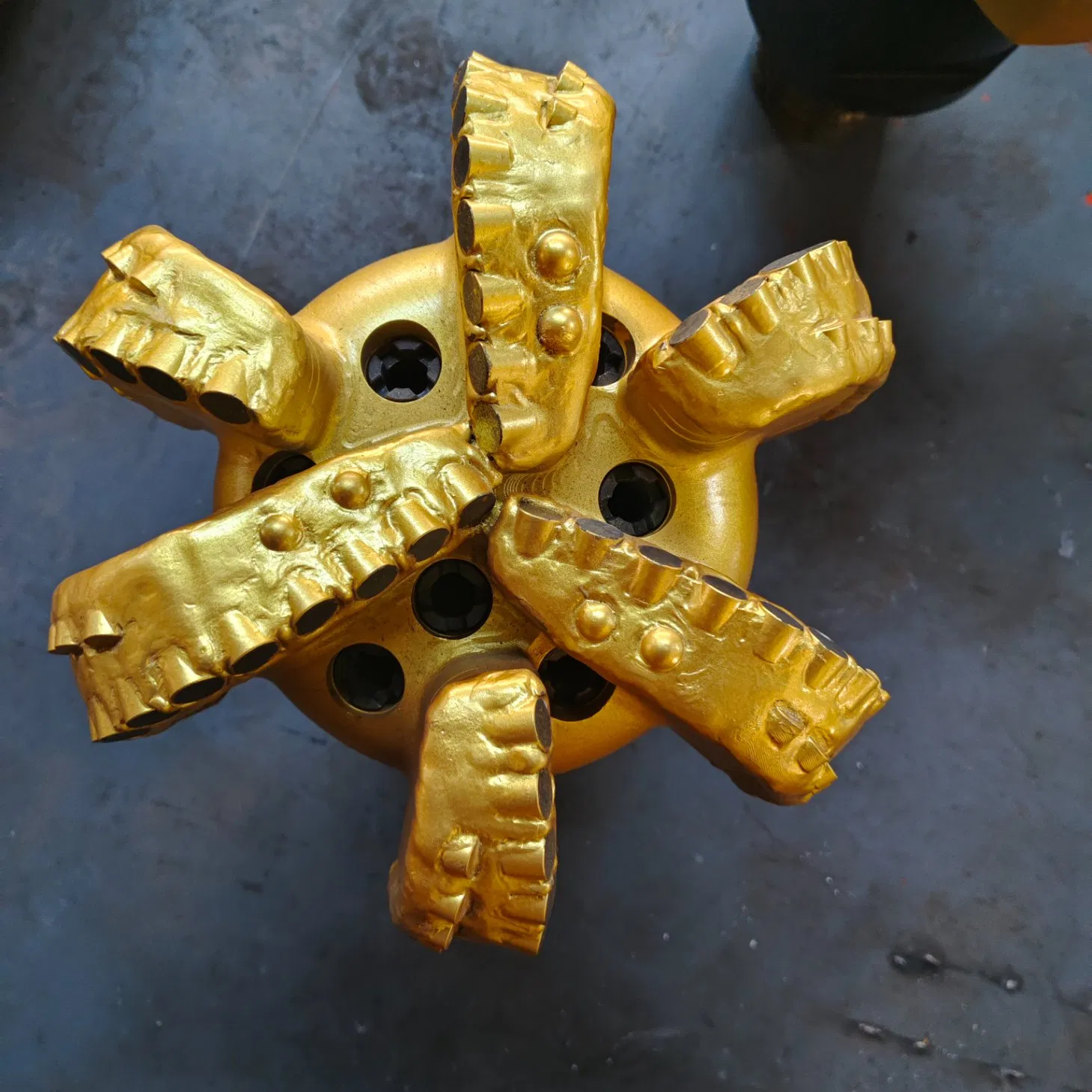

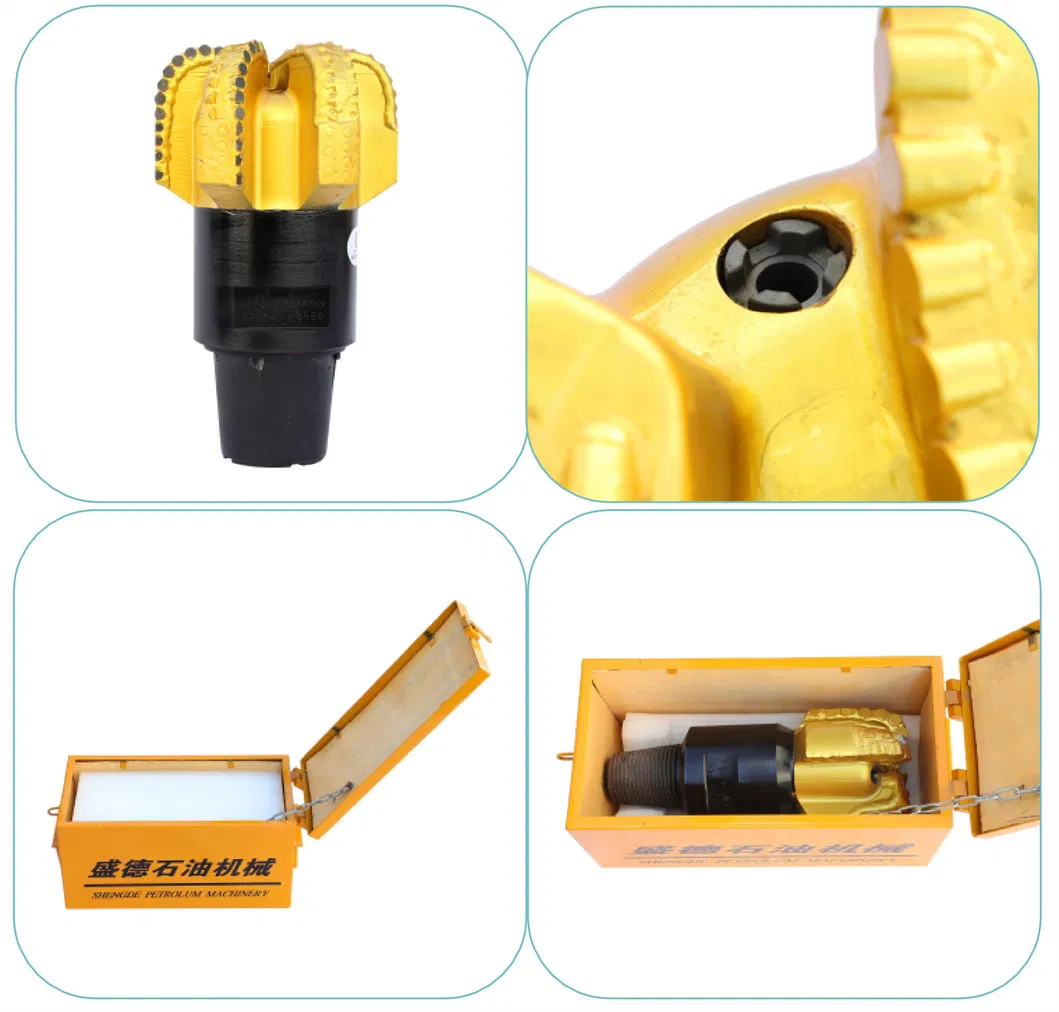

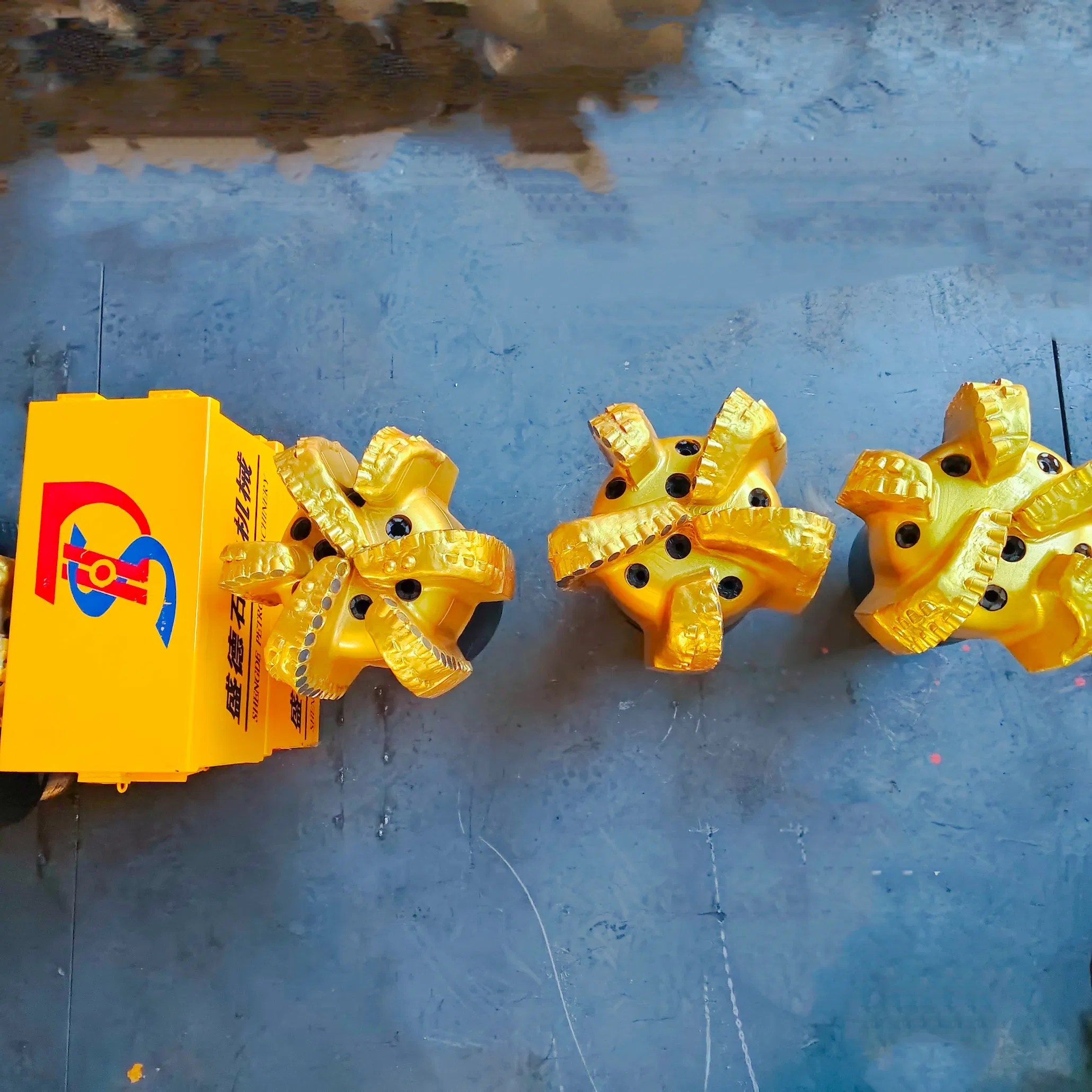

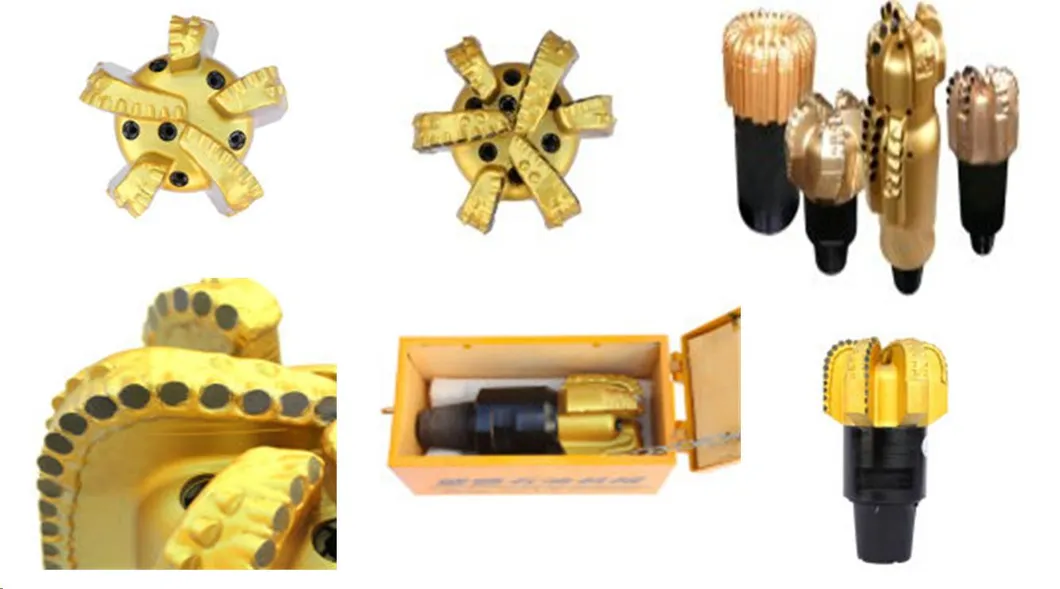

Detailed Photos
📊
Technical Specifications

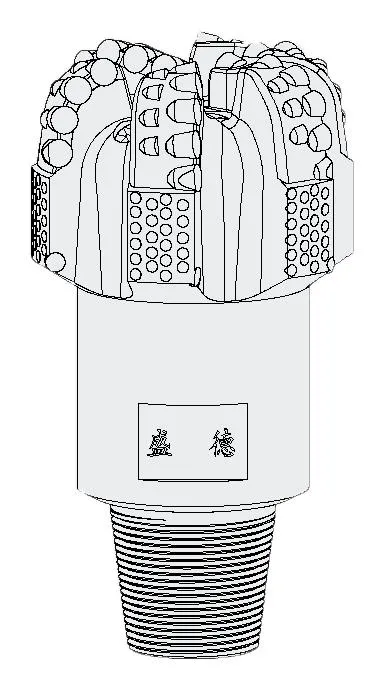

Parameter Specifications Reference Image
Bit Type 9-3/4" SS1605DFX
IADC Code S424
Number of Blades 5
Cutter Size Φ15.88mm; Φ13.44mm
Cutter Qty Φ15.88x24; Φ13.44x49
Nozzle Qty 7NZ TFA: 1310.38mm²
Connector 6-5/8" API REG
N.W/G.W. 136 / 160 KG
🔧
Installation Instructions
01.
Check whether the last bit used has any damage or diameter reduction. Ensure the well bottom is clean of hard articles like carbide or steel.
02.
Inspect the drill bit cutters for abnormalities and check for O-rings in the nozzle hole before installation.
03.
Clean the bit threads thoroughly and apply high-quality thread oil.
04.
Install the unloader on the bit and lower the drill string to make up the thread connection.
05.
Tighten the screw thread according to the recommended torque value in the turntable bushing.
🏭
Our Advantages
Experience: Over 20 years of oil drilling bit production experience as a first-class network supplier.

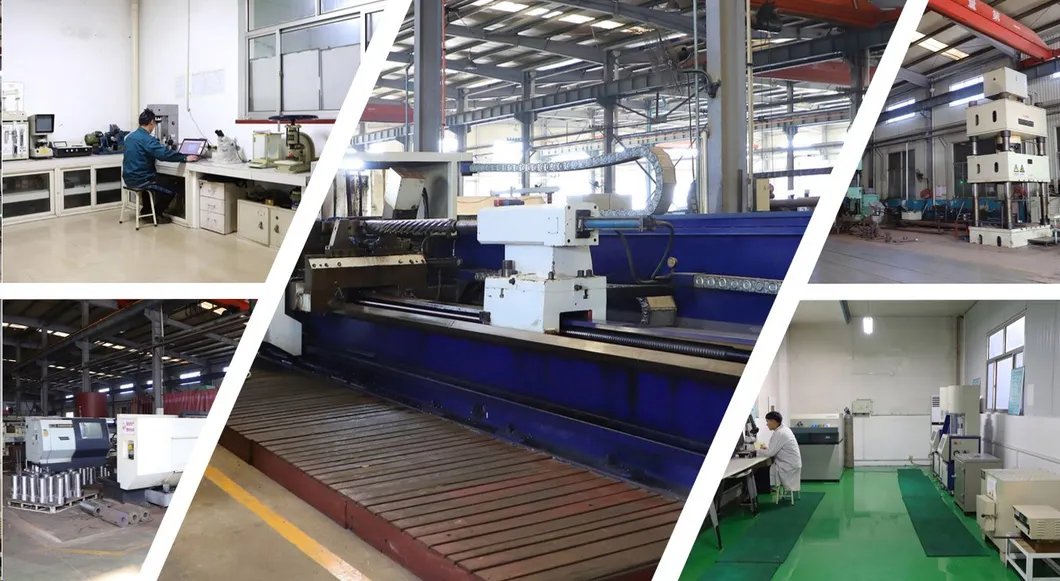

R&D Power: Independent physical and chemical laboratory with professional engineers for mechanical performance tests.
Capacity: Annual production capacity of 4000 sets of downhole motors and 2500 sets of oil drilling bits.
📜
Certifications
Frequently Asked Questions
Q: Do you have stock available?
A: Most of our products are under regular production. We can make delivery immediately if the specific model is in stock.
Q: How can I order without import knowledge?
A: We can arrange shipping by sea, air, or express for you. We provide door-to-door service or delivery to your local port.
Q: Can we customize with our logo?
A: Yes, your logo can be printed via hot stamping, printing, embossing, UV coating, or silk-screen printing on the product and package.
Q: What is the main material of the bit body?
A: We primarily use high-grade 42CrMo alloy steel for the drill body to ensure maximum durability and pressure resistance.
Q: Are your products certified for quality?
A: Yes, all our products meet ISO 9001:2000 standards and are inspected by professional SGS standards before shipping.
Q: What is the typical production capacity?
A: Our annual production capacity reaches 4,000 sets of downhole motors and 2,500 sets of oil drilling bits.
