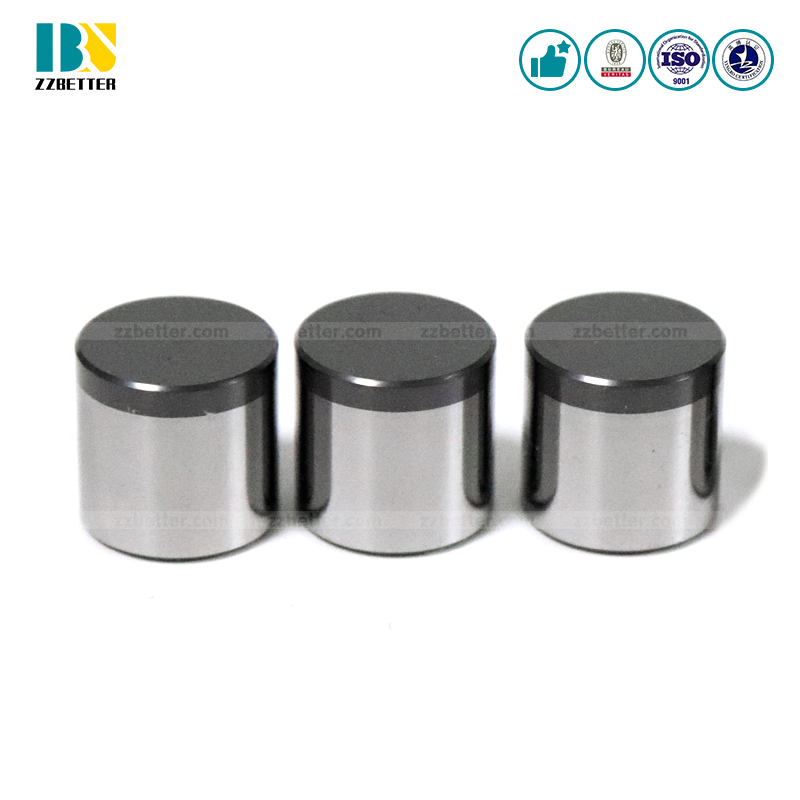

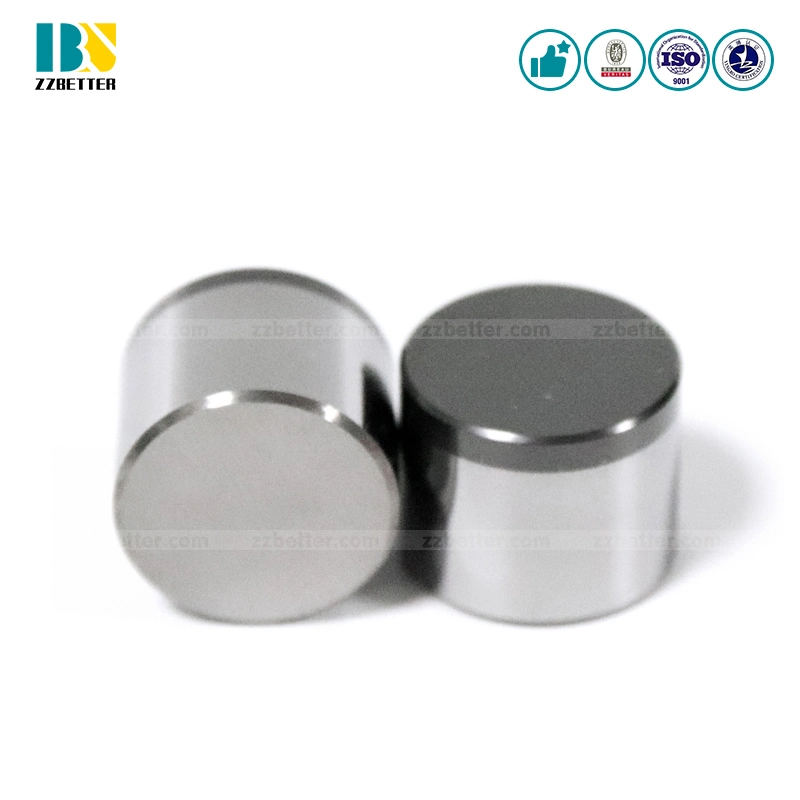

Diamond PDC Cutter for Coalfield Mining Drilling

1 / 5

Diamond PDC Cutter for Coalfield Mining Drilling

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

diamond PDC cutter

Characteristic

High Hardness

Diamond Type

Compressive Strength

Synthesis Method

Static High Pressure Catalytic Method

Application

for Drilling and Cutting

Transport Package

First Into PP Box, Then Into Carton

Specification

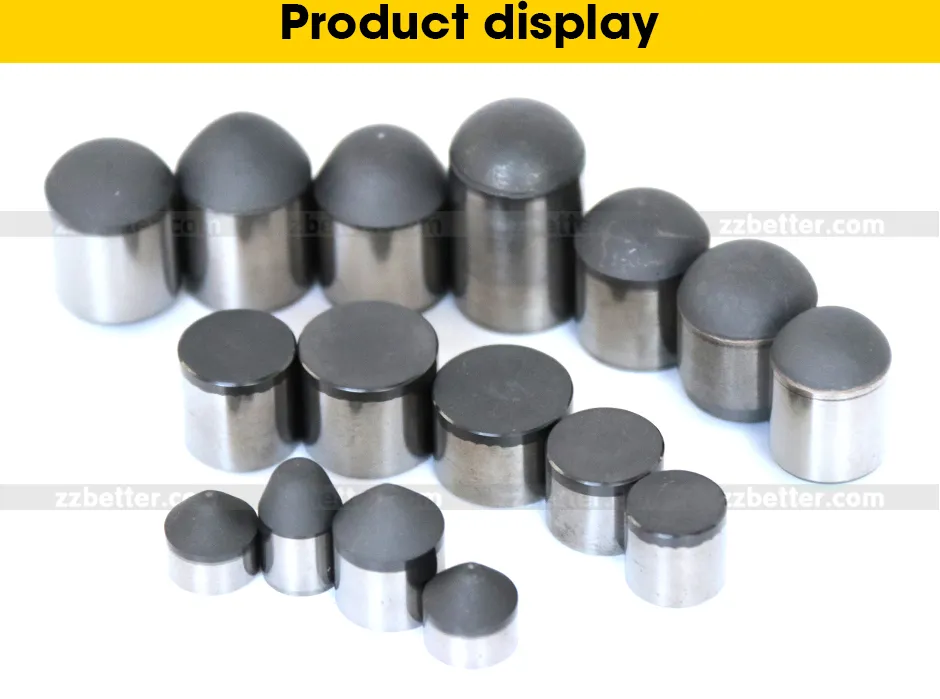

1308/ 1313/ 1613/ 1616/ 1906/ 1916

Production Capacity

5000PCS Per Month

Product Description

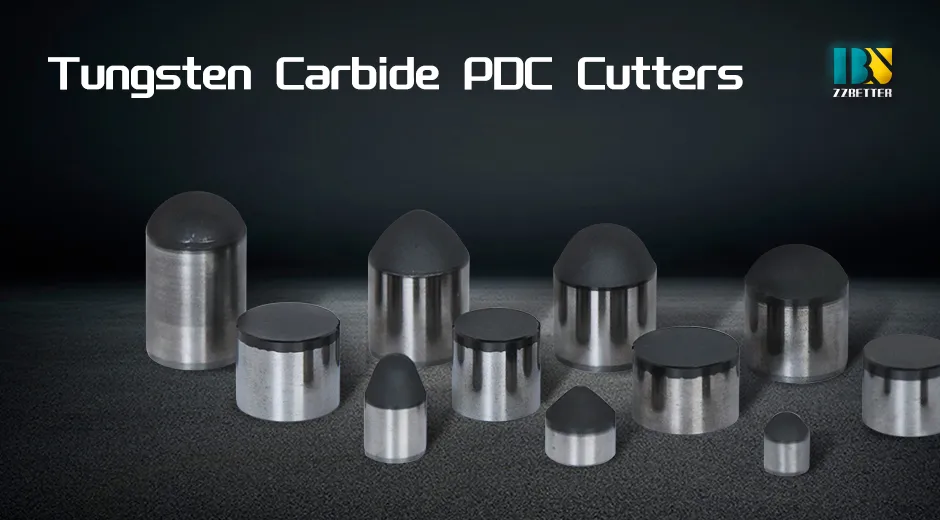

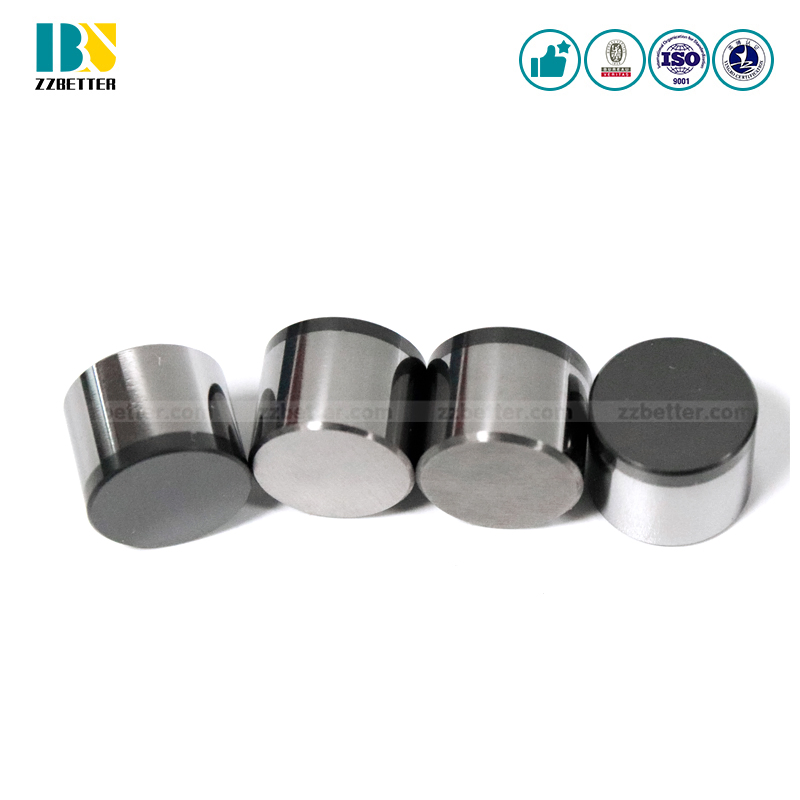

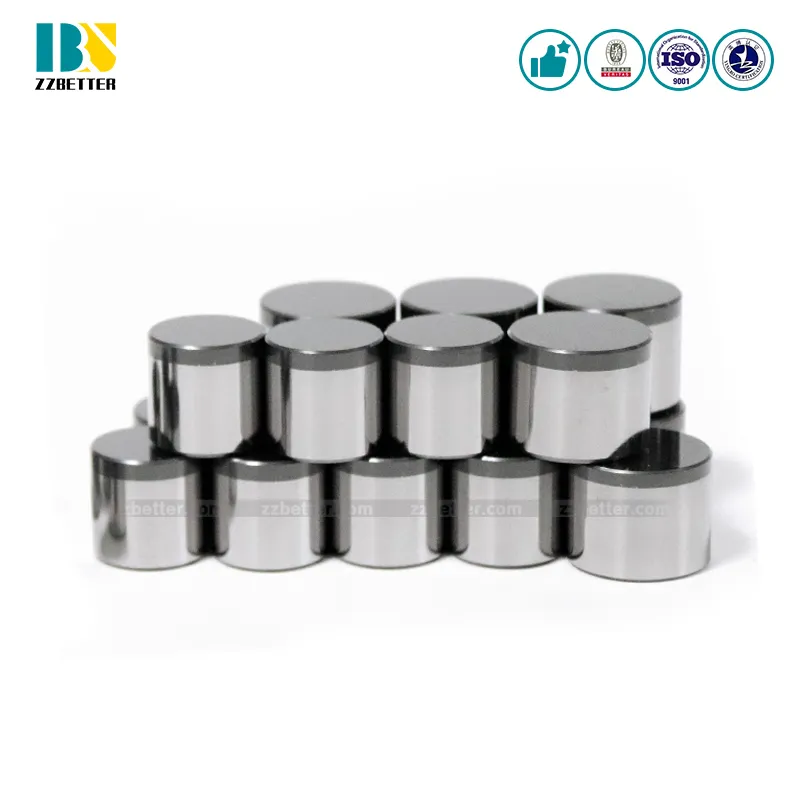

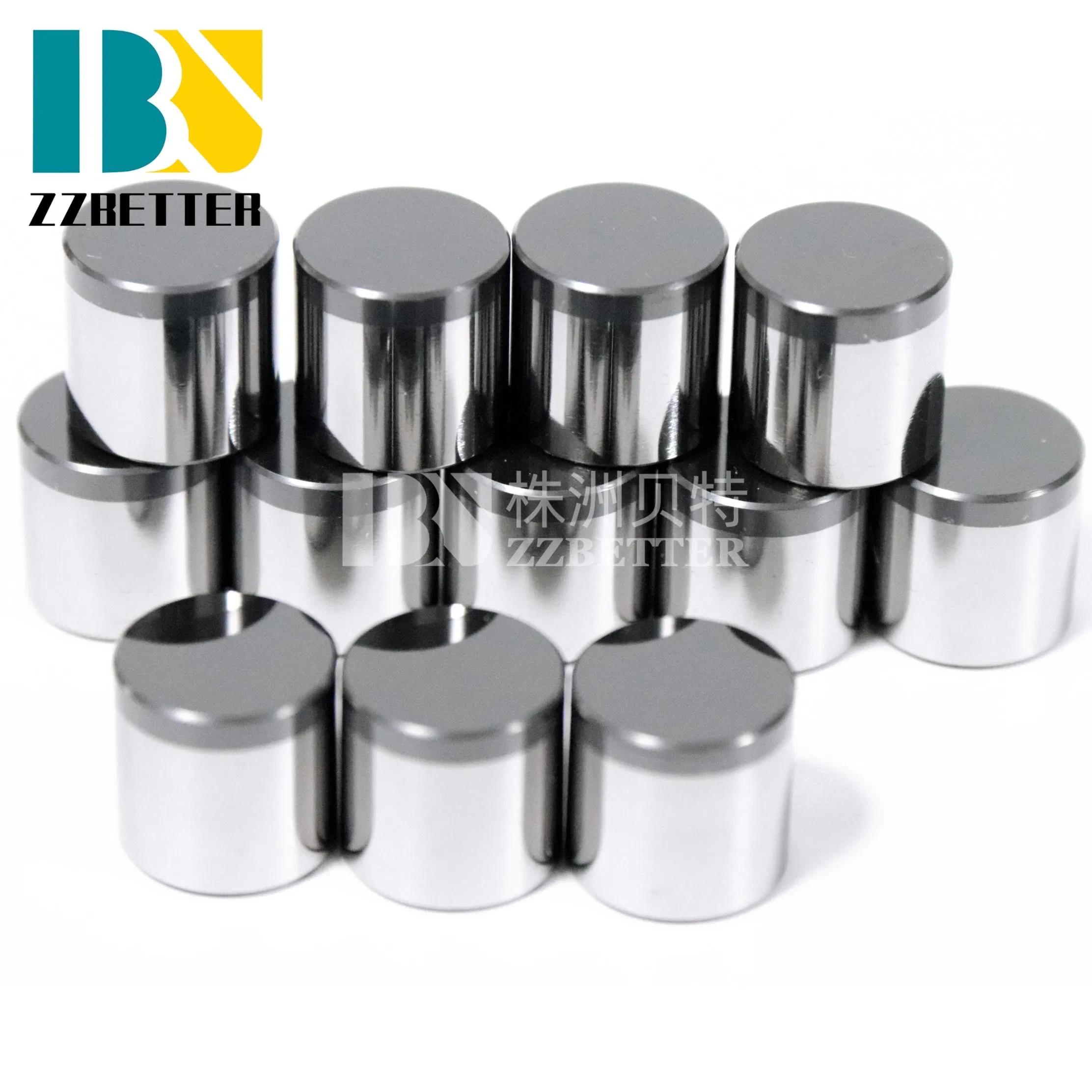

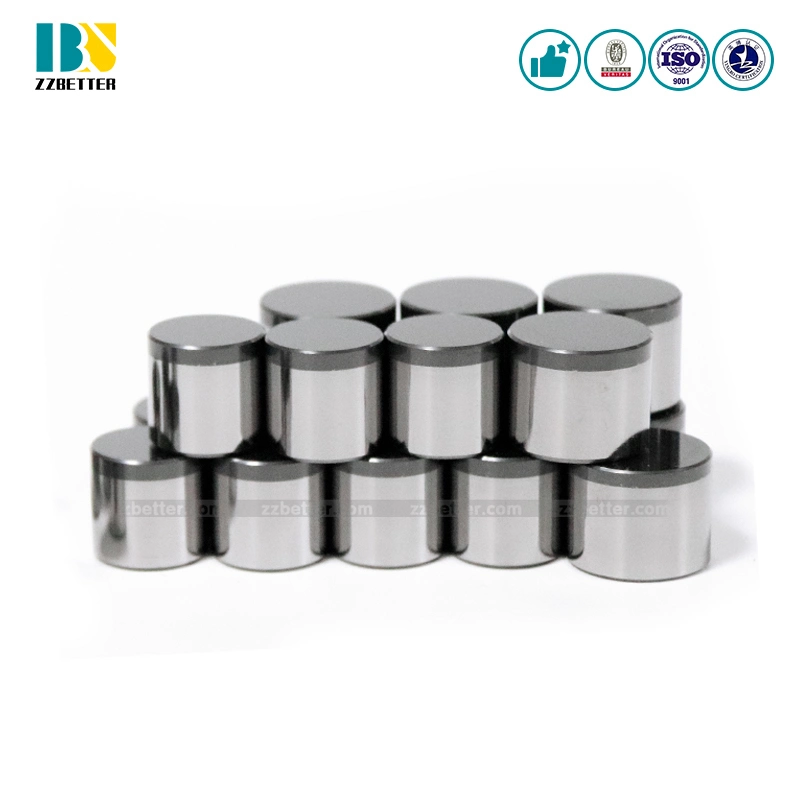

PDC cutters which can be embedded into oilfield drilling bits are sintered at extremely high pressure and temperature. It is composed of diamond and Tungsten Carbide. In order to ensure its quality, we adopt advanced technical formulas and synthetic techniques.

Item	Diameter(D)	Height(H)	Diamond Layer(E)	Diamond Chamfer(α)	Tungsten Carbide Chamfer(β)
PDC1-1	13.44mm	8.00mm	1.80-2.50mm	0.4mm*45°	0.50mm*45°
PDC1-2	13.44mm	13.20mm	1.80-2.50mm	0.4mm*45°	0.50mm*45°
PDC1-3	16.00mm	8.00mm	1.80-2.50mm	0.4mm*45°	0.50mm*45°
PDC1-4	16.00mm	13.20mm	1.80-2.50mm	0.4mm*45°	0.50mm*45°
PDC1-5	16.00mm	16.00mm	1.80-2.50mm	0.4mm*45°	0.50mm*45°
PDC1-6	19.05mm	8.00mm	1.80-2.50mm	0.4mm*45°	0.50mm*45°
PDC1-7	19.05mm	13.20mm	1.80-2.50mm	0.4mm*45°	0.50mm*45°
PDC1-8	19.05mm	16.00mm	1.80-2.50mm	0.4mm*45°	0.50mm*45°
PDC1-9	19.05mm	19.00mm	1.80-2.50mm	0.4mm*45°	0.50mm*45°

Frequently Asked Questions

1. What is a PDC cutter made of?

It is a Polycrystalline Diamond Compact composed of a diamond layer and a Tungsten Carbide substrate, sintered under extremely high pressure and temperature.

2. What are the primary applications for these cutters?

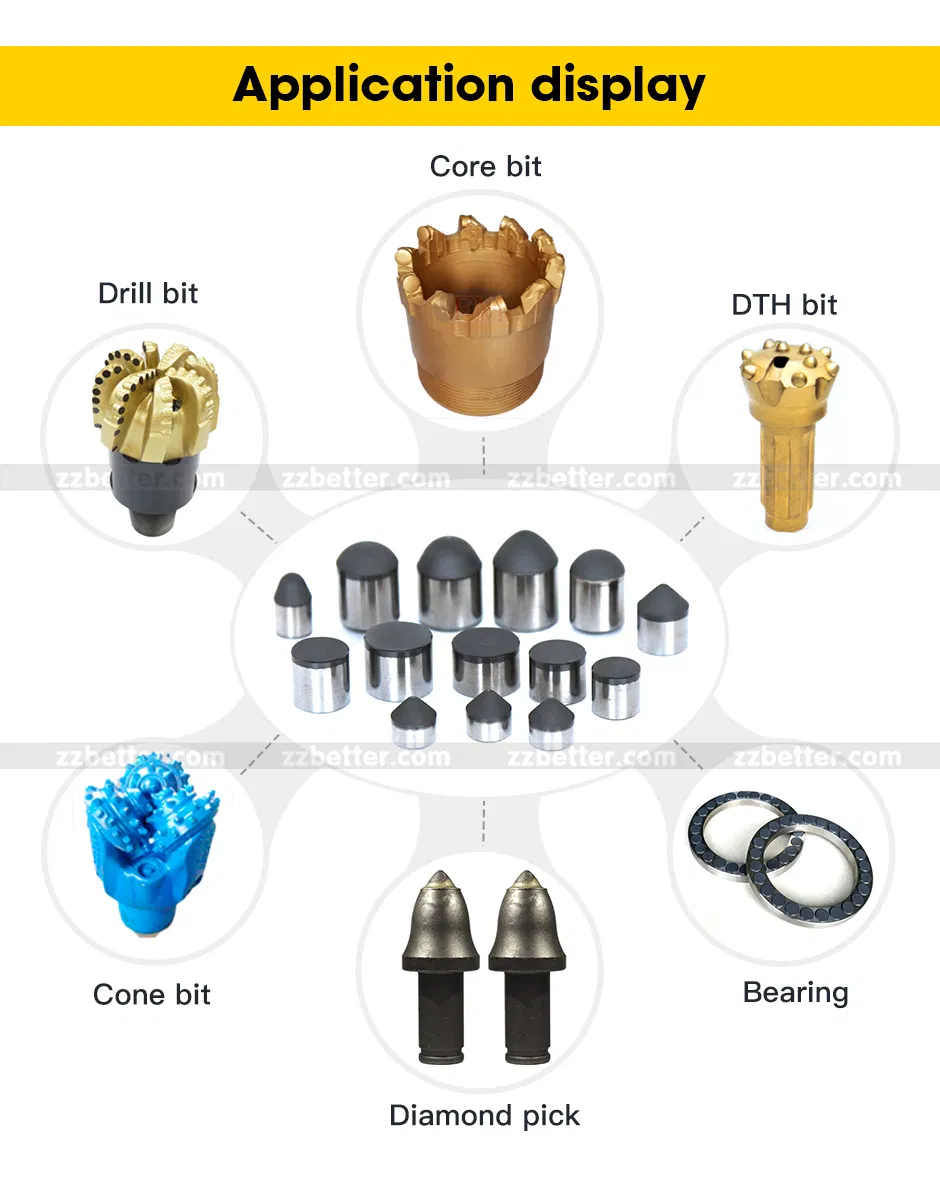

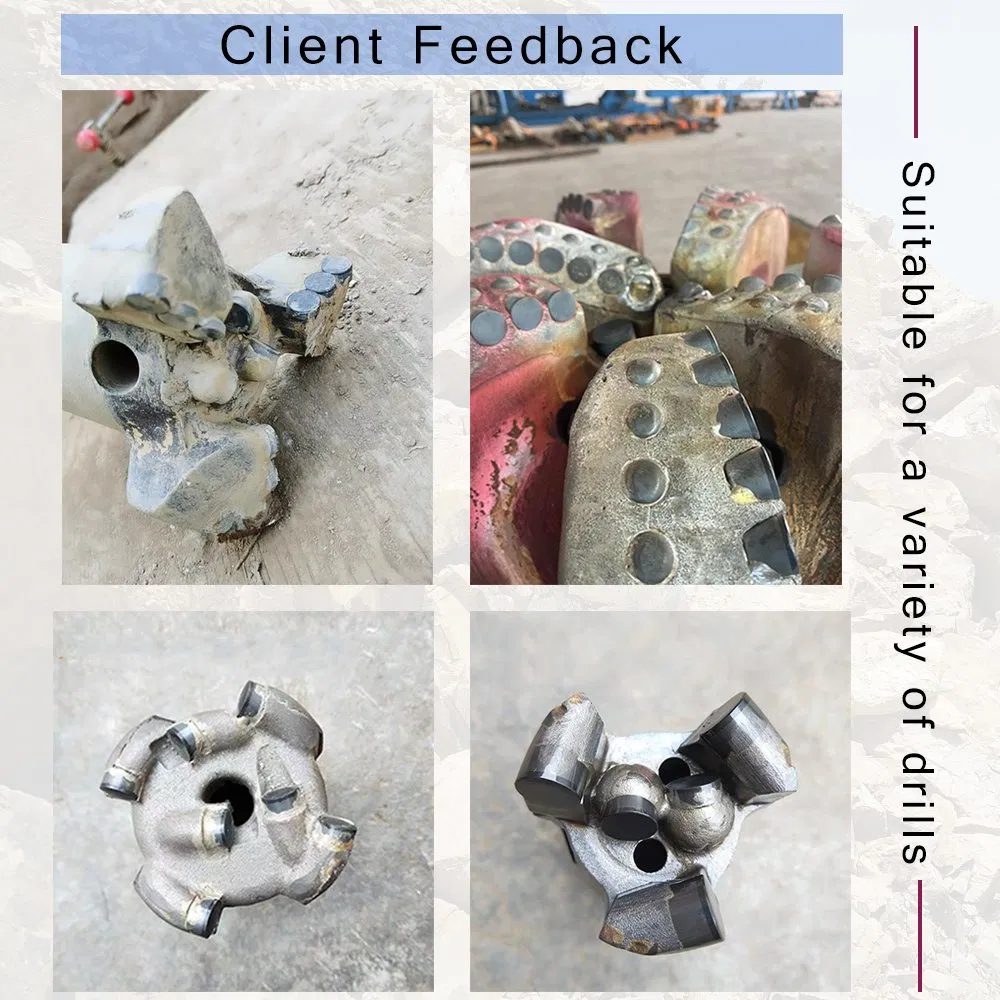

They are primarily used in oilfield drilling bits, coalfield mining, and geological drilling for efficient cutting and drilling.

3. What characteristics make PDC cutters suitable for mining?

They feature exceptionally high hardness and superior compressive strength, which are essential for enduring harsh drilling conditions.

4. What sizes of PDC cutters are available?

Common specifications include 1308, 1313, 1613, 1616, 1906, and 1916, covering a wide range of drilling requirements.

5. How are the products packaged for transport?

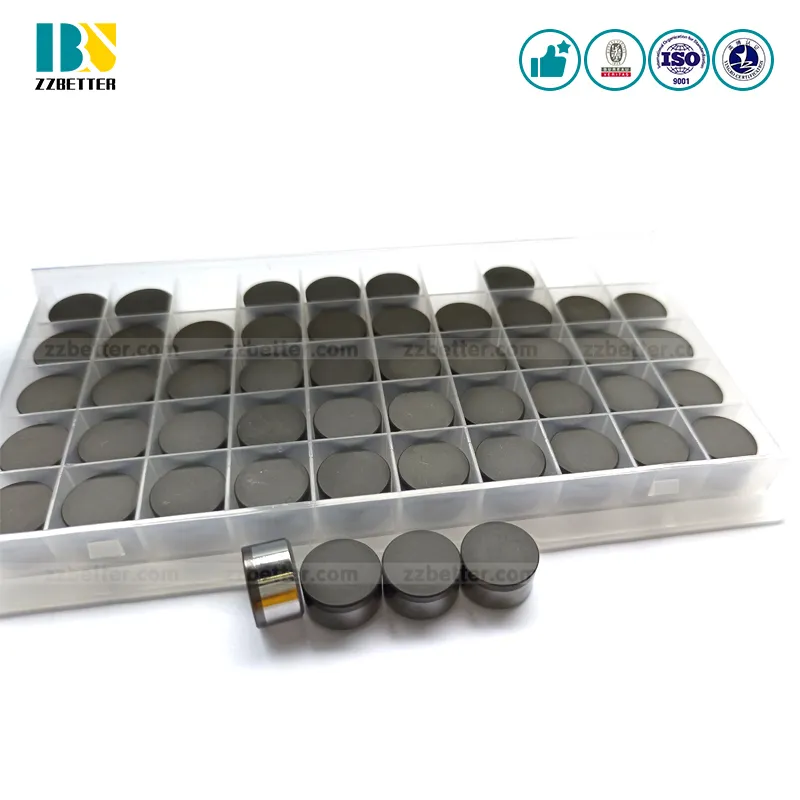

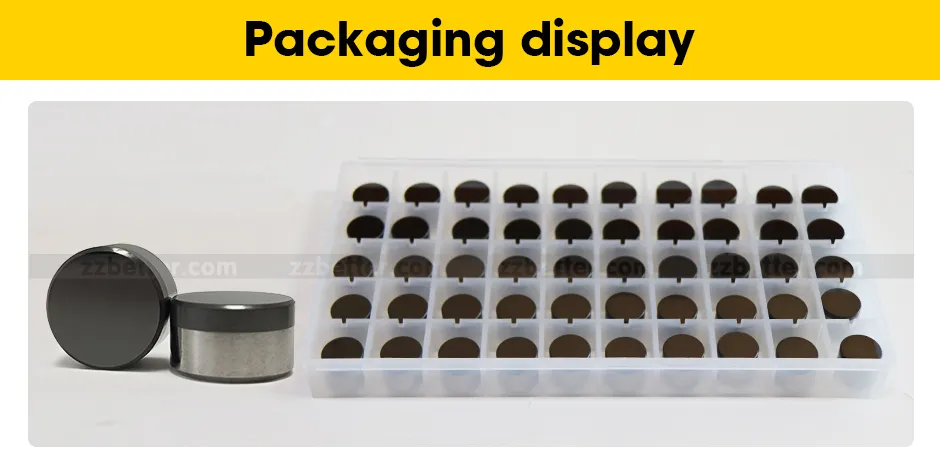

The cutters are first placed into protective PP boxes and then packed into sturdy cartons to ensure safe delivery.

6. What is the production capacity for bulk orders?

The current production capacity is approximately 5,000 pieces per month to meet industrial demands.
