API 11 5/8" Directional Well Drilling Bit

1 / 5

API 11 5/8" Directional Well Drilling Bit

Customization:	Available
After-sales Service:	Available
Warranty:	500h

Send Inquiry

Product Description

📋

Basic Info.

Model NO.

11-5/8"

Manufacturing Process

CNC Milling

Surface Treatment

Spray-Paint

Operation Pressure

Atmospheric Pressure

Material

Alloy

Material of Drill Body

42CrMo

Wear-Resistant Alloy

Polycrystalline Diamond Compact

Certification

ISO 9001:2000

Standard

SGS

Production Capacity

2500 pieces/Year

HS Code

8207191000

Transport Package

Wooden Boxes

📦

Packaging & Delivery

Package Size

40.00cm * 40.00cm * 70.00cm

Package Gross Weight

220.000kg

⚙️

Product Description

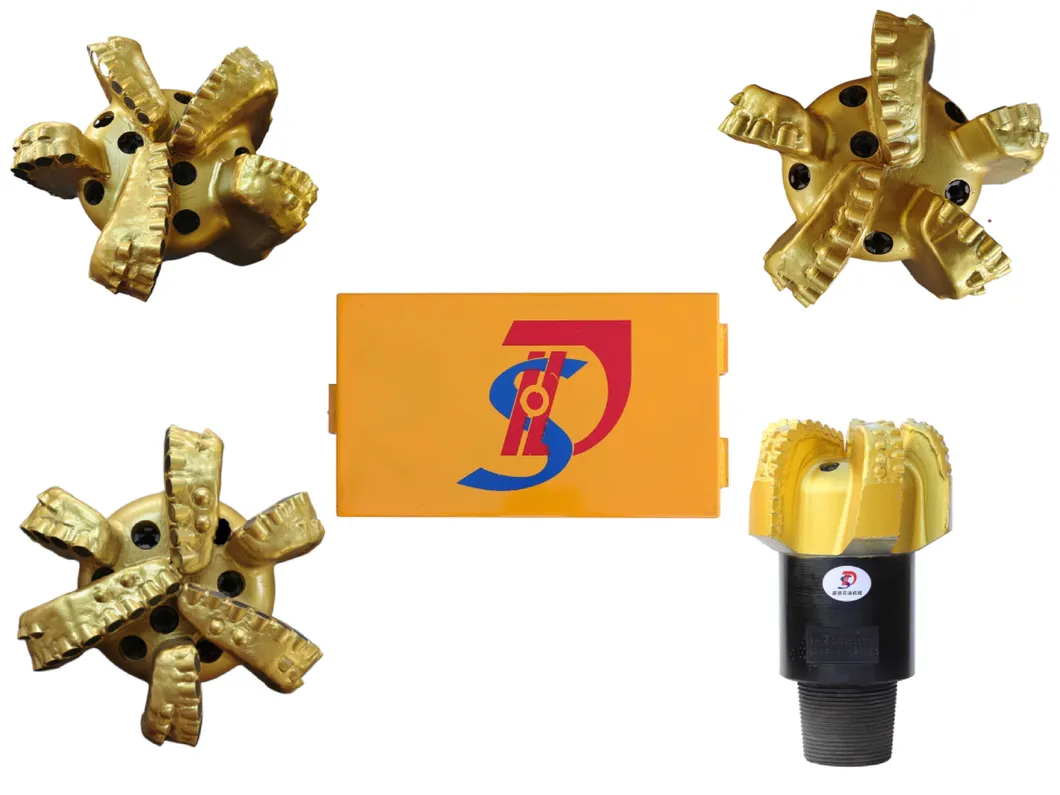

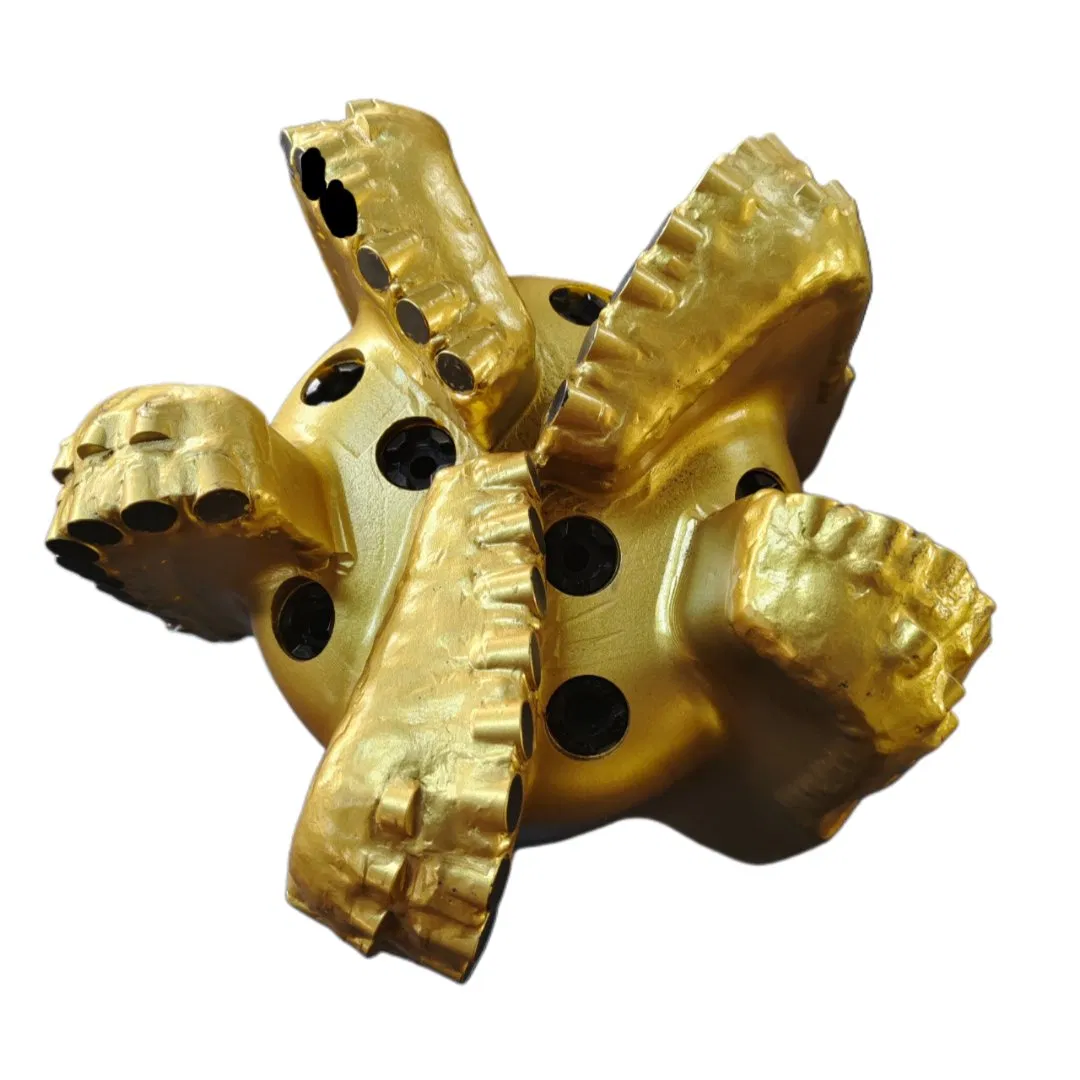

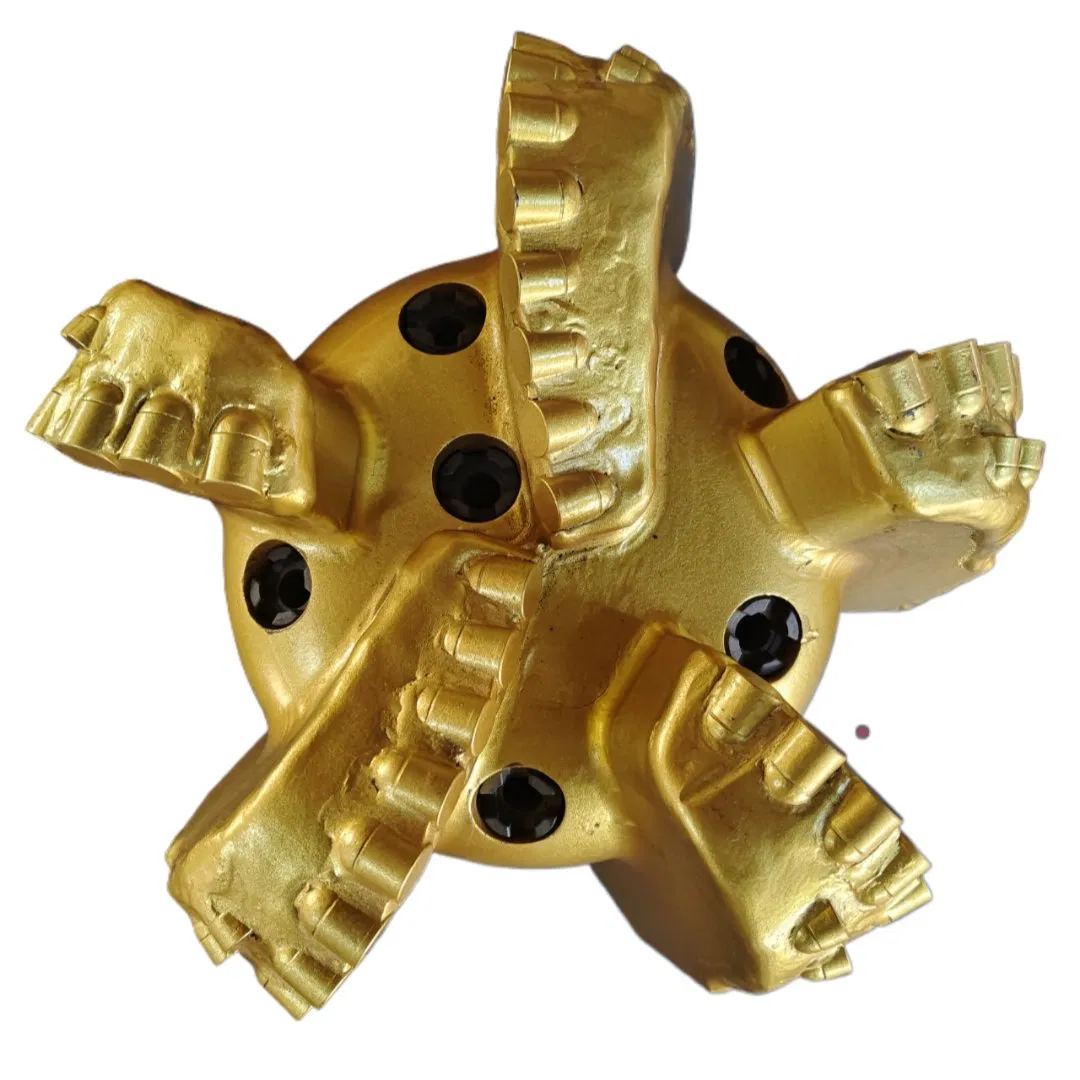

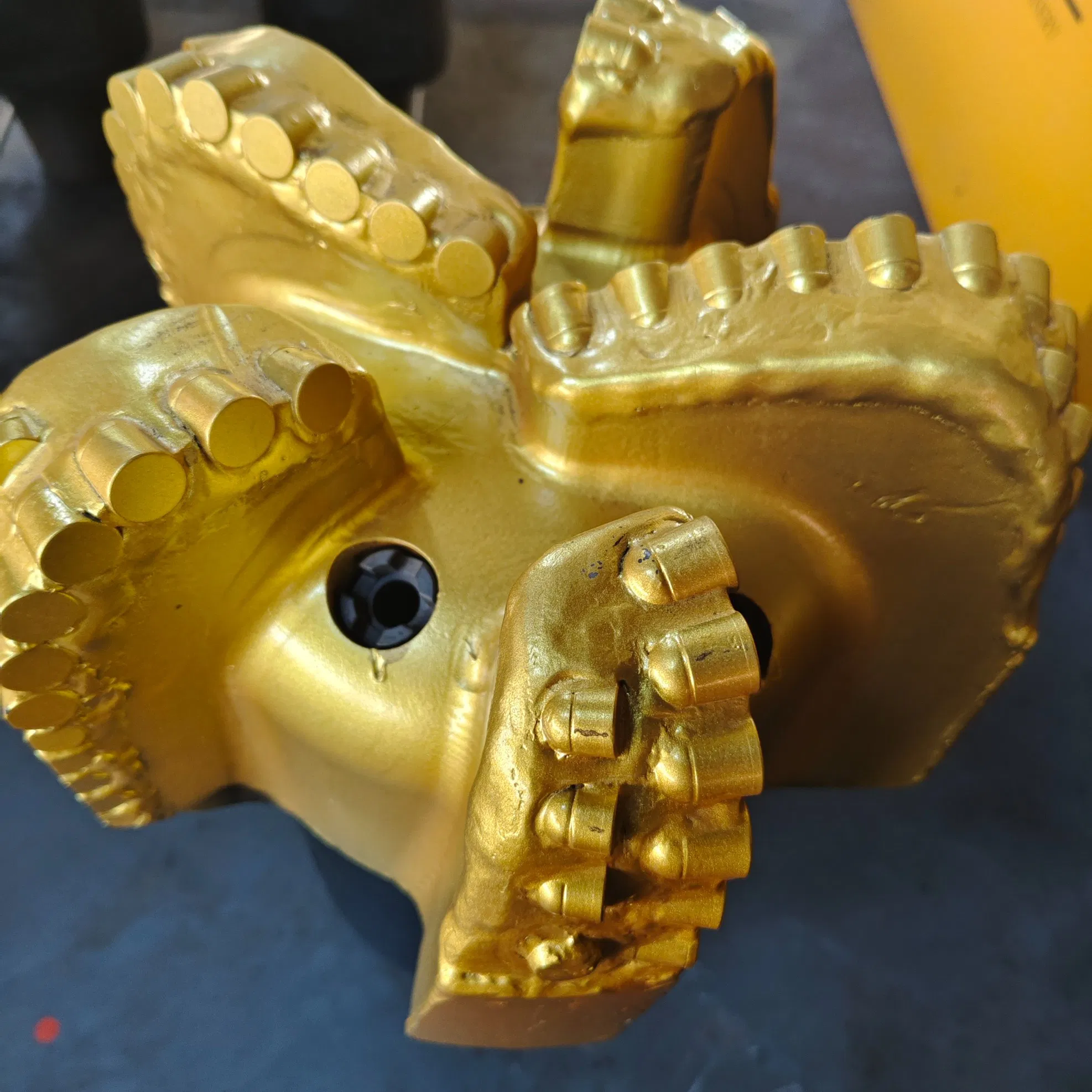

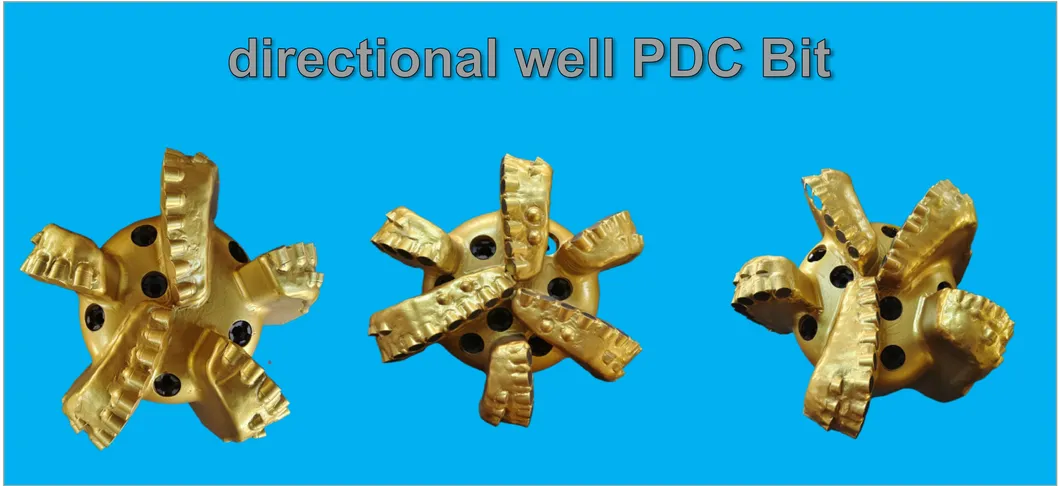

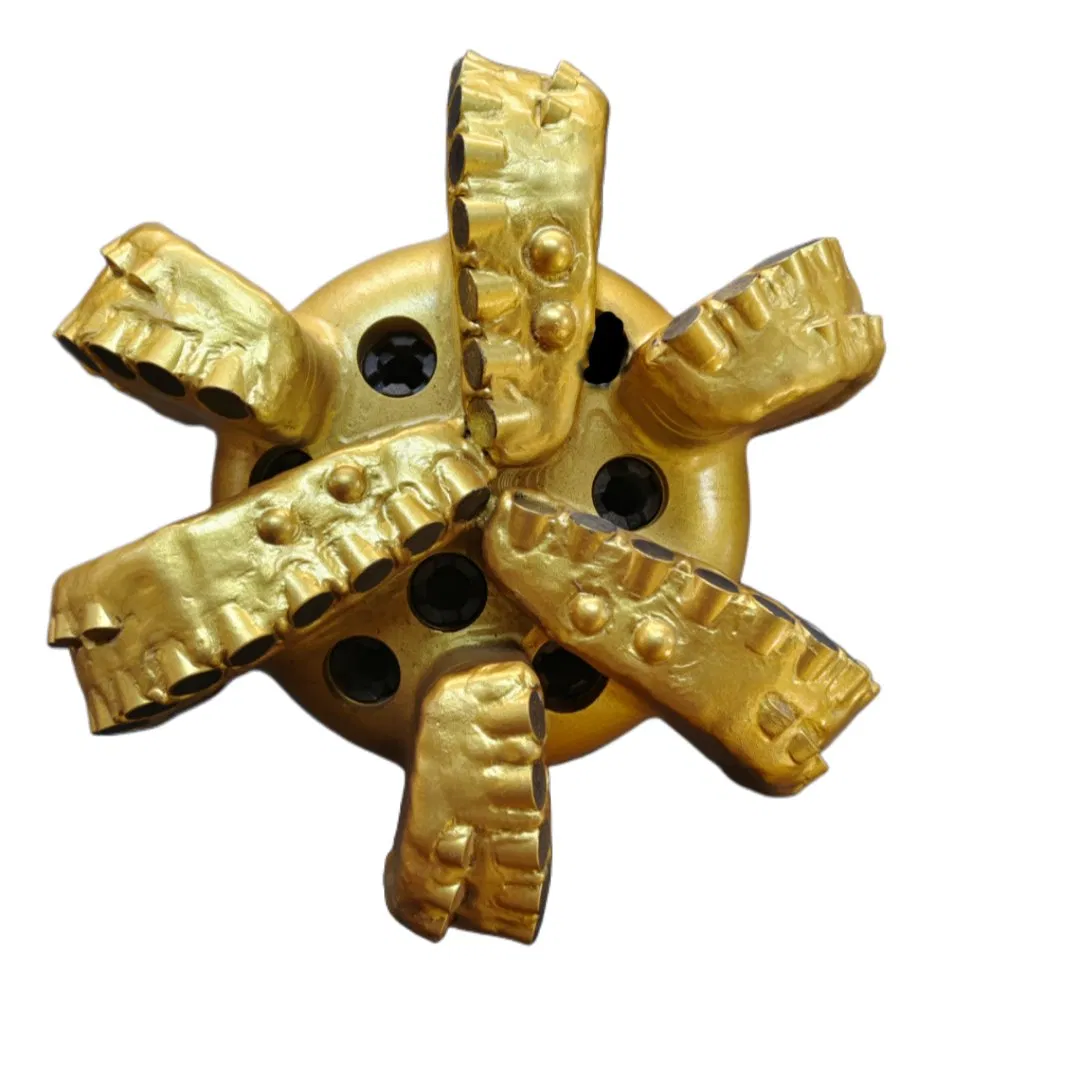

11 5/8" PDC drilling bit for directional well

Directional well technology can be better developed and utilized for oil, and the use of PDC bits for directional wells can improve drilling efficiency and ensure drilling quality. These directional well drill bits, with unique design concepts for bit orientation and trajectory, have been well received by customers.

Bit type	11-5/8" SS1905DFX
IADC Code	S424
Number of Blades	5
Cutter Size (mm)	Φ19.88MM; Φ13.44MM
Cutter Qty	Φ15.88x24; Φ13.44x49
Nozzle Qty	7NZ TFA: 1310.38mm²
Chip Removal Area	19,152.0 mm²
Gauge Protector Length	110 mm
Connector	6-5/8" API REG
N.W/G.W. (KG)	136/160KG
Nozzle Size (inch)	5/8x5; 9/16x2

❓

Frequently Asked Questions

Q1: Are you a manufacturer of these drilling bits?

Yes, we are a professional factory specializing in the production of high-quality drilling bits.

Q2: What is the typical delivery time for an order?

The standard delivery time is approximately 15-25 working days after payment has been received.

Q3: What is the warranty period for the PDC drilling bit?

Our drilling bits come with a warranty of 400 hours. Maintenance services are available through our dedicated repair stations.

Q4: What are the accepted payment terms?

We accept payment via T/T, L/C, and Western Union. Other terms can be negotiated based on specific requirements.

Q5: What materials are used in the construction of the drill body?

The drill body is manufactured using 42CrMo alloy material, ensuring high strength and durability for directional drilling operations.

Q6: Is this PDC bit suitable for directional wells?

Yes, this bit is specifically designed for directional well technology, featuring unique bit orientation and trajectory concepts to improve efficiency.
