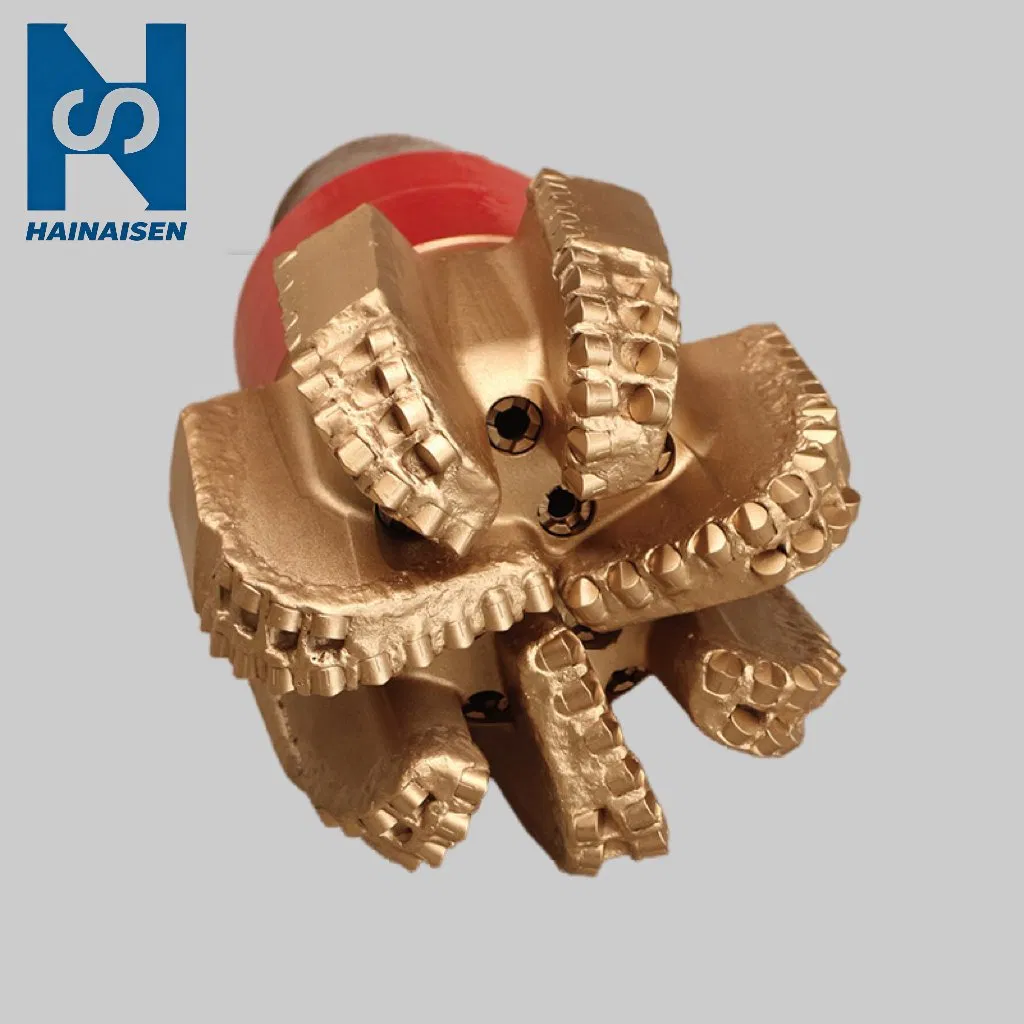

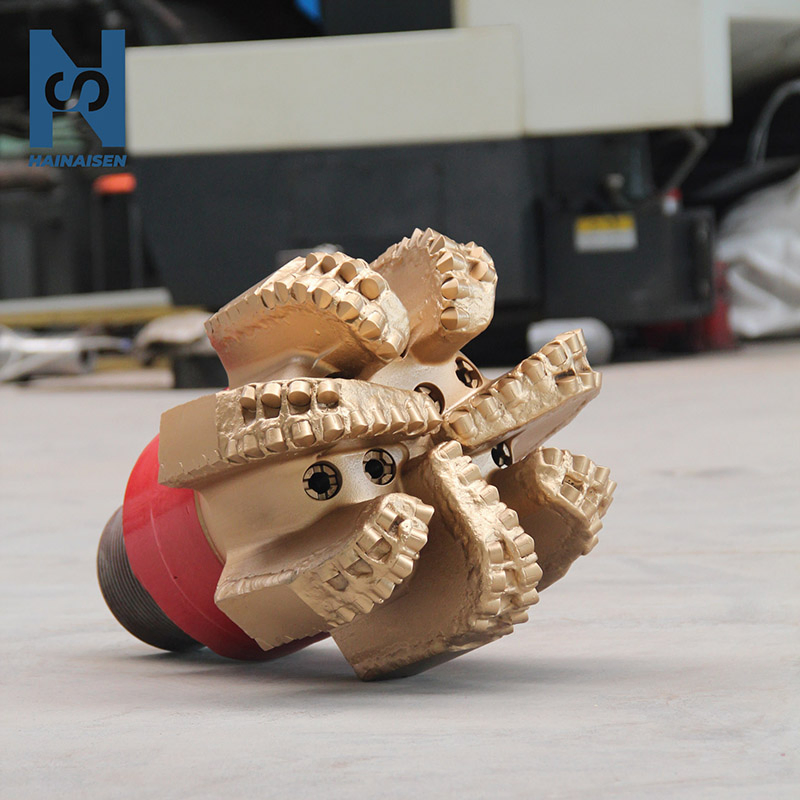

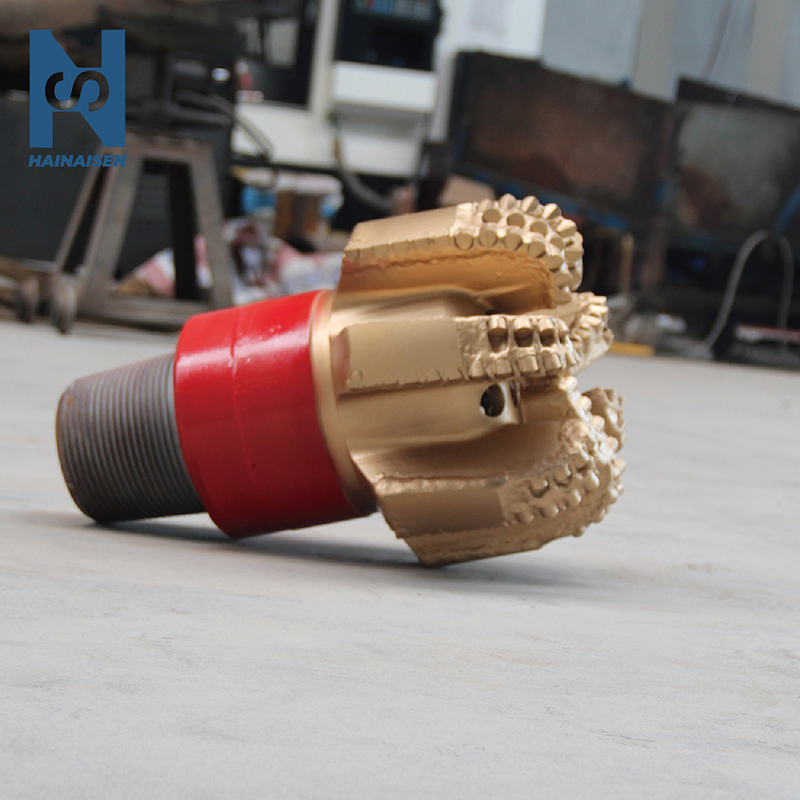

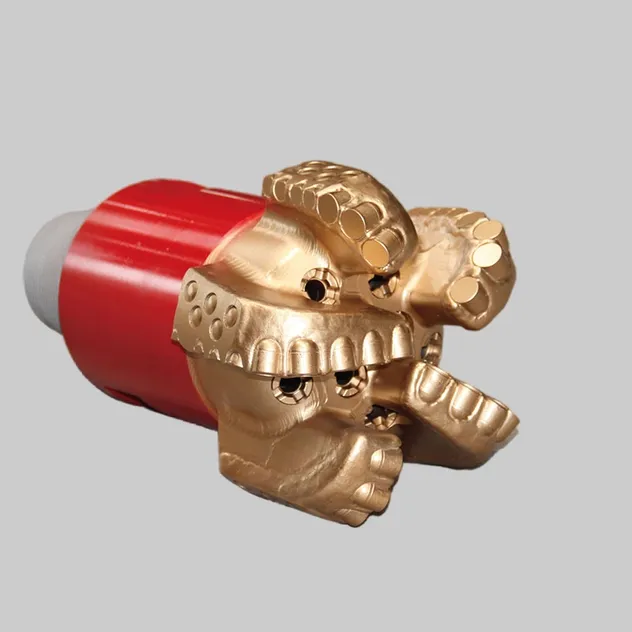

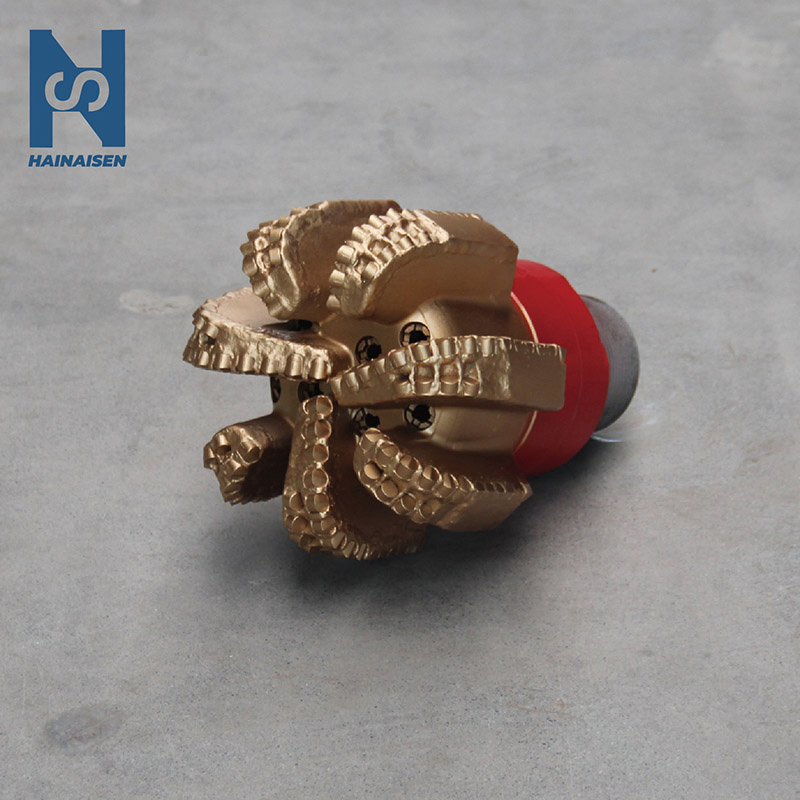

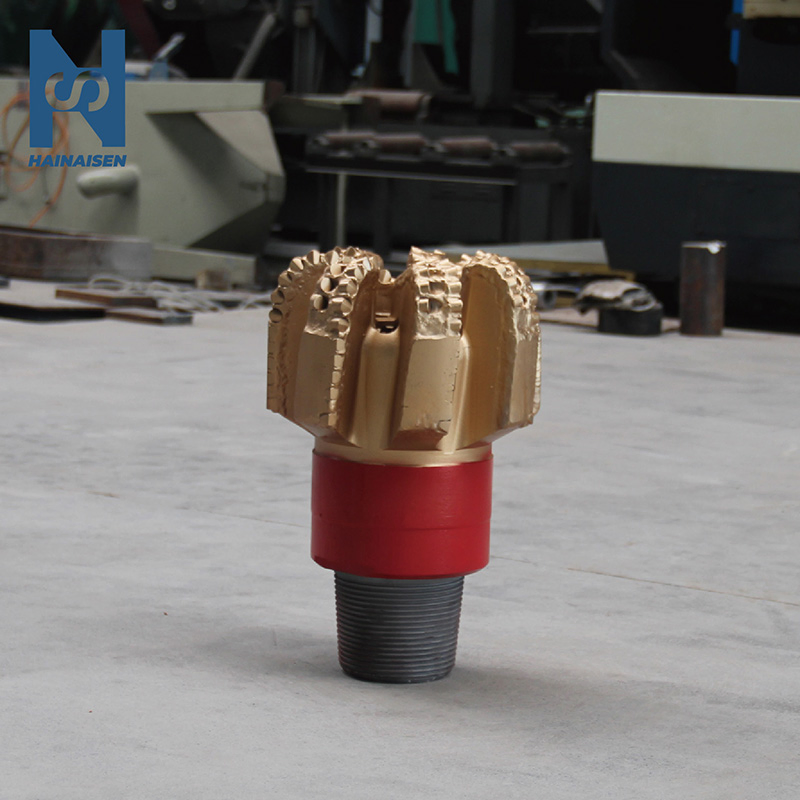

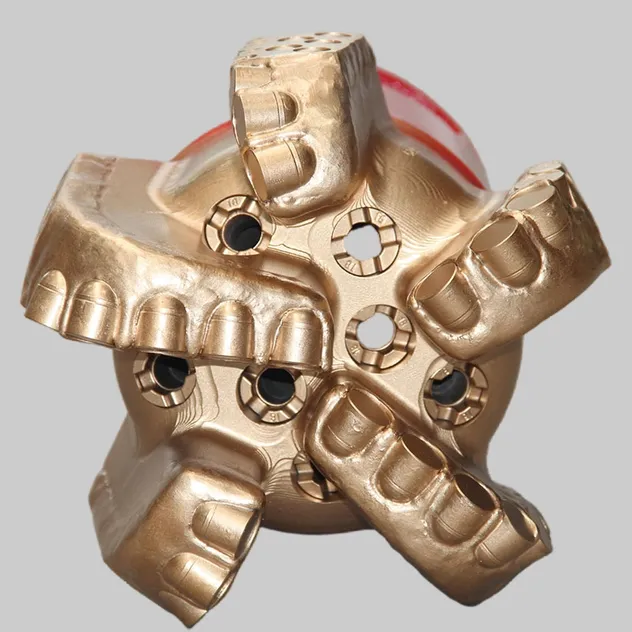

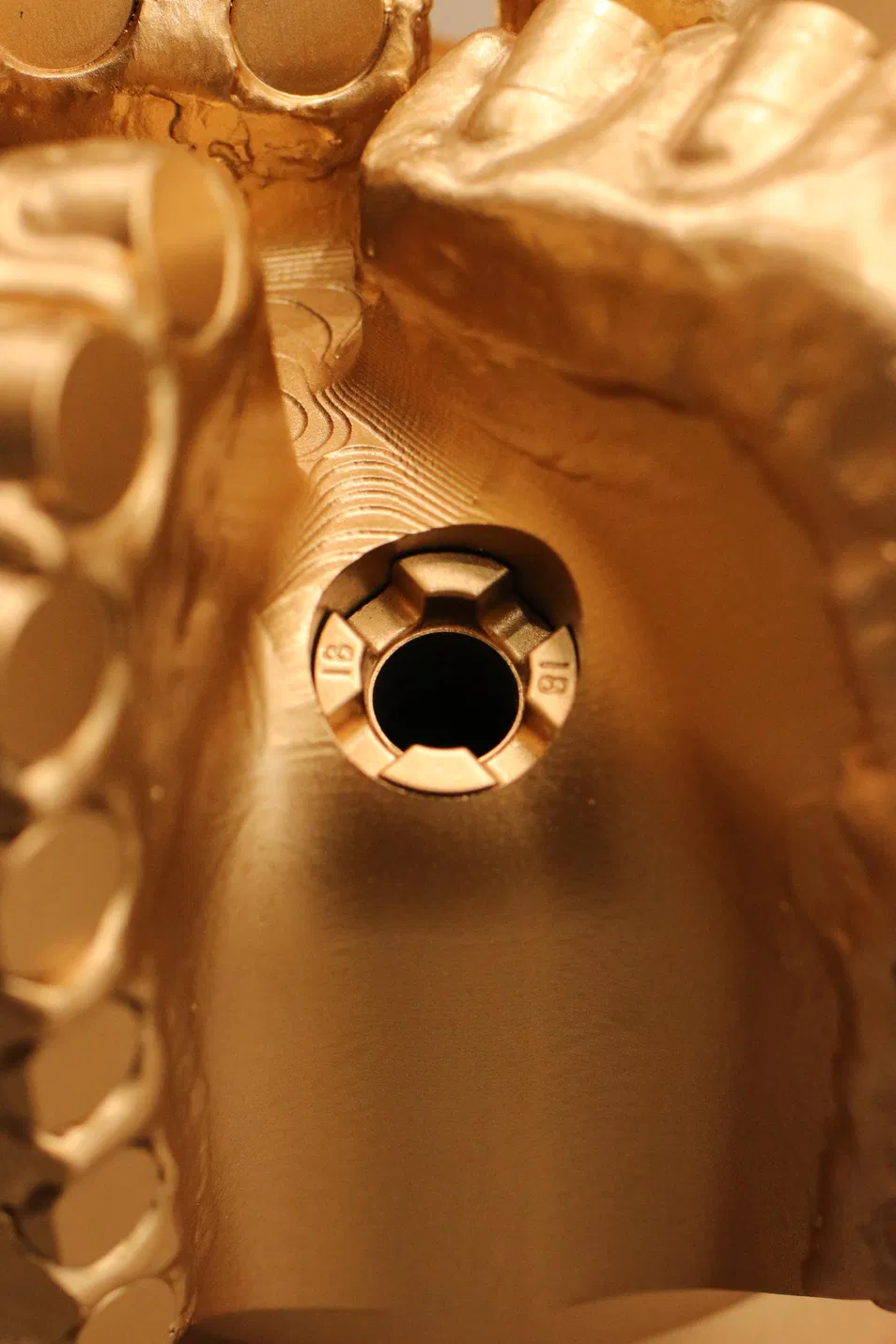

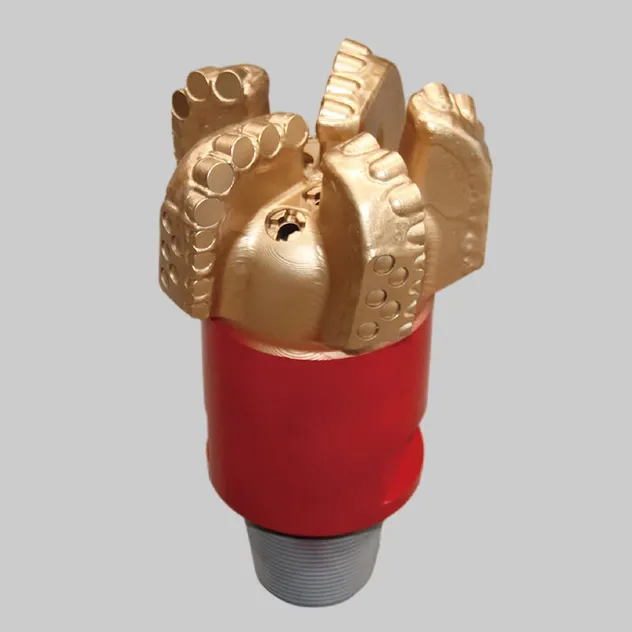

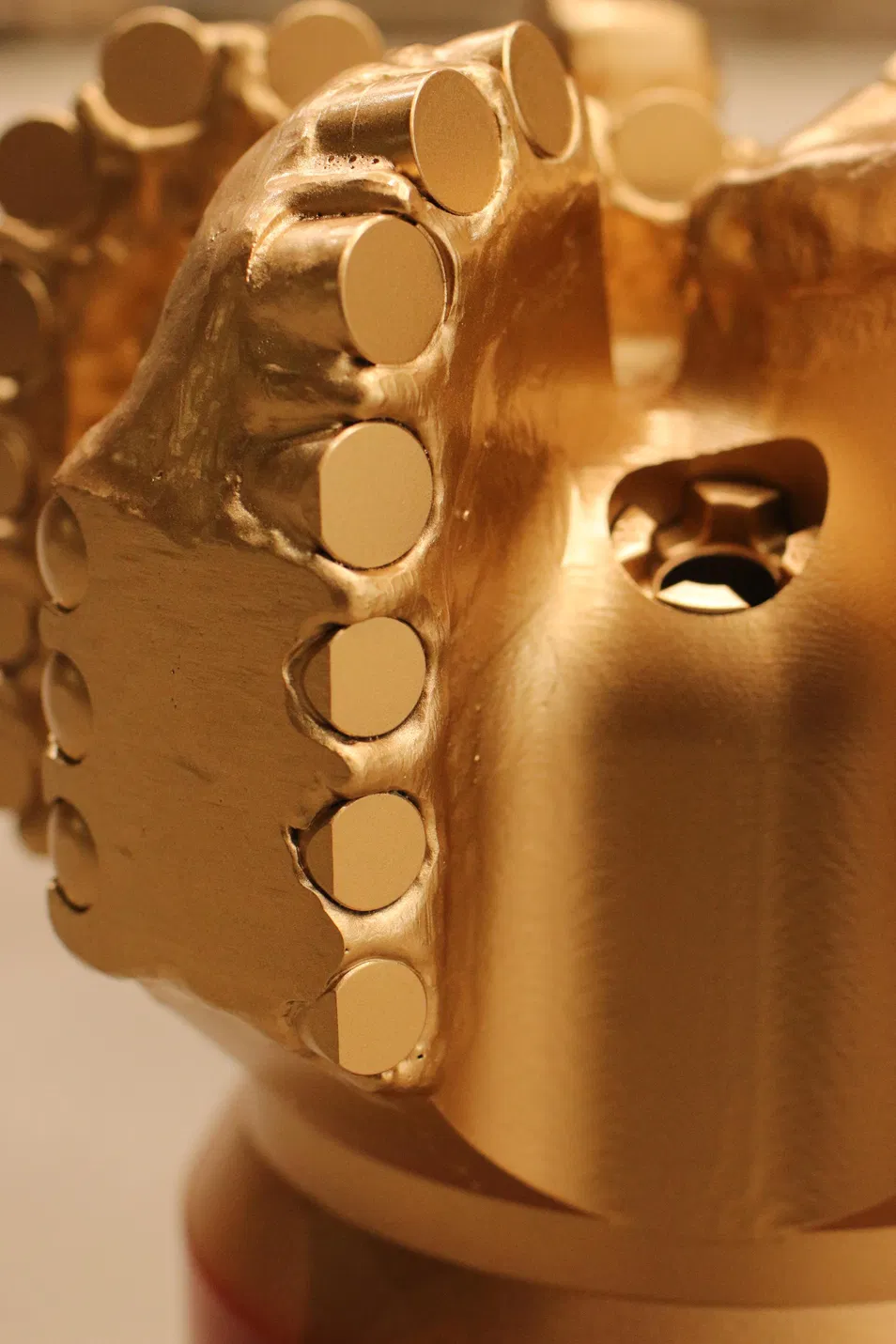

The Steel body PDC bit is manufactured from high-grade 4145H round steel, offering a cost-effective alternative to matrix body bits without sacrificing performance.
| Parameter | Value / Range |
|---|---|
| Size Range | 4" ~ 26" |
| Blade Quantity | Customizable (3-8 Blades) |
| Weight on Bit (WOB) | 20 ~ 110 kN |
| Working Temperature | -20℃ to 250℃ (High Thermal Stability) |
| Primary Cutter Size | 13mm / 16mm / 19mm |
| Suitable Formation | Abrasive Formations |
| Size (Inch) | Size (mm) | API Reg Pin | Make-Up Torque (KN.m) |
|---|---|---|---|
| 4-5/8" | 117.5mm | 2-7/8" REG | 6.1~7.5 |
| 6" - 6-3/4" | 152.4 - 171.5mm | 3-1/2" REG | 9.5~12.2 |
| 7-1/2" - 8-3/4" | 190.5 - 222.3mm | 4-1/2" REG | 16.3~21.7 |
| 9-1/2" - 13-5/8" | 241.3 - 346.1mm | 6-5/8" REG | 38.0~43.4 |
| 14-3/4" - 26" | 374.7 - 660.4mm | 7-5/8" REG | 46.1~54.2 |
Packaging: Secure Wood Box (Fumigation Tray) or Iron Sheet Case for maximum protection during transit.
Lead Time: Standard models are typically delivered within 10-15 days.
