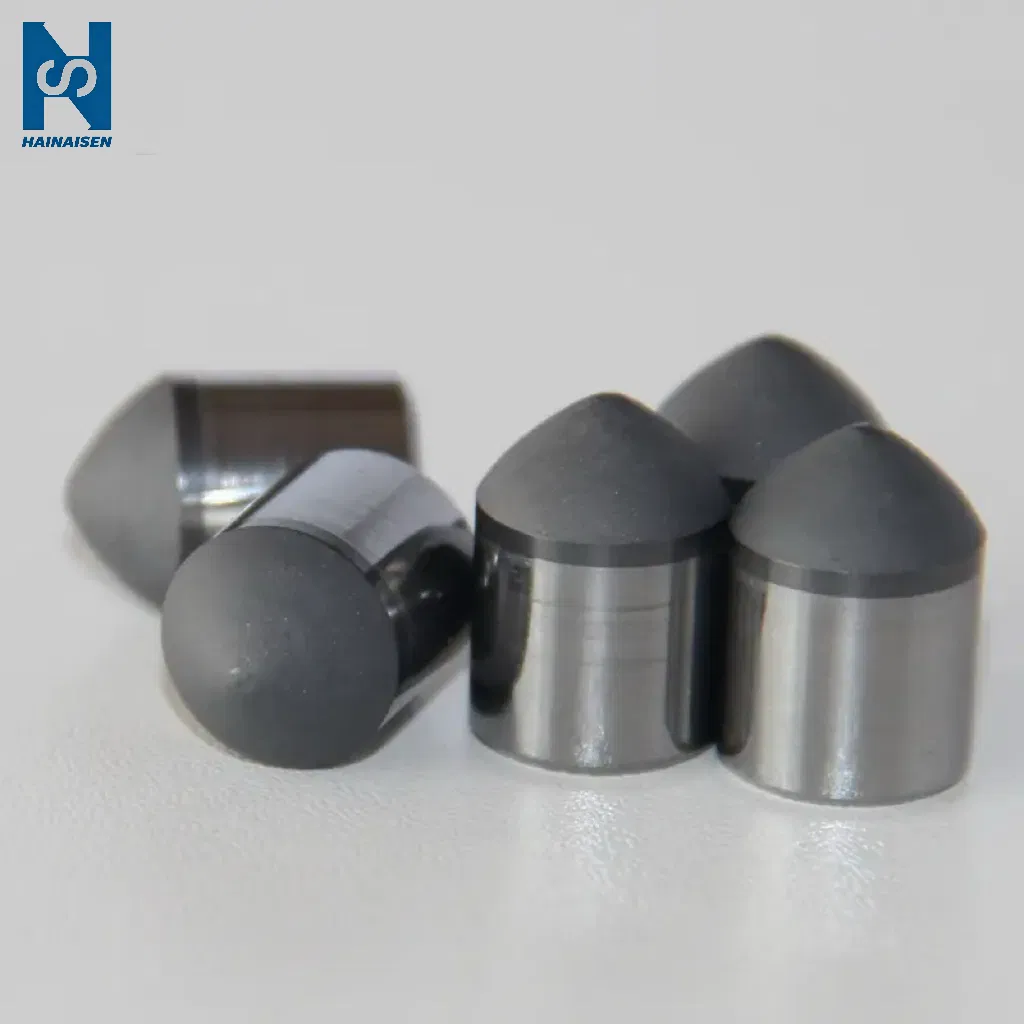

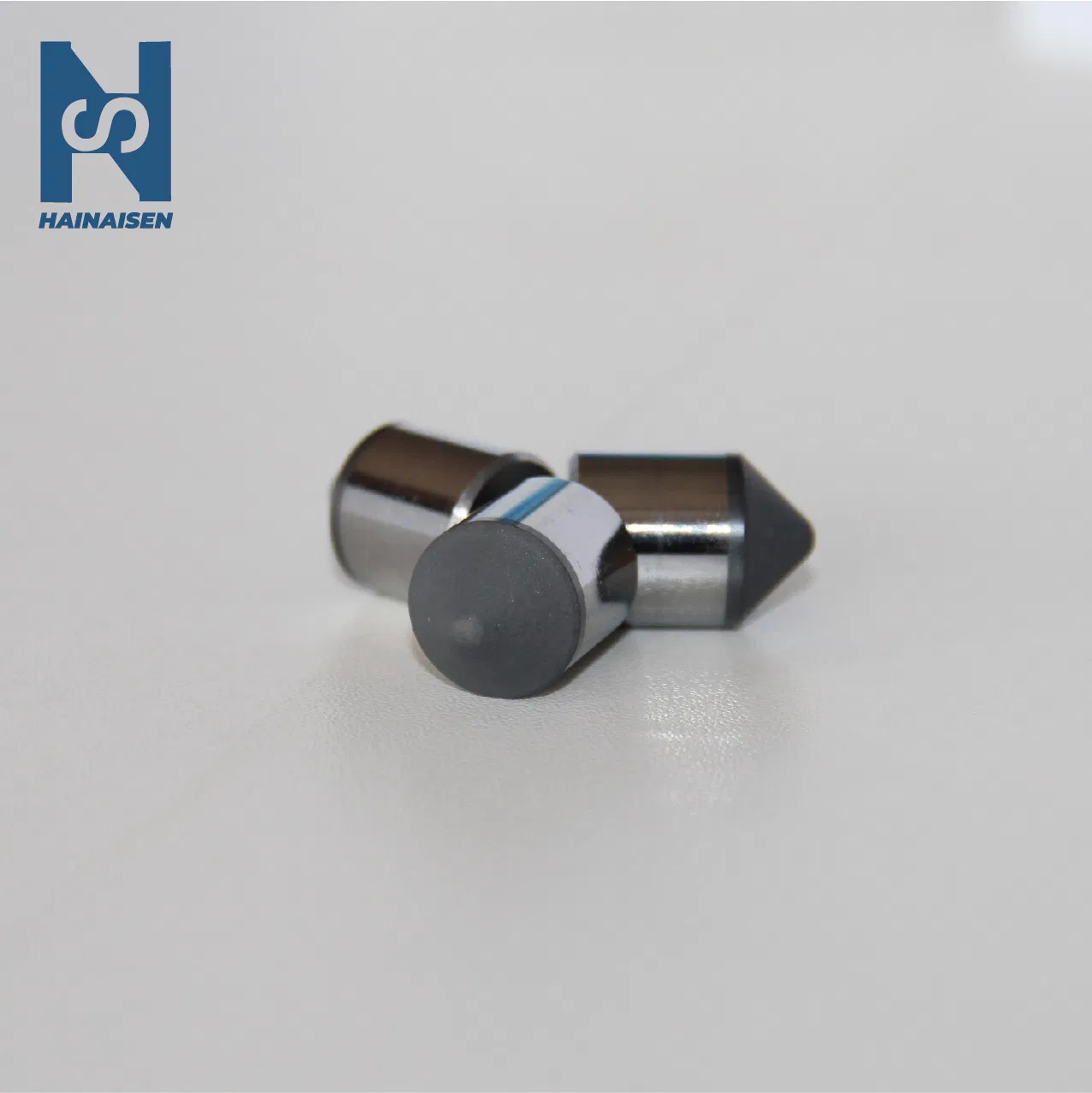

High-Performance Conical PDC Cutter 1319 for Efficient Rock Drilling

Customization:	Available
Customized:	Customized
Standard:	ISO

Basic Information

Model NO.

C1319

Type

PDC Cutter/Insert/Button

Material

Tungsten Carbide

Usage

Metal Drilling, Oilfield, Gas Field, Mining, Construction

Wear Resistance

Super High

Thermal Stability

750℃ - 900℃

Process

HTHP Sintering

Diamond Grade

PCD

Impact Toughness

Excellent

Certification

ISO 9001

Origin

China

Capacity

10,000 pieces/Year

Product Description

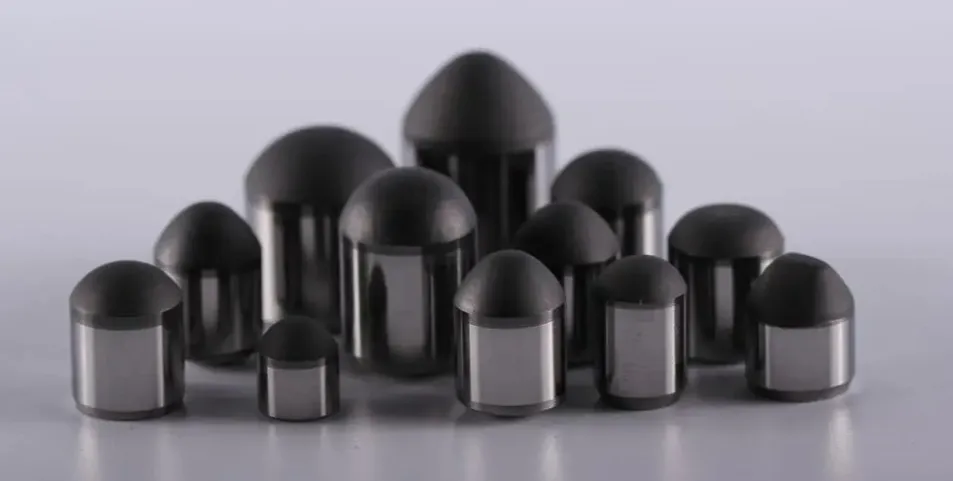

Dome Cutter Series

Core Features: Multilayer structure of diamond and transition layer. Greatly improved impact resistance, making it the best alternative for roller cone applications.

Applicable Position: Priority for rear row teeth. Buffers impact and protects main cutting parts in soft to medium-hard formations.

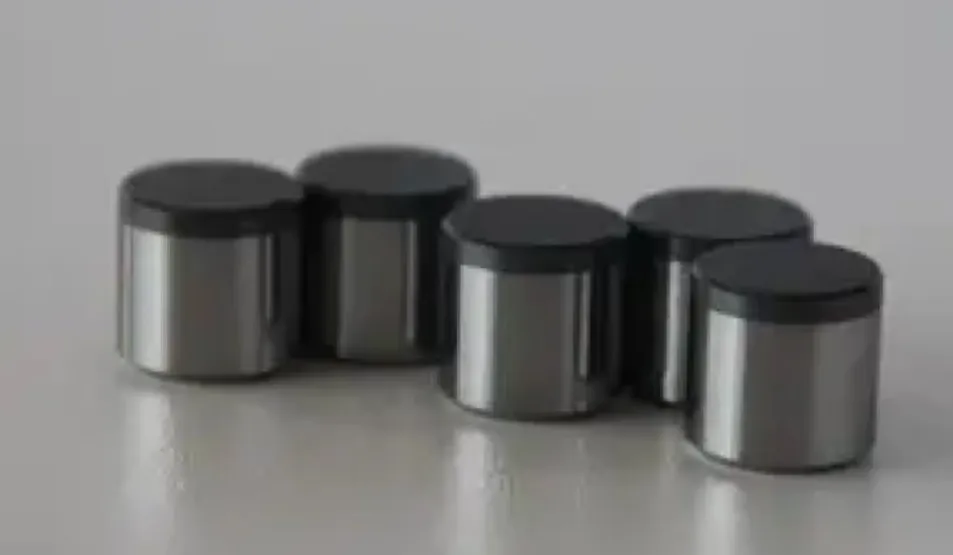

Flat Cutter Series

Core Features: Large contact area delivering high cutting efficiency and outstanding wear resistance. Uniform force bearing avoids local wear.

Applicable Position: Priority for main teeth. Crushes rocks quickly; also serves as auxiliary cutting in rear rows for gauge protection.

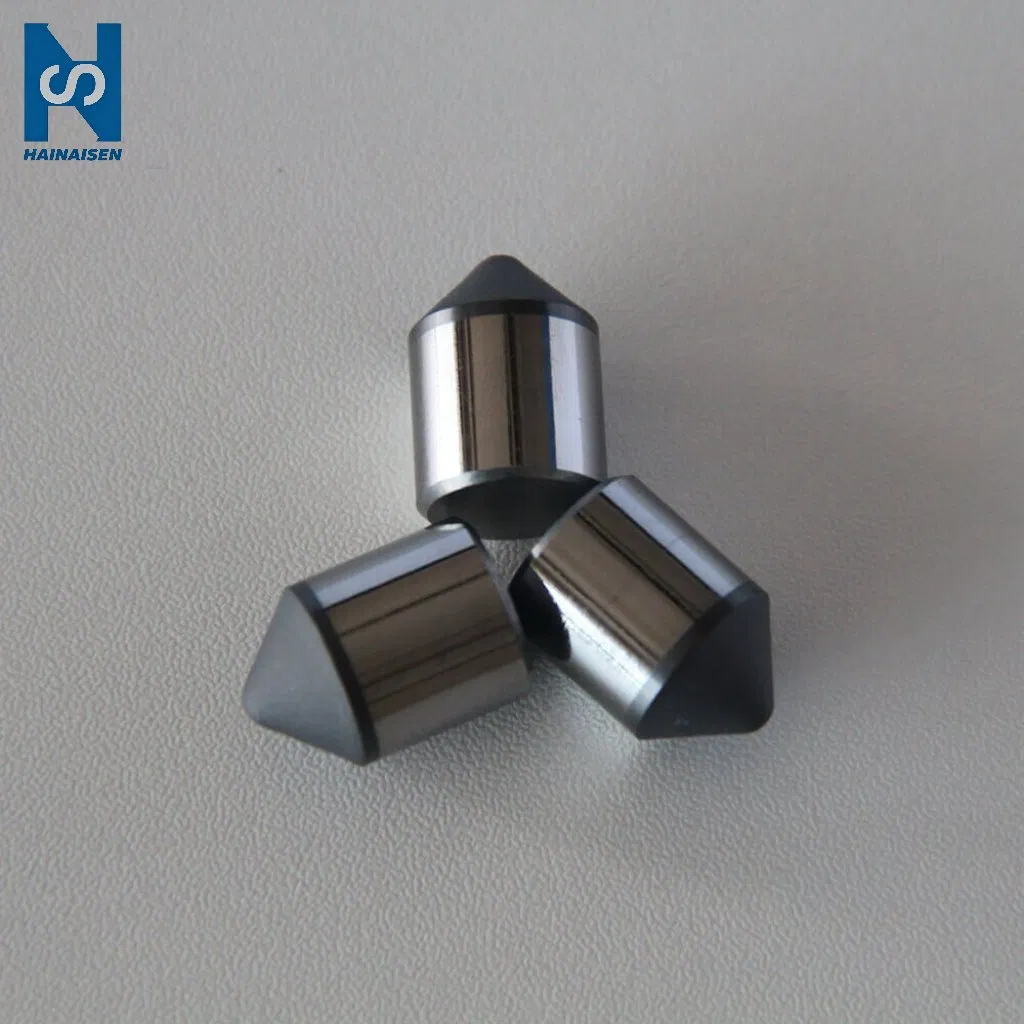

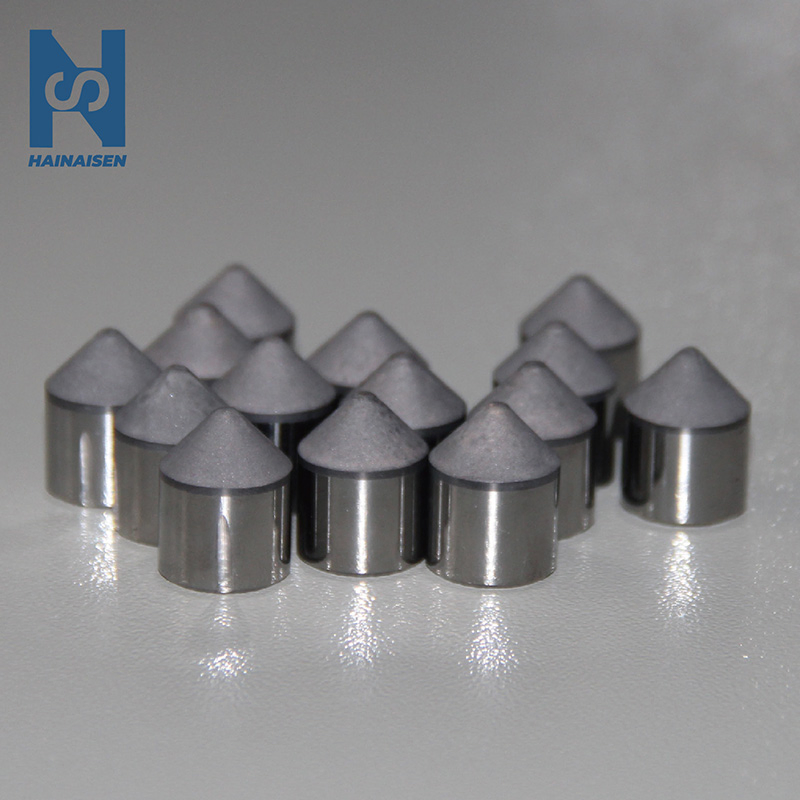

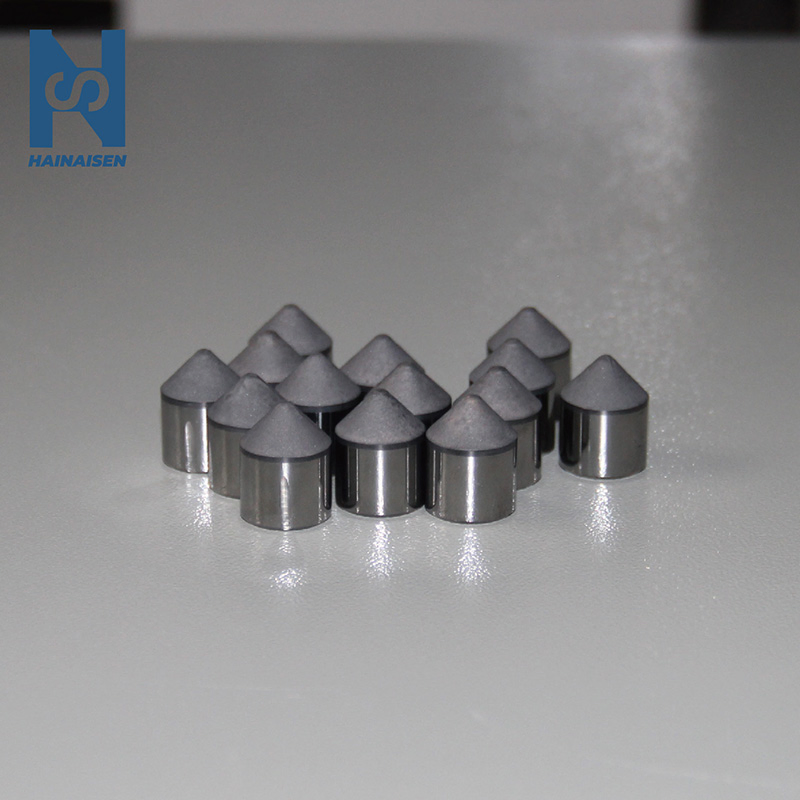

Conical Cutter Series

Core Features: Sharp tapered tip for strong penetration. Reduces drilling resistance in hard formations. Tapered structure disperses stress to avoid chipping.

Applicable Position: Exclusively for main teeth. High-efficiency crushing for medium-hard to hard strata.

Specifications

Model No.	Diameter (mm)	Height (mm)	Diamond (mm)	Chamfer (mm)
S1308	13.44	8.00	2.00	0.40
S1313	13.44	13.20	2.00	0.40
S1316	13.20	15.88	2.00	0.35
S1613	15.88	13.20	2.40	0.40
S1913	19.05	13.20	2.40	0.30
S1916	19.05	16.00	2.40	0.30
S2219	22.20	19.05	2.00	0.30

Model No.	Diameter (mm)	Height (mm)	Diamond (mm)	Chamfer (mm)
DE1319	12.925	19.00	4.60	5.94
DE2028	20.00	28.00	5.40	11.0

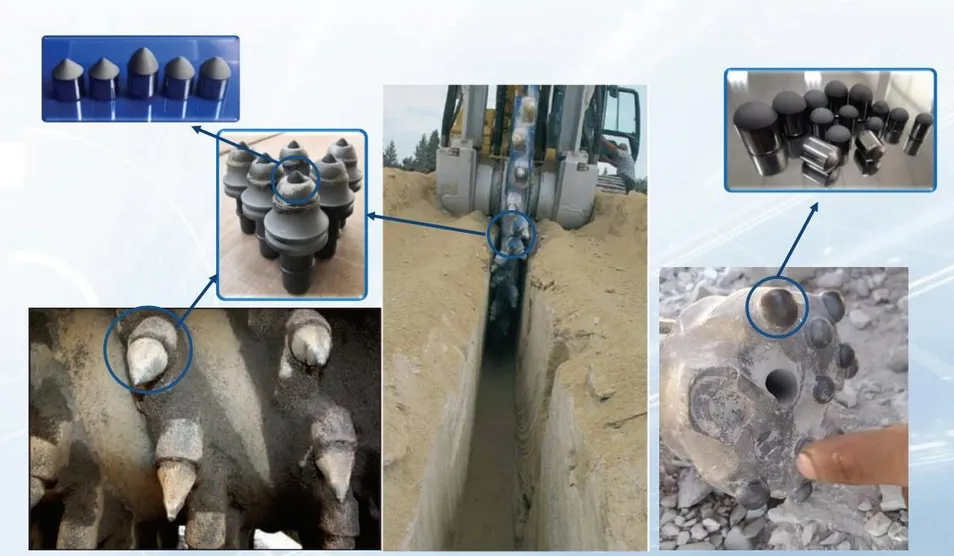

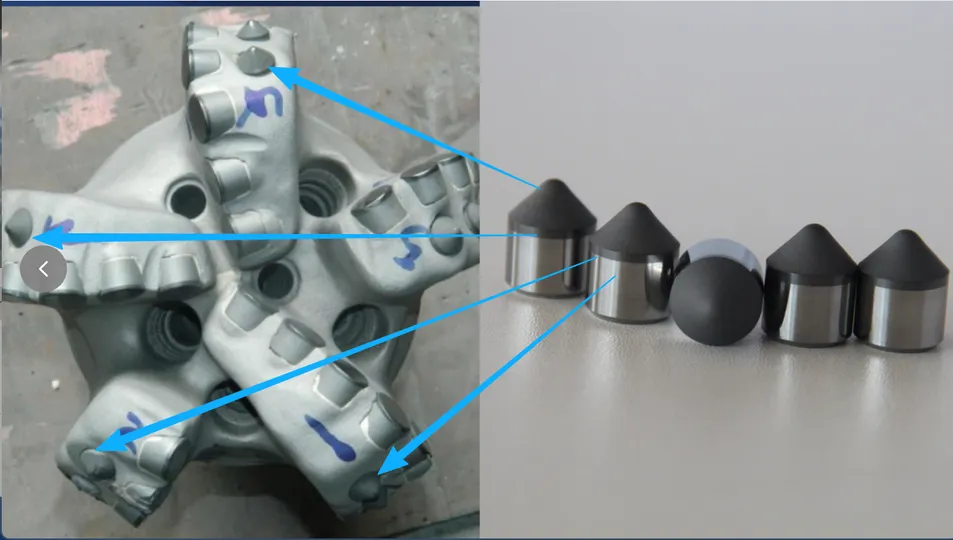

Application Case

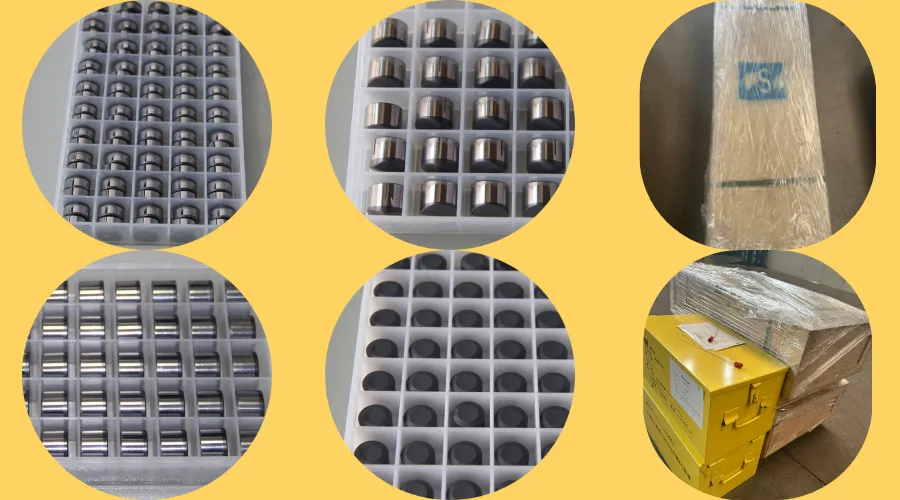

Packing & Delivery

Certifications

Frequently Asked Questions

Are you a factory or a trading company?

We are a professional PDC Cutter manufacturer with our own production line and R&D team, providing factory direct sales with competitive prices and stable quality.

Do you accept OEM/ODM customization?

Yes. We support both OEM (custom packaging) and ODM (custom size and performance) to meet your specific brand and market requirements.

Can different PDC Cutters be mixed on one drill bit?

Yes. Half-moon and full-round PDC Cutters can be combined according to stratum characteristics to optimize drilling efficiency and stability.

Do you provide technical support after the sale?

Yes. Our professional technical team provides 24/7 online service, including drill bit matching, usage guidance, and failure analysis.

What shipping methods do you support?

We support shipping by express (DHL/FedEx/UPS, 3-7 days), by air (5-10 days), and by sea (20-35 days) based on your urgency and address.

Can I place a trial order with a small quantity?

Yes. Trial orders are acceptable for new customers to test our quality and performance.
