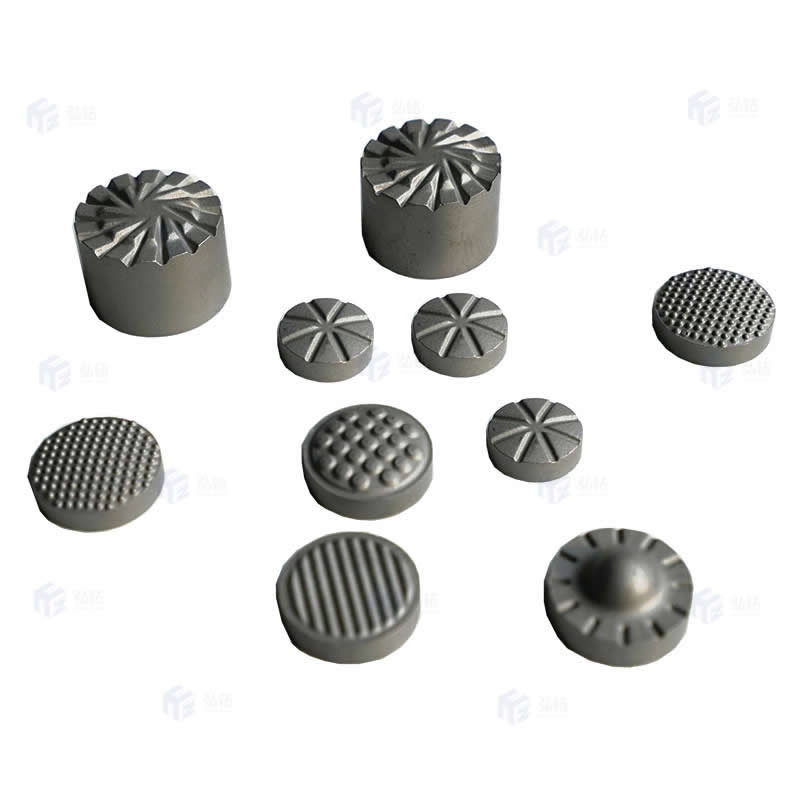

Conical Shaped Ridge Shaped Cambered Face PDC Cutter

1 / 5

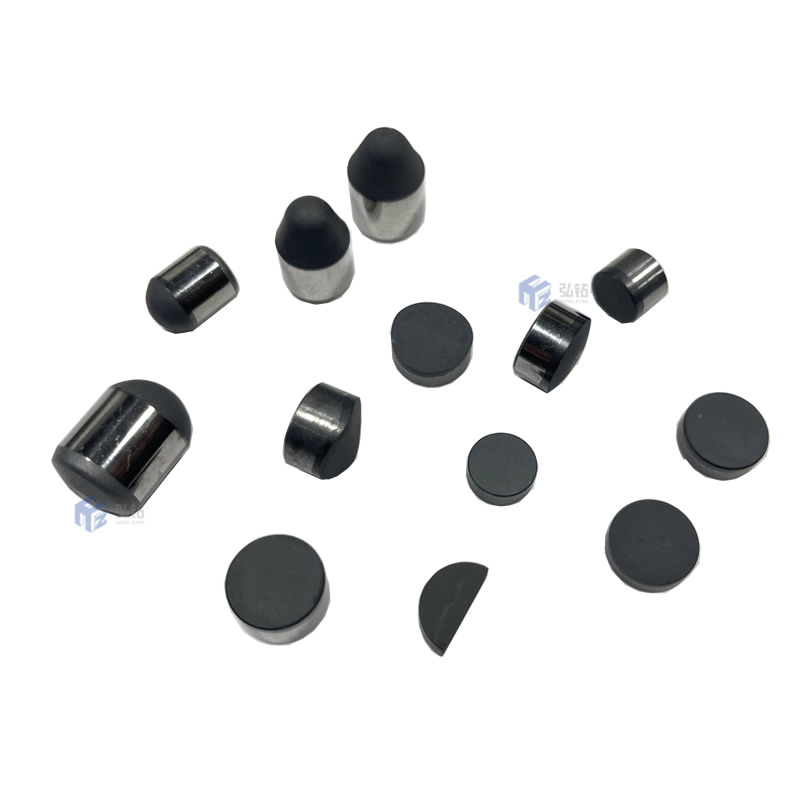

Conical Shaped Ridge Shaped Cambered Face PDC Cutter

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

PDC Inserts

Certification

ISO9001

Transport Package

As Customer Demand

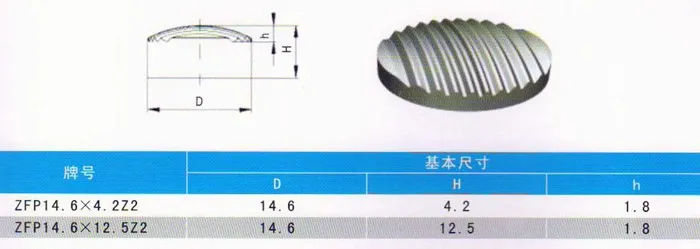

Specification

1613 1304 1308 1616 or customized

Production Capacity

20 Ton Per Month

Product Description

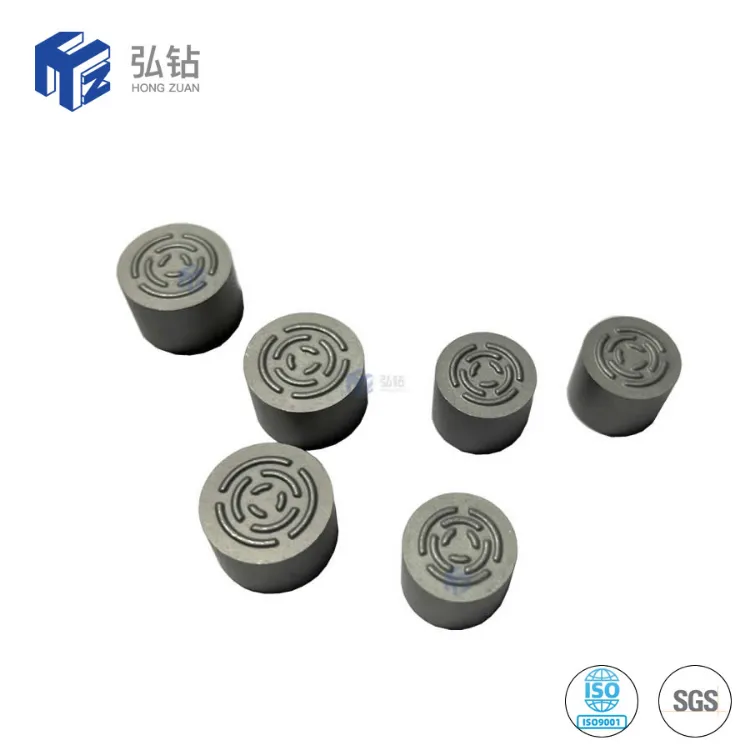

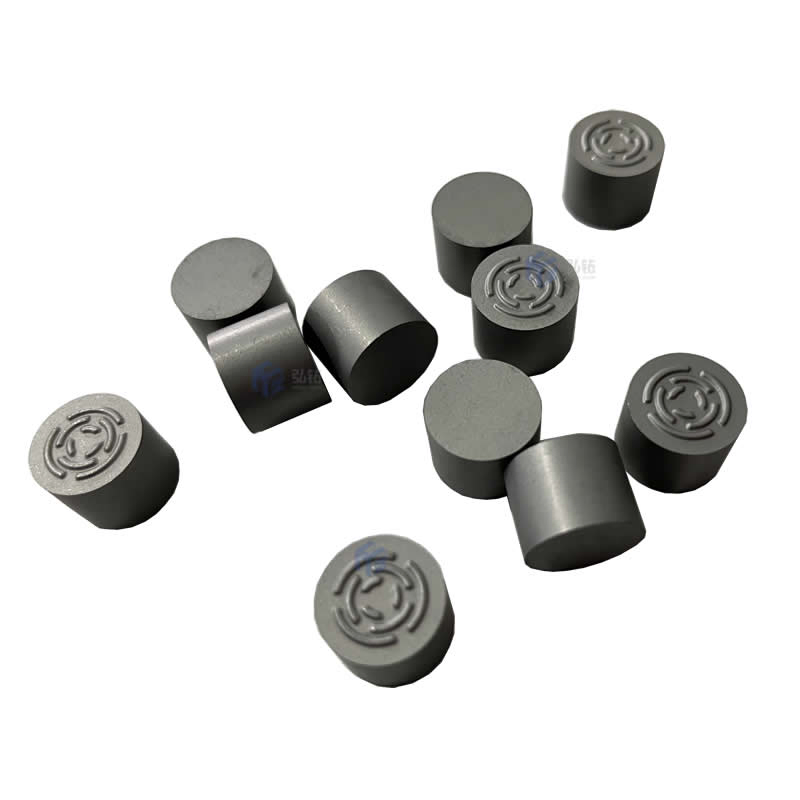

Features of Carbide PDC Substrate

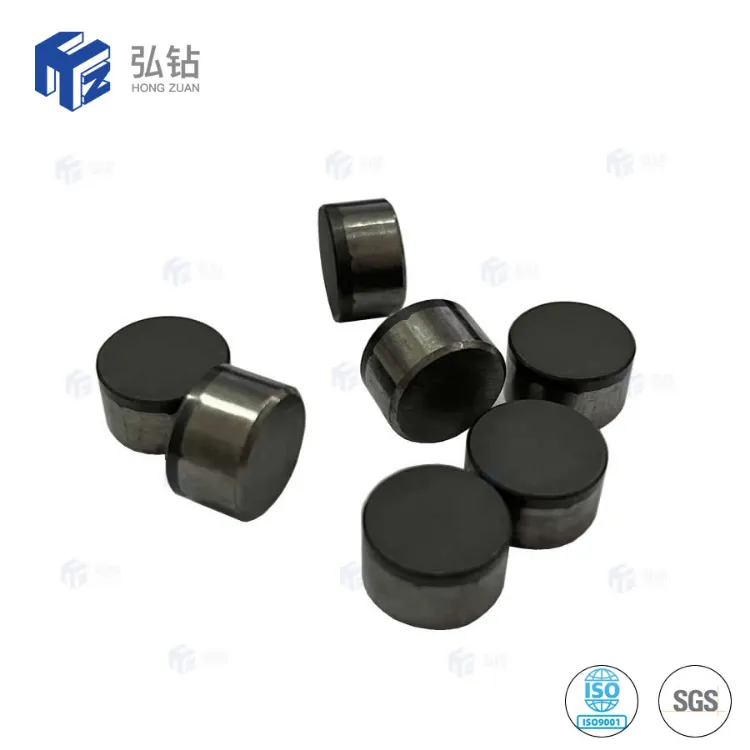

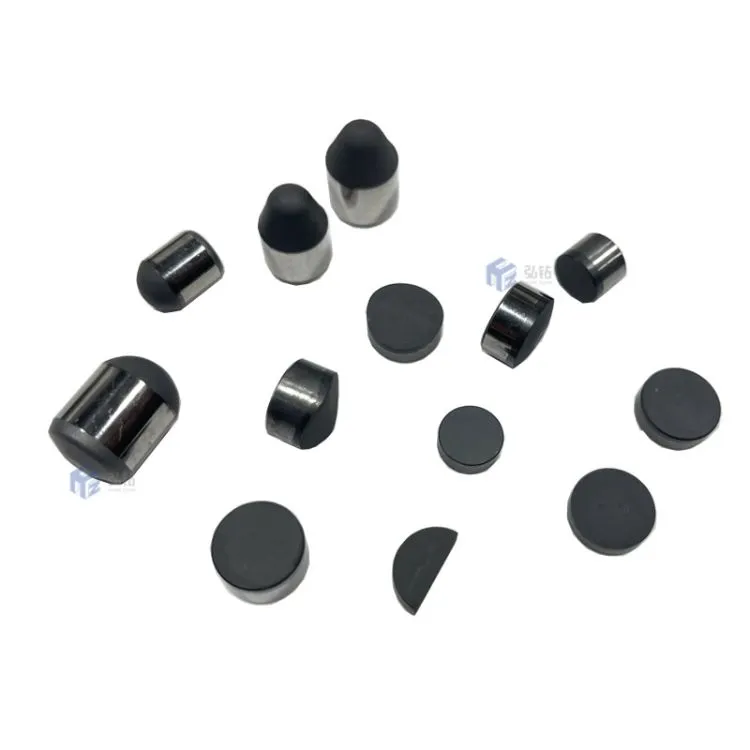

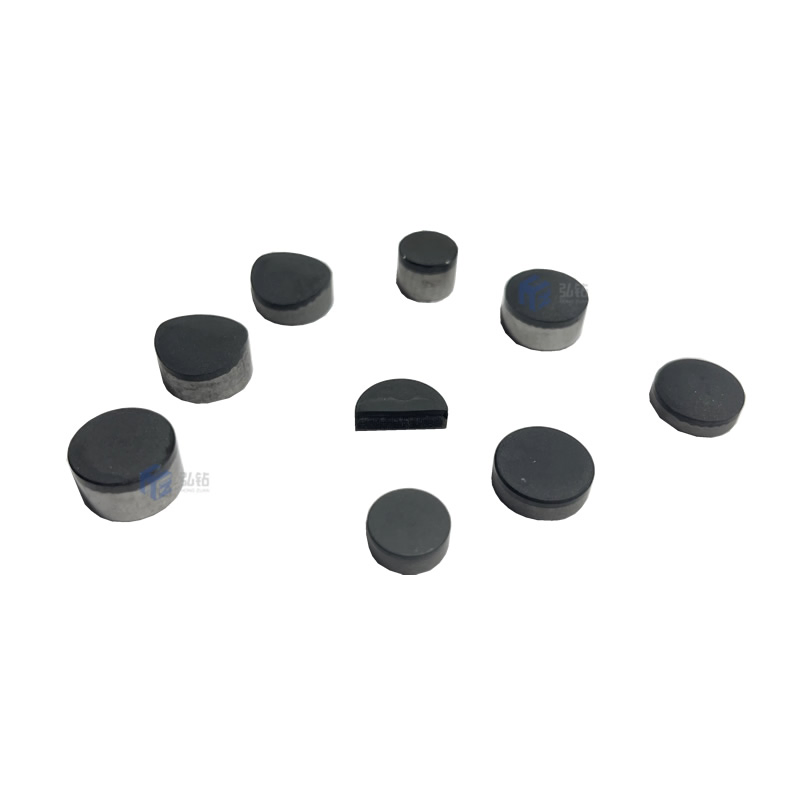

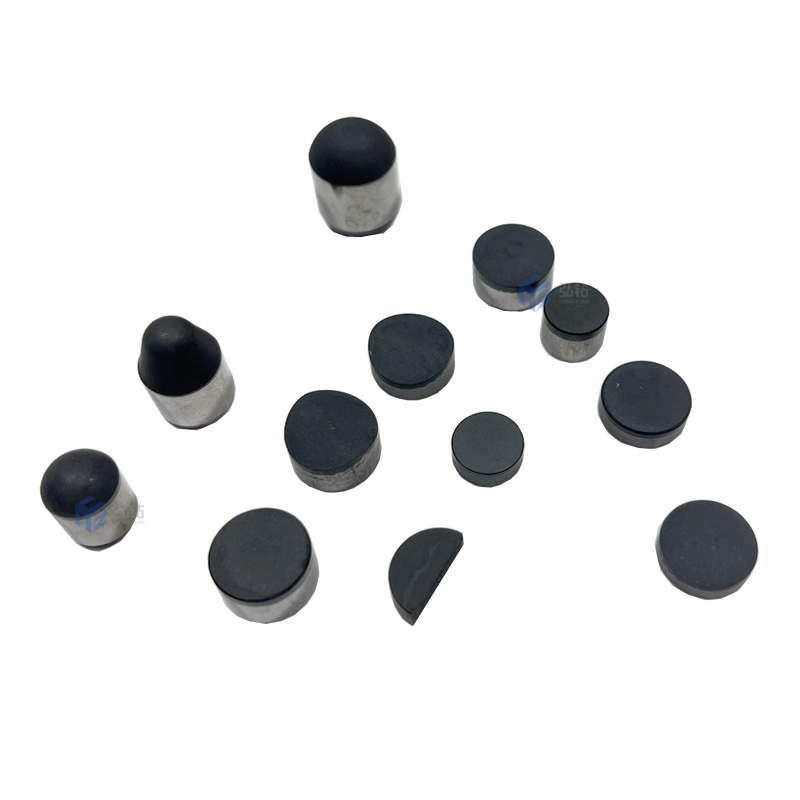

1. PDC (Polycrystalline Diamond Compact) Cutter is a kind of superhard material that compacts polycrystalline diamond with a tungsten carbide substrate at ultra-high temperature and pressure.

Since PDC Cutters consist of diamond grit and tungsten carbide substrate, they combine the advantages of both materials, featuring high abrasion resistance, high impact resistance, and high thermal stability.

Currently, PDC Cutters are widely applied to oil field drilling, gas and geological exploration, coal mining, and many other drilling and milling applications. They are used in tools such as Steel PDC Drill Bits & Matrix PDC Drill Bits for oil drilling and Tri-cone PDC Drill Bits for coal mining.

Ball Nose PDC Mining Buttons
Type	0914	1217	1422	1621	1825	1925
Dia.(mm)	9	12.07	14.1	16.07	18.07	19.05
Height(mm)	14	17	22	21	25	25
R(mm)	5.2	6.2	7.2	8.2	9.2	9.5

Flat Nose PDC Mining Buttons
Type	1304	1308	1313	1613	1908	1913
Dia.(mm)	13.44	13.44	13.44	16	19.05	19.05
Height(mm)	4.5	8	13.2	13.2	8	13.2

Grade Recommendations

Grade	Main Chemical (%)					Hardness (≥HRA)	Density (g/cm³)	T.R.S (≥N/mm²)
Grade	WC	Co	Ni	Tic	Other	Hardness (≥HRA)	Density (g/cm³)	T.R.S (≥N/mm²)
YWN6	94	-	6	-	-	89	14.5-14.9	1500
YWN8	92	-	8	-	-	88	14.4-14.8	1650
YWN10	90	-	10	-	-	87	14.5-14.9	2100
YG6	94	6	-	-	-	89.5	14.7-15.1	1550
YG8	92	8	-	-	-	89	14.6-14.9	1850
YG13	87	13	-	-	-	88	13.9-14.2	2400

Applications

Button bits for coal mining: Used for coal cutting picks, electric coal drill bits, roadway excavation, and rotary drilling for pile holes.
Carbide button bits for construction: Used for bridge pile foundation excavation, tunnel shield, urban road crossing, and high-speed railway maintenance.
Carbide button bits for oil-field: Applied in tri-cone drill bits for oil and gas fields excavation and large-scale open-pit mines.
Mining button bits: Suitable for high and low pressure DTH drills and hydraulic screw-in drills.

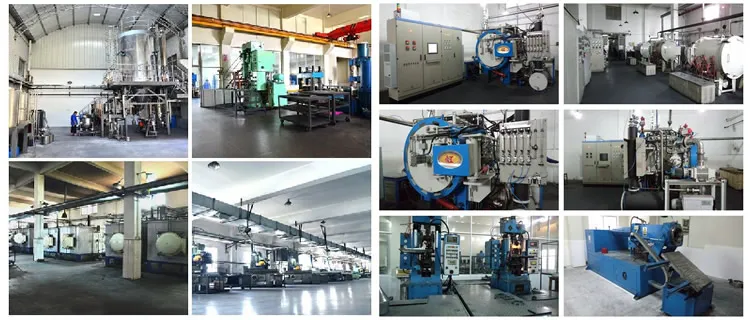

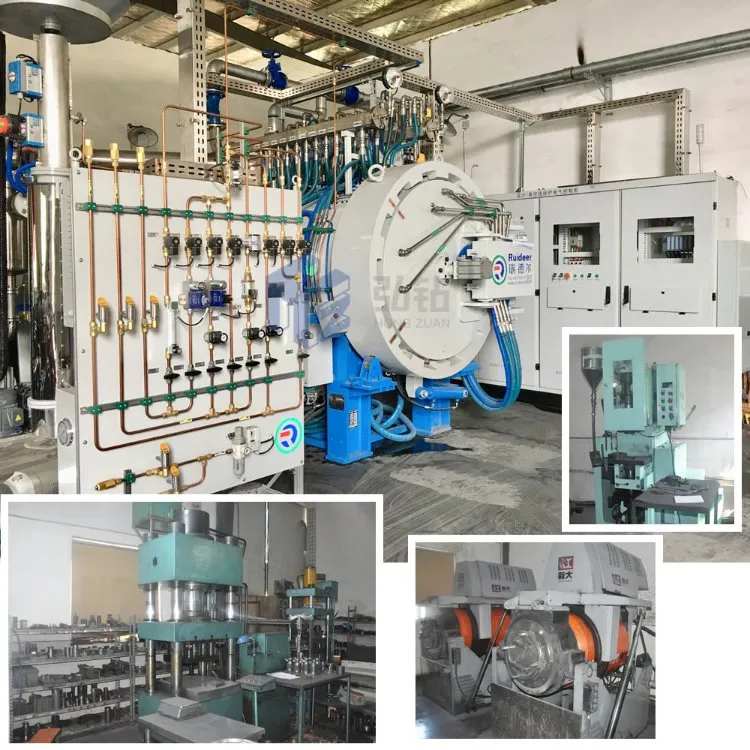

Professional Manufacturing & Quality Control

With over 20 years of production experience in tungsten carbide products, our facility utilizes advanced processes to ensure industrial-grade quality for aerospace, machining, metallurgy, and oil drilling applications. We maintain a professional QC team following the ISO9001:2015 system, covering raw materials, production processes, and final packaging.

Product Packaging

Frequently Asked Questions

Are you a factory or a trading company?

We are a factory with over 20 years of production experience specializing in high-quality tungsten carbide products.

What is the production process?

Our process includes raw material cutting, machine processing, grinding, cleaning, assembly, stoving, oil coating, testing, and final packaging.

How do you control product quality?

All products undergo rigorous testing before bulk production. We check physical properties, shapes, and tolerances to ensure 100% qualification before shipping.

What are the available transportation options?

For small quantities, we suggest express delivery (DHL, UPS, TNT, FEDEX). Large quantities are typically transported by sea.

Do you provide OEM services?

Yes, we work on OEM orders. Sizes, quantities, designs, and packaging solutions can be customized according to your specific requirements.

What is your typical delivery time?

For standard types with existing molds, it takes 7-15 days. For non-standard items requiring new molds, delivery is typically 15-35 days after receiving the advance payment.
